WifiPhyStats Class Reference

The WifiPhyStats class collects Wifi MAC/PHY statistics. More...

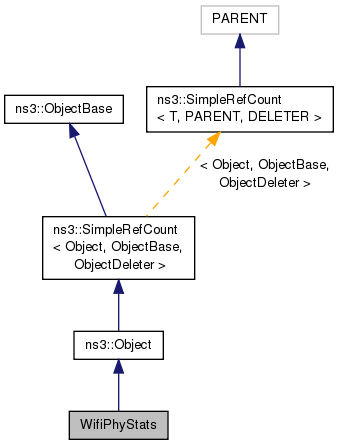

Inheritance diagram for WifiPhyStats:

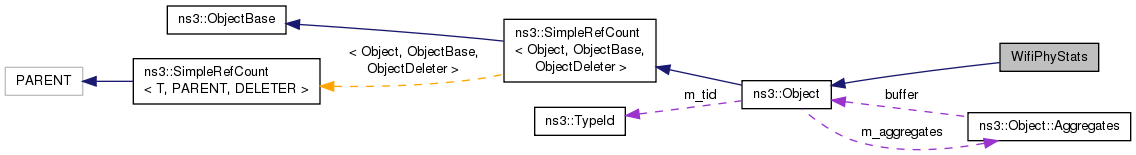

Collaboration diagram for WifiPhyStats:

Public Member Functions
	WifiPhyStats ()
	Constructor. More...
virtual	~WifiPhyStats ()
	Destructor. More...
uint32_t	GetTxBytes ()
	Returns the number of bytes that have been transmitted (this includes MAC/PHY overhead) More...
void	PhyRxDrop (std::string context, Ptr< const Packet > packet)
	Callback signiture for Phy/RxDrop. More...
void	PhyTxDrop (std::string context, Ptr< const Packet > packet)
	Callback signiture for Phy/TxDrop. More...
void	PhyTxTrace (std::string context, Ptr< const Packet > packet, WifiMode mode, WifiPreamble preamble, uint8_t txPower)
	Callback signiture for Phy/Tx trace. More...
Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...
virtual	~Object ()
	Destructor. More...
void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...
void	Dispose (void)
	Dispose of this Object. More...
AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...
virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...
template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...
void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...
bool	IsInitialized (void) const
	Check if the object has been initialized. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Gets the class TypeId. More...
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_phyTxBytes
uint32_t	m_phyTxPkts

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...
virtual void	DoDispose (void)
	Destructor implementation. More...
virtual void	DoInitialize (void)
	Initialize() implementation. More...
virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...
virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The WifiPhyStats class collects Wifi MAC/PHY statistics.

Definition at line 724 of file vanet-routing-compare.cc.

Constructor & Destructor Documentation

WifiPhyStats::WifiPhyStats

(

)

Constructor.

Returns

none

Definition at line 795 of file vanet-routing-compare.cc.

WifiPhyStats::~WifiPhyStats ( )

virtual

Destructor.

Returns

none

Definition at line 801 of file vanet-routing-compare.cc.

Member Function Documentation

uint32_t WifiPhyStats::GetTxBytes

(

void

)

Returns the number of bytes that have been transmitted (this includes MAC/PHY overhead)

Returns

the number of bytes transmitted

Definition at line 829 of file vanet-routing-compare.cc.

References m_phyTxBytes.

Referenced by VanetRoutingExperiment::CheckThroughput(), and VanetRoutingExperiment::ProcessOutputs().

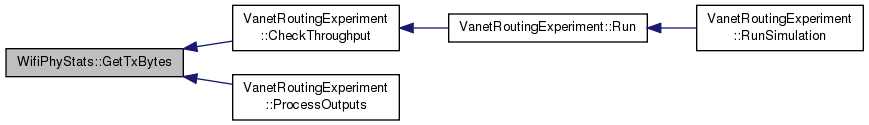

Here is the caller graph for this function:

TypeId WifiPhyStats::GetTypeId ( void  )

static

Gets the class TypeId.

Returns

the class TypeId

Definition at line 787 of file vanet-routing-compare.cc.

References ns3::TypeId::SetParent().

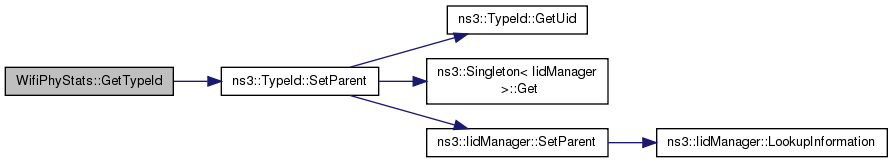

Here is the call graph for this function:

void WifiPhyStats::PhyRxDrop	(	std::string	context,
		Ptr< const Packet >	packet
	)

Callback signiture for Phy/RxDrop.

Parameters

context	this object
packet	the rx packet being dropped

Returns

none

Definition at line 823 of file vanet-routing-compare.cc.

References NS_LOG_UNCOND.

Referenced by VanetRoutingExperiment::ConfigureDevices().

Here is the caller graph for this function:

void WifiPhyStats::PhyTxDrop	(	std::string	context,
		Ptr< const Packet >	packet
	)

Callback signiture for Phy/TxDrop.

Parameters

context	this object
packet	the tx packet being dropped

Returns

none

Definition at line 817 of file vanet-routing-compare.cc.

References NS_LOG_UNCOND.

Referenced by VanetRoutingExperiment::ConfigureDevices().

Here is the caller graph for this function:

void WifiPhyStats::PhyTxTrace	(	std::string	context,
		Ptr< const Packet >	packet,
		WifiMode	mode,
		WifiPreamble	preamble,
		uint8_t	txPower
	)

Callback signiture for Phy/Tx trace.

Parameters

context	this object
packet	packet transmitted
mode	wifi mode
preamble	wifi preamble
txPower	transmission power

Returns

none

Definition at line 806 of file vanet-routing-compare.cc.

References ns3::Packet::GetSize(), m_phyTxBytes, m_phyTxPkts, and NS_LOG_FUNCTION.

Referenced by VanetRoutingExperiment::ConfigureDevices().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint32_t WifiPhyStats::m_phyTxBytes

private

Definition at line 781 of file vanet-routing-compare.cc.

Referenced by GetTxBytes(), and PhyTxTrace().

uint32_t WifiPhyStats::m_phyTxPkts

private

Definition at line 780 of file vanet-routing-compare.cc.

Referenced by PhyTxTrace().

---

The documentation for this class was generated from the following file:

• src/wave/examples/vanet-routing-compare.cc
