ns3::ConfigImpl Class Reference

Config system implementation class. More...

Inheritance diagram for ns3::ConfigImpl:

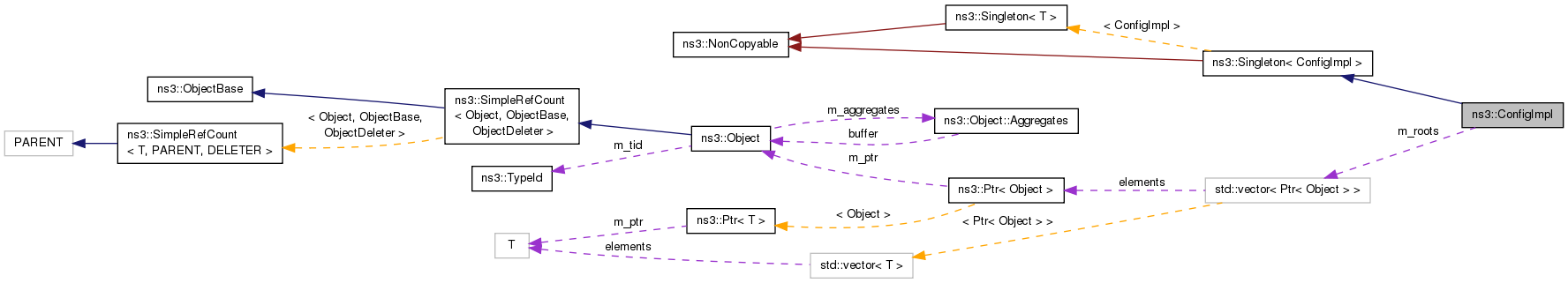

Collaboration diagram for ns3::ConfigImpl:

Public Member Functions
void	Connect (std::string path, const CallbackBase &cb)
void	ConnectWithoutContext (std::string path, const CallbackBase &cb)
void	Disconnect (std::string path, const CallbackBase &cb)
void	DisconnectWithoutContext (std::string path, const CallbackBase &cb)
Ptr< Object >	GetRootNamespaceObject (uint32_t i) const
uint32_t	GetRootNamespaceObjectN (void) const
Config::MatchContainer	LookupMatches (std::string path)
void	RegisterRootNamespaceObject (Ptr< Object > obj)
void	Set (std::string path, const AttributeValue &value)
void	UnregisterRootNamespaceObject (Ptr< Object > obj)

Private Types
typedef std::vector< Ptr< Object > >	Roots
	Container type to hold the root Config path tokens. More...

Private Member Functions
void	ParsePath (std::string path, std::string *root, std::string *leaf) const
	Break a Config path into the leading path and the last leaf token. More...

Private Attributes
Roots	m_roots
	The list of Config path roots. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Singleton< ConfigImpl >
static ConfigImpl *	Get (void)
	Get a pointer to the singleton instance. More...

Detailed Description

Config system implementation class.

Definition at line 576 of file config.cc.

Member Typedef Documentation

typedef std::vector<Ptr<Object> > ns3::ConfigImpl::Roots

private

Container type to hold the root Config path tokens.

Definition at line 613 of file config.cc.

Member Function Documentation

void ns3::ConfigImpl::Connect	(	std::string	path,
		const CallbackBase &	cb
	)

Parameters

[in]	path	A path to match trace sources.
[in]	cb	The callback to connect to the matching trace sources.

This function will attempt to find all trace sources which match the input path and will then connect the input callback to them in such a way that the callback will receive an extra context string upon trace event notification.

Definition at line 660 of file config.cc.

References ns3::Config::MatchContainer::Connect(), LookupMatches(), NS_LOG_FUNCTION, and ParsePath().

Referenced by ns3::Config::Connect().

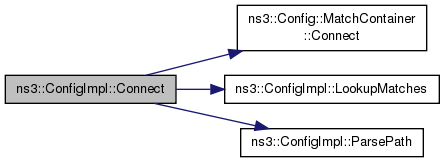

Here is the call graph for this function:

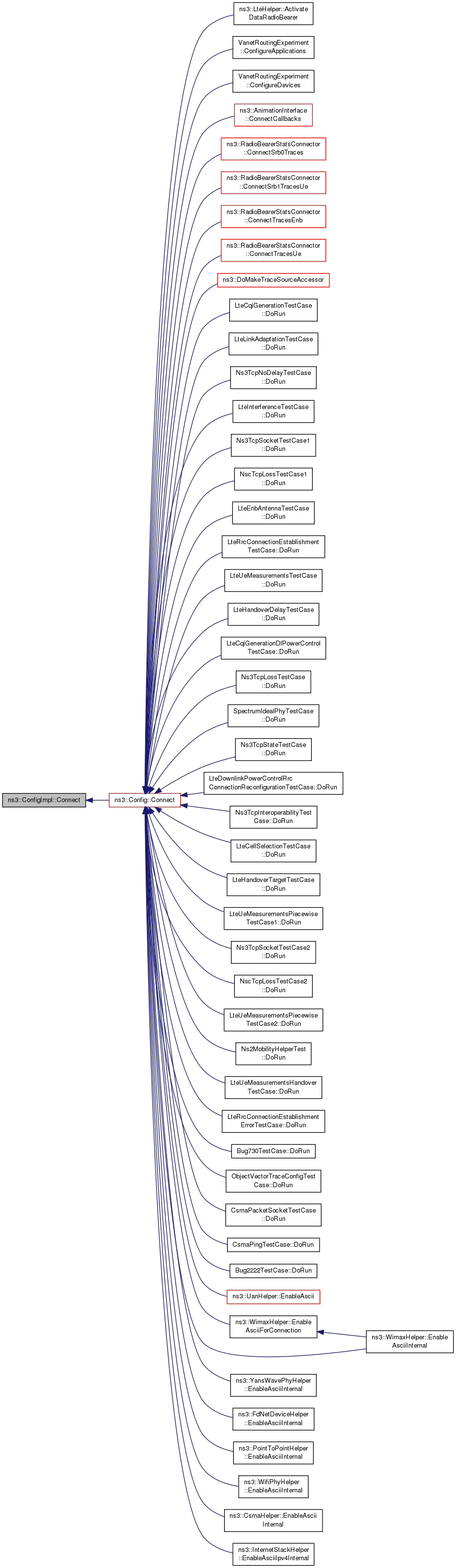

Here is the caller graph for this function:

void ns3::ConfigImpl::ConnectWithoutContext	(	std::string	path,
		const CallbackBase &	cb
	)

Parameters

[in]	path	A path to match trace sources.
[in]	cb	The callback to connect to the matching trace sources.

This function will attempt to find all trace sources which match the input path and will then connect the input callback to them.

Definition at line 642 of file config.cc.

References ns3::Config::MatchContainer::ConnectWithoutContext(), LookupMatches(), NS_LOG_FUNCTION, and ParsePath().

Referenced by ns3::Config::ConnectWithoutContext().

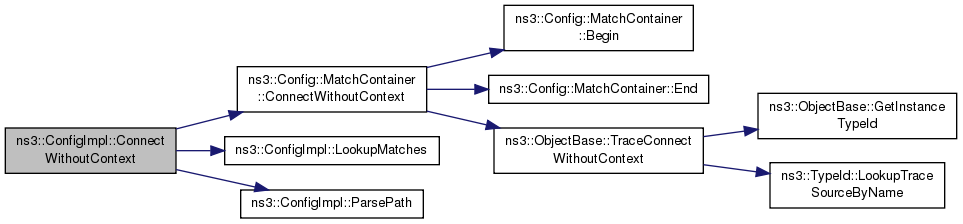

Here is the call graph for this function:

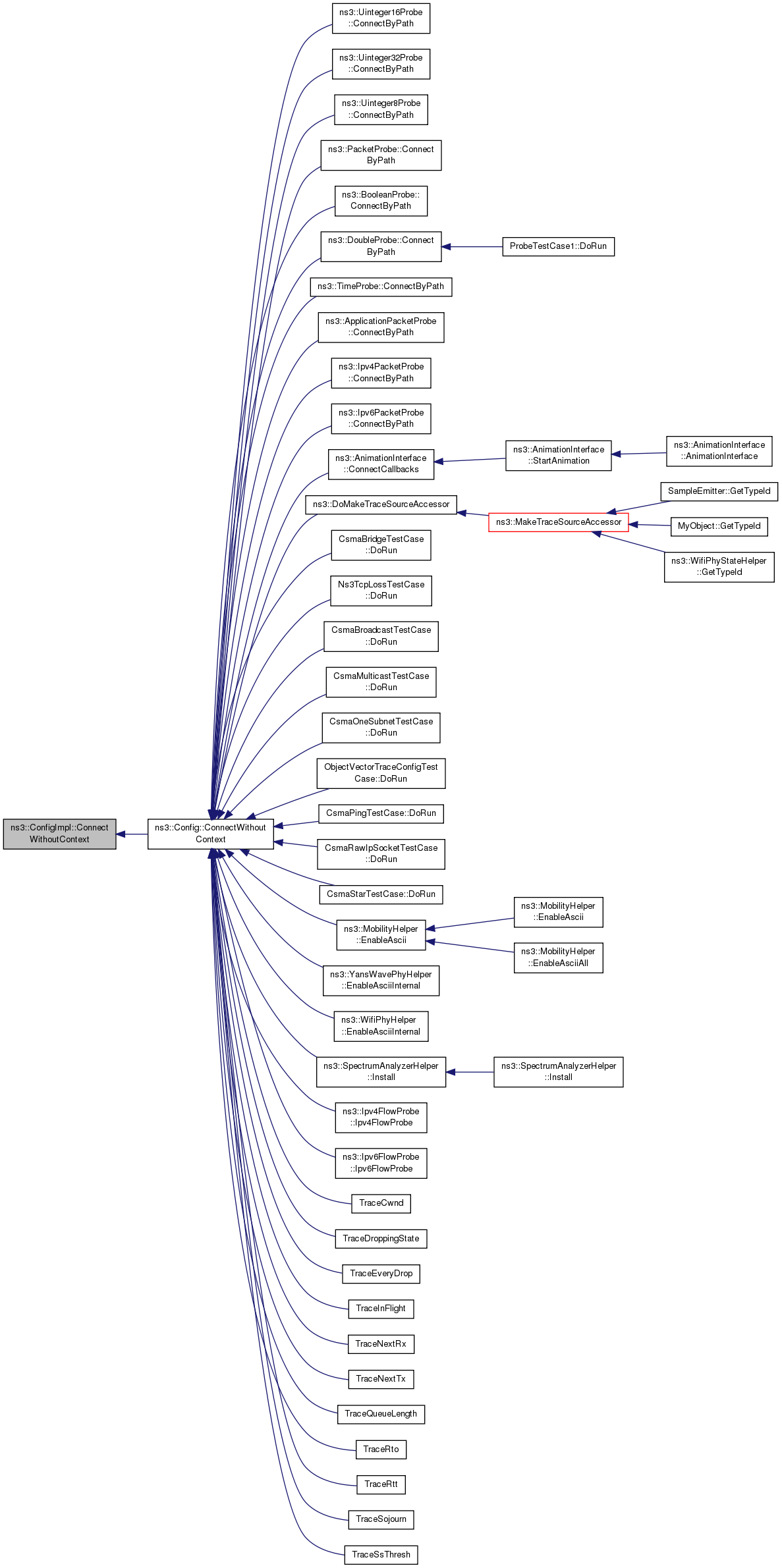

Here is the caller graph for this function:

void ns3::ConfigImpl::Disconnect	(	std::string	path,
		const CallbackBase &	cb
	)

Parameters

[in]	path	A path to match trace sources.
[in]	cb	The callback to connect to the matching trace sources.

This function undoes the work of Config::ConnectWithContext.

Definition at line 670 of file config.cc.

References ns3::Config::MatchContainer::Disconnect(), LookupMatches(), NS_LOG_FUNCTION, and ParsePath().

Referenced by ns3::Config::Disconnect().

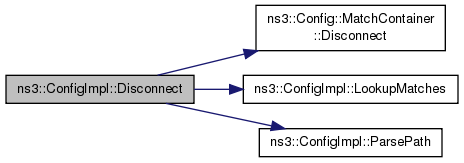

Here is the call graph for this function:

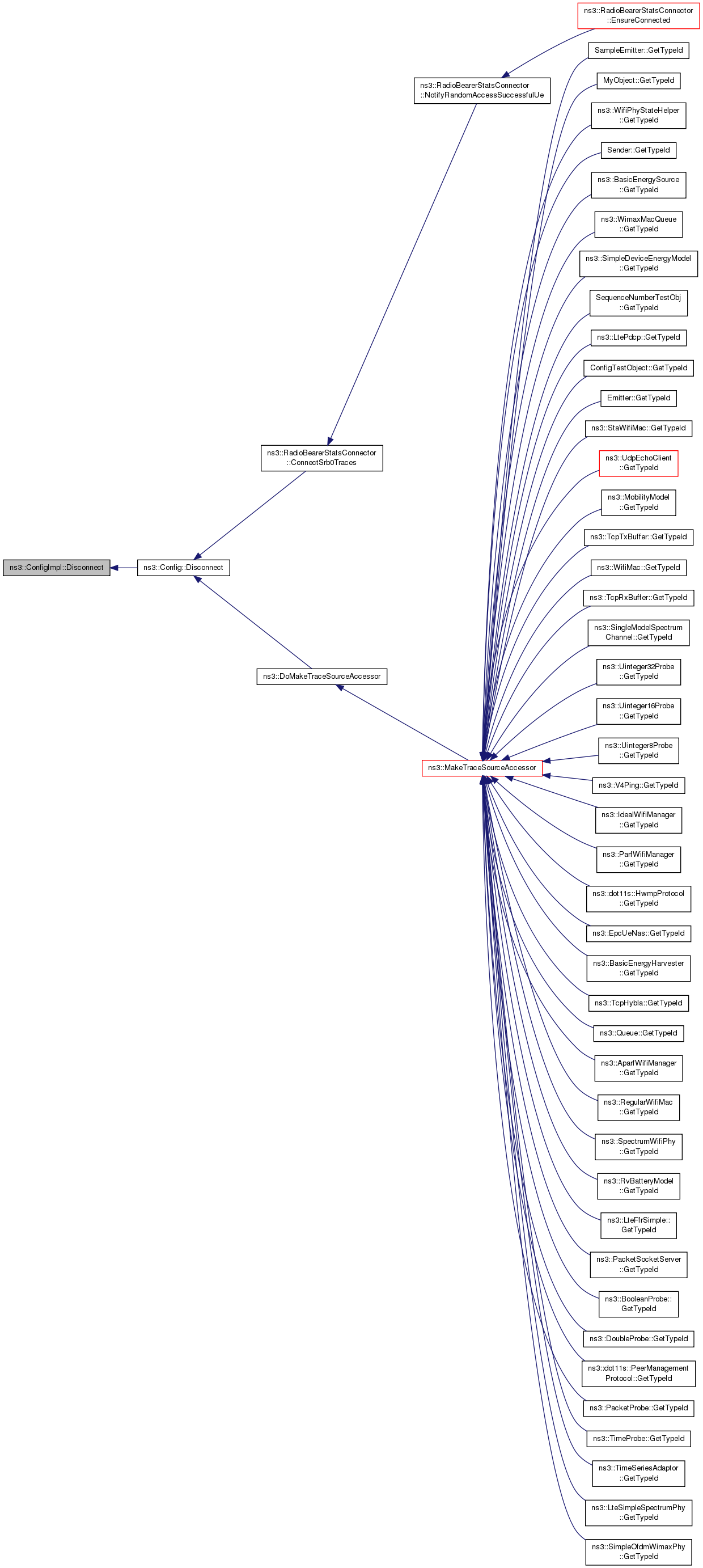

Here is the caller graph for this function:

void ns3::ConfigImpl::DisconnectWithoutContext	(	std::string	path,
		const CallbackBase &	cb
	)

Parameters

[in]	path	A path to match trace sources.
[in]	cb	The callback to disconnect to the matching trace sources.

This function undoes the work of Config::Connect.

Definition at line 651 of file config.cc.

References ns3::Config::MatchContainer::DisconnectWithoutContext(), LookupMatches(), NS_LOG_FUNCTION, and ParsePath().

Referenced by ns3::Config::DisconnectWithoutContext().

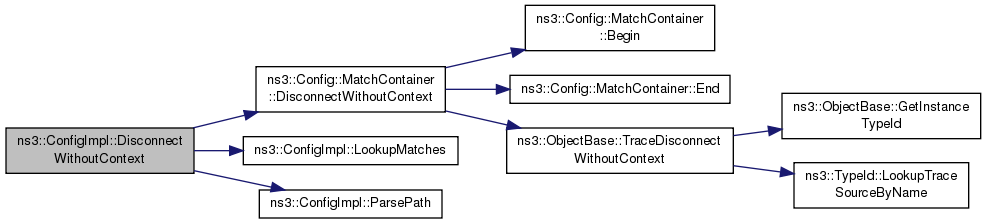

Here is the call graph for this function:

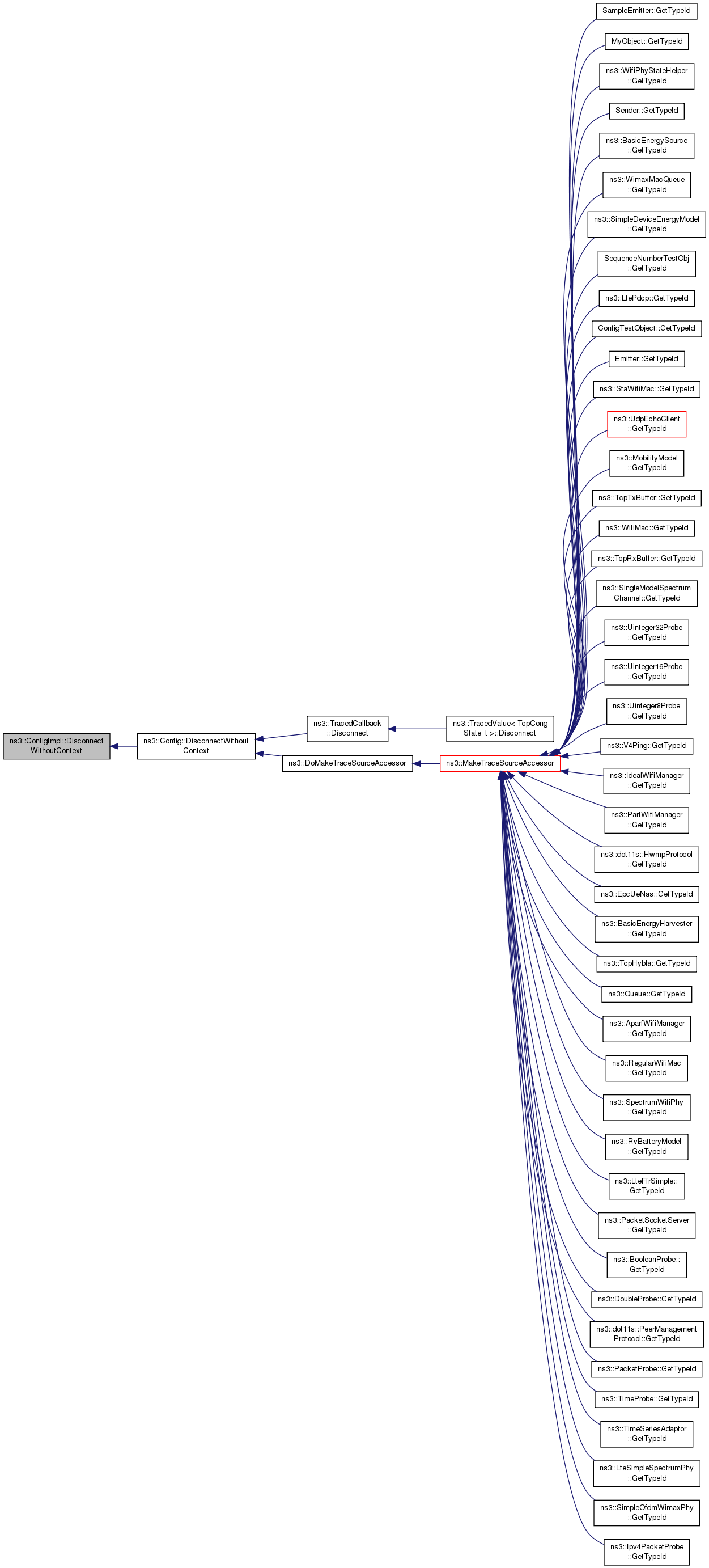

Here is the caller graph for this function:

Ptr< Object > ns3::ConfigImpl::GetRootNamespaceObject

(

uint32_t

i

)

const

Parameters

[in]

i

The index of the requested object.

Returns

The requested root namespace object

Definition at line 741 of file config.cc.

References m_roots, and NS_LOG_FUNCTION.

Referenced by ns3::Config::GetRootNamespaceObject().

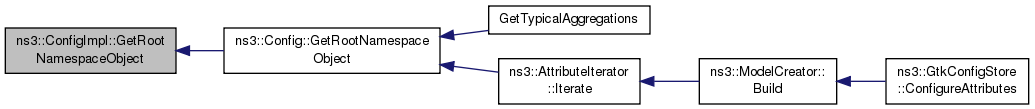

Here is the caller graph for this function:

uint32_t ns3::ConfigImpl::GetRootNamespaceObjectN

(

void

)

const

Returns

The number of registered root namespace objects.

Definition at line 735 of file config.cc.

References m_roots, and NS_LOG_FUNCTION.

Referenced by ns3::Config::GetRootNamespaceObjectN().

Here is the caller graph for this function:

Config::MatchContainer ns3::ConfigImpl::LookupMatches

(

std::string

path

)

Parameters

[in]

path

The path to perform a match against

Returns

A container which contains all the objects which match the input path.

Definition at line 681 of file config.cc.

References m_roots, and NS_LOG_FUNCTION.

Referenced by Connect(), ConnectWithoutContext(), Disconnect(), DisconnectWithoutContext(), ns3::Config::LookupMatches(), and Set().

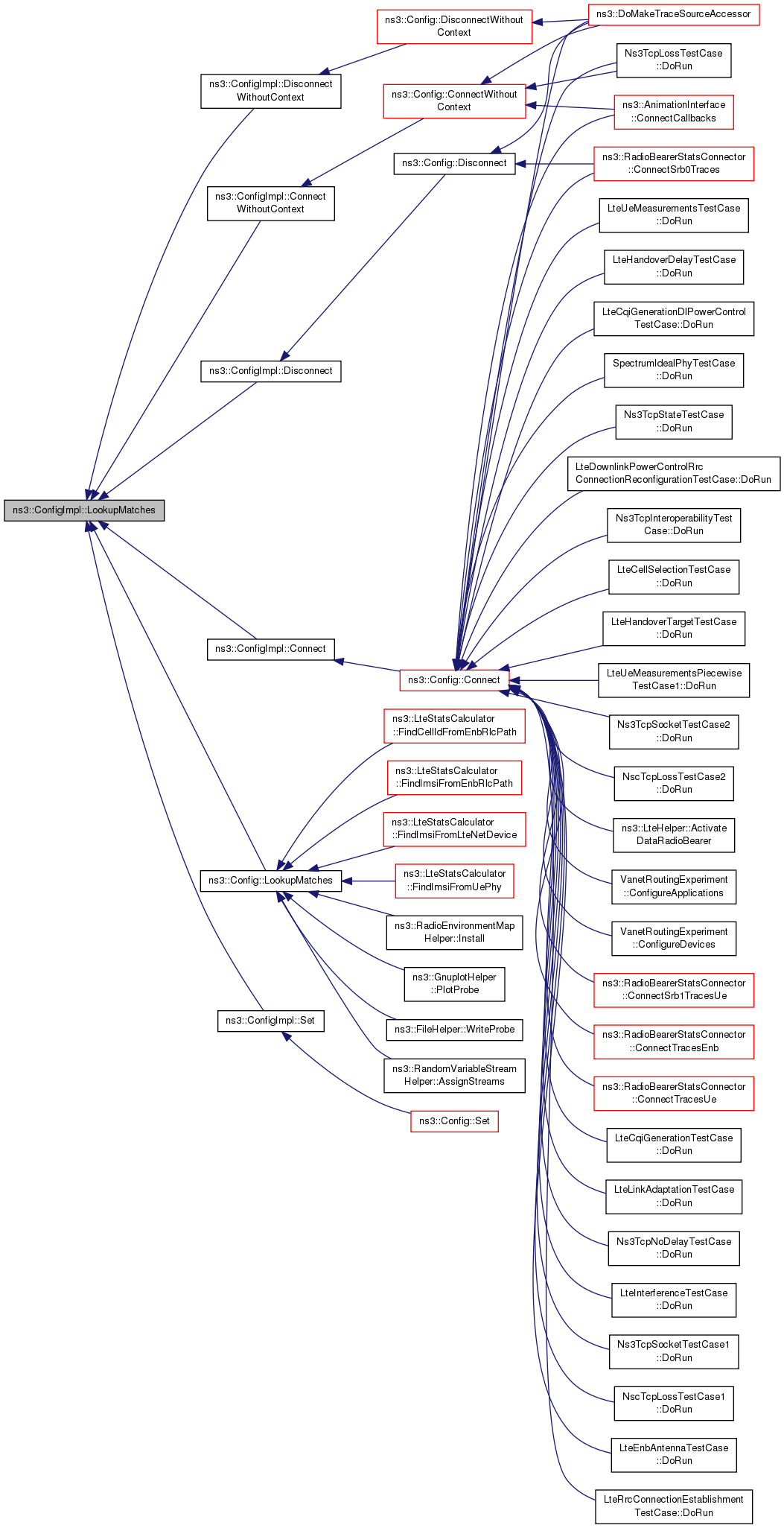

Here is the caller graph for this function:

void ns3::ConfigImpl::ParsePath ( std::string  path, std::string *  root, std::string *  leaf  ) const

private

Break a Config path into the leading path and the last leaf token.

Parameters

[in]	path	The Config path.
[in,out]	root	The leading part of the path, up to the final slash.
[in,out]	leaf	The trailing part of the path.

Definition at line 620 of file config.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Connect(), ConnectWithoutContext(), Disconnect(), DisconnectWithoutContext(), and Set().

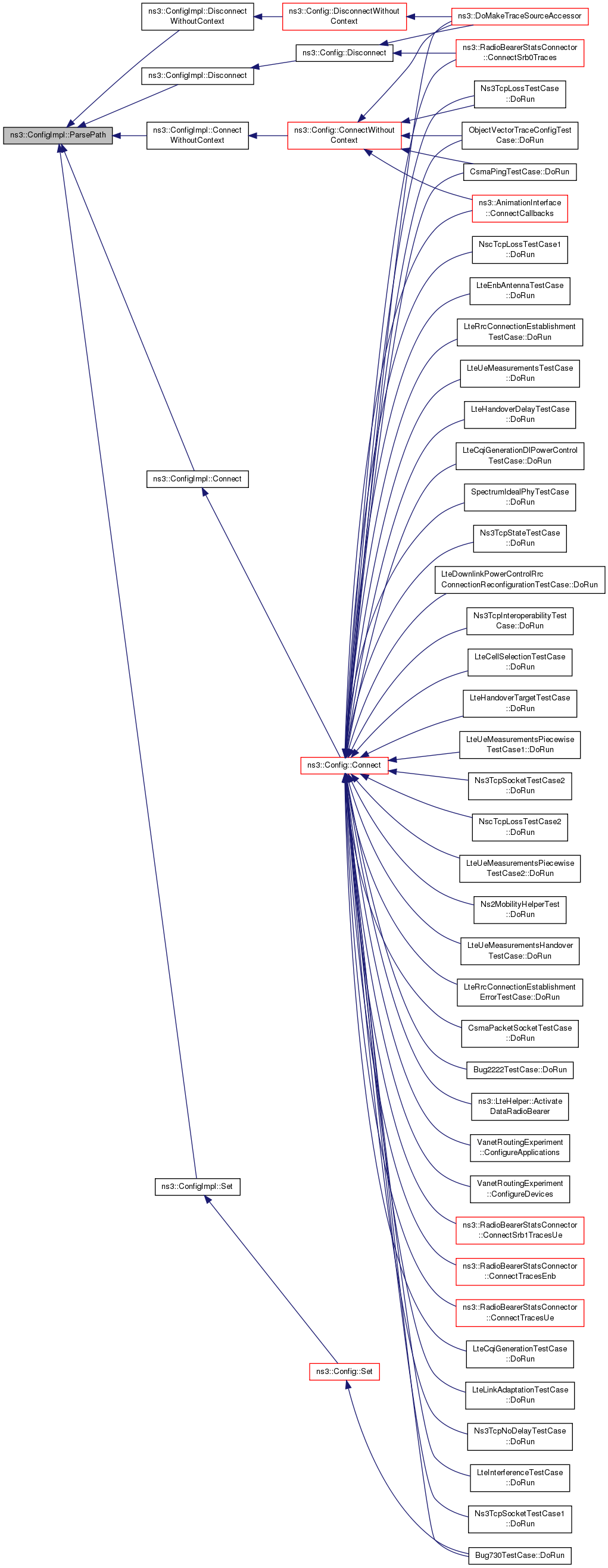

Here is the caller graph for this function:

void ns3::ConfigImpl::RegisterRootNamespaceObject

(

Ptr< Object >

obj

)

Parameters

[in]

obj

A new root object

Each root object is used during path matching as the root of the path by Config::Connect, and Config::Set.

Definition at line 713 of file config.cc.

References m_roots, and NS_LOG_FUNCTION.

Referenced by ns3::Config::RegisterRootNamespaceObject().

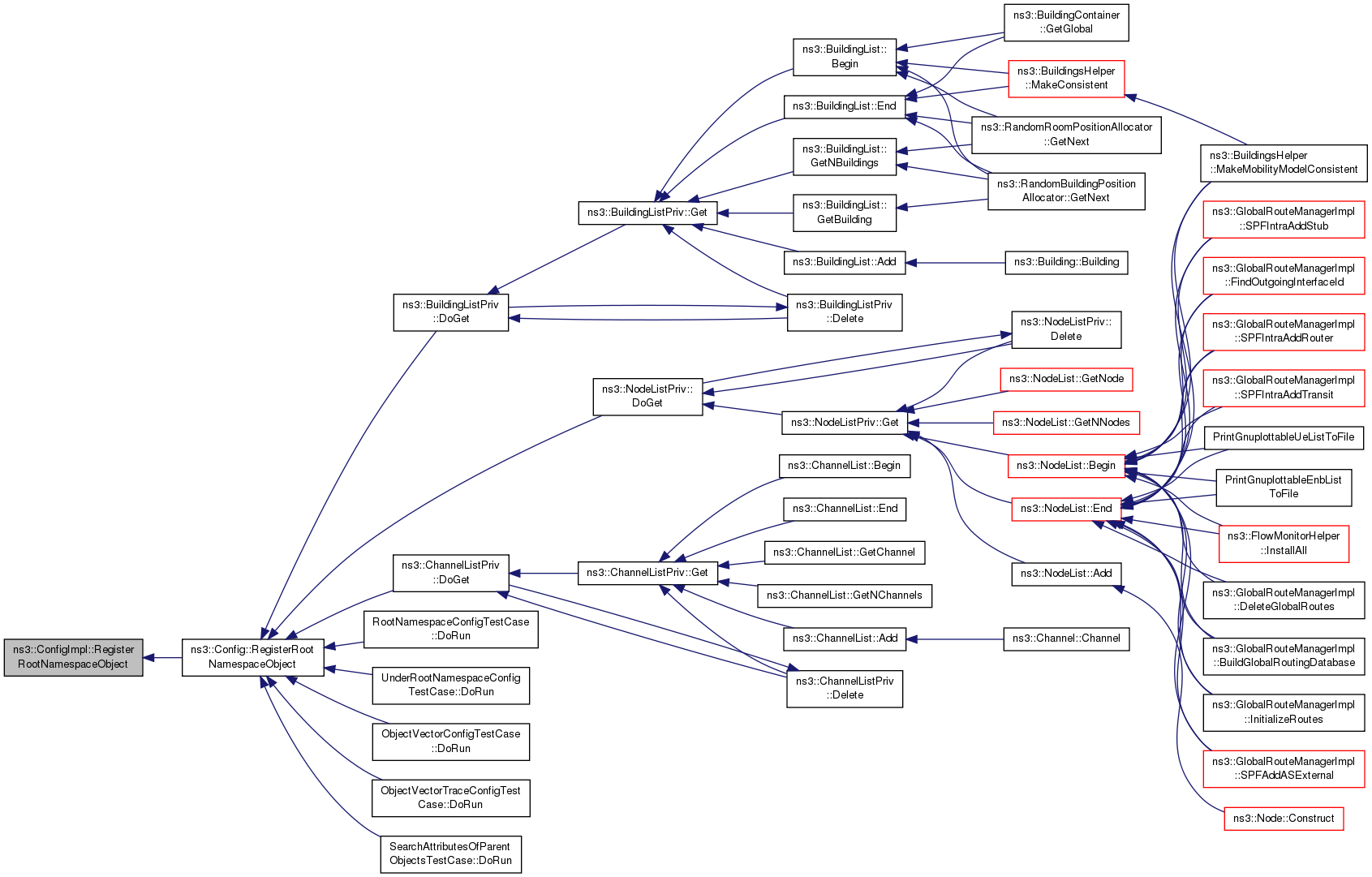

Here is the caller graph for this function:

void ns3::ConfigImpl::Set	(	std::string	path,
		const AttributeValue &	value
	)

Parameters

[in]	path	A path to match attributes.
[in]	value	The value to set in all matching attributes.

This function will attempt to find attributes which match the input path and will then set their value to the input value.

Definition at line 632 of file config.cc.

References LookupMatches(), NS_LOG_FUNCTION, ParsePath(), and ns3::Config::MatchContainer::Set().

Referenced by ns3::Config::Set().

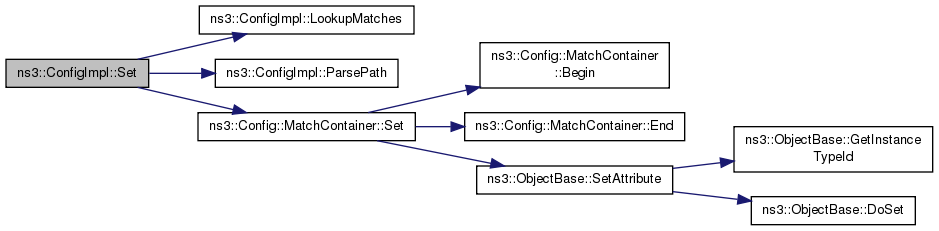

Here is the call graph for this function:

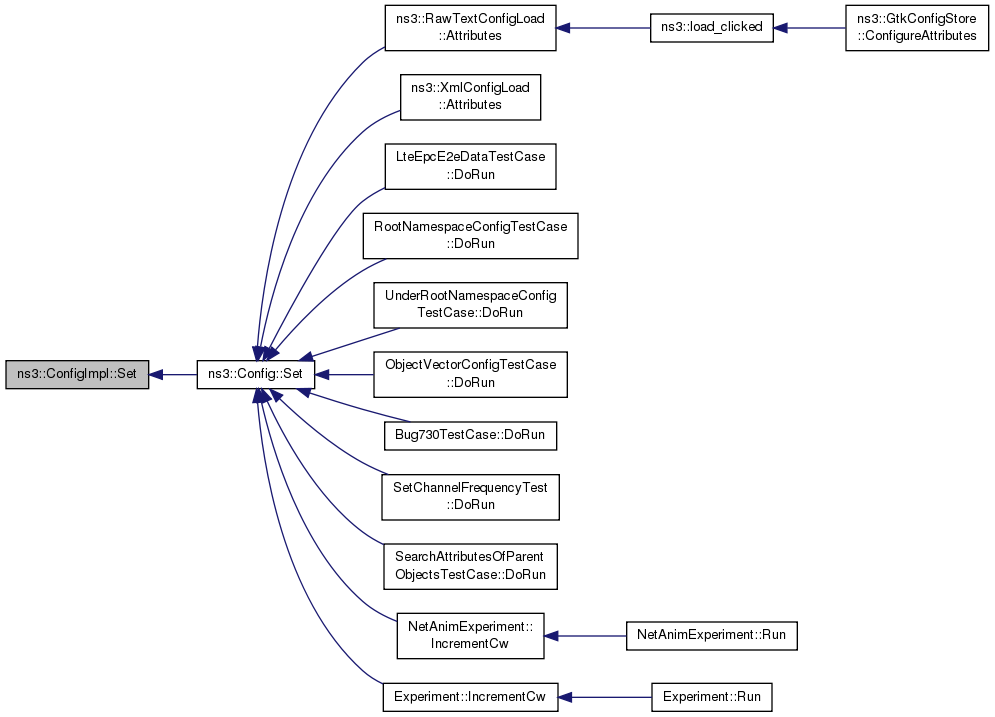

Here is the caller graph for this function:

void ns3::ConfigImpl::UnregisterRootNamespaceObject

(

Ptr< Object >

obj

)

Parameters

[in]

obj

A new root object

This function undoes the work of Config::RegisterRootNamespaceObject.

Definition at line 720 of file config.cc.

References m_roots, and NS_LOG_FUNCTION.

Referenced by ns3::Config::UnregisterRootNamespaceObject().

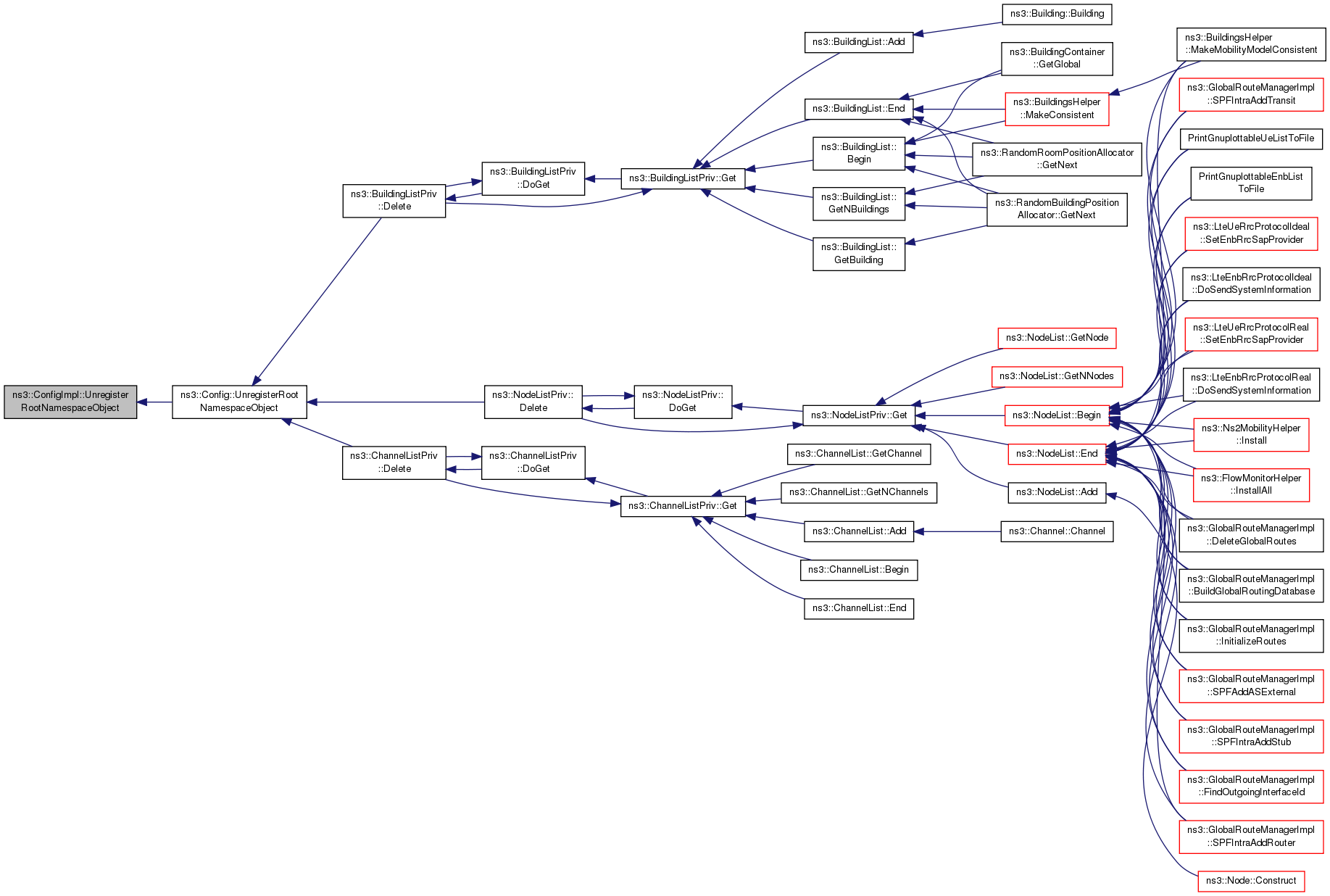

Here is the caller graph for this function:

Member Data Documentation

Roots ns3::ConfigImpl::m_roots

private

The list of Config path roots.

Definition at line 616 of file config.cc.

Referenced by GetRootNamespaceObject(), GetRootNamespaceObjectN(), LookupMatches(), RegisterRootNamespaceObject(), and UnregisterRootNamespaceObject().

---

The documentation for this class was generated from the following file:

• src/core/model/config.cc
