This entity is installed inside an eNB and provides the functionality for the X2 interface. More...

#include "epc-x2.h"

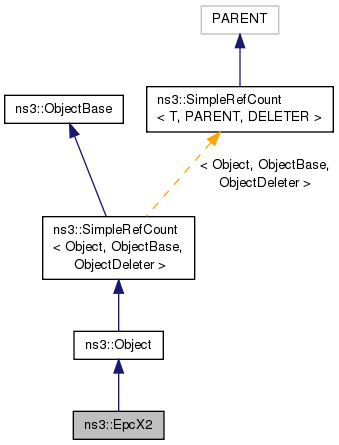

Inheritance diagram for ns3::EpcX2:

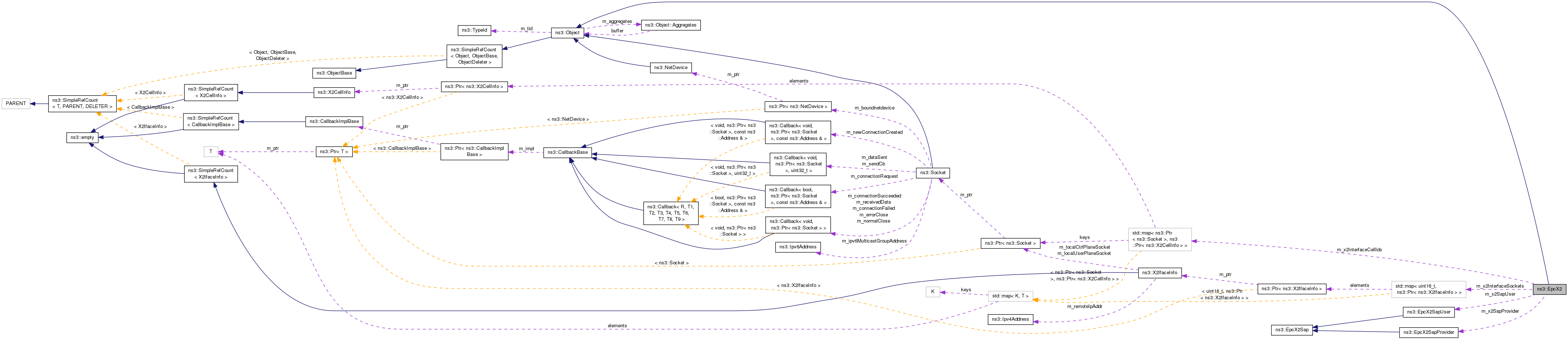

Collaboration diagram for ns3::EpcX2:

Public Member Functions
	EpcX2 ()
	Constructor. More...

virtual	~EpcX2 (void)
	Destructor. More...

void	AddX2Interface (uint16_t enb1CellId, Ipv4Address enb1X2Address, uint16_t enb2CellId, Ipv4Address enb2X2Address)
	Add an X2 interface to this EPC X2 entity. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

EpcX2SapProvider *	GetEpcX2SapProvider ()

void	RecvFromX2cSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the X2-C (X2 Control Plane) socket. More...

void	RecvFromX2uSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the X2-U (X2 User Plane) socket. More...

void	SetEpcX2SapUser (EpcX2SapUser *s)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoSendHandoverPreparationFailure (EpcX2SapProvider::HandoverPreparationFailureParams params)

virtual void	DoSendHandoverRequest (EpcX2SapProvider::HandoverRequestParams params)

virtual void	DoSendHandoverRequestAck (EpcX2SapProvider::HandoverRequestAckParams params)

virtual void	DoSendLoadInformation (EpcX2SapProvider::LoadInformationParams params)

virtual void	DoSendResourceStatusUpdate (EpcX2SapProvider::ResourceStatusUpdateParams params)

virtual void	DoSendSnStatusTransfer (EpcX2SapProvider::SnStatusTransferParams params)

virtual void	DoSendUeContextRelease (EpcX2SapProvider::UeContextReleaseParams params)

virtual void	DoSendUeData (EpcX2SapProvider::UeDataParams params)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
EpcX2SapProvider *	m_x2SapProvider

EpcX2SapUser *	m_x2SapUser

Private Attributes
uint16_t	m_x2cUdpPort
	UDP ports to be used for the X2 interfaces: X2-C and X2-U. More...

std::map< Ptr< Socket >, Ptr< X2CellInfo > >	m_x2InterfaceCellIds
	Map the localSocket (the one receiving the X2 message) to the corresponding (sourceCellId, targetCellId) associated with the X2 interface. More...

std::map< uint16_t, Ptr< X2IfaceInfo > >	m_x2InterfaceSockets
	Map the targetCellId to the corresponding (sourceSocket, remoteIpAddr) to be used to send the X2 message. More...

uint16_t	m_x2uUdpPort

Friends
class	EpcX2SpecificEpcX2SapProvider< EpcX2 >

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This entity is installed inside an eNB and provides the functionality for the X2 interface.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 152 bytes (on a 64-bit architecture).

Definition at line 70 of file epc-x2.h.

Constructor & Destructor Documentation

ns3::EpcX2::EpcX2 ( )

Constructor.

Definition at line 84 of file epc-x2.cc.

References m_x2SapProvider, and NS_LOG_FUNCTION.

ns3::EpcX2::~EpcX2 ( void )

virtual

Destructor.

Definition at line 93 of file epc-x2.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

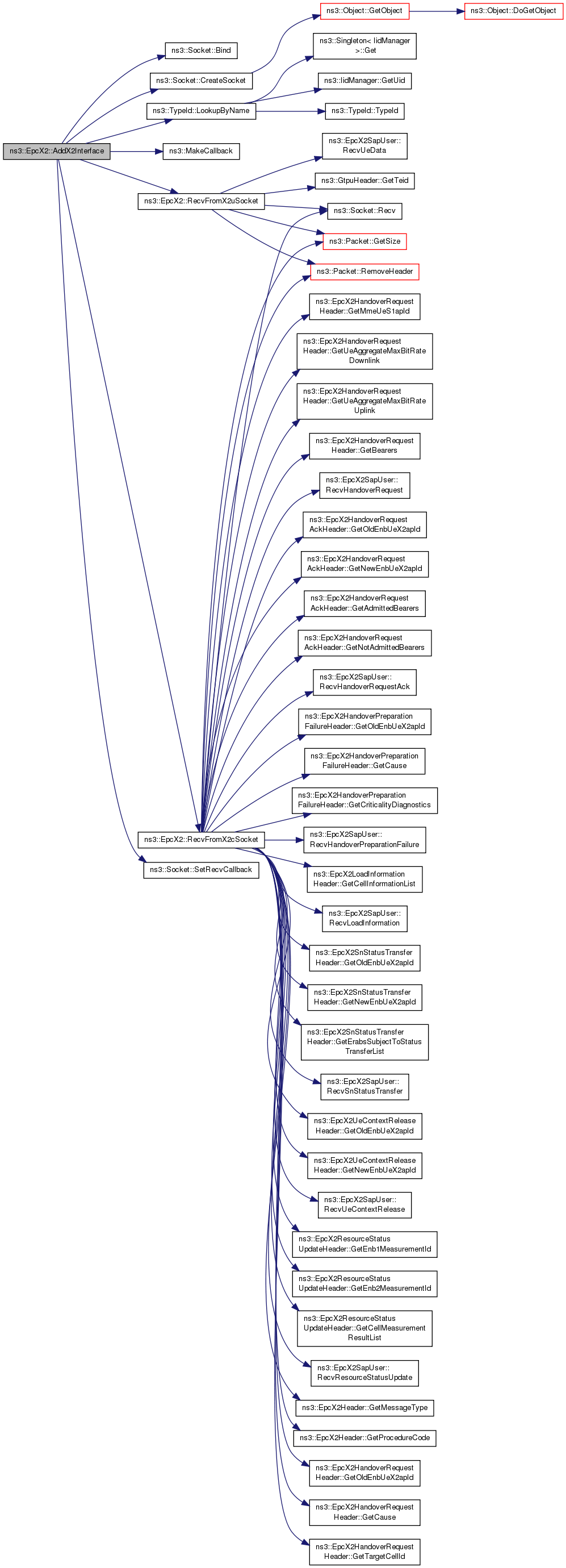

void ns3::EpcX2::AddX2Interface	(	uint16_t	enb1CellId,
		Ipv4Address	enb1X2Address,
		uint16_t	enb2CellId,
		Ipv4Address	enb2X2Address
	)

Add an X2 interface to this EPC X2 entity.

Parameters

enb1CellId	the cell ID of the current eNodeB
enb1X2Address	the address of the current eNodeB
enb2CellId	the cell ID of the neighbouring eNodeB
enb2X2Address	the address of the neighbouring eNodeB

Definition at line 133 of file epc-x2.cc.

References ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::TypeId::LookupByName(), m_x2cUdpPort, m_x2InterfaceCellIds, m_x2InterfaceSockets, m_x2uUdpPort, ns3::MakeCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, RecvFromX2cSocket(), RecvFromX2uSocket(), and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

void ns3::EpcX2::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 99 of file epc-x2.cc.

References m_x2InterfaceCellIds, m_x2InterfaceSockets, m_x2SapProvider, and NS_LOG_FUNCTION.

void ns3::EpcX2::DoSendHandoverPreparationFailure ( EpcX2SapProvider::HandoverPreparationFailureParams params )

protectedvirtual

Definition at line 502 of file epc-x2.cc.

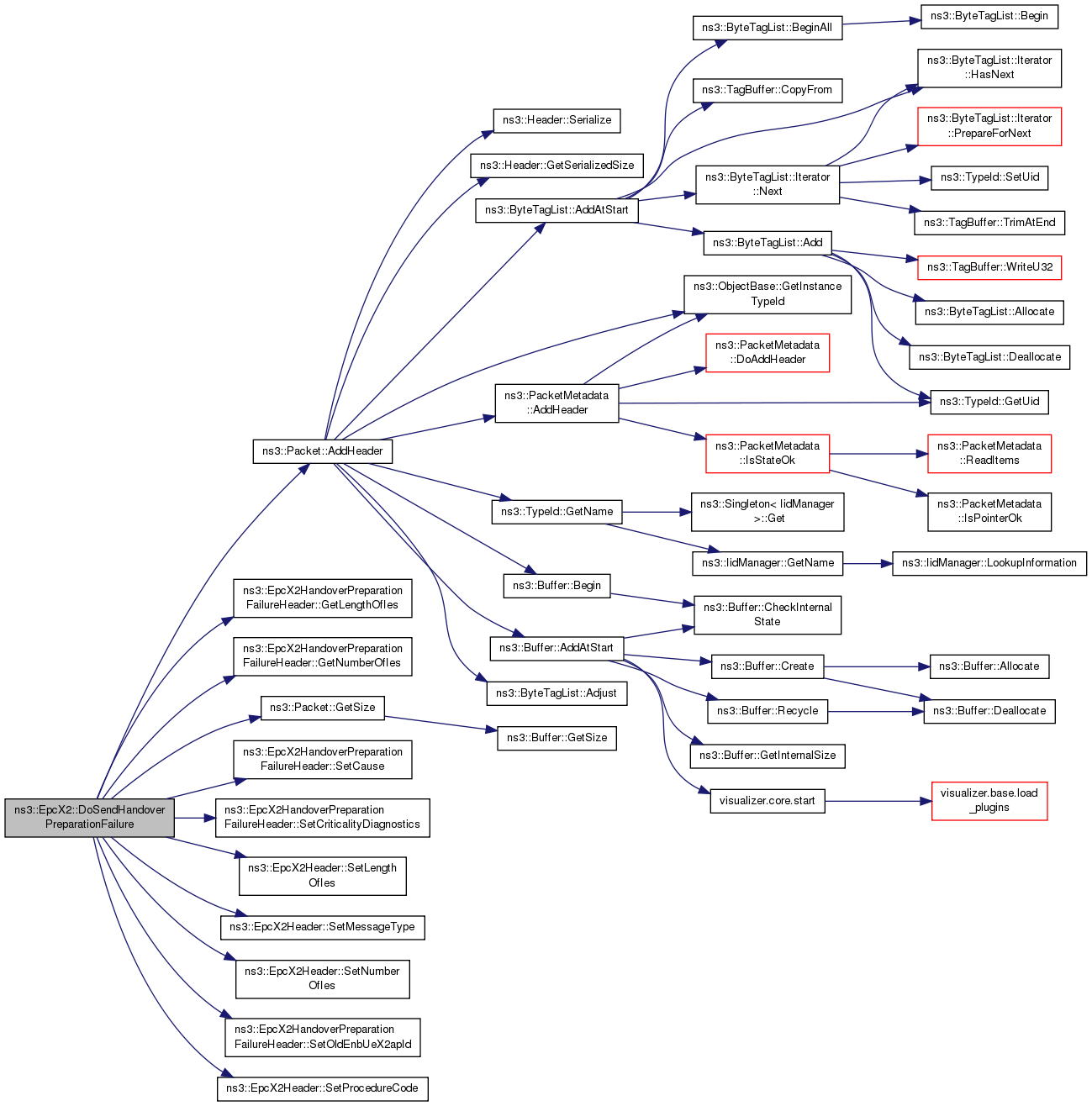

Here is the call graph for this function:

void ns3::EpcX2::DoSendHandoverRequest ( EpcX2SapProvider::HandoverRequestParams params )

protectedvirtual

Definition at line 402 of file epc-x2.cc.

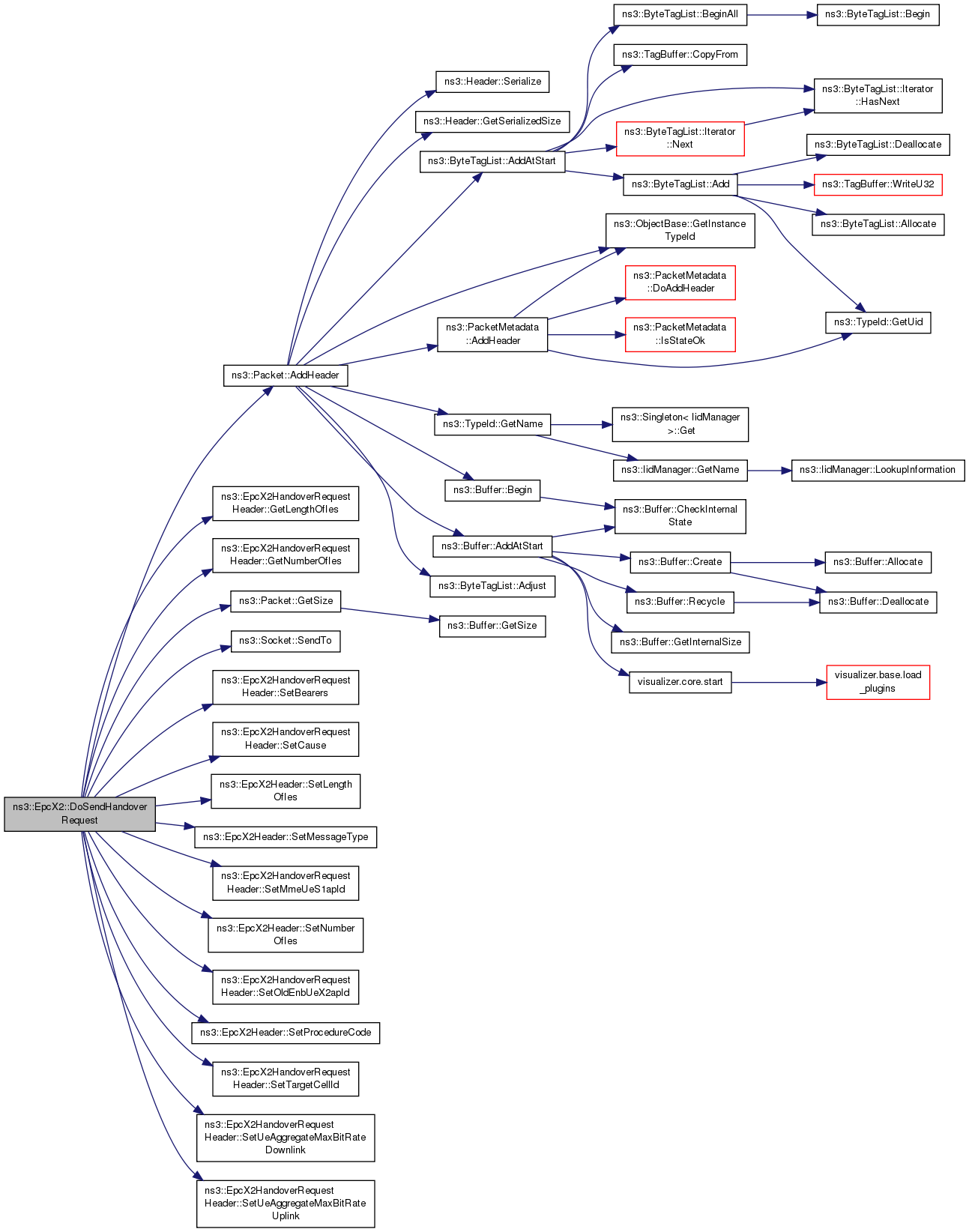

Here is the call graph for this function:

void ns3::EpcX2::DoSendHandoverRequestAck ( EpcX2SapProvider::HandoverRequestAckParams params )

protectedvirtual

Definition at line 453 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::HandoverRequestAckParams::admittedBearers, ns3::EpcX2HandoverRequestAckHeader::GetLengthOfIes(), ns3::EpcX2HandoverRequestAckHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::HandoverPreparation, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::notAdmittedBearers, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::rrcContext, ns3::EpcX2HandoverRequestAckHeader::SetAdmittedBearers(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2HandoverRequestAckHeader::SetNewEnbUeX2apId(), ns3::EpcX2HandoverRequestAckHeader::SetNotAdmittedBearers(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2HandoverRequestAckHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, ns3::EpcX2Header::SuccessfulOutcome, and ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId.

Here is the call graph for this function:

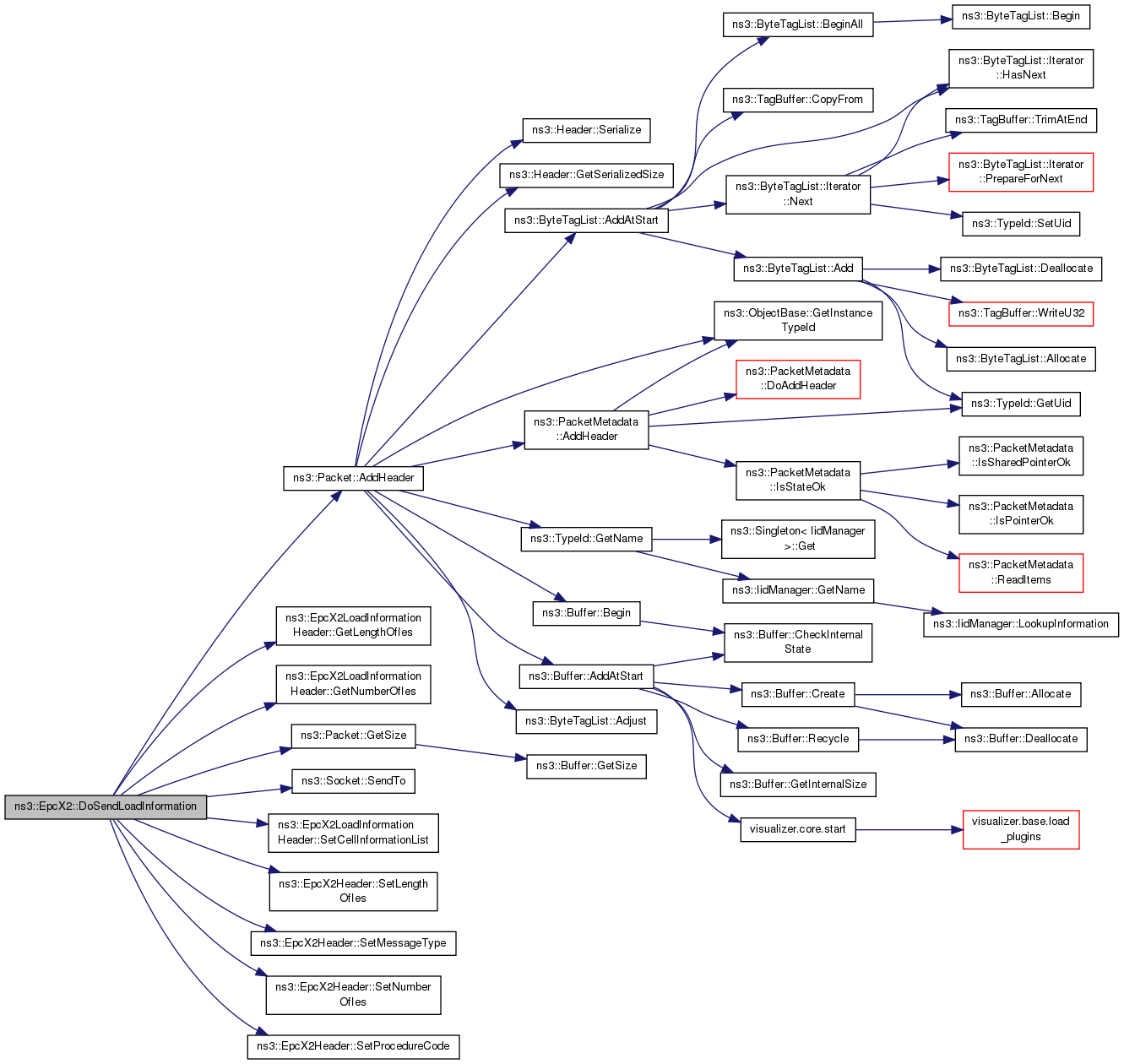

void ns3::EpcX2::DoSendLoadInformation ( EpcX2SapProvider::LoadInformationParams params )

protectedvirtual

void ns3::EpcX2::DoSendResourceStatusUpdate ( EpcX2SapProvider::ResourceStatusUpdateParams params )

protectedvirtual

Definition at line 687 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::ResourceStatusUpdateParams::cellMeasurementResultList, ns3::EpcX2Sap::ResourceStatusUpdateParams::enb1MeasurementId, ns3::EpcX2Sap::ResourceStatusUpdateParams::enb2MeasurementId, ns3::EpcX2ResourceStatusUpdateHeader::GetLengthOfIes(), ns3::EpcX2ResourceStatusUpdateHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Header::ResourceStatusReporting, ns3::Socket::SendTo(), ns3::EpcX2ResourceStatusUpdateHeader::SetCellMeasurementResultList(), ns3::EpcX2ResourceStatusUpdateHeader::SetEnb1MeasurementId(), ns3::EpcX2ResourceStatusUpdateHeader::SetEnb2MeasurementId(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2Header::SetProcedureCode(), and ns3::EpcX2Sap::ResourceStatusUpdateParams::targetCellId.

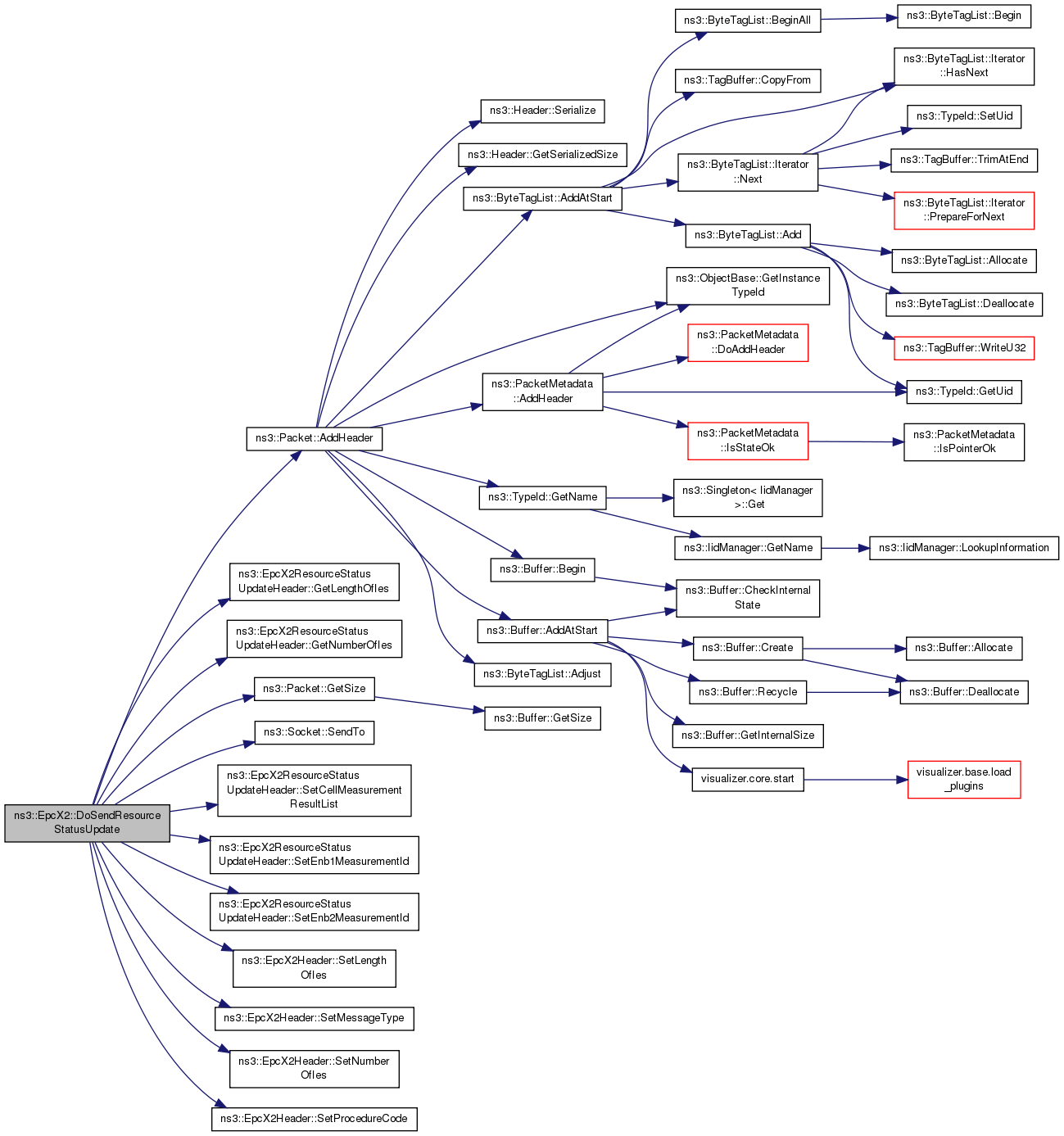

Here is the call graph for this function:

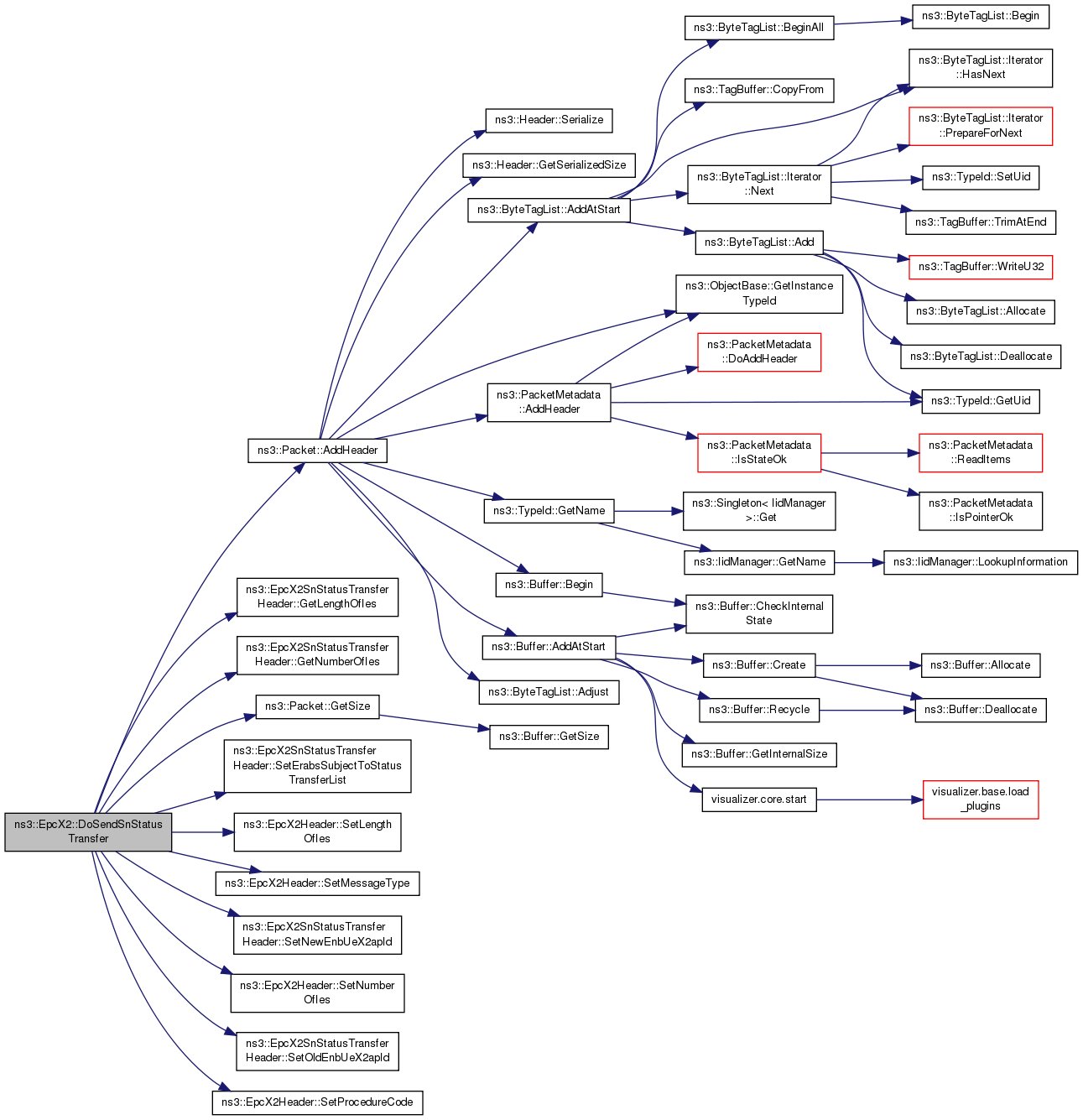

void ns3::EpcX2::DoSendSnStatusTransfer ( EpcX2SapProvider::SnStatusTransferParams params )

protectedvirtual

Definition at line 550 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, ns3::EpcX2SnStatusTransferHeader::GetLengthOfIes(), ns3::EpcX2SnStatusTransferHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId, ns3::EpcX2SnStatusTransferHeader::SetErabsSubjectToStatusTransferList(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2SnStatusTransferHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2SnStatusTransferHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Header::SnStatusTransfer, ns3::EpcX2Sap::SnStatusTransferParams::sourceCellId, and ns3::EpcX2Sap::SnStatusTransferParams::targetCellId.

Here is the call graph for this function:

void ns3::EpcX2::DoSendUeContextRelease ( EpcX2SapProvider::UeContextReleaseParams params )

protectedvirtual

Definition at line 598 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2UeContextReleaseHeader::GetLengthOfIes(), ns3::EpcX2UeContextReleaseHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2UeContextReleaseHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2UeContextReleaseHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Sap::UeContextReleaseParams::sourceCellId, and ns3::EpcX2Header::UeContextRelease.

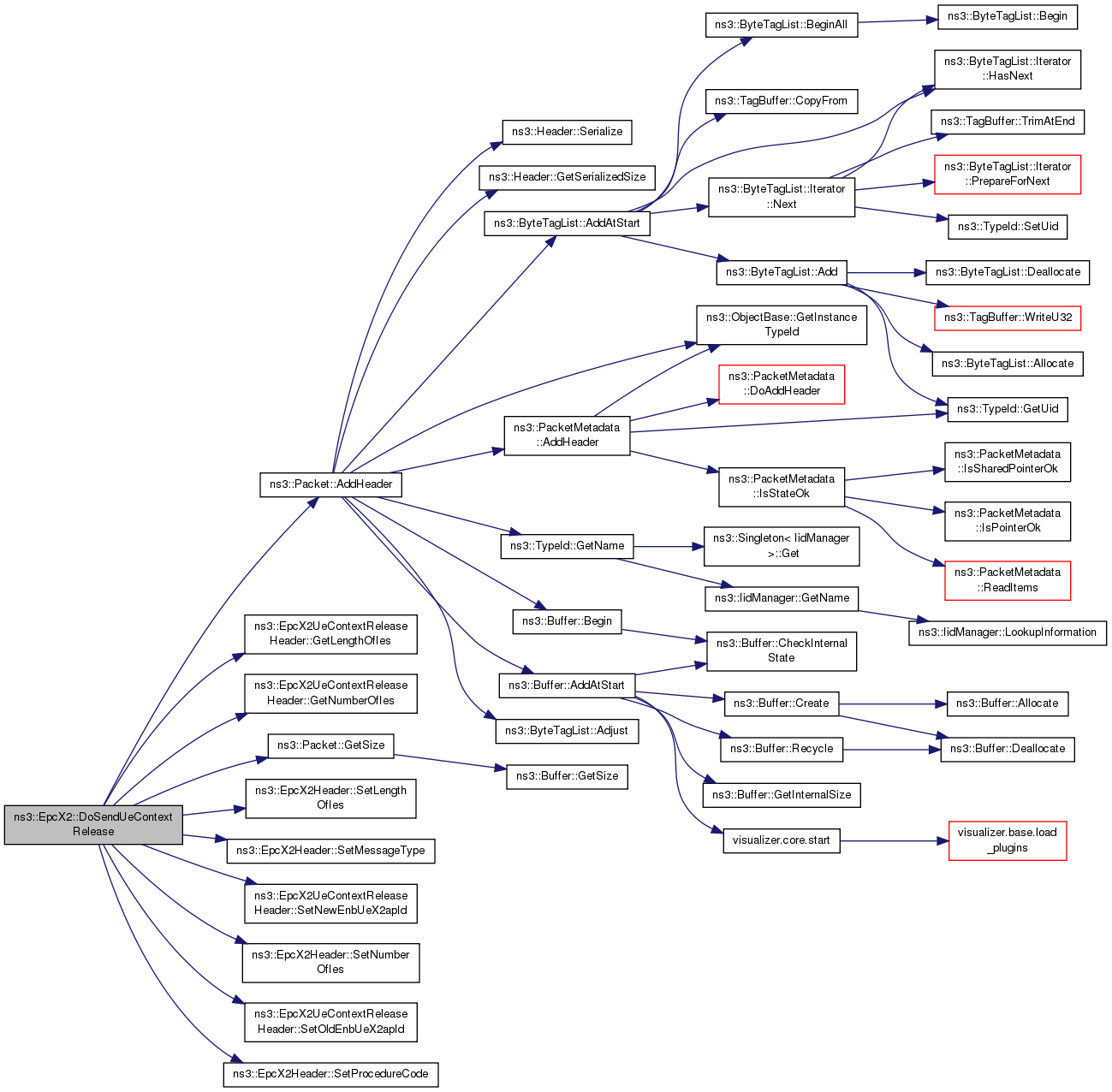

Here is the call graph for this function:

void ns3::EpcX2::DoSendUeData ( EpcX2SapProvider::UeDataParams params )

protectedvirtual

Todo:: This should be done in GtpuHeader

Definition at line 735 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::GtpuHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2InterfaceSockets, m_x2uUdpPort, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Socket::SendTo(), ns3::GtpuHeader::SetLength(), ns3::GtpuHeader::SetTeid(), ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.

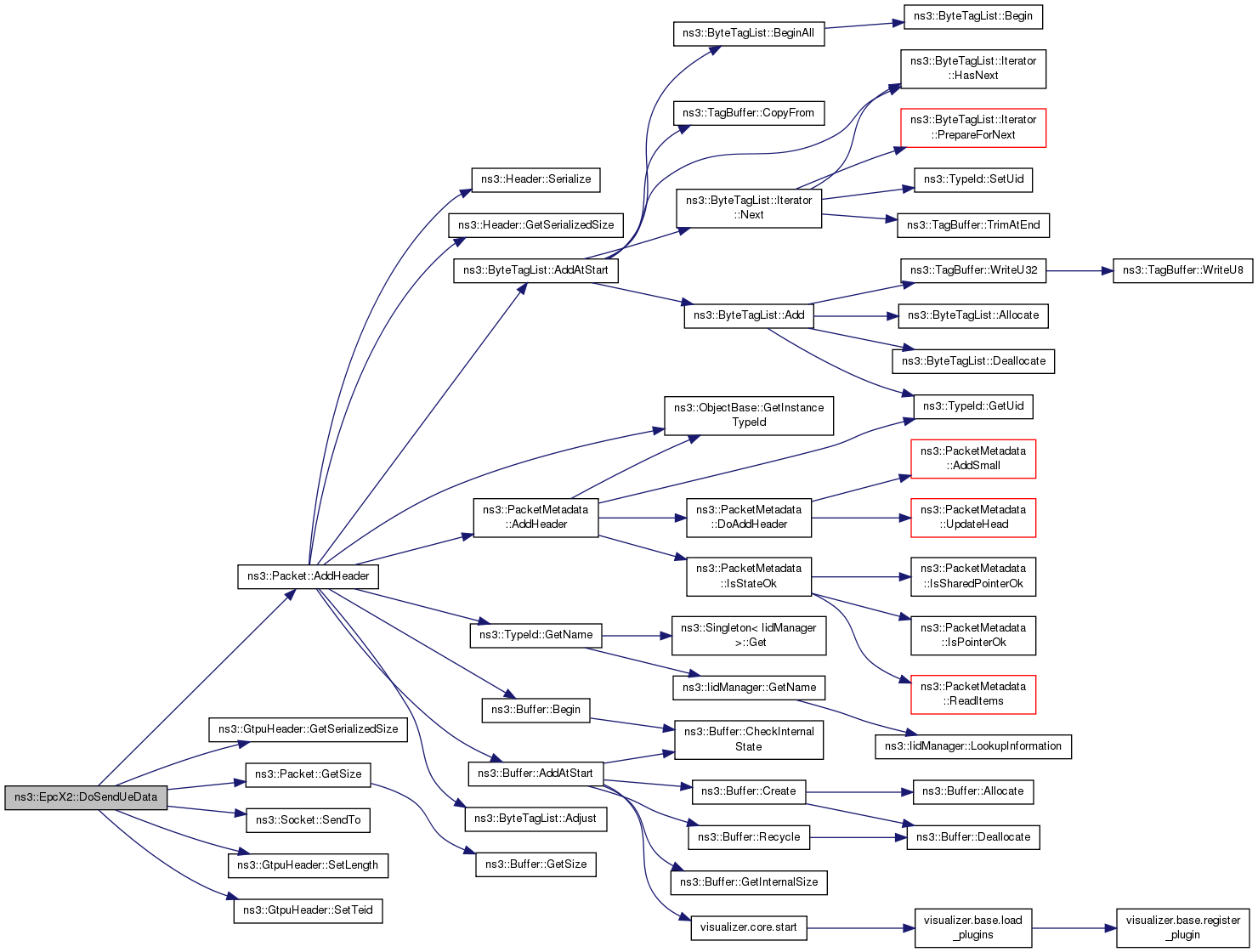

Here is the call graph for this function:

EpcX2SapProvider * ns3::EpcX2::GetEpcX2SapProvider ( )

Returns: the X2 SAP Provider interface offered by this EPC X2 entity

Definition at line 125 of file epc-x2.cc.

References m_x2SapProvider, and NS_LOG_FUNCTION.

TypeId ns3::EpcX2::GetTypeId ( void )

static

Definition at line 109 of file epc-x2.cc.

References ns3::TypeId::SetParent().

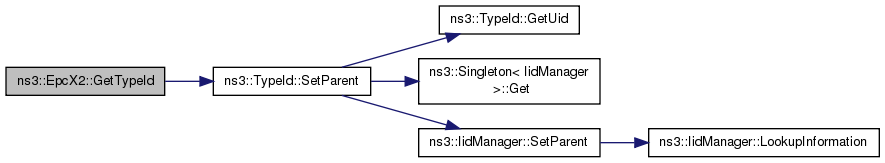

Here is the call graph for this function:

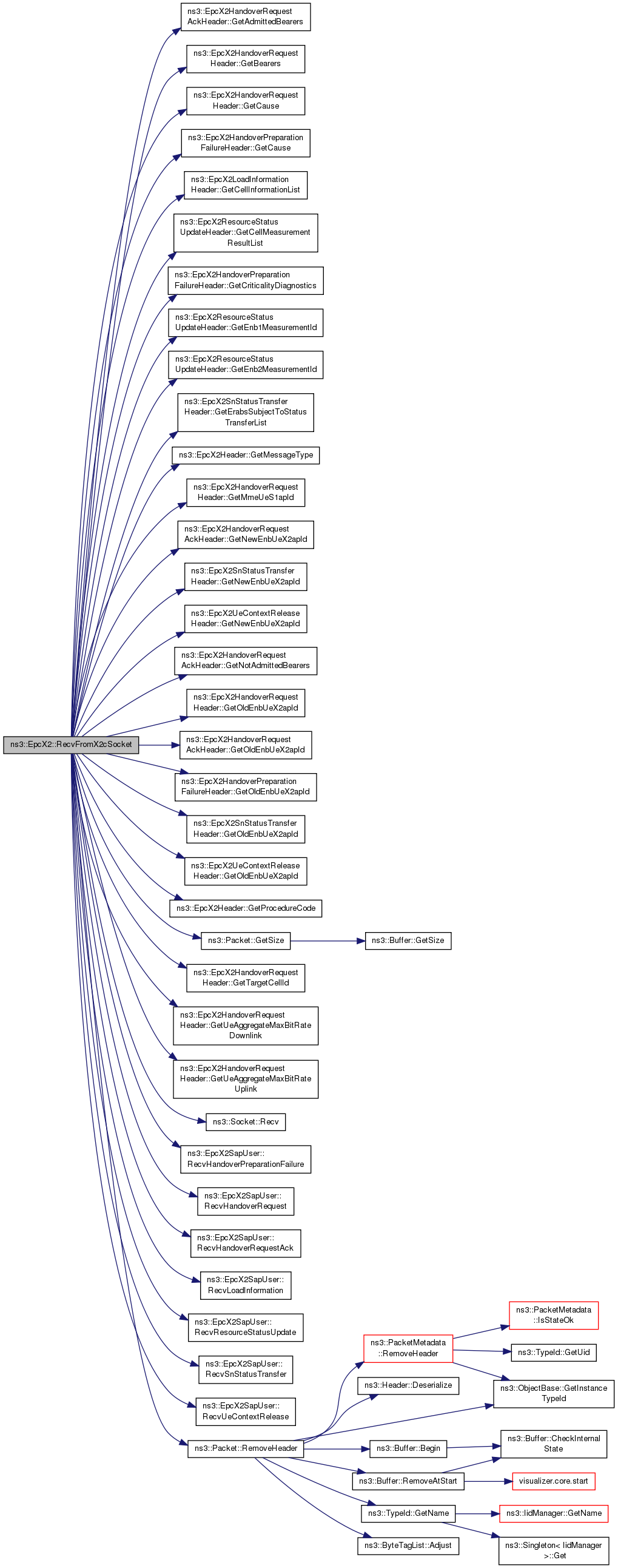

void ns3::EpcX2::RecvFromX2cSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the X2-C (X2 Control Plane) socket.

It is called when the eNB receives a packet from the peer eNB of the X2-C interface

Parameters

socket socket of the X2-C interface

Definition at line 170 of file epc-x2.cc.

Referenced by AddX2Interface().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EpcX2::RecvFromX2uSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the X2-U (X2 User Plane) socket.

It is called when the eNB receives a packet from the peer eNB of the X2-U interface

Parameters

socket socket of the X2-U interface

Definition at line 371 of file epc-x2.cc.

References ns3::Packet::GetSize(), ns3::GtpuHeader::GetTeid(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2InterfaceCellIds, m_x2SapUser, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Socket::Recv(), ns3::EpcX2SapUser::RecvUeData(), ns3::Packet::RemoveHeader(), ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.

Referenced by AddX2Interface().

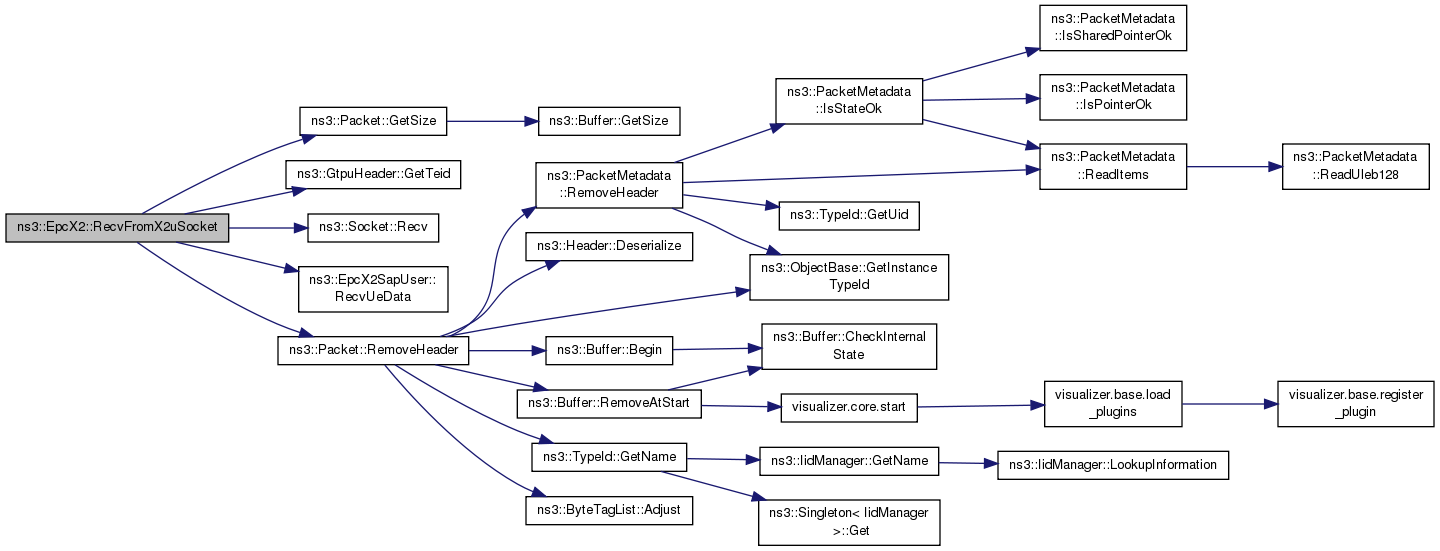

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EpcX2::SetEpcX2SapUser ( EpcX2SapUser * s )

Parameters

s	the X2 SAP User to be used by this EPC X2 entity

Definition at line 118 of file epc-x2.cc.

References m_x2SapUser, and NS_LOG_FUNCTION.

Friends And Related Function Documentation

friend class EpcX2SpecificEpcX2SapProvider< EpcX2 >

friend

Definition at line 72 of file epc-x2.h.

Member Data Documentation

uint16_t ns3::EpcX2::m_x2cUdpPort

private

UDP ports to be used for the X2 interfaces: X2-C and X2-U.

Definition at line 160 of file epc-x2.h.

Referenced by AddX2Interface(), DoSendHandoverPreparationFailure(), DoSendHandoverRequest(), DoSendHandoverRequestAck(), DoSendLoadInformation(), DoSendResourceStatusUpdate(), DoSendSnStatusTransfer(), and DoSendUeContextRelease().

std::map< Ptr<Socket>, Ptr<X2CellInfo> > ns3::EpcX2::m_x2InterfaceCellIds

private

Map the localSocket (the one receiving the X2 message) to the corresponding (sourceCellId, targetCellId) associated with the X2 interface.

Definition at line 155 of file epc-x2.h.

Referenced by AddX2Interface(), DoDispose(), RecvFromX2cSocket(), and RecvFromX2uSocket().

std::map< uint16_t, Ptr<X2IfaceInfo> > ns3::EpcX2::m_x2InterfaceSockets

private

Map the targetCellId to the corresponding (sourceSocket, remoteIpAddr) to be used to send the X2 message.

Definition at line 149 of file epc-x2.h.

Referenced by AddX2Interface(), DoDispose(), DoSendHandoverPreparationFailure(), DoSendHandoverRequest(), DoSendHandoverRequestAck(), DoSendLoadInformation(), DoSendResourceStatusUpdate(), DoSendSnStatusTransfer(), DoSendUeContextRelease(), and DoSendUeData().

EpcX2SapProvider* ns3::EpcX2::m_x2SapProvider

protected

Definition at line 140 of file epc-x2.h.

Referenced by DoDispose(), EpcX2(), and GetEpcX2SapProvider().

EpcX2SapUser* ns3::EpcX2::m_x2SapUser

protected

Definition at line 139 of file epc-x2.h.

Referenced by RecvFromX2cSocket(), RecvFromX2uSocket(), and SetEpcX2SapUser().

uint16_t ns3::EpcX2::m_x2uUdpPort

private

Definition at line 161 of file epc-x2.h.

Referenced by AddX2Interface(), and DoSendUeData().

The documentation for this class was generated from the following files:

src/lte/model/epc-x2.h
src/lte/model/epc-x2.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
