ns3::EthernetTrailer Class Reference

Packet trailer for Ethernet. More...

#include "ethernet-trailer.h"

+ Inheritance diagram for ns3::EthernetTrailer:
+ Collaboration diagram for ns3::EthernetTrailer:

Public Member Functions

 EthernetTrailer ()
 Construct a null ethernet trailer. More...

void CalcFcs (Ptr< const Packet > p)
 Updates the Fcs Field to the correct FCS. More...

bool CheckFcs (Ptr< const Packet > p) const
 Calculate an FCS on the provided packet and check this value against the FCS found when the trailer was deserialized (the one in the transmitted packet). More...

virtual uint32_t Deserialize (Buffer::Iterator end)

void EnableFcs (bool enable)
 Enable or disable FCS checking and calculations. More...

uint32_t GetFcs ()

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

virtual uint32_t GetSerializedSize (void) const

uint32_t GetTrailerSize () const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator end) const

void SetFcs (uint32_t fcs)
 Sets the FCS to a new value. More...

- Public Member Functions inherited from ns3::Trailer
virtual ~Trailer ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Trailer
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

bool m_calcFcs
 Enabled FCS calculations. More...

uint32_t m_fcs
 Value of the fcs contained in the trailer. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Packet trailer for Ethernet.

Introspection did not find any typical Config paths.

This class can be used to add and verify the FCS at the end of an Ethernet packet.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 39 of file ethernet-trailer.h.

Constructor & Destructor Documentation

ns3::EthernetTrailer::EthernetTrailer ( )

Construct a null ethernet trailer.

Definition at line 33 of file ethernet-trailer.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EthernetTrailer::CalcFcs ( Ptr< const Packet p)

Updates the Fcs Field to the correct FCS.

Parameters
pReference to a packet on which the FCS should be calculated. The packet should not currently contain an EthernetTrailer.

Definition at line 68 of file ethernet-trailer.cc.

References ns3::Packet::CopyData(), ns3::CRC32Calculate(), ns3::Packet::GetSize(), m_calcFcs, m_fcs, and NS_LOG_FUNCTION.

Referenced by ns3::CsmaNetDevice::AddHeader().

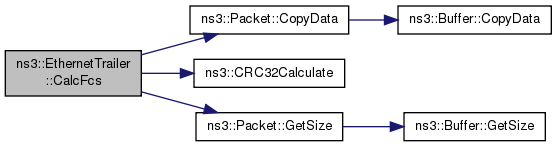

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::EthernetTrailer::CheckFcs ( Ptr< const Packet p) const

Calculate an FCS on the provided packet and check this value against the FCS found when the trailer was deserialized (the one in the transmitted packet).

If FCS checking is disabled, this method will always return true.

Parameters
pReference to the packet on which the FCS should be calculated. The packet should not contain an EthernetTrailer.
Returns
Returns true if the Packet FCS matches the FCS in the trailer, false otherwise.

Definition at line 48 of file ethernet-trailer.cc.

References ns3::Packet::CopyData(), ns3::CRC32Calculate(), ns3::Packet::GetSize(), m_calcFcs, m_fcs, and NS_LOG_FUNCTION.

Referenced by ns3::CsmaNetDevice::Receive().

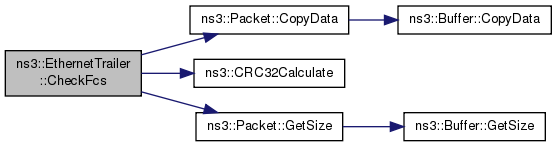

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::EthernetTrailer::Deserialize ( Buffer::Iterator  end)
virtual
Parameters
endan iterator which points to the end of the buffer where the trailer should be read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveTrailer to re-create a trailer from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this trailer in real networks. The input iterator points to the end of the area where the data shall be written. This method is thus expected to call Buffer::Iterator::Prev prio to actually reading any data.

Implements ns3::Trailer.

Definition at line 144 of file ethernet-trailer.cc.

References GetSerializedSize(), m_fcs, NS_LOG_FUNCTION, ns3::Buffer::Iterator::Prev(), and ns3::Buffer::Iterator::ReadU32().

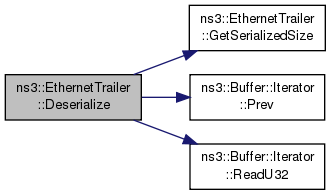

+ Here is the call graph for this function:

void ns3::EthernetTrailer::EnableFcs ( bool  enable)

Enable or disable FCS checking and calculations.

Parameters
enableIf true, enables FCS calculations.

Definition at line 41 of file ethernet-trailer.cc.

References m_calcFcs, and NS_LOG_FUNCTION.

Referenced by ns3::CsmaNetDevice::AddHeader(), and ns3::CsmaNetDevice::Receive().

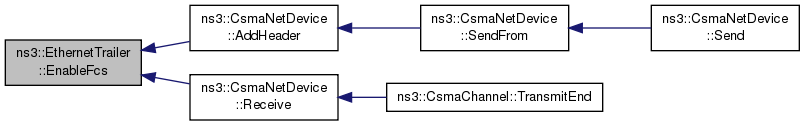

+ Here is the caller graph for this function:

uint32_t ns3::EthernetTrailer::GetFcs ( void  )
Returns
the FCS contained in this trailer

Definition at line 93 of file ethernet-trailer.cc.

References m_fcs, and NS_LOG_FUNCTION.

TypeId ns3::EthernetTrailer::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 117 of file ethernet-trailer.cc.

References GetTypeId().

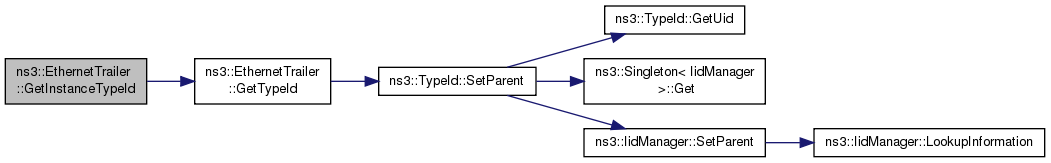

+ Here is the call graph for this function:

uint32_t ns3::EthernetTrailer::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the trailer.

This method is used by Packet::AddTrailer to store a trailer into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full trailer data by Serialize.

Implements ns3::Trailer.

Definition at line 128 of file ethernet-trailer.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize(), GetTrailerSize(), and Serialize().

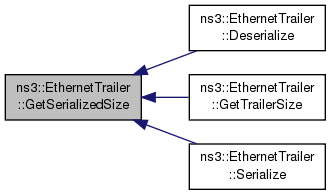

+ Here is the caller graph for this function:

uint32_t ns3::EthernetTrailer::GetTrailerSize ( void  ) const
Returns
Returns the size of the trailer

Definition at line 100 of file ethernet-trailer.cc.

References GetSerializedSize(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

TypeId ns3::EthernetTrailer::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 107 of file ethernet-trailer.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

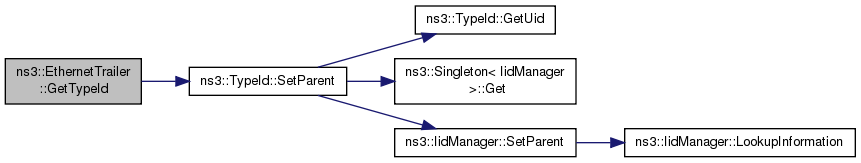

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EthernetTrailer::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Trailer.

Definition at line 122 of file ethernet-trailer.cc.

References m_fcs, and NS_LOG_FUNCTION.

void ns3::EthernetTrailer::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the trailer should be written.

This method is used by Packet::AddTrailer to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this trailer in real networks. The input iterator points to the end of the area where the data shall be written. This method is thus expected to call Buffer::Iterator::Prev prior to actually writing any data.

Implements ns3::Trailer.

Definition at line 135 of file ethernet-trailer.cc.

References GetSerializedSize(), m_fcs, NS_LOG_FUNCTION, ns3::Buffer::Iterator::Prev(), and ns3::Buffer::Iterator::WriteU32().

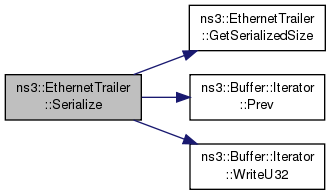

+ Here is the call graph for this function:

void ns3::EthernetTrailer::SetFcs ( uint32_t  fcs)

Sets the FCS to a new value.

Parameters
fcsNew FCS value

Definition at line 86 of file ethernet-trailer.cc.

References m_fcs, and NS_LOG_FUNCTION.

Member Data Documentation

bool ns3::EthernetTrailer::m_calcFcs
private

Enabled FCS calculations.

If false, m_fcs is set to 0 and CheckFcs returns true.

Definition at line 108 of file ethernet-trailer.h.

Referenced by CalcFcs(), CheckFcs(), and EnableFcs().

uint32_t ns3::EthernetTrailer::m_fcs
private

Value of the fcs contained in the trailer.

Definition at line 109 of file ethernet-trailer.h.

Referenced by CalcFcs(), CheckFcs(), Deserialize(), GetFcs(), Print(), Serialize(), and SetFcs().
