ns3::LiIonEnergySourceHelper Class Reference

Creates a LiIonEnergySource object. More...

#include "li-ion-energy-source-helper.h"

Inheritance diagram for ns3::LiIonEnergySourceHelper:

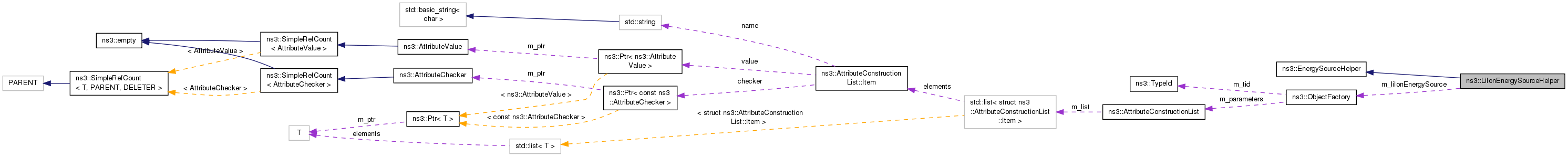

Collaboration diagram for ns3::LiIonEnergySourceHelper:

Public Member Functions
	LiIonEnergySourceHelper ()
	~LiIonEnergySourceHelper ()
void	Set (std::string name, const AttributeValue &v)
Public Member Functions inherited from ns3::EnergySourceHelper
virtual	~EnergySourceHelper ()
EnergySourceContainer	Install (Ptr< Node > node) const
EnergySourceContainer	Install (NodeContainer c) const
EnergySourceContainer	Install (std::string nodeName) const
EnergySourceContainer	InstallAll (void) const
	This function installs an EnergySource on all nodes in simulation. More...

Private Member Functions
virtual Ptr< EnergySource >	DoInstall (Ptr< Node > node) const

Private Attributes
ObjectFactory	m_liIonEnergySource

Detailed Description

Creates a LiIonEnergySource object.

Definition at line 36 of file li-ion-energy-source-helper.h.

Constructor & Destructor Documentation

ns3::LiIonEnergySourceHelper::LiIonEnergySourceHelper

(

)

Definition at line 28 of file li-ion-energy-source-helper.cc.

References m_liIonEnergySource, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

ns3::LiIonEnergySourceHelper::~LiIonEnergySourceHelper

(

)

Definition at line 33 of file li-ion-energy-source-helper.cc.

Member Function Documentation

Ptr< EnergySource > ns3::LiIonEnergySourceHelper::DoInstall ( Ptr< Node >  node ) const

privatevirtual

Parameters

node	Pointer to node where the energy source is to be installed.

Returns

Pointer to the created EnergySource.

Child classes of EnergySourceHelper only have to implement this function, to create and aggregate an EnergySource object onto a single node. Rest of the installation process (eg. installing EnergySource on set of nodes) is implemented in the EnergySourceHelper base class.

Implements ns3::EnergySourceHelper.

Definition at line 44 of file li-ion-energy-source-helper.cc.

References ns3::ObjectFactory::Create(), m_liIonEnergySource, and NS_ASSERT.

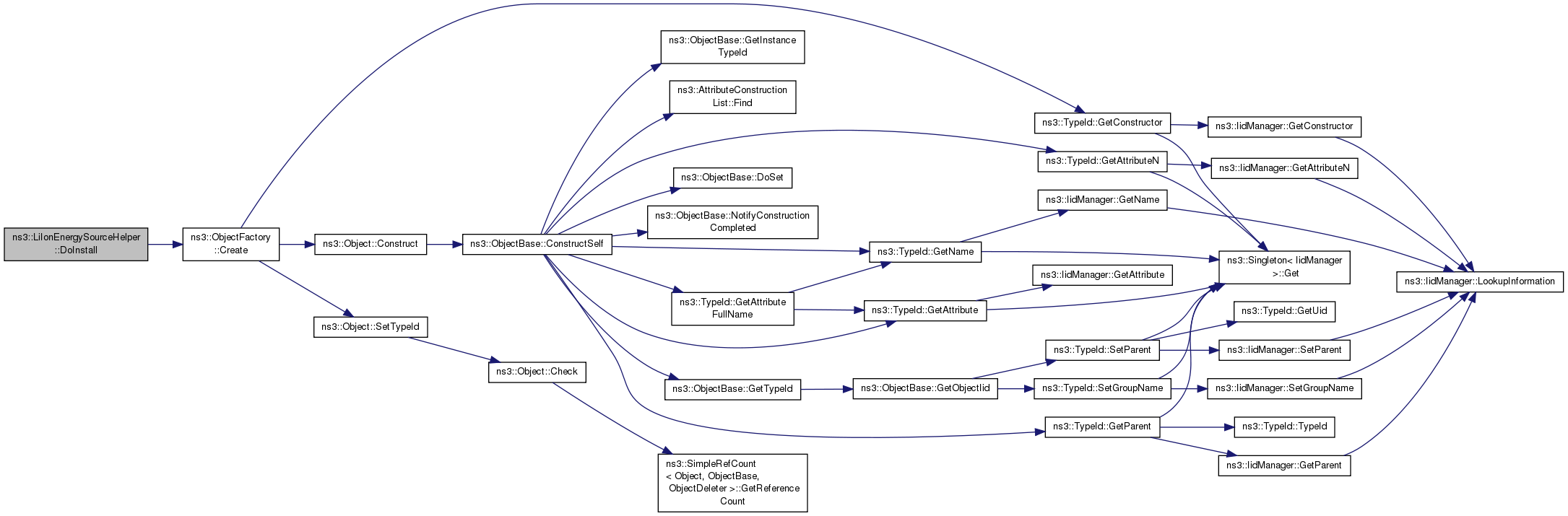

Here is the call graph for this function:

void ns3::LiIonEnergySourceHelper::Set ( std::string  name, const AttributeValue &  v  )

virtual

Parameters

name	Name of attribute to set.
v	Value of the attribute.

Sets one of the attributes of underlying EnergySource.

Implements ns3::EnergySourceHelper.

Definition at line 38 of file li-ion-energy-source-helper.cc.

References m_liIonEnergySource, and ns3::ObjectFactory::Set().

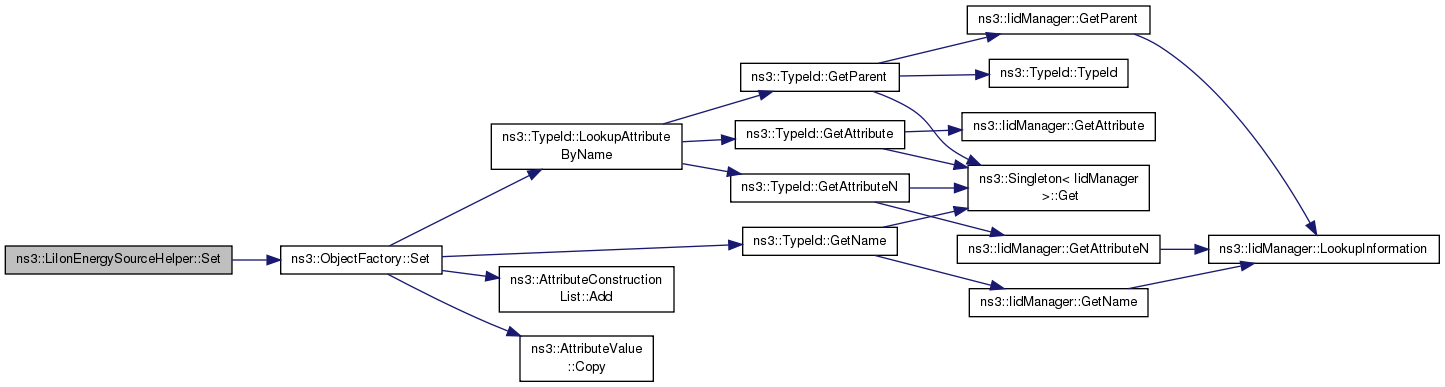

Here is the call graph for this function:

Member Data Documentation

ObjectFactory ns3::LiIonEnergySourceHelper::m_liIonEnergySource

private

Definition at line 48 of file li-ion-energy-source-helper.h.

Referenced by DoInstall(), LiIonEnergySourceHelper(), and Set().

---

The documentation for this class was generated from the following files:

• src/energy/helper/li-ion-energy-source-helper.h
• src/energy/helper/li-ion-energy-source-helper.cc
