Simple Frequency Reuse algorithm implementation which uses only 1 sub-band. More...

#include "lte-ffr-simple.h"

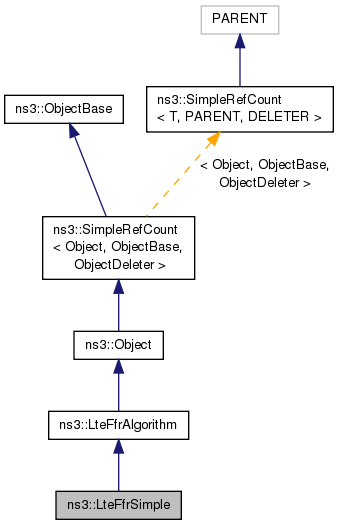

Inheritance diagram for ns3::LteFfrSimple:

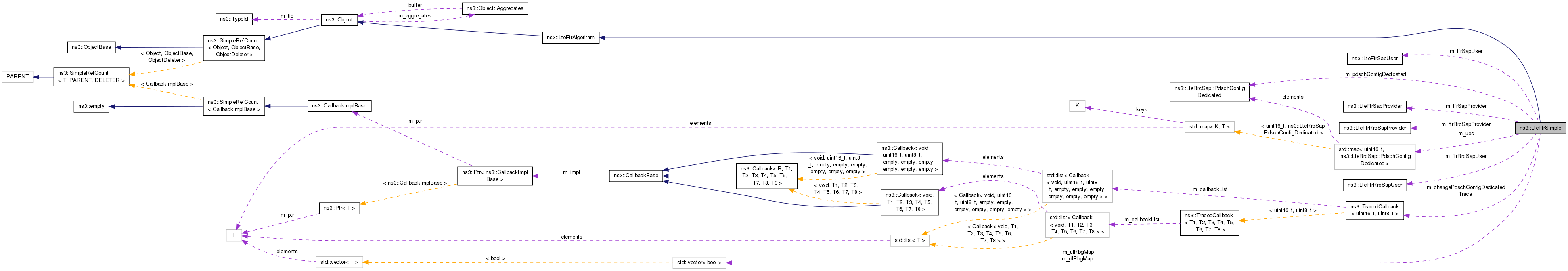

Collaboration diagram for ns3::LteFfrSimple:

Public Types
typedef void(*	PdschTracedCallback) (uint16_t rnti, uint8_t pdschPa)
	TracedCallback signature for change of PdschConfigDedicated. More...

Public Member Functions
	LteFfrSimple ()
	Creates a trivial ffr algorithm instance. More...

virtual	~LteFfrSimple ()

void	ChangePdschConfigDedicated (bool change)

virtual LteFfrRrcSapProvider *	GetLteFfrRrcSapProvider ()
	Export the "provider" part of the LteFfrRrcSap interface. More...

virtual LteFfrSapProvider *	GetLteFfrSapProvider ()
	Export the "provider" part of the LteFfrSap interface. More...

virtual void	SetLteFfrRrcSapUser (LteFfrRrcSapUser *s)
	Set the "user" part of the LteFfrRrcSap interface that this frequency reuse algorithm instance will interact with. More...

virtual void	SetLteFfrSapUser (LteFfrSapUser *s)
	Set the "user" part of the LteFfrSap interface that this frequency reuse algorithm instance will interact with. More...

void	SetPdschConfigDedicated (LteRrcSap::PdschConfigDedicated pdschConfigDedicated)

void	SetTpc (uint32_t tpc, uint32_t num, bool acculumatedMode)

Public Member Functions inherited from ns3::LteFfrAlgorithm
	LteFfrAlgorithm ()

virtual	~LteFfrAlgorithm ()

uint8_t	GetDlBandwidth () const

uint8_t	GetFrCellTypeId () const

uint8_t	GetUlBandwidth () const

void	SetDlBandwidth (uint8_t bw)

void	SetFrCellTypeId (uint8_t cellTypeId)

void	SetUlBandwidth (uint8_t bw)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::LteFfrAlgorithm
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Destructor implementation. More...

virtual std::vector< bool >	DoGetAvailableDlRbg ()
	Implementation of LteFfrSapProvider::GetAvailableDlRbg. More...

virtual std::vector< bool >	DoGetAvailableUlRbg ()
	Implementation of LteFfrSapProvider::GetAvailableUlRbg. More...

virtual uint8_t	DoGetMinContinuousUlBandwidth ()
	DoGetMinContinuousUlBandwidth in number of RB. More...

virtual uint8_t	DoGetTpc (uint16_t rnti)
	DoGetTpc for UE. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual bool	DoIsDlRbgAvailableForUe (int i, uint16_t rnti)
	Implementation of LteFfrSapProvider::IsDlRbgAvailableForUe. More...

virtual bool	DoIsUlRbgAvailableForUe (int i, uint16_t rnti)
	Implementation of LteFfrSapProvider::IsUlRbgAvailableForUe. More...

virtual void	DoRecvLoadInformation (EpcX2Sap::LoadInformationParams params)
	DoRecvLoadInformation. More...

virtual void	DoReportDlCqiInfo (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)
	DoReportDlCqiInfo. More...

virtual void	DoReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults)
	Implementation of LteFfrRrcSapProvider::ReportUeMeas. More...

virtual void	DoReportUlCqiInfo (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)
	DoReportUlCqiInfo. More...

virtual void	DoReportUlCqiInfo (std::map< uint16_t, std::vector< double > > ulCqiMap)
	DoReportUlCqiInfo. More...

virtual void	Reconfigure ()
	Automatic FR reconfiguration. More...

Protected Member Functions inherited from ns3::LteFfrAlgorithm
virtual void	DoSetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)
	Implementation of LteFfrRrcSapProvider::SetBandwidth. More...

virtual void	DoSetCellId (uint16_t cellId)
	SetCellId. More...

int	GetRbgSize (int dlbandwidth)
	Get RBG size for DL Bandwidth according to table 7.1.6.1-1 of 36.213. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	UpdatePdschConfigDedicated ()

Private Attributes
bool	m_acculumatedMode

bool	m_changePdschConfigDedicated

TracedCallback< uint16_t, uint8_t >	m_changePdschConfigDedicatedTrace

uint8_t	m_dlOffset

std::vector< bool >	m_dlRbgMap

uint8_t	m_dlSubBand

LteFfrRrcSapProvider *	m_ffrRrcSapProvider

LteFfrRrcSapUser *	m_ffrRrcSapUser

LteFfrSapProvider *	m_ffrSapProvider

LteFfrSapUser *	m_ffrSapUser

uint8_t	m_measId

LteRrcSap::PdschConfigDedicated	m_pdschConfigDedicated

uint32_t	m_tpc

uint32_t	m_tpcNum

std::map< uint16_t, LteRrcSap::PdschConfigDedicated >	m_ues

uint8_t	m_ulOffset

std::vector< bool >	m_ulRbgMap

uint8_t	m_ulSubBand

Friends
class	MemberLteFfrRrcSapProvider< LteFfrSimple >

class	MemberLteFfrSapProvider< LteFfrSimple >

Additional Inherited Members
Protected Attributes inherited from ns3::LteFfrAlgorithm
uint16_t	m_cellId

uint8_t	m_dlBandwidth
	downlink bandwidth in RBs More...

bool	m_enabledInUplink
	If true FR algorithm will also work in Uplink. More...

uint8_t	m_frCellTypeId
	FFR cell type ID for automatic configuration. More...

bool	m_needReconfiguration
	If true FR algorithm will be reconfigured. More...

uint8_t	m_ulBandwidth
	uplink bandwidth in RBs More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Simple Frequency Reuse algorithm implementation which uses only 1 sub-band.

Used to test Downlink Power Allocation. When Simple FR receives UE measurements it immediately call functions to change PdschConfigDedicated (i.e. P_A) value for this UE.

Definition at line 42 of file lte-ffr-simple.h.

Member Typedef Documentation

typedef void(* ns3::LteFfrSimple::PdschTracedCallback) (uint16_t rnti, uint8_t pdschPa)

TracedCallback signature for change of PdschConfigDedicated.

Parameters

[in]	rnti
[in]	pdschPa	PdschConfiDedicated.pa

Definition at line 77 of file lte-ffr-simple.h.

Constructor & Destructor Documentation

ns3::LteFfrSimple::LteFfrSimple ( )

Creates a trivial ffr algorithm instance.

Definition at line 33 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, m_ffrSapProvider, and NS_LOG_FUNCTION.

ns3::LteFfrSimple::~LteFfrSimple ( )

virtual

Definition at line 52 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteFfrSimple::ChangePdschConfigDedicated ( bool change )

Definition at line 159 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicated.

Referenced by LteDownlinkPowerControlTestCase::DoRun(), LteCqiGenerationDlPowerControlTestCase::DoRun(), and LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun().

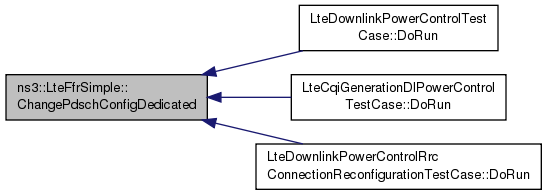

Here is the caller graph for this function:

void ns3::LteFfrSimple::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteFfrAlgorithm.

Definition at line 59 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, m_ffrSapProvider, and NS_LOG_FUNCTION.

std::vector< bool > ns3::LteFfrSimple::DoGetAvailableDlRbg ( )

protectedvirtual

Implementation of LteFfrSapProvider::GetAvailableDlRbg.

Returns: vector of size (m_dlBandwidth/RbgSize); false indicates that RBG is free to use, true otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 179 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::GetRbgSize(), ns3::LteFfrAlgorithm::m_dlBandwidth, m_dlOffset, m_dlRbgMap, m_dlSubBand, and NS_LOG_FUNCTION.

Here is the call graph for this function:

std::vector< bool > ns3::LteFfrSimple::DoGetAvailableUlRbg ( )

protectedvirtual

Implementation of LteFfrSapProvider::GetAvailableUlRbg.

Returns: vector of size m_ulBandwidth; false indicates that RB is free to use, true otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 206 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::m_ulBandwidth, m_ulOffset, m_ulRbgMap, m_ulSubBand, and NS_LOG_FUNCTION.

uint8_t ns3::LteFfrSimple::DoGetMinContinuousUlBandwidth ( )

protectedvirtual

DoGetMinContinuousUlBandwidth in number of RB.

Returns: number of RB in min continous UL Bandwidth

Implements ns3::LteFfrAlgorithm.

Definition at line 274 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::m_ulBandwidth, and NS_LOG_FUNCTION.

uint8_t ns3::LteFfrSimple::DoGetTpc ( uint16_t rnti )

protectedvirtual

DoGetTpc for UE.

Parameters

rnti

Returns: TPC value

Implements ns3::LteFfrAlgorithm.

Definition at line 249 of file lte-ffr-simple.cc.

References m_acculumatedMode, m_tpc, m_tpcNum, and NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 134 of file lte-ffr-simple.cc.

References ns3::LteFfrRrcSapUser::AddUeMeasReportConfigForFfr(), ns3::LteRrcSap::ThresholdEutra::choice, ns3::LteRrcSap::PdschConfigDedicated::dB0, ns3::Object::DoInitialize(), ns3::LteRrcSap::ReportConfigEutra::EVENT_A1, ns3::LteRrcSap::ReportConfigEutra::eventId, m_ffrRrcSapUser, m_measId, m_pdschConfigDedicated, ns3::LteRrcSap::ReportConfigEutra::MS120, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteRrcSap::PdschConfigDedicated::pa, ns3::LteRrcSap::ThresholdEutra::range, ns3::LteRrcSap::ReportConfigEutra::reportInterval, ns3::LteRrcSap::ReportConfigEutra::RSRQ, ns3::LteRrcSap::ReportConfigEutra::threshold1, ns3::LteRrcSap::ThresholdEutra::THRESHOLD_RSRQ, and ns3::LteRrcSap::ReportConfigEutra::triggerQuantity.

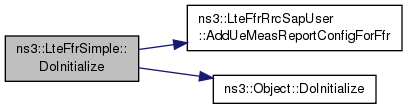

Here is the call graph for this function:

bool ns3::LteFfrSimple::DoIsDlRbgAvailableForUe	(	int	rbId,
		uint16_t	rnti
	)

protectedvirtual

Implementation of LteFfrSapProvider::IsDlRbgAvailableForUe.

Parameters

rbId
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Returns: true if UE can be served on i-th RB, false otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 199 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

bool ns3::LteFfrSimple::DoIsUlRbgAvailableForUe	(	int	rbId,
		uint16_t	rnti
	)

protectedvirtual

Implementation of LteFfrSapProvider::IsUlRbgAvailableForUe.

Parameters

rbId
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Returns: true if UE can be served on i-th RB, false otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 224 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoRecvLoadInformation ( EpcX2Sap::LoadInformationParams params )

protectedvirtual

DoRecvLoadInformation.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 322 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoReportDlCqiInfo ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters & params )

protectedvirtual

DoReportDlCqiInfo.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 231 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoReportUeMeas	(	uint16_t	rnti,
		LteRrcSap::MeasResults	measResults
	)

protectedvirtual

Implementation of LteFfrRrcSapProvider::ReportUeMeas.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from
measResults	a single report of one measurement identity

Implements ns3::LteFfrAlgorithm.

Definition at line 281 of file lte-ffr-simple.cc.

References ns3::LteRrcSap::PdschConfigDedicated::dB0, m_changePdschConfigDedicated, m_ues, ns3::LteRrcSap::MeasResults::measId, NS_LOG_FUNCTION, ns3::LteRrcSap::PdschConfigDedicated::pa, and UpdatePdschConfigDedicated().

Here is the call graph for this function:

void ns3::LteFfrSimple::DoReportUlCqiInfo ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters & params )

protectedvirtual

DoReportUlCqiInfo.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 237 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoReportUlCqiInfo ( std::map< uint16_t, std::vector< double > > ulCqiMap )

protectedvirtual

DoReportUlCqiInfo.

Parameters

ulCqiMap

Implements ns3::LteFfrAlgorithm.

Definition at line 243 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

LteFfrRrcSapProvider * ns3::LteFfrSimple::GetLteFfrRrcSapProvider ( )

virtual

Export the "provider" part of the LteFfrRrcSap interface.

Returns: the reference to the "provider" part of the interface, typically to be kept by an LteEnbRrc instance

Implements ns3::LteFfrAlgorithm.

Definition at line 126 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, and NS_LOG_FUNCTION.

LteFfrSapProvider * ns3::LteFfrSimple::GetLteFfrSapProvider ( )

virtual

Export the "provider" part of the LteFfrSap interface.

Returns: the reference to the "provider" part of the interface, typically to be kept by an Scheduler instance

Implements ns3::LteFfrAlgorithm.

Definition at line 111 of file lte-ffr-simple.cc.

References m_ffrSapProvider, and NS_LOG_FUNCTION.

TypeId ns3::LteFfrSimple::GetTypeId ( void )

static

Definition at line 68 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicatedTrace, m_dlOffset, m_dlSubBand, m_ulOffset, m_ulSubBand, ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

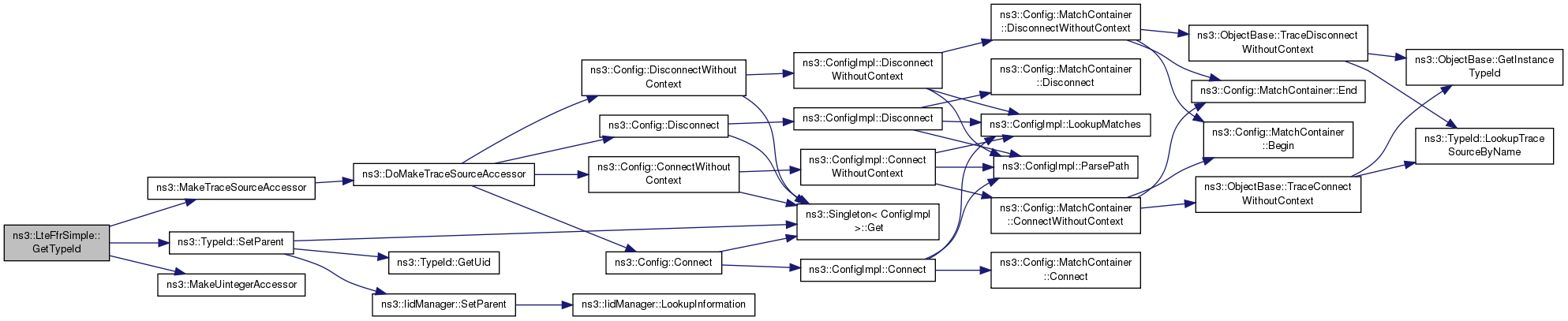

Here is the call graph for this function:

void ns3::LteFfrSimple::Reconfigure ( )

protectedvirtual

Automatic FR reconfiguration.

Implements ns3::LteFfrAlgorithm.

Definition at line 153 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::SetLteFfrRrcSapUser ( LteFfrRrcSapUser * s )

virtual

Set the "user" part of the LteFfrRrcSap interface that this frequency reuse algorithm instance will interact with.

Parameters

s	a reference to the "user" part of the interface, typically a member of an LteEnbRrc instance

Implements ns3::LteFfrAlgorithm.

Definition at line 118 of file lte-ffr-simple.cc.

References m_ffrRrcSapUser, and NS_LOG_FUNCTION.

void ns3::LteFfrSimple::SetLteFfrSapUser ( LteFfrSapUser * s )

virtual

Set the "user" part of the LteFfrSap interface that this frequency reuse algorithm instance will interact with.

Parameters

s	a reference to the "user" part of the interface, typically a member of an Scheduler instance

Implements ns3::LteFfrAlgorithm.

Definition at line 103 of file lte-ffr-simple.cc.

References m_ffrSapUser, and NS_LOG_FUNCTION.

void ns3::LteFfrSimple::SetPdschConfigDedicated ( LteRrcSap::PdschConfigDedicated pdschConfigDedicated )

Definition at line 165 of file lte-ffr-simple.cc.

References m_pdschConfigDedicated.

Referenced by LteDownlinkPowerControlTestCase::DoRun(), LteCqiGenerationDlPowerControlTestCase::DoRun(), and LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun().

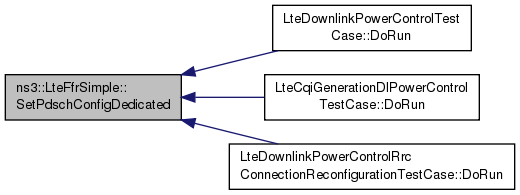

Here is the caller graph for this function:

void ns3::LteFfrSimple::SetTpc	(	uint32_t	tpc,
		uint32_t	num,
		bool	acculumatedMode
	)

Definition at line 171 of file lte-ffr-simple.cc.

References m_acculumatedMode, m_tpc, and m_tpcNum.

Referenced by LteUplinkPowerControlTestCase::SetTpcConfiguration().

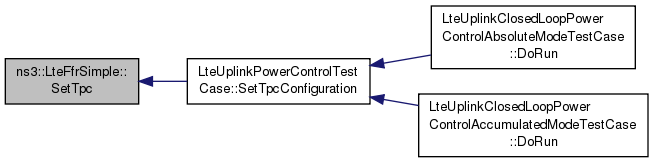

Here is the caller graph for this function:

void ns3::LteFfrSimple::UpdatePdschConfigDedicated ( )

private

Definition at line 305 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicatedTrace, m_ffrRrcSapUser, m_pdschConfigDedicated, m_ues, NS_LOG_FUNCTION, ns3::LteRrcSap::PdschConfigDedicated::pa, and ns3::LteFfrRrcSapUser::SetPdschConfigDedicated().

Referenced by DoReportUeMeas().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MemberLteFfrRrcSapProvider< LteFfrSimple >

friend

Definition at line 69 of file lte-ffr-simple.h.

friend class MemberLteFfrSapProvider< LteFfrSimple >

friend

Definition at line 68 of file lte-ffr-simple.h.

Member Data Documentation

bool ns3::LteFfrSimple::m_acculumatedMode

private

Definition at line 137 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

bool ns3::LteFfrSimple::m_changePdschConfigDedicated

private

Definition at line 127 of file lte-ffr-simple.h.

Referenced by ChangePdschConfigDedicated(), and DoReportUeMeas().

TracedCallback<uint16_t, uint8_t> ns3::LteFfrSimple::m_changePdschConfigDedicatedTrace

private

Definition at line 131 of file lte-ffr-simple.h.

Referenced by GetTypeId(), and UpdatePdschConfigDedicated().

uint8_t ns3::LteFfrSimple::m_dlOffset

private

Definition at line 113 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg(), and GetTypeId().

std::vector<bool> ns3::LteFfrSimple::m_dlRbgMap

private

Definition at line 119 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg().

uint8_t ns3::LteFfrSimple::m_dlSubBand

private

Definition at line 114 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg(), and GetTypeId().

LteFfrRrcSapProvider* ns3::LteFfrSimple::m_ffrRrcSapProvider

private

Definition at line 111 of file lte-ffr-simple.h.

Referenced by DoDispose(), GetLteFfrRrcSapProvider(), and LteFfrSimple().

LteFfrRrcSapUser* ns3::LteFfrSimple::m_ffrRrcSapUser

private

Definition at line 110 of file lte-ffr-simple.h.

Referenced by DoInitialize(), SetLteFfrRrcSapUser(), and UpdatePdschConfigDedicated().

LteFfrSapProvider* ns3::LteFfrSimple::m_ffrSapProvider

private

Definition at line 107 of file lte-ffr-simple.h.

Referenced by DoDispose(), GetLteFfrSapProvider(), and LteFfrSimple().

LteFfrSapUser* ns3::LteFfrSimple::m_ffrSapUser

private

Definition at line 106 of file lte-ffr-simple.h.

Referenced by SetLteFfrSapUser().

uint8_t ns3::LteFfrSimple::m_measId

private

Definition at line 125 of file lte-ffr-simple.h.

Referenced by DoInitialize().

LteRrcSap::PdschConfigDedicated ns3::LteFfrSimple::m_pdschConfigDedicated

private

Definition at line 129 of file lte-ffr-simple.h.

Referenced by DoInitialize(), SetPdschConfigDedicated(), and UpdatePdschConfigDedicated().

uint32_t ns3::LteFfrSimple::m_tpc

private

Definition at line 135 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

uint32_t ns3::LteFfrSimple::m_tpcNum

private

Definition at line 136 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

std::map<uint16_t, LteRrcSap::PdschConfigDedicated> ns3::LteFfrSimple::m_ues

private

Definition at line 122 of file lte-ffr-simple.h.

Referenced by DoReportUeMeas(), and UpdatePdschConfigDedicated().

uint8_t ns3::LteFfrSimple::m_ulOffset

private

Definition at line 116 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg(), and GetTypeId().

std::vector<bool> ns3::LteFfrSimple::m_ulRbgMap

private

Definition at line 120 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg().

uint8_t ns3::LteFfrSimple::m_ulSubBand

private

Definition at line 117 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg(), and GetTypeId().

The documentation for this class was generated from the following files:

src/lte/test/lte-ffr-simple.h
src/lte/test/lte-ffr-simple.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
