ns3::LteRadioBearerTag Class Reference

Tag used to define the RNTI and LC id for each MAC packet trasmitted. More...

#include "lte-radio-bearer-tag.h"

+ Inheritance diagram for ns3::LteRadioBearerTag:
+ Collaboration diagram for ns3::LteRadioBearerTag:

Public Member Functions

 LteRadioBearerTag ()
 Create an empty LteRadioBearerTag. More...

 LteRadioBearerTag (uint16_t rnti, uint8_t lcId)
 Create a LteRadioBearerTag with the given RNTI and LC id. More...

 LteRadioBearerTag (uint16_t rnti, uint8_t lcId, uint8_t layer)
 Create a LteRadioBearerTag with the given RNTI, LC id and layer. More...

virtual void Deserialize (TagBuffer i)

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint8_t GetLayer (void) const

uint8_t GetLcid (void) const

uint16_t GetRnti (void) const

virtual uint32_t GetSerializedSize () const

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer i) const

void SetLayer (uint8_t layer)
 Set the layer id to the given value. More...

void SetLcid (uint8_t lcid)
 Set the LC id to the given value. More...

void SetRnti (uint16_t rnti)
 Set the RNTI to the given value. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_layer

uint8_t m_lcid

uint16_t m_rnti


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Tag used to define the RNTI and LC id for each MAC packet trasmitted.

Introspection did not find any typical Config paths.


Attributes

  • rnti: The rnti that indicates the UE to which packet belongs
  • lcid: The id whithin the UE identifying the logical channel to which the packet belongs

No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 34 of file lte-radio-bearer-tag.h.

Constructor & Destructor Documentation

ns3::LteRadioBearerTag::LteRadioBearerTag ( )

Create an empty LteRadioBearerTag.

Definition at line 55 of file lte-radio-bearer-tag.cc.

ns3::LteRadioBearerTag::LteRadioBearerTag ( uint16_t  rnti,
uint8_t  lcId
)

Create a LteRadioBearerTag with the given RNTI and LC id.

Definition at line 61 of file lte-radio-bearer-tag.cc.

ns3::LteRadioBearerTag::LteRadioBearerTag ( uint16_t  rnti,
uint8_t  lcId,
uint8_t  layer
)

Create a LteRadioBearerTag with the given RNTI, LC id and layer.

Definition at line 67 of file lte-radio-bearer-tag.cc.

Member Function Documentation

void ns3::LteRadioBearerTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 107 of file lte-radio-bearer-tag.cc.

References m_layer, m_lcid, m_rnti, ns3::TagBuffer::ReadU16(), and ns3::TagBuffer::ReadU8().

+ Here is the call graph for this function:

TypeId ns3::LteRadioBearerTag::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 50 of file lte-radio-bearer-tag.cc.

References GetTypeId().

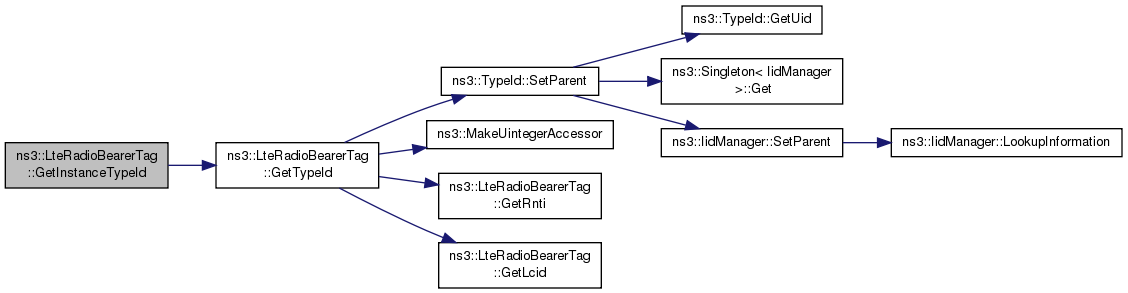

+ Here is the call graph for this function:

uint8_t ns3::LteRadioBearerTag::GetLayer ( void  ) const

Definition at line 127 of file lte-radio-bearer-tag.cc.

References m_layer.

Referenced by ns3::LteEnbMac::DoTransmitPdu(), and ns3::LteSpectrumPhy::EndRxData().

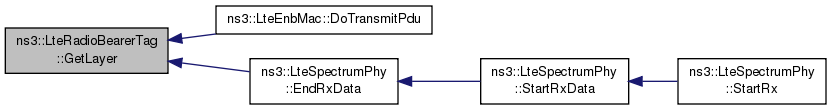

+ Here is the caller graph for this function:

uint8_t ns3::LteRadioBearerTag::GetLcid ( void  ) const

Definition at line 121 of file lte-radio-bearer-tag.cc.

References m_lcid.

Referenced by ns3::LteUeMac::DoReceivePhyPdu(), ns3::LteEnbMac::DoReceivePhyPdu(), and GetTypeId().

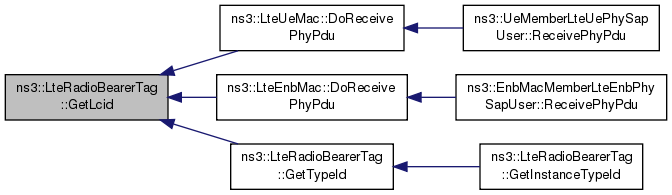

+ Here is the caller graph for this function:

uint16_t ns3::LteRadioBearerTag::GetRnti ( void  ) const

Definition at line 115 of file lte-radio-bearer-tag.cc.

References m_rnti.

Referenced by ns3::LteUeMac::DoReceivePhyPdu(), ns3::LteEnbMac::DoReceivePhyPdu(), ns3::LteSpectrumPhy::EndRxData(), and GetTypeId().

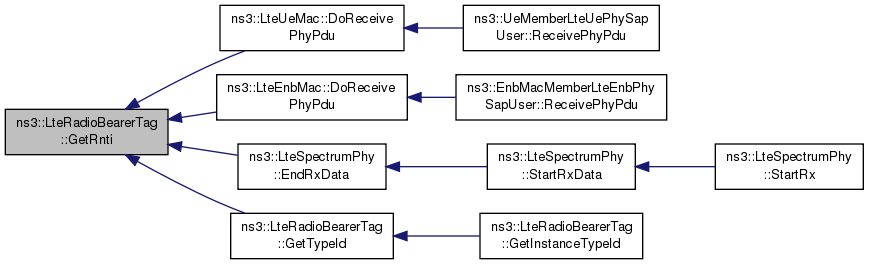

+ Here is the caller graph for this function:

uint32_t ns3::LteRadioBearerTag::GetSerializedSize ( ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 93 of file lte-radio-bearer-tag.cc.

TypeId ns3::LteRadioBearerTag::GetTypeId ( void  )
static

Definition at line 31 of file lte-radio-bearer-tag.cc.

References GetLcid(), GetRnti(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

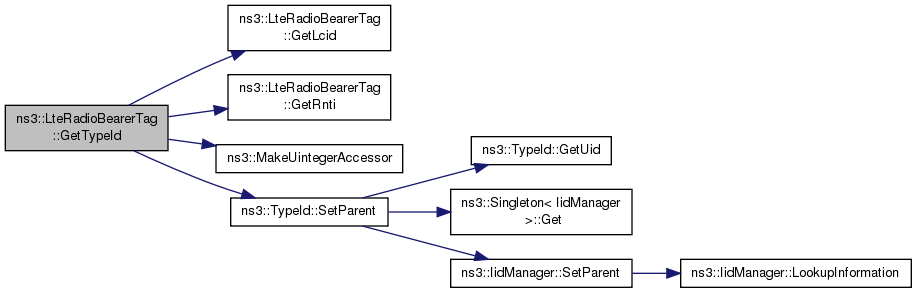

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteRadioBearerTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 133 of file lte-radio-bearer-tag.cc.

References m_layer, m_lcid, and m_rnti.

void ns3::LteRadioBearerTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 99 of file lte-radio-bearer-tag.cc.

References m_layer, m_lcid, m_rnti, ns3::TagBuffer::WriteU16(), and ns3::TagBuffer::WriteU8().

+ Here is the call graph for this function:

void ns3::LteRadioBearerTag::SetLayer ( uint8_t  layer)

Set the layer id to the given value.

Parameters
layerthe value of the layer to set

Definition at line 87 of file lte-radio-bearer-tag.cc.

References m_layer.

void ns3::LteRadioBearerTag::SetLcid ( uint8_t  lcid)

Set the LC id to the given value.

Parameters
lcidthe value of the RNTI to set

Definition at line 81 of file lte-radio-bearer-tag.cc.

References m_lcid.

void ns3::LteRadioBearerTag::SetRnti ( uint16_t  rnti)

Set the RNTI to the given value.

Parameters
rntithe value of the RNTI to set

Definition at line 75 of file lte-radio-bearer-tag.cc.

References m_rnti.

Member Data Documentation

uint8_t ns3::LteRadioBearerTag::m_layer
private

Definition at line 89 of file lte-radio-bearer-tag.h.

Referenced by Deserialize(), GetLayer(), Print(), Serialize(), and SetLayer().

uint8_t ns3::LteRadioBearerTag::m_lcid
private

Definition at line 88 of file lte-radio-bearer-tag.h.

Referenced by Deserialize(), GetLcid(), Print(), Serialize(), and SetLcid().

uint16_t ns3::LteRadioBearerTag::m_rnti
private

Definition at line 87 of file lte-radio-bearer-tag.h.

Referenced by Deserialize(), GetRnti(), Print(), Serialize(), and SetRnti().


The documentation for this class was generated from the following files:
