The LteSimpleSpectrumPhy models the physical layer of LTE This class is used to test Frequency Reuse Algorithms, it allow to get SpectrumValue from channel and pass it to test script by trace mechanism. More...

#include "lte-simple-spectrum-phy.h"

Inheritance diagram for ns3::LteSimpleSpectrumPhy:

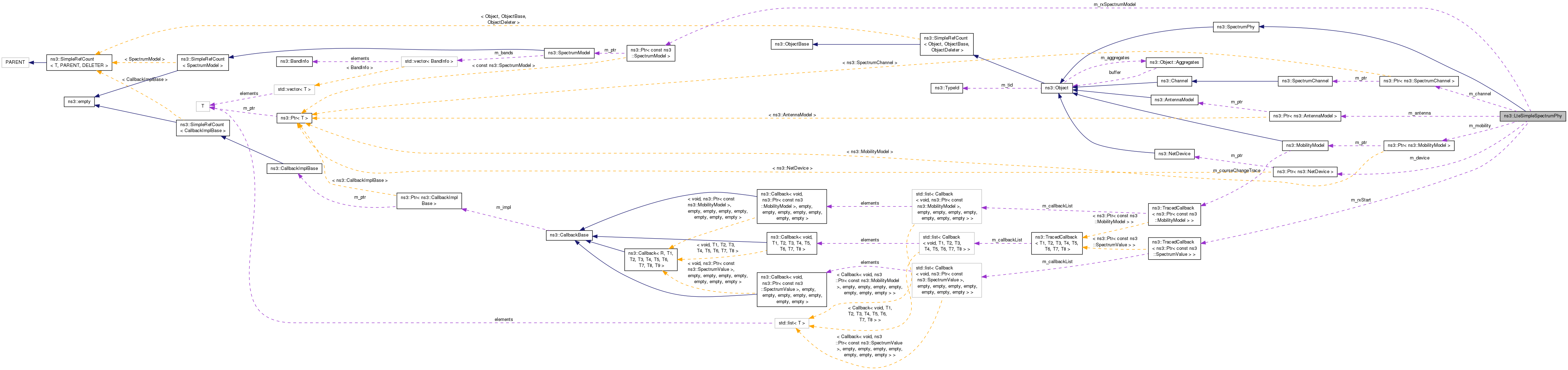

Collaboration diagram for ns3::LteSimpleSpectrumPhy:

Public Member Functions
	LteSimpleSpectrumPhy ()

virtual	~LteSimpleSpectrumPhy ()

virtual void	DoDispose ()
	Destructor implementation. More...

Ptr< NetDevice >	GetDevice () const
	Get the associated NetDevice instance. More...

Ptr< MobilityModel >	GetMobility ()
	Get the associated MobilityModel instance. More...

Ptr< AntennaModel >	GetRxAntenna ()
	Get the AntennaModel used by the NetDevice for reception. More...

Ptr< const SpectrumModel >	GetRxSpectrumModel () const

void	SetCellId (uint16_t cellId)

void	SetChannel (Ptr< SpectrumChannel > c)
	Set the channel attached to this device. More...

void	SetDevice (Ptr< NetDevice > d)
	Set the associated NetDevice instance. More...

void	SetMobility (Ptr< MobilityModel > m)
	Set the mobility model associated with this device. More...

void	SetRxSpectrumModel (Ptr< const SpectrumModel > model)

void	StartRx (Ptr< SpectrumSignalParameters > params)
	Notify the SpectrumPhy instance of an incoming signal. More...

Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()

virtual	~SpectrumPhy ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< AntennaModel >	m_antenna

uint16_t	m_cellId

Ptr< SpectrumChannel >	m_channel

Ptr< NetDevice >	m_device

Ptr< MobilityModel >	m_mobility

Ptr< const SpectrumModel >	m_rxSpectrumModel

TracedCallback< Ptr< const SpectrumValue > >	m_rxStart

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The LteSimpleSpectrumPhy models the physical layer of LTE This class is used to test Frequency Reuse Algorithms, it allow to get SpectrumValue from channel and pass it to test script by trace mechanism.

When m_cellId is 0, all received signals will be traced, if m_cellId > 0, only signals from specified Cell will be traced.

Definition at line 47 of file lte-simple-spectrum-phy.h.

Constructor & Destructor Documentation

ns3::LteSimpleSpectrumPhy::LteSimpleSpectrumPhy ( )

Definition at line 39 of file lte-simple-spectrum-phy.cc.

ns3::LteSimpleSpectrumPhy::~LteSimpleSpectrumPhy ( )

virtual

Definition at line 45 of file lte-simple-spectrum-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSimpleSpectrumPhy::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 50 of file lte-simple-spectrum-phy.cc.

References ns3::Object::DoDispose(), m_channel, m_device, m_mobility, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< NetDevice > ns3::LteSimpleSpectrumPhy::GetDevice ( ) const

virtual

Get the associated NetDevice instance.

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 76 of file lte-simple-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::LteSimpleSpectrumPhy::GetMobility ( )

virtual

Get the associated MobilityModel instance.

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 84 of file lte-simple-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

Ptr< AntennaModel > ns3::LteSimpleSpectrumPhy::GetRxAntenna ( )

virtual

Get the AntennaModel used by the NetDevice for reception.

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 122 of file lte-simple-spectrum-phy.cc.

References m_antenna.

Ptr< const SpectrumModel > ns3::LteSimpleSpectrumPhy::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 115 of file lte-simple-spectrum-phy.cc.

References m_rxSpectrumModel.

TypeId ns3::LteSimpleSpectrumPhy::GetTypeId ( void )

static

Definition at line 61 of file lte-simple-spectrum-phy.cc.

References m_rxStart, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

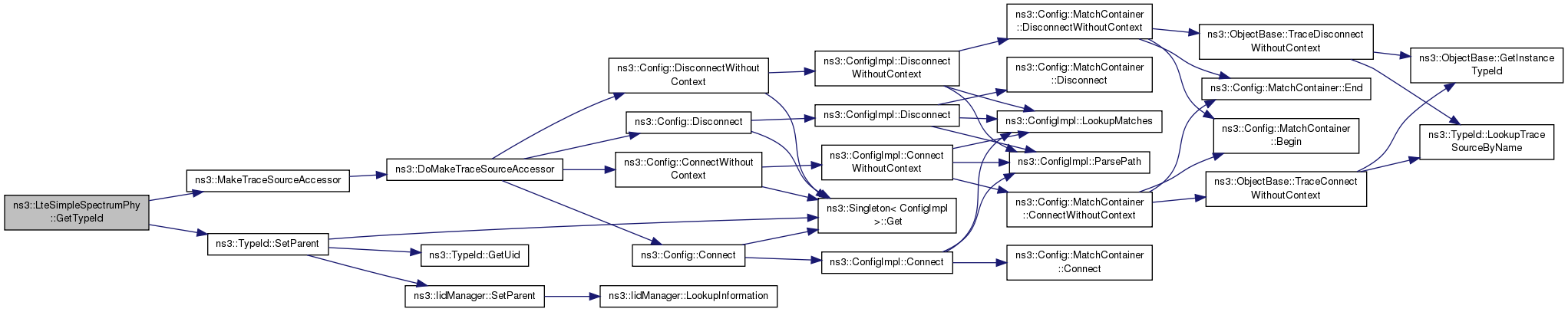

Here is the call graph for this function:
