Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler. More...

#include "lte-rrc-protocol-real.h"

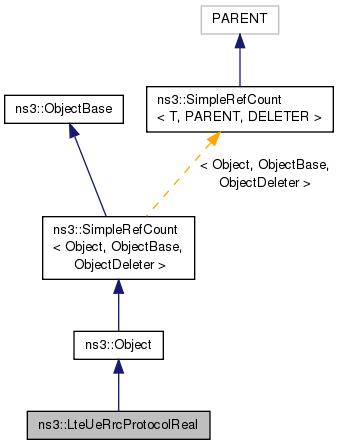

Inheritance diagram for ns3::LteUeRrcProtocolReal:

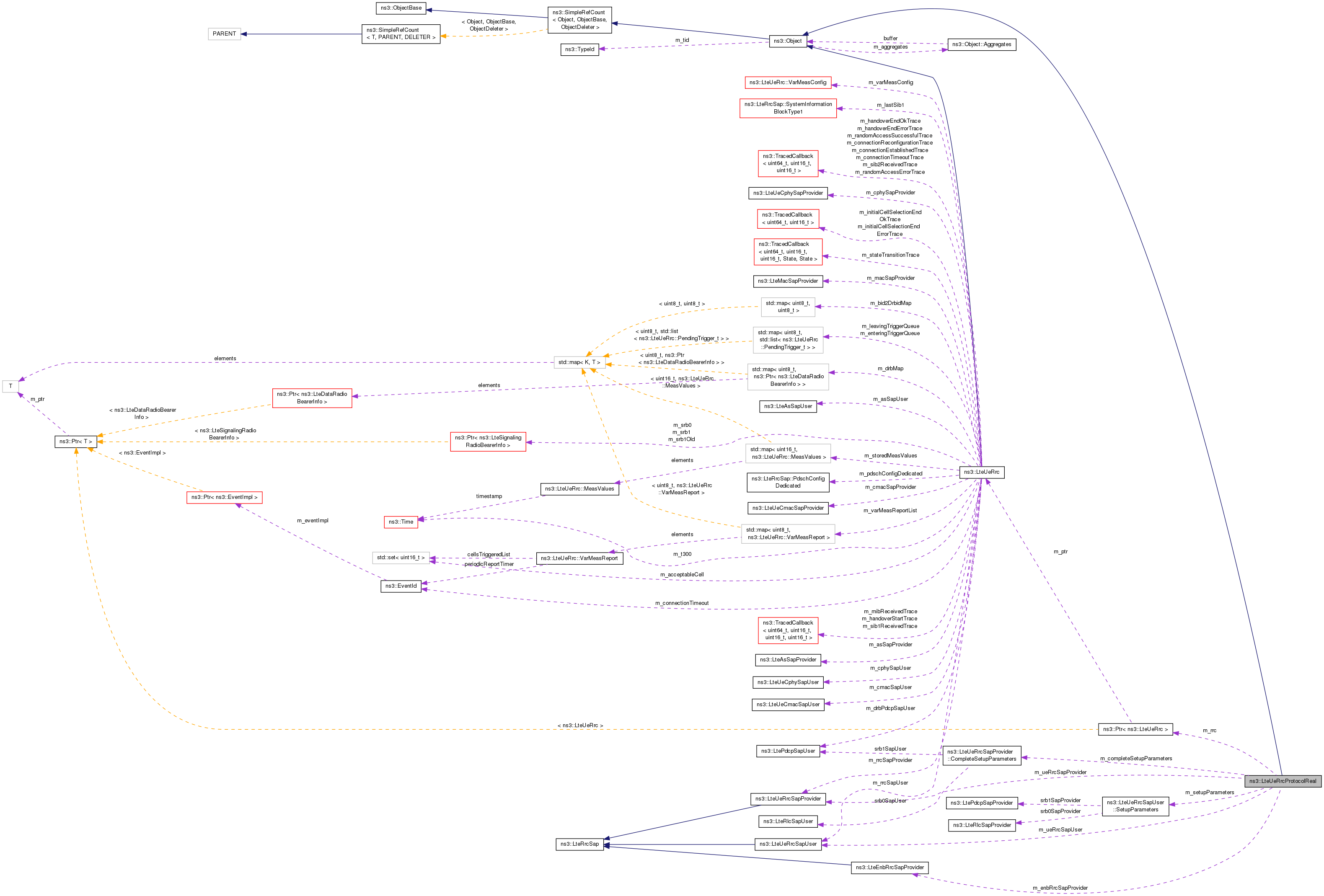

Collaboration diagram for ns3::LteUeRrcProtocolReal:

Public Member Functions
	LteUeRrcProtocolReal ()

virtual	~LteUeRrcProtocolReal ()

virtual void	DoDispose (void)
	Destructor implementation. More...

LteUeRrcSapUser *	GetLteUeRrcSapUser ()

void	SetLteUeRrcSapProvider (LteUeRrcSapProvider *p)

void	SetUeRrc (Ptr< LteUeRrc > rrc)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoReceivePdcpPdu (Ptr< Packet > p)

void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

void	DoSendMeasurementReport (LteRrcSap::MeasurementReport msg)

void	DoSendRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)

void	DoSendRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)

void	DoSendRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)

void	DoSendRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)

void	DoSendRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)

void	DoSetup (LteUeRrcSapUser::SetupParameters params)

void	SetEnbRrcSapProvider ()

Private Attributes
LteUeRrcSapProvider::CompleteSetupParameters	m_completeSetupParameters

LteEnbRrcSapProvider *	m_enbRrcSapProvider

uint16_t	m_rnti

Ptr< LteUeRrc >	m_rrc

LteUeRrcSapUser::SetupParameters	m_setupParameters

LteUeRrcSapProvider *	m_ueRrcSapProvider

LteUeRrcSapUser *	m_ueRrcSapUser

Friends
class	LtePdcpSpecificLtePdcpSapUser< LteUeRrcProtocolReal >

class	LteRlcSpecificLteRlcSapUser< LteUeRrcProtocolReal >

class	MemberLteUeRrcSapUser< LteUeRrcProtocolReal >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 51 of file lte-rrc-protocol-real.h.

Constructor & Destructor Documentation

ns3::LteUeRrcProtocolReal::LteUeRrcProtocolReal ( )

Definition at line 43 of file lte-rrc-protocol-real.cc.

References m_completeSetupParameters, m_ueRrcSapUser, ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb0SapUser, and ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb1SapUser.

ns3::LteUeRrcProtocolReal::~LteUeRrcProtocolReal ( )

virtual

Definition at line 52 of file lte-rrc-protocol-real.cc.

Member Function Documentation

void ns3::LteUeRrcProtocolReal::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 57 of file lte-rrc-protocol-real.cc.

References m_completeSetupParameters, m_rrc, m_ueRrcSapUser, NS_LOG_FUNCTION, ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb0SapUser, and ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb1SapUser.

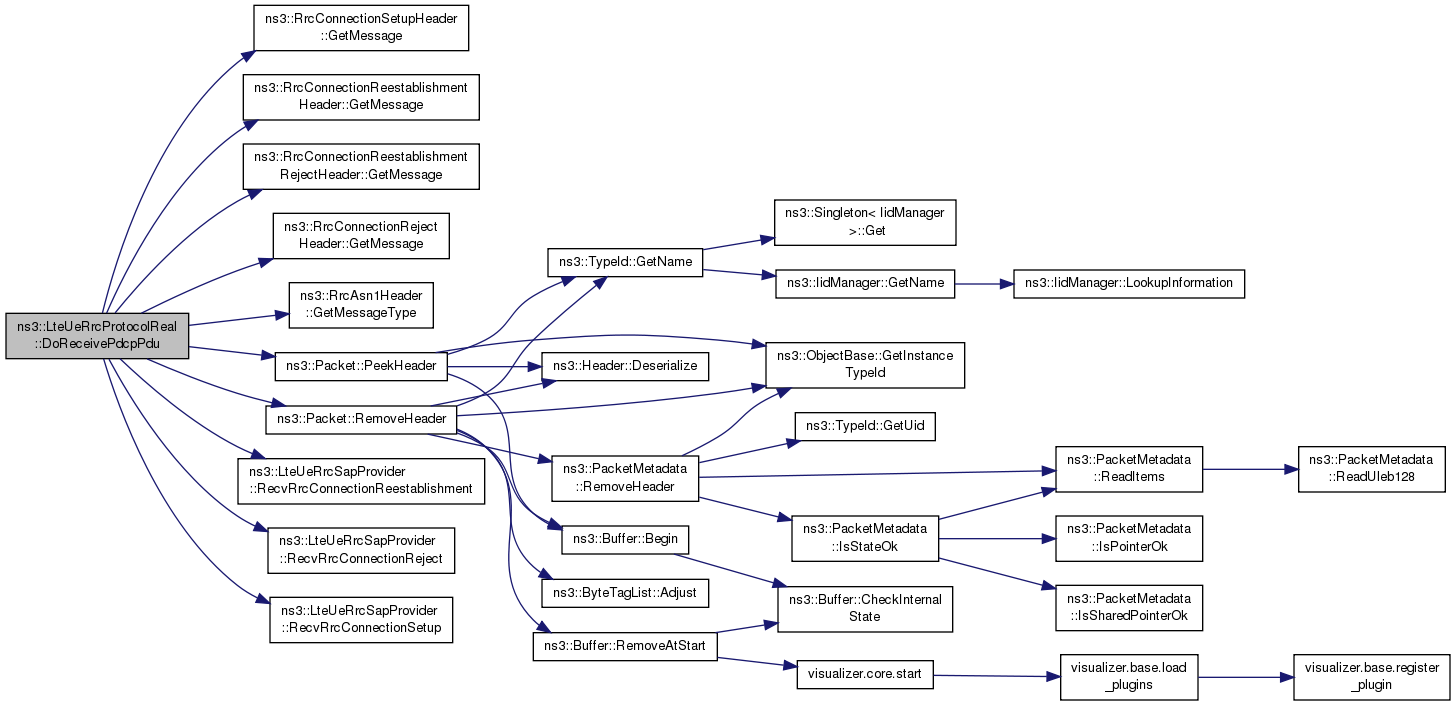

void ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu ( Ptr< Packet > p )

private

Definition at line 273 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionSetupHeader::GetMessage(), ns3::RrcConnectionReestablishmentHeader::GetMessage(), ns3::RrcConnectionReestablishmentRejectHeader::GetMessage(), ns3::RrcConnectionRejectHeader::GetMessage(), ns3::RrcAsn1Header::GetMessageType(), m_ueRrcSapProvider, ns3::Packet::PeekHeader(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishment(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReject(), ns3::LteUeRrcSapProvider::RecvRrcConnectionSetup(), and ns3::Packet::RemoveHeader().

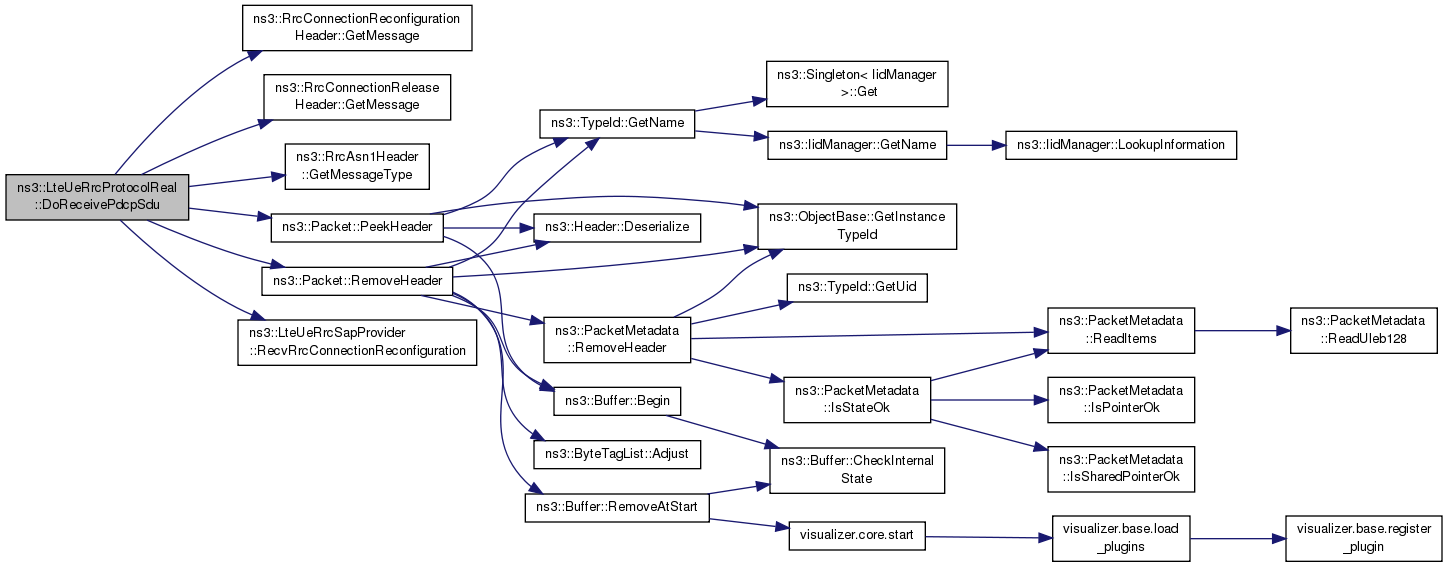

Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters params )

private

Definition at line 322 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionReconfigurationHeader::GetMessage(), ns3::RrcConnectionReleaseHeader::GetMessage(), ns3::RrcAsn1Header::GetMessageType(), m_ueRrcSapProvider, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu, ns3::Packet::PeekHeader(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReconfiguration(), and ns3::Packet::RemoveHeader().

Here is the call graph for this function:

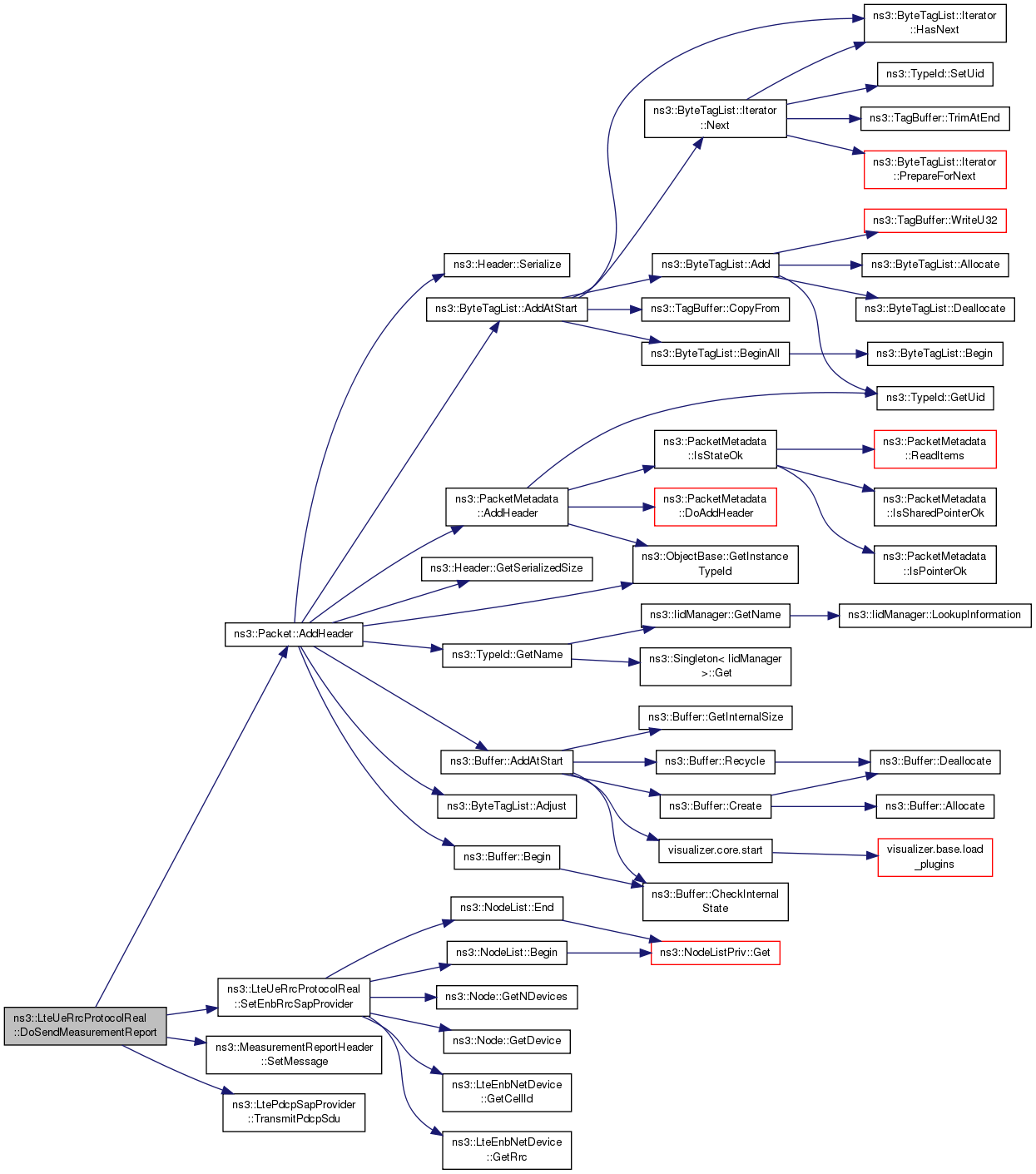

void ns3::LteUeRrcProtocolReal::DoSendMeasurementReport ( LteRrcSap::MeasurementReport msg )

private

Definition at line 173 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_rnti, m_rrc, m_setupParameters, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, SetEnbRrcSapProvider(), ns3::MeasurementReportHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

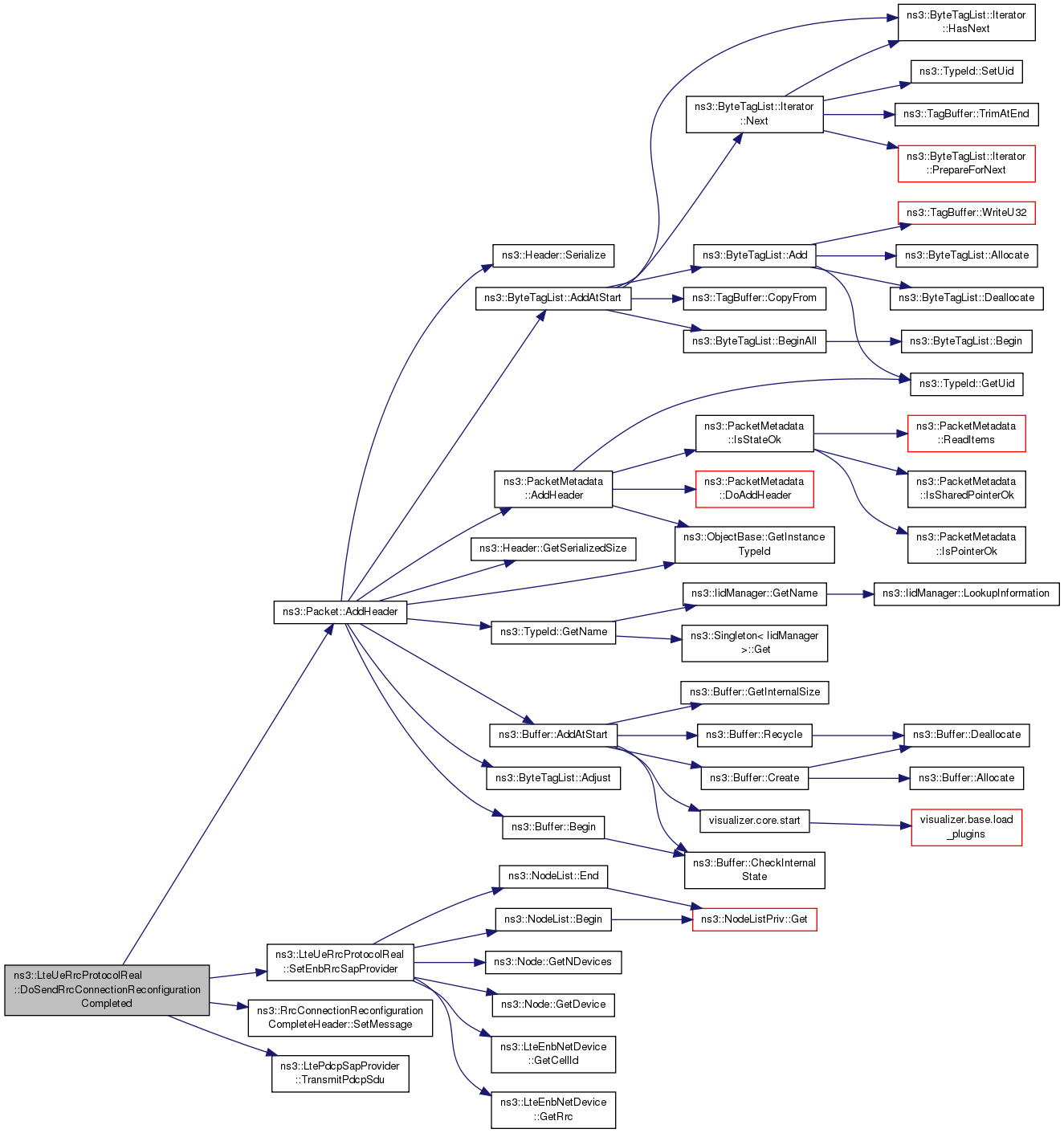

Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReconfigurationCompleted ( LteRrcSap::RrcConnectionReconfigurationCompleted msg )

private

Definition at line 150 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_rnti, m_rrc, m_setupParameters, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, SetEnbRrcSapProvider(), ns3::RrcConnectionReconfigurationCompleteHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReestablishmentComplete ( LteRrcSap::RrcConnectionReestablishmentComplete msg )

private

Definition at line 214 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_rnti, m_setupParameters, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, ns3::RrcConnectionReestablishmentCompleteHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

Here is the call graph for this function:

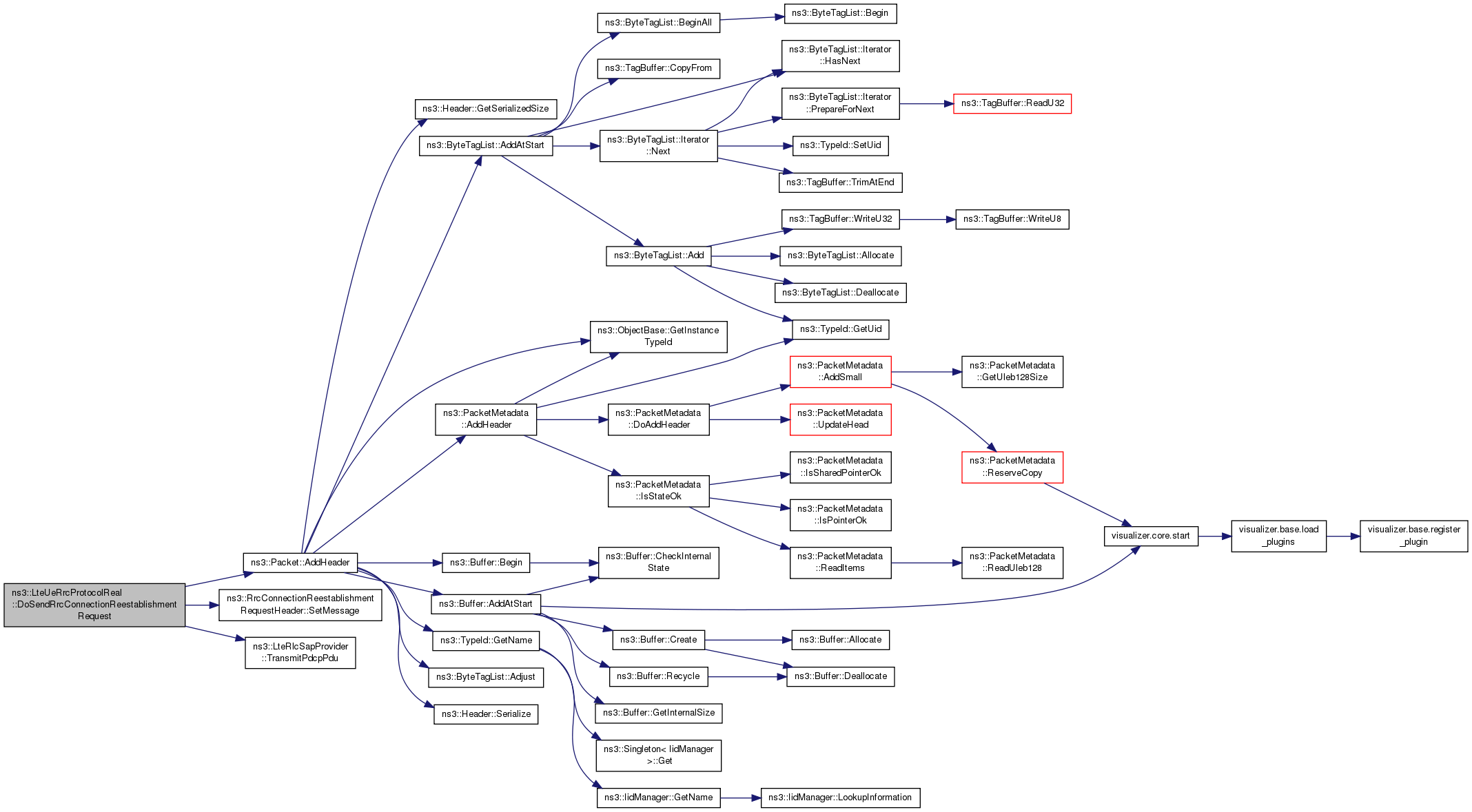

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReestablishmentRequest ( LteRrcSap::RrcConnectionReestablishmentRequest msg )

private

Definition at line 196 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_rnti, m_setupParameters, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, ns3::RrcConnectionReestablishmentRequestHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteRlcSapProvider::TransmitPdcpPdu().

Here is the call graph for this function:

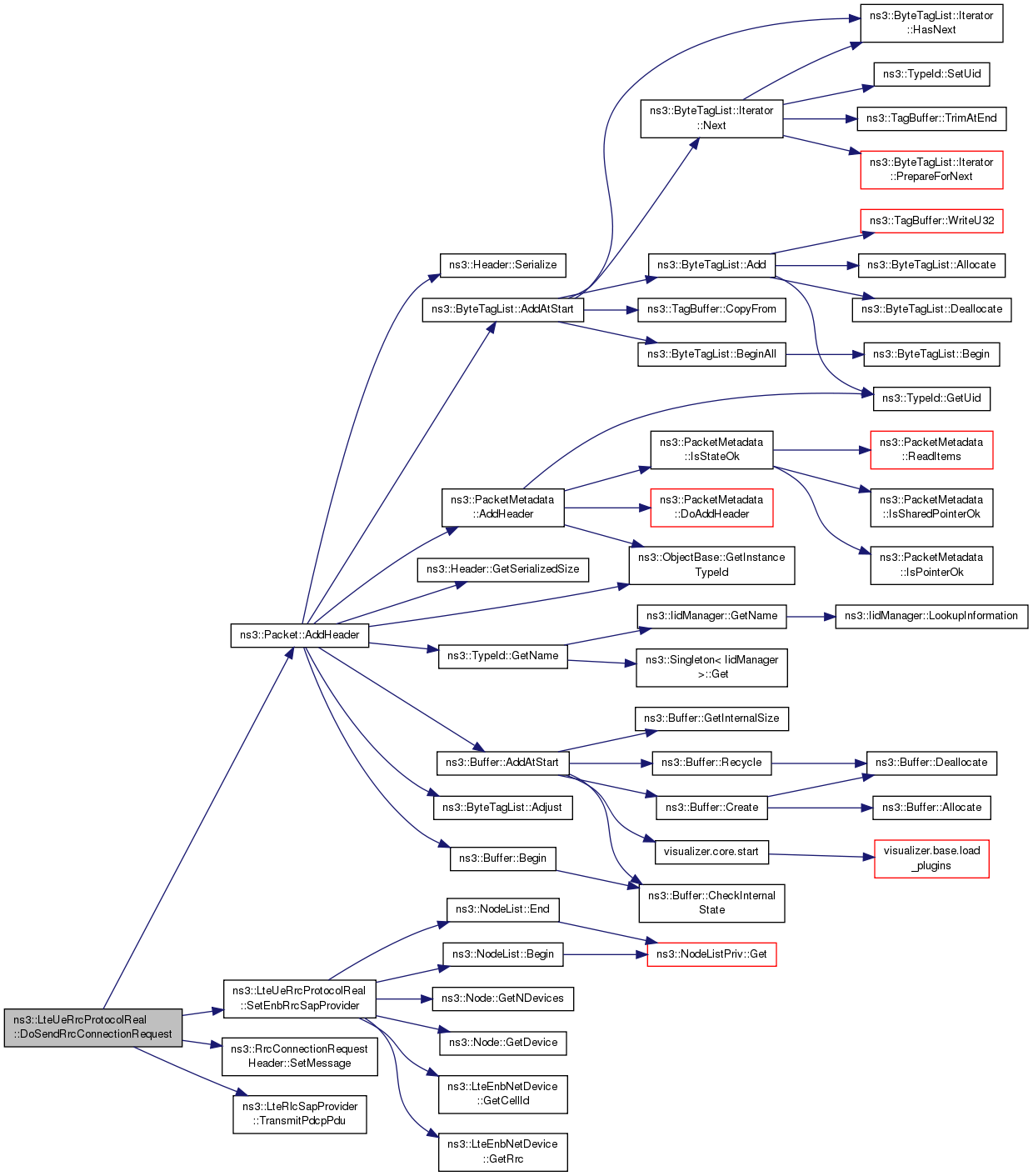

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionRequest ( LteRrcSap::RrcConnectionRequest msg )

private

Definition at line 106 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_rnti, m_rrc, m_setupParameters, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, SetEnbRrcSapProvider(), ns3::RrcConnectionRequestHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteRlcSapProvider::TransmitPdcpPdu().

Here is the call graph for this function:

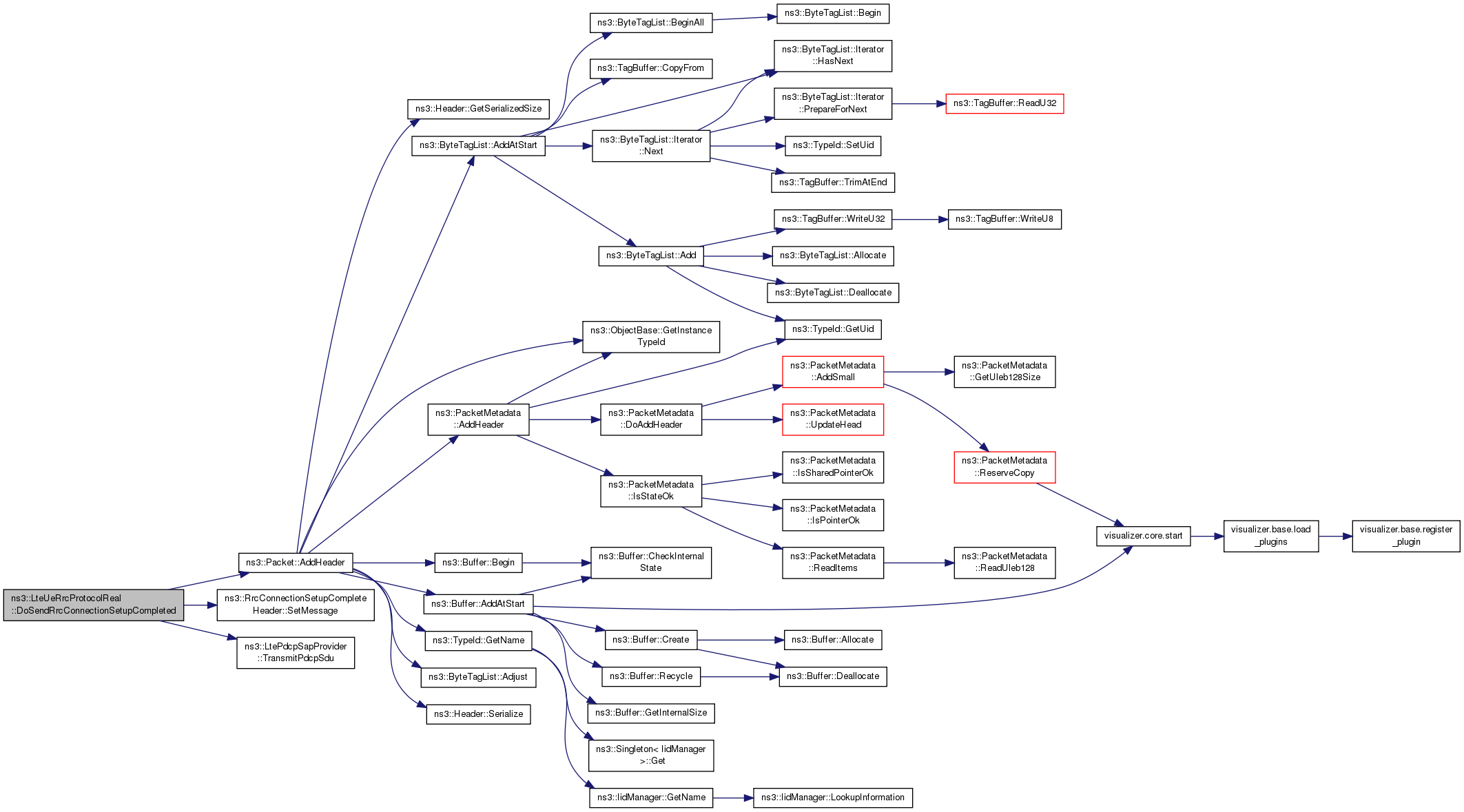

void ns3::LteUeRrcProtocolReal::DoSendRrcConnectionSetupCompleted ( LteRrcSap::RrcConnectionSetupCompleted msg )

private

Definition at line 129 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_rnti, m_setupParameters, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, ns3::RrcConnectionSetupCompleteHeader::SetMessage(), ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::DoSetup ( LteUeRrcSapUser::SetupParameters params )

private

Definition at line 96 of file lte-rrc-protocol-real.cc.

References ns3::LteUeRrcSapProvider::CompleteSetup(), m_completeSetupParameters, m_setupParameters, m_ueRrcSapProvider, NS_LOG_FUNCTION, ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider.

Here is the call graph for this function:

LteUeRrcSapUser * ns3::LteUeRrcProtocolReal::GetLteUeRrcSapUser ( )

Definition at line 84 of file lte-rrc-protocol-real.cc.

References m_ueRrcSapUser.

TypeId ns3::LteUeRrcProtocolReal::GetTypeId ( void )

static

Definition at line 67 of file lte-rrc-protocol-real.cc.

References ns3::TypeId::SetParent().

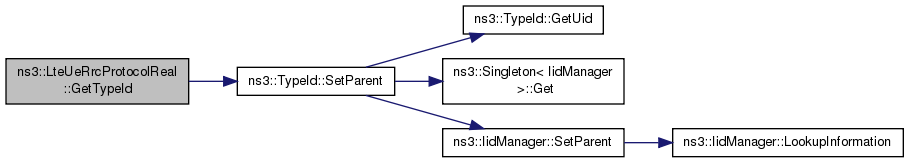

Here is the call graph for this function:

void ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider ( )

private

Definition at line 233 of file lte-rrc-protocol-real.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::LteEnbNetDevice::GetCellId(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), ns3::LteEnbNetDevice::GetRrc(), m_enbRrcSapProvider, m_rnti, m_rrc, m_ueRrcSapProvider, and NS_ASSERT_MSG.

Referenced by DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), and DoSendRrcConnectionRequest().

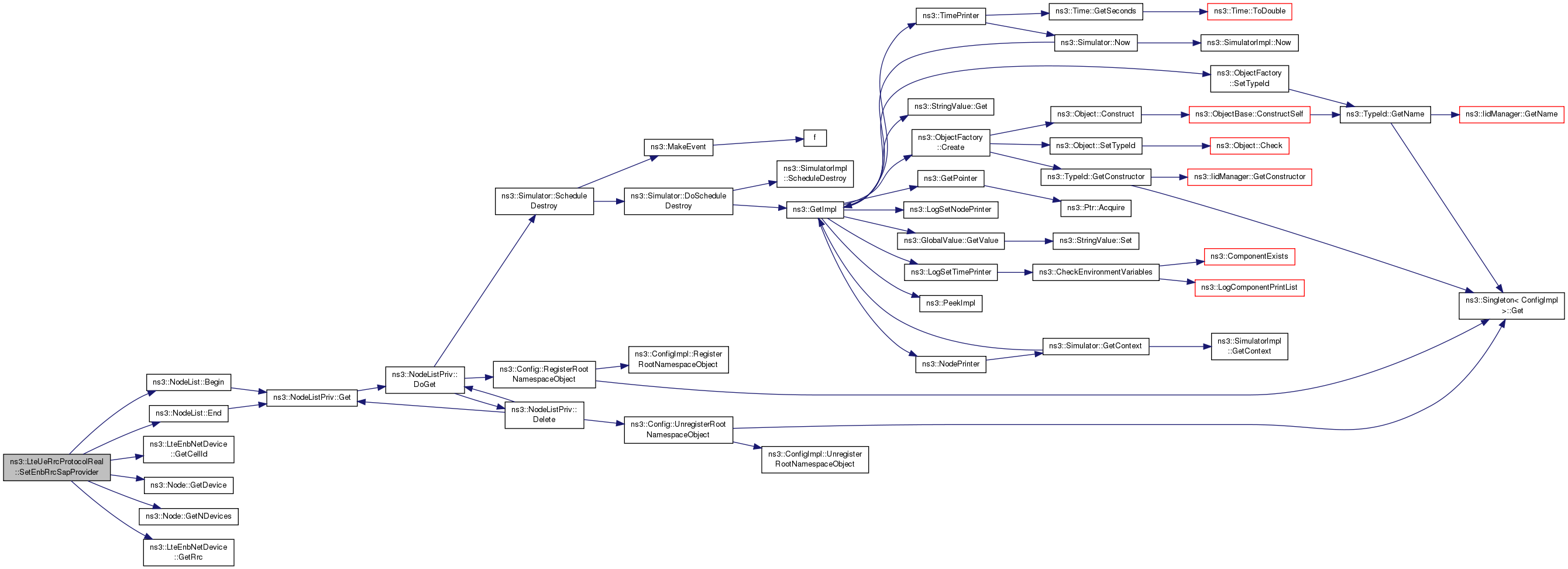

Here is the call graph for this function:

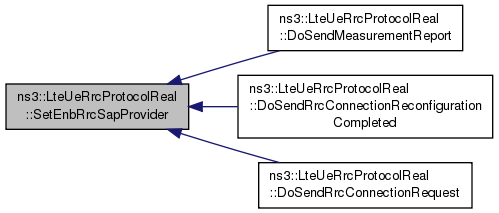

Here is the caller graph for this function:

void ns3::LteUeRrcProtocolReal::SetLteUeRrcSapProvider ( LteUeRrcSapProvider * p )

Definition at line 78 of file lte-rrc-protocol-real.cc.

References m_ueRrcSapProvider.

void ns3::LteUeRrcProtocolReal::SetUeRrc ( Ptr< LteUeRrc > rrc )

Definition at line 90 of file lte-rrc-protocol-real.cc.

References m_rrc.

Friends And Related Function Documentation

friend class LtePdcpSpecificLtePdcpSapUser< LteUeRrcProtocolReal >

friend

Definition at line 55 of file lte-rrc-protocol-real.h.

friend class LteRlcSpecificLteRlcSapUser< LteUeRrcProtocolReal >

friend

Definition at line 54 of file lte-rrc-protocol-real.h.

friend class MemberLteUeRrcSapUser< LteUeRrcProtocolReal >

friend

Definition at line 53 of file lte-rrc-protocol-real.h.

Member Data Documentation

LteUeRrcSapProvider::CompleteSetupParameters ns3::LteUeRrcProtocolReal::m_completeSetupParameters

private

Definition at line 92 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), DoSetup(), and LteUeRrcProtocolReal().

LteEnbRrcSapProvider* ns3::LteUeRrcProtocolReal::m_enbRrcSapProvider

private

Definition at line 89 of file lte-rrc-protocol-real.h.

Referenced by SetEnbRrcSapProvider().

uint16_t ns3::LteUeRrcProtocolReal::m_rnti

private

Definition at line 86 of file lte-rrc-protocol-real.h.

Referenced by DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionReestablishmentComplete(), DoSendRrcConnectionReestablishmentRequest(), DoSendRrcConnectionRequest(), DoSendRrcConnectionSetupCompleted(), and SetEnbRrcSapProvider().

Ptr<LteUeRrc> ns3::LteUeRrcProtocolReal::m_rrc

private

Definition at line 85 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionRequest(), SetEnbRrcSapProvider(), and SetUeRrc().

LteUeRrcSapUser::SetupParameters ns3::LteUeRrcProtocolReal::m_setupParameters

private

Definition at line 91 of file lte-rrc-protocol-real.h.

Referenced by DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionReestablishmentComplete(), DoSendRrcConnectionReestablishmentRequest(), DoSendRrcConnectionRequest(), DoSendRrcConnectionSetupCompleted(), and DoSetup().

LteUeRrcSapProvider* ns3::LteUeRrcProtocolReal::m_ueRrcSapProvider

private

Definition at line 87 of file lte-rrc-protocol-real.h.

Referenced by DoReceivePdcpPdu(), DoReceivePdcpSdu(), DoSetup(), SetEnbRrcSapProvider(), and SetLteUeRrcSapProvider().

LteUeRrcSapUser* ns3::LteUeRrcProtocolReal::m_ueRrcSapUser

private

Definition at line 88 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), GetLteUeRrcSapUser(), and LteUeRrcProtocolReal().

The documentation for this class was generated from the following files:

src/lte/model/lte-rrc-protocol-real.h
src/lte/model/lte-rrc-protocol-real.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
