Template for the implementation of the LteEnbRrcSapProvider as a member of an owner class of type C to which all methods are forwarded. More...

#include "lte-rrc-sap.h"

Inheritance diagram for ns3::MemberLteEnbRrcSapProvider< C >:

Collaboration diagram for ns3::MemberLteEnbRrcSapProvider< C >:

Public Member Functions
	MemberLteEnbRrcSapProvider (C *owner)

virtual void	CompleteSetupUe (uint16_t rnti, CompleteSetupUeParameters params)

virtual void	RecvMeasurementReport (uint16_t rnti, MeasurementReport msg)
	Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331). More...

virtual void	RecvRrcConnectionReconfigurationCompleted (uint16_t rnti, RrcConnectionReconfigurationCompleted msg)
	Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishmentComplete (uint16_t rnti, RrcConnectionReestablishmentComplete msg)
	Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishmentRequest (uint16_t rnti, RrcConnectionReestablishmentRequest msg)
	Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionRequest (uint16_t rnti, RrcConnectionRequest msg)
	Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	RecvRrcConnectionSetupCompleted (uint16_t rnti, RrcConnectionSetupCompleted msg)
	Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Private Member Functions
	MemberLteEnbRrcSapProvider ()

Private Attributes
C *	m_owner

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE, HANDOVER_FAILURE, OTHER_FAILURE }

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 255

Detailed Description

template<class C>
class ns3::MemberLteEnbRrcSapProvider< C >

Template for the implementation of the LteEnbRrcSapProvider as a member of an owner class of type C to which all methods are forwarded.

Definition at line 1305 of file lte-rrc-sap.h.

Constructor & Destructor Documentation

template<class C >

ns3::MemberLteEnbRrcSapProvider< C >::MemberLteEnbRrcSapProvider ( C * owner )

Definition at line 1326 of file lte-rrc-sap.h.

template<class C >

ns3::MemberLteEnbRrcSapProvider< C >::MemberLteEnbRrcSapProvider ( )

private

Definition at line 1332 of file lte-rrc-sap.h.

Member Function Documentation

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::CompleteSetupUe	(	uint16_t	rnti,
		CompleteSetupUeParameters	params
	)

virtual

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1338 of file lte-rrc-sap.h.

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvMeasurementReport	(	uint16_t	rnti,
		MeasurementReport	msg
	)

virtual

Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1380 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReconfigurationCompleted	(	uint16_t	rnti,
		RrcConnectionReconfigurationCompleted	msg
	)

virtual

Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1359 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

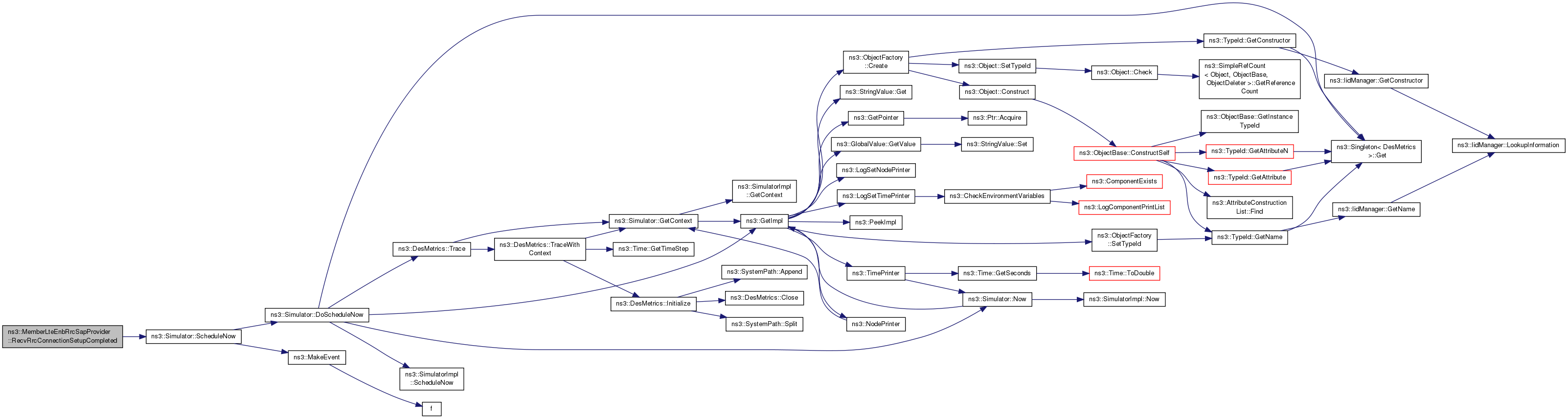

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentComplete	(	uint16_t	rnti,
		RrcConnectionReestablishmentComplete	msg
	)

virtual

Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1373 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentRequest	(	uint16_t	rnti,
		RrcConnectionReestablishmentRequest	msg
	)

virtual

Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1366 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionRequest	(	uint16_t	rnti,
		RrcConnectionRequest	msg
	)

virtual

Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1345 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionSetupCompleted	(	uint16_t	rnti,
		RrcConnectionSetupCompleted	msg
	)

virtual

Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1352 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

Member Data Documentation

template<class C>

C* ns3::MemberLteEnbRrcSapProvider< C >::m_owner

private

Definition at line 1322 of file lte-rrc-sap.h.

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
