ns3::NodeListPriv Class Reference

private implementation detail of the NodeList API. More...

#include "introspected-doxygen.h"

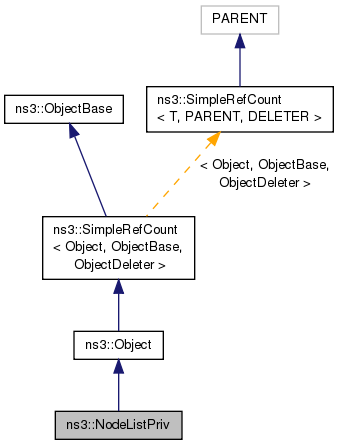

Inheritance diagram for ns3::NodeListPriv:

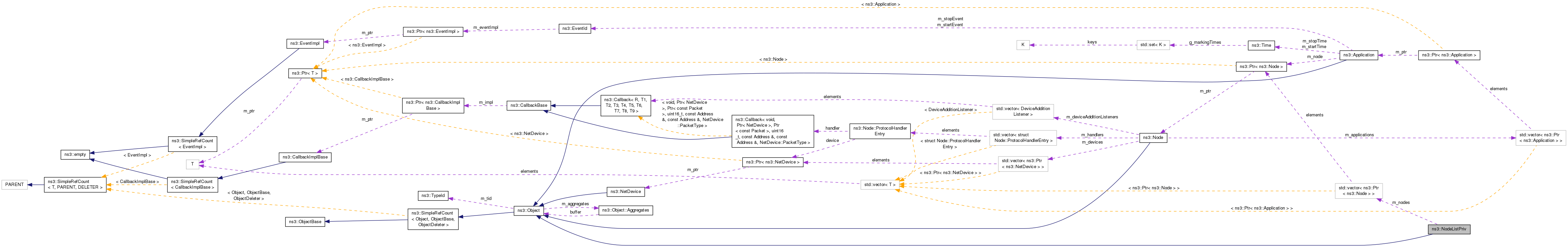

Collaboration diagram for ns3::NodeListPriv:

Public Member Functions
	NodeListPriv ()
	~NodeListPriv ()
uint32_t	Add (Ptr< Node > node)
NodeList::Iterator	Begin (void) const
NodeList::Iterator	End (void) const
uint32_t	GetNNodes (void)
Ptr< Node >	GetNode (uint32_t n)
Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...
virtual	~Object ()
	Destructor. More...
void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...
void	Dispose (void)
	Dispose of this Object. More...
AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...
virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...
template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...
void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...
bool	IsInitialized (void) const
	Check if the object has been initialized. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static Ptr< NodeListPriv >	Get (void)
	Get the node list object. More...
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	Dispose the nodes in the list. More...

Static Private Member Functions
static void	Delete (void)
	Delete the nodes list object. More...
static Ptr< NodeListPriv > *	DoGet (void)
	Get the node list object. More...

Private Attributes
std::vector< Ptr< Node > >	m_nodes
	node objects container More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...
virtual void	DoInitialize (void)
	Initialize() implementation. More...
virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...
virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

private implementation detail of the NodeList API.

Config Paths

ns3::NodeListPriv is accessible through the following paths with Config::Set and Config::Connect:

• ""

Attributes

• NodeList: The list of all nodes created during the simulation.
  • Set with class: ns3::ObjectPtrContainerValue
  • Underlying type: ns3::Ptr< ns3::Node>
  • Flags: read

No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 38 of file node-list.cc.

Constructor & Destructor Documentation

ns3::NodeListPriv::NodeListPriv

(

)

Definition at line 151 of file node-list.cc.

References NS_LOG_FUNCTION.

ns3::NodeListPriv::~NodeListPriv

(

)

Definition at line 155 of file node-list.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::NodeListPriv::Add

(

Ptr< Node >

node

)

Parameters

node	node to add

Returns

index of node in list.

This method is called automatically from Node::Node so the user has little reason to call it himself.

Definition at line 176 of file node-list.cc.

References ns3::Object::Initialize(), m_nodes, NS_LOG_FUNCTION, ns3::Simulator::ScheduleWithContext(), and ns3::TimeStep().

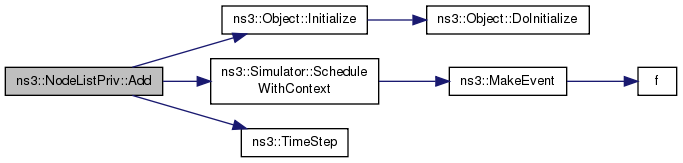

Here is the call graph for this function:

NodeList::Iterator ns3::NodeListPriv::Begin

(

void

)

const

Returns

a C++ iterator located at the beginning of this list.

Definition at line 186 of file node-list.cc.

References m_nodes, and NS_LOG_FUNCTION.

void ns3::NodeListPriv::Delete ( void  )

staticprivate

Delete the nodes list object.

Definition at line 143 of file node-list.cc.

References DoGet(), Get(), NS_LOG_FUNCTION_NOARGS, and ns3::Config::UnregisterRootNamespaceObject().

Referenced by DoGet().

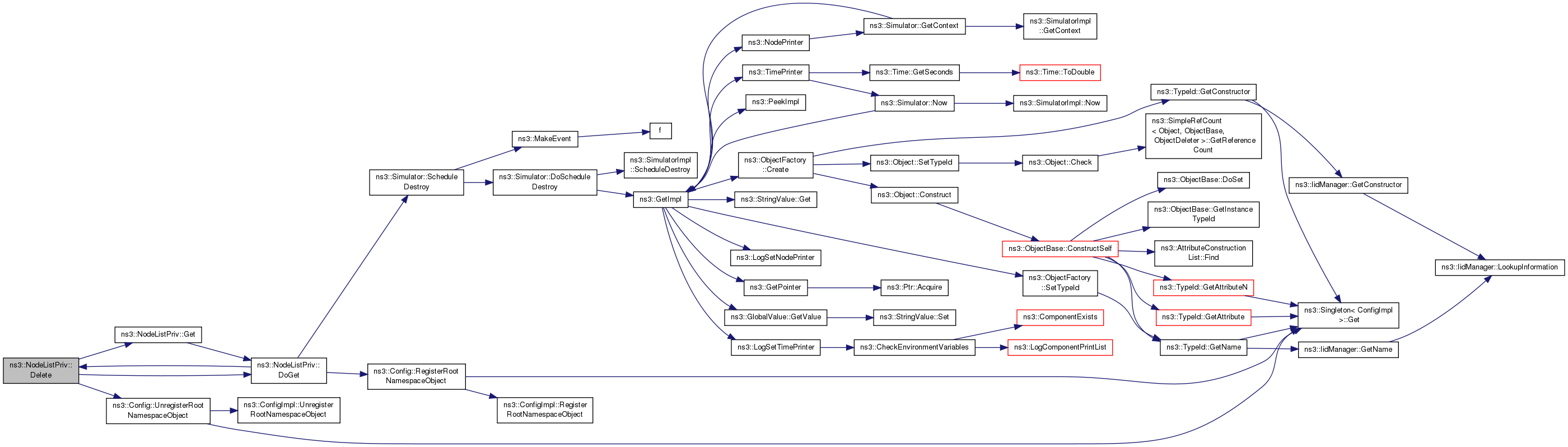

Here is the call graph for this function:

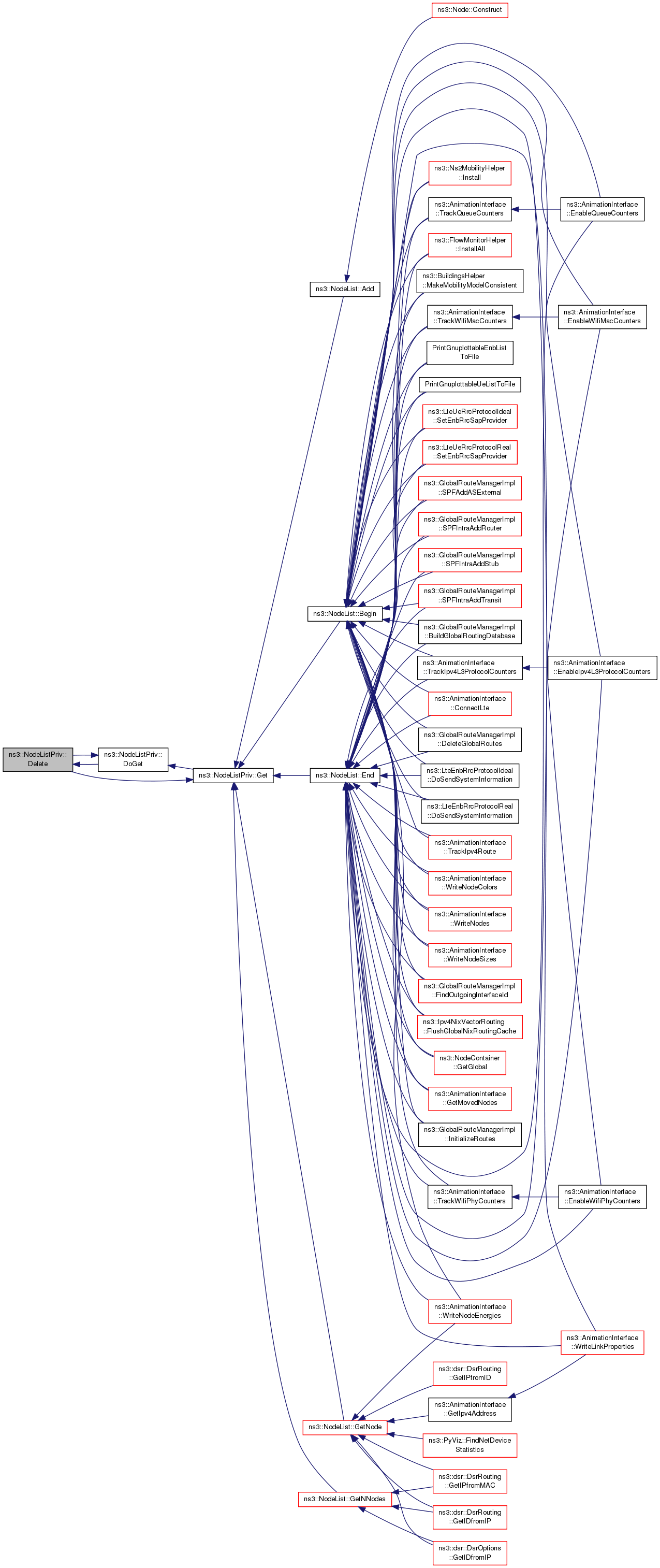

Here is the caller graph for this function:

void ns3::NodeListPriv::DoDispose ( void  )

privatevirtual

Dispose the nodes in the list.

Reimplemented from ns3::Object.

Definition at line 160 of file node-list.cc.

References ns3::Object::Dispose(), ns3::Object::DoDispose(), m_nodes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< NodeListPriv > * ns3::NodeListPriv::DoGet ( void  )

staticprivate

Get the node list object.

Returns

the node list

Definition at line 130 of file node-list.cc.

References Delete(), NS_LOG_FUNCTION_NOARGS, ns3::Config::RegisterRootNamespaceObject(), and ns3::Simulator::ScheduleDestroy().

Referenced by Delete(), and Get().

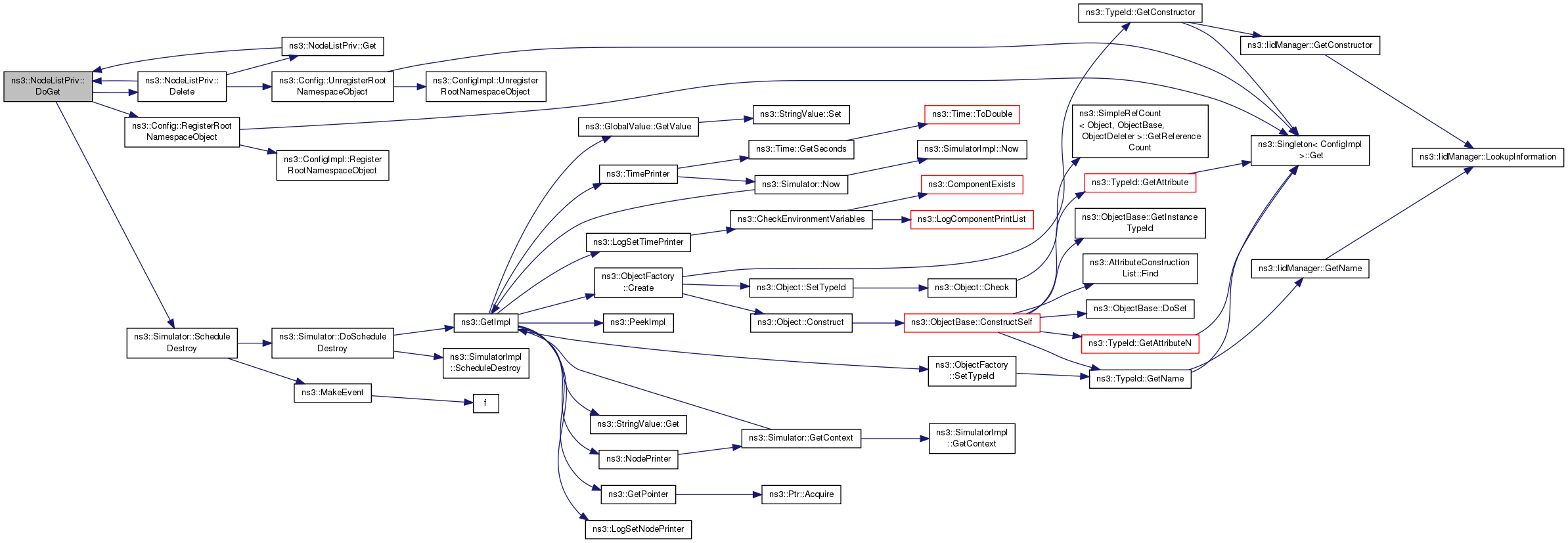

Here is the call graph for this function:

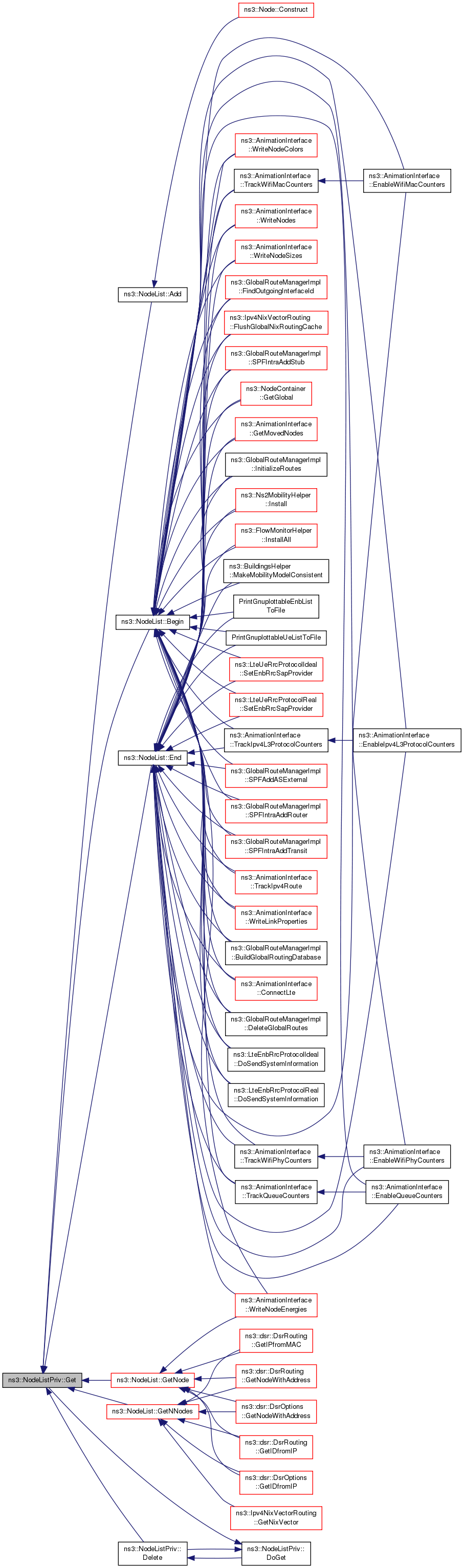

Here is the caller graph for this function:

NodeList::Iterator ns3::NodeListPriv::End

(

void

)

const

Returns

a C++ iterator located at the end of this list.

Definition at line 192 of file node-list.cc.

References m_nodes, and NS_LOG_FUNCTION.

Ptr< NodeListPriv > ns3::NodeListPriv::Get ( void  )

static

Get the node list object.

Returns

the node list

Definition at line 124 of file node-list.cc.

References DoGet(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::NodeList::Add(), ns3::NodeList::Begin(), Delete(), ns3::NodeList::End(), ns3::NodeList::GetNNodes(), and ns3::NodeList::GetNode().

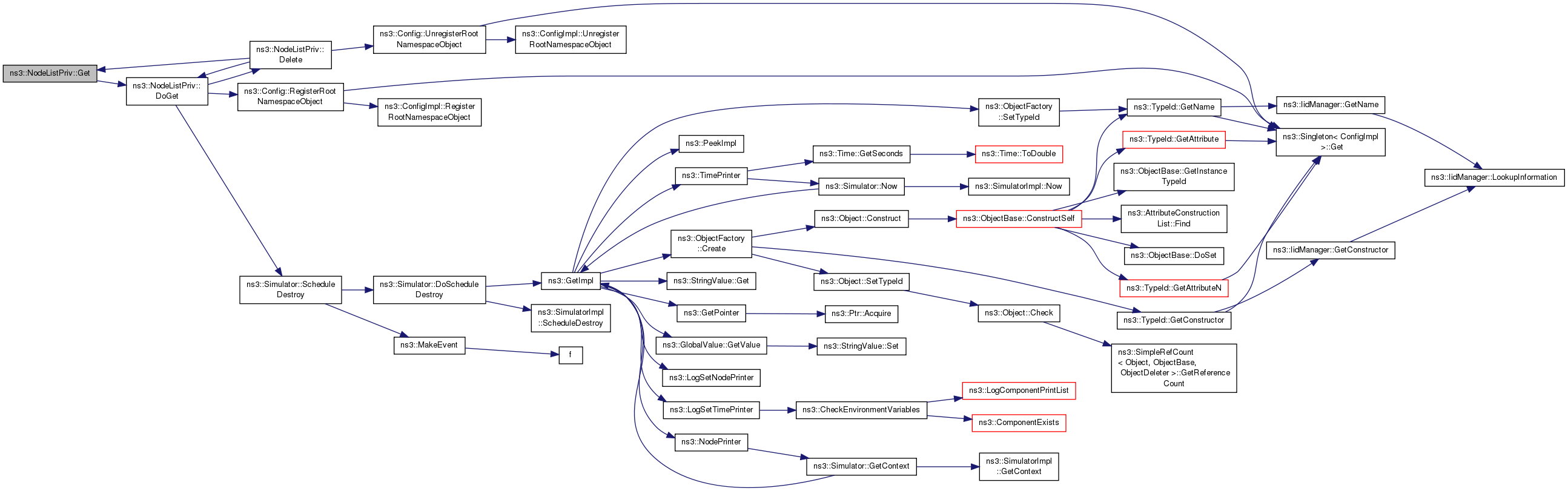

Here is the call graph for this function:

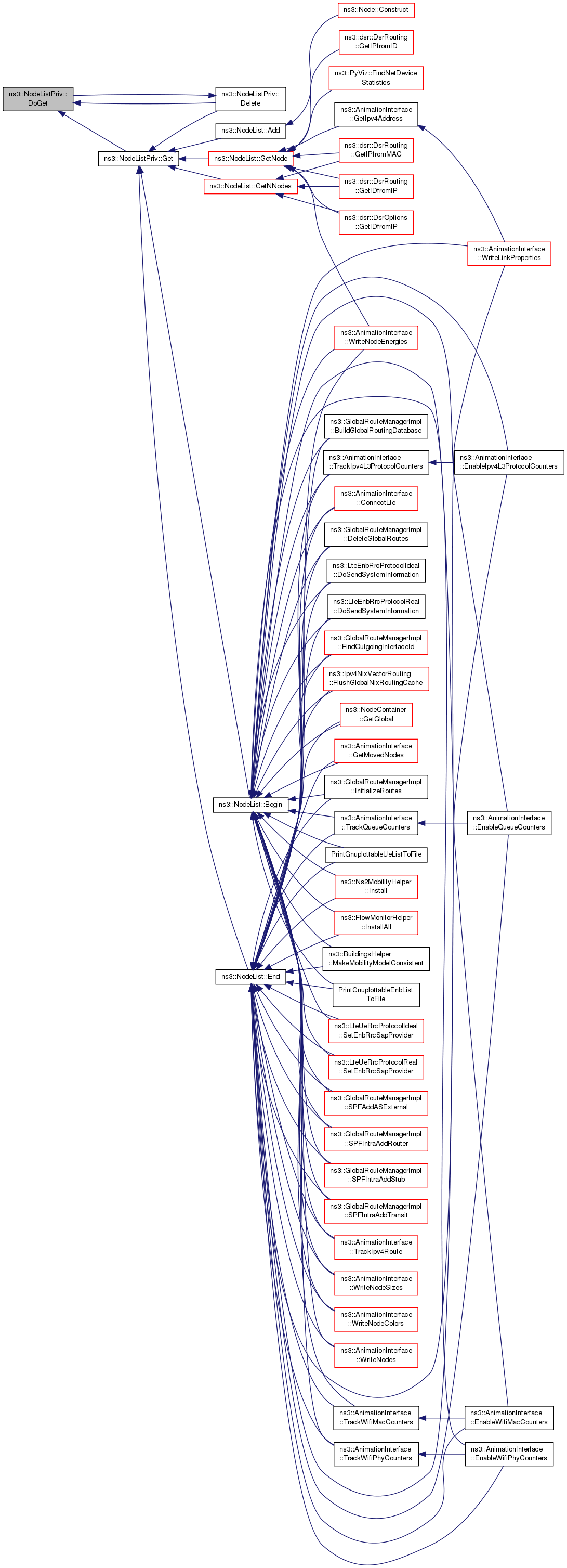

Here is the caller graph for this function:

uint32_t ns3::NodeListPriv::GetNNodes

(

void

)

Returns

the number of nodes currently in the list.

Definition at line 198 of file node-list.cc.

References m_nodes, and NS_LOG_FUNCTION.

Ptr< Node > ns3::NodeListPriv::GetNode

(

uint32_t

n

)

Parameters

n	index of requested node.

Returns

the Node associated to index n.

Definition at line 205 of file node-list.cc.

References m_nodes, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

TypeId ns3::NodeListPriv::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 110 of file node-list.cc.

References m_nodes, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

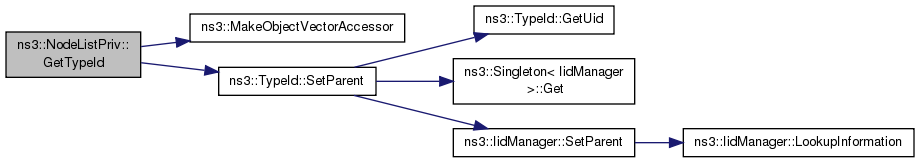

Here is the call graph for this function:

Member Data Documentation

std::vector<Ptr<Node> > ns3::NodeListPriv::m_nodes

private

node objects container

Definition at line 104 of file node-list.cc.

Referenced by Add(), Begin(), DoDispose(), End(), GetNNodes(), GetNode(), and GetTypeId().

---

The documentation for this class was generated from the following file:

• src/network/model/node-list.cc
