ns3::OfdmUcdChannelEncodings Class Reference

#include "ul-mac-messages.h"

Inheritance diagram for ns3::OfdmUcdChannelEncodings:

Collaboration diagram for ns3::OfdmUcdChannelEncodings:

Public Member Functions
	OfdmUcdChannelEncodings (void)
	This class implements the UCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1 UCD channel encodings, page 651. More...
	~OfdmUcdChannelEncodings (void)
uint8_t	GetSbchnlFocContCodes (void) const
uint8_t	GetSbchnlReqRegionFullParams (void) const
uint16_t	GetSize (void) const
void	SetSbchnlFocContCodes (uint8_t sbchnlFocContCodes)
void	SetSbchnlReqRegionFullParams (uint8_t sbchnlReqRegionFullParams)
Public Member Functions inherited from ns3::UcdChannelEncodings
	UcdChannelEncodings (void)
virtual	~UcdChannelEncodings (void)
uint16_t	GetBwReqOppSize (void) const
uint32_t	GetFrequency (void) const
uint16_t	GetRangReqOppSize (void) const
uint16_t	GetSize (void) const
Buffer::Iterator	Read (Buffer::Iterator start)
void	SetBwReqOppSize (uint16_t bwReqOppSize)
void	SetFrequency (uint32_t frequency)
void	SetRangReqOppSize (uint16_t rangReqOppSize)
Buffer::Iterator	Write (Buffer::Iterator start) const

Private Member Functions
virtual Buffer::Iterator	DoRead (Buffer::Iterator start)
virtual Buffer::Iterator	DoWrite (Buffer::Iterator start) const

Private Attributes
uint8_t	m_sbchnlFocContCodes
uint8_t	m_sbchnlReqRegionFullParams

Detailed Description

Definition at line 81 of file ul-mac-messages.h.

Constructor & Destructor Documentation

ns3::OfdmUcdChannelEncodings::OfdmUcdChannelEncodings

(

void

)

This class implements the UCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1 UCD channel encodings, page 651.

Definition at line 105 of file ul-mac-messages.cc.

ns3::OfdmUcdChannelEncodings::~OfdmUcdChannelEncodings

(

void

)

Definition at line 111 of file ul-mac-messages.cc.

Member Function Documentation

Buffer::Iterator ns3::OfdmUcdChannelEncodings::DoRead ( Buffer::Iterator  start )

privatevirtual

Implements ns3::UcdChannelEncodings.

Definition at line 156 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes, m_sbchnlReqRegionFullParams, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

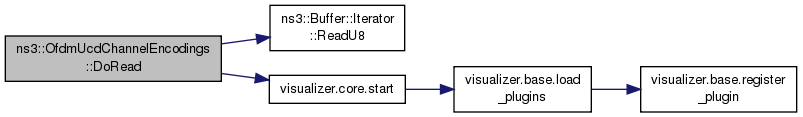

Here is the call graph for this function:

Buffer::Iterator ns3::OfdmUcdChannelEncodings::DoWrite ( Buffer::Iterator  start ) const

privatevirtual

Implements ns3::UcdChannelEncodings.

Definition at line 147 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes, m_sbchnlReqRegionFullParams, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

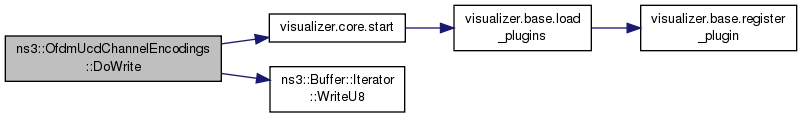

Here is the call graph for this function:

uint8_t ns3::OfdmUcdChannelEncodings::GetSbchnlFocContCodes

(

void

)

const

Definition at line 135 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes.

uint8_t ns3::OfdmUcdChannelEncodings::GetSbchnlReqRegionFullParams

(

void

)

const

Definition at line 129 of file ul-mac-messages.cc.

References m_sbchnlReqRegionFullParams.

uint16_t ns3::OfdmUcdChannelEncodings::GetSize

(

void

)

const

Definition at line 141 of file ul-mac-messages.cc.

References ns3::UcdChannelEncodings::GetSize().

Referenced by ns3::Ucd::GetSerializedSize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::OfdmUcdChannelEncodings::SetSbchnlFocContCodes

(

uint8_t

sbchnlFocContCodes

)

Definition at line 123 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

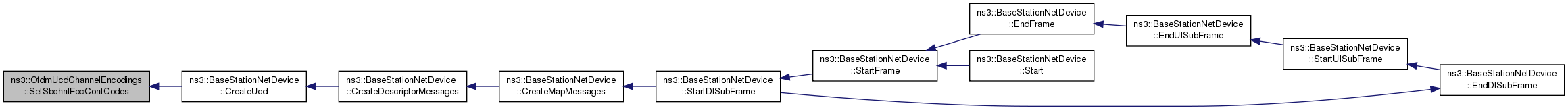

Here is the caller graph for this function:

void ns3::OfdmUcdChannelEncodings::SetSbchnlReqRegionFullParams

(

uint8_t

sbchnlReqRegionFullParams

)

Definition at line 116 of file ul-mac-messages.cc.

References m_sbchnlReqRegionFullParams.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

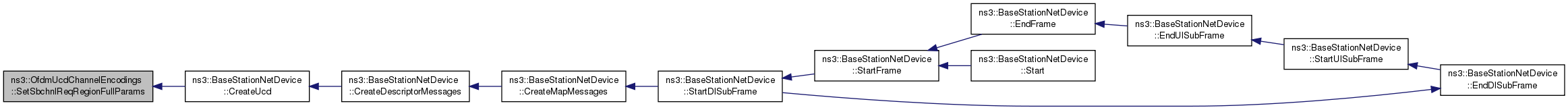

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::OfdmUcdChannelEncodings::m_sbchnlFocContCodes

private

Definition at line 105 of file ul-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetSbchnlFocContCodes(), and SetSbchnlFocContCodes().

uint8_t ns3::OfdmUcdChannelEncodings::m_sbchnlReqRegionFullParams

private

Definition at line 104 of file ul-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetSbchnlReqRegionFullParams(), and SetSbchnlReqRegionFullParams().

---

The documentation for this class was generated from the following files:

• src/wimax/model/ul-mac-messages.h
• src/wimax/model/ul-mac-messages.cc
