ns3::OfdmUlBurstProfile Class Reference

#include "ul-mac-messages.h"

Public Types
enum	Uiuc {   UIUC_INITIAL_RANGING = 1, UIUC_REQ_REGION_FULL, UIUC_REQ_REGION_FOCUSED, UIUC_FOCUSED_CONTENTION_IE,   UIUC_BURST_PROFILE_5, UIUC_BURST_PROFILE_6, UIUC_BURST_PROFILE_7, UIUC_BURST_PROFILE_8,   UIUC_BURST_PROFILE_9, UIUC_BURST_PROFILE_10, UIUC_BURST_PROFILE_11, UIUC_BURST_PROFILE_12,   UIUC_SUBCH_NETWORK_ENTRY, UIUC_END_OF_MAP }
	This class implements the UL burst profile as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1.1 Uplink burst profile encodings, page 655. More...

Public Member Functions
	OfdmUlBurstProfile (void)
	~OfdmUlBurstProfile (void)
uint8_t	GetFecCodeType (void) const
uint8_t	GetLength (void) const
uint16_t	GetSize (void) const
uint8_t	GetType (void) const
uint8_t	GetUiuc (void) const
Buffer::Iterator	Read (Buffer::Iterator start)
void	SetFecCodeType (uint8_t fecCodeType)
void	SetLength (uint8_t length)
void	SetType (uint8_t type)
void	SetUiuc (uint8_t uiuc)
Buffer::Iterator	Write (Buffer::Iterator start) const

Private Attributes
uint8_t	m_fecCodeType
uint8_t	m_length
uint8_t	m_type
uint8_t	m_uiuc

Detailed Description

Definition at line 122 of file ul-mac-messages.h.

Member Enumeration Documentation

enum ns3::OfdmUlBurstProfile::Uiuc

This class implements the UL burst profile as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1.1 Uplink burst profile encodings, page 655.

Enumerator
UIUC_INITIAL_RANGING
UIUC_REQ_REGION_FULL
UIUC_REQ_REGION_FOCUSED
UIUC_FOCUSED_CONTENTION_IE
UIUC_BURST_PROFILE_5
UIUC_BURST_PROFILE_6
UIUC_BURST_PROFILE_7
UIUC_BURST_PROFILE_8
UIUC_BURST_PROFILE_9
UIUC_BURST_PROFILE_10
UIUC_BURST_PROFILE_11
UIUC_BURST_PROFILE_12
UIUC_SUBCH_NETWORK_ENTRY
UIUC_END_OF_MAP

Definition at line 131 of file ul-mac-messages.h.

Constructor & Destructor Documentation

ns3::OfdmUlBurstProfile::OfdmUlBurstProfile

(

void

)

Definition at line 166 of file ul-mac-messages.cc.

ns3::OfdmUlBurstProfile::~OfdmUlBurstProfile

(

void

)

Definition at line 174 of file ul-mac-messages.cc.

Member Function Documentation

uint8_t ns3::OfdmUlBurstProfile::GetFecCodeType

(

void

)

const

Definition at line 221 of file ul-mac-messages.cc.

References m_fecCodeType.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

Here is the caller graph for this function:

uint8_t ns3::OfdmUlBurstProfile::GetLength

(

void

)

const

Definition at line 209 of file ul-mac-messages.cc.

References m_length.

uint16_t ns3::OfdmUlBurstProfile::GetSize

(

void

)

const

Definition at line 227 of file ul-mac-messages.cc.

Referenced by ns3::Ucd::GetSerializedSize().

Here is the caller graph for this function:

uint8_t ns3::OfdmUlBurstProfile::GetType

(

void

)

const

Definition at line 203 of file ul-mac-messages.cc.

References m_type.

uint8_t ns3::OfdmUlBurstProfile::GetUiuc

(

void

)

const

Definition at line 215 of file ul-mac-messages.cc.

References m_uiuc.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

Here is the caller graph for this function:

Buffer::Iterator ns3::OfdmUlBurstProfile::Read

(

Buffer::Iterator

start

)

Definition at line 244 of file ul-mac-messages.cc.

References m_fecCodeType, m_length, m_type, m_uiuc, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by ns3::Ucd::Deserialize().

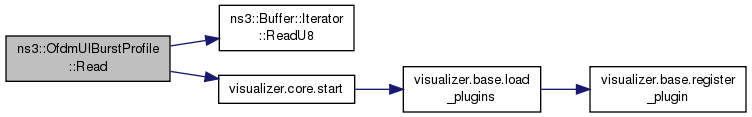

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::OfdmUlBurstProfile::SetFecCodeType

(

uint8_t

fecCodeType

)

Definition at line 197 of file ul-mac-messages.cc.

References m_fecCodeType.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().

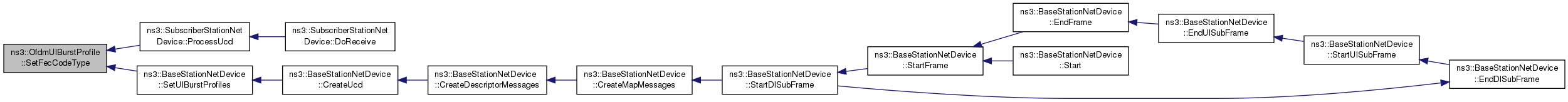

Here is the caller graph for this function:

void ns3::OfdmUlBurstProfile::SetLength

(

uint8_t

length

)

Definition at line 185 of file ul-mac-messages.cc.

References m_length.

Referenced by ns3::BaseStationNetDevice::SetUlBurstProfiles().

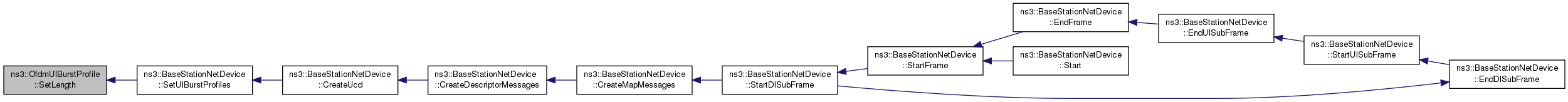

Here is the caller graph for this function:

void ns3::OfdmUlBurstProfile::SetType

(

uint8_t

type

)

Definition at line 179 of file ul-mac-messages.cc.

References m_type.

Referenced by ns3::BaseStationNetDevice::SetUlBurstProfiles().

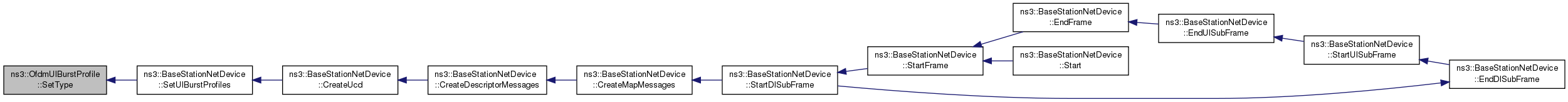

Here is the caller graph for this function:

void ns3::OfdmUlBurstProfile::SetUiuc

(

uint8_t

uiuc

)

Definition at line 191 of file ul-mac-messages.cc.

References m_uiuc.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().

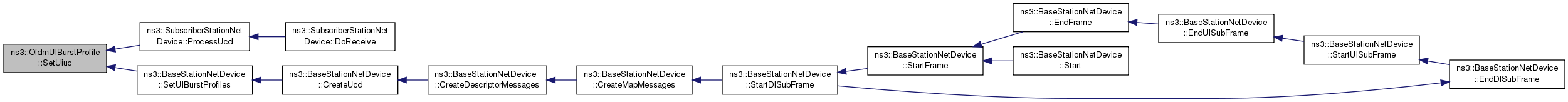

Here is the caller graph for this function:

Buffer::Iterator ns3::OfdmUlBurstProfile::Write

(

Buffer::Iterator

start

)

const

Definition at line 233 of file ul-mac-messages.cc.

References m_fecCodeType, m_length, m_type, m_uiuc, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::Ucd::Serialize().

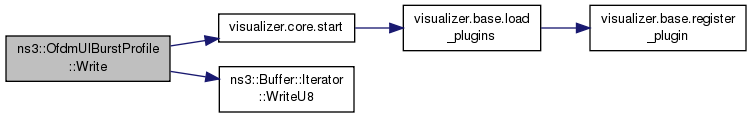

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::OfdmUlBurstProfile::m_fecCodeType

private

Definition at line 172 of file ul-mac-messages.h.

Referenced by GetFecCodeType(), Read(), SetFecCodeType(), and Write().

uint8_t ns3::OfdmUlBurstProfile::m_length

private

Definition at line 168 of file ul-mac-messages.h.

Referenced by GetLength(), Read(), SetLength(), and Write().

uint8_t ns3::OfdmUlBurstProfile::m_type

private

Definition at line 167 of file ul-mac-messages.h.

Referenced by GetType(), Read(), SetType(), and Write().

uint8_t ns3::OfdmUlBurstProfile::m_uiuc

private

Definition at line 169 of file ul-mac-messages.h.

Referenced by GetUiuc(), Read(), SetUiuc(), and Write().

---

The documentation for this class was generated from the following files:

• src/wimax/model/ul-mac-messages.h
• src/wimax/model/ul-mac-messages.cc
