ns3::OriginatorBlockAckAgreement Class Reference

Maintains the state and information about transmitted MPDUs with ack policy block ack for an originator station. More...

#include "originator-block-ack-agreement.h"

+ Inheritance diagram for ns3::OriginatorBlockAckAgreement:

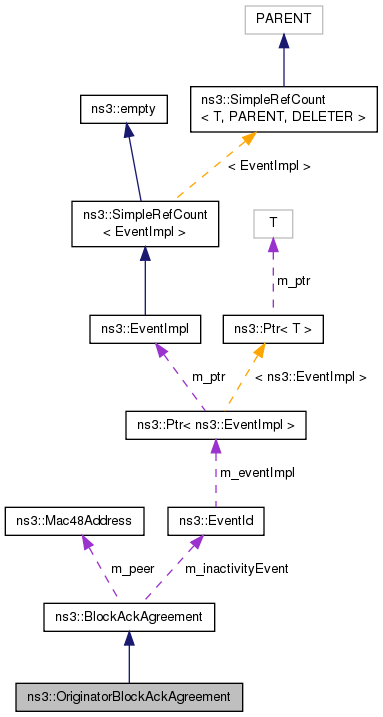

+ Collaboration diagram for ns3::OriginatorBlockAckAgreement:

Public Types

enum  State { PENDING, ESTABLISHED, INACTIVE, UNSUCCESSFUL }
 Represents the state for this agreement. More...


Public Member Functions

 OriginatorBlockAckAgreement ()

 OriginatorBlockAckAgreement (Mac48Address recipient, uint8_t tid)

 ~OriginatorBlockAckAgreement ()

void CompleteExchange (void)

bool IsBlockAckRequestNeeded (void) const
 Returns true if all packets for which a block ack was negotiated have been transmitted so a block ack request is needed in order to acknowledge them. More...

bool IsEstablished (void) const
 Check if the current state of this agreement is ESTABLISHED. More...

bool IsInactive (void) const
 Check if the current state of this agreement is INACTIVE. More...

bool IsPending (void) const
 Check if the current state of this agreement is PENDING. More...

bool IsUnsuccessful (void) const
 Check if the current state of this agreement is UNSUCCESSFUL. More...

void NotifyMpduTransmission (uint16_t nextSeqNumber)
 Notifies a packet's transmission with ack policy Block Ack. More...

void SetState (enum State state)

- Public Member Functions inherited from ns3::BlockAckAgreement
 BlockAckAgreement ()

 BlockAckAgreement (Mac48Address peer, uint8_t tid)
 Constructor for BlockAckAgreement with given peer and TID. More...

 ~BlockAckAgreement ()

uint16_t GetBufferSize (void) const
 Return the buffer size. More...

Mac48Address GetPeer (void) const
 Return the peer address. More...

uint16_t GetStartingSequence (void) const
 Return the starting squence number. More...

uint16_t GetStartingSequenceControl (void) const
 Return the starting sequence control. More...

uint8_t GetTid (void) const
 Return the Traffic ID (TID). More...

uint16_t GetTimeout (void) const
 Return the timeout. More...

uint16_t GetWinEnd (void) const
 Return the ending sequence number. More...

bool IsAmsduSupported (void) const
 Check whether A-MSDU is supported. More...

bool IsHtSupported (void) const
 Check whether HT is supported. More...

bool IsImmediateBlockAck (void) const
 Check whether the current ACK policy is immediate block ACK. More...

void SetAmsduSupport (bool supported)
 Enable or disable A-MSDU support. More...

void SetBufferSize (uint16_t bufferSize)
 Set buffer size. More...

void SetDelayedBlockAck (void)
 Set Block ACK policy to delayed ACK. More...

void SetHtSupported (bool htSupported)
 Enable or disable HT support. More...

void SetImmediateBlockAck (void)
 Set Block ACK policy to immediate ACK. More...

void SetStartingSequence (uint16_t seq)
 Set starting sequence number. More...

void SetStartingSequenceControl (uint16_t seq)
 Set starting sequence control. More...

void SetTimeout (uint16_t timeout)
 Set timeout. More...

void SetWinEnd (uint16_t seq)
 Set ending sequence number. More...


Private Attributes

bool m_needBlockAckReq

uint16_t m_sentMpdus

enum State m_state


Friends

class BlockAckManager


Additional Inherited Members

- Protected Attributes inherited from ns3::BlockAckAgreement
uint8_t m_amsduSupported
 Flag whether MSDU aggregation is supported. More...

uint8_t m_blockAckPolicy
 Type of block ack: immediate or delayed. More...

uint16_t m_bufferSize
 Buffer size. More...

uint8_t m_htSupported
 Flag whether HT is supported. More...

EventId m_inactivityEvent

Mac48Address m_peer
 Peer address. More...

uint16_t m_startingSeq
 Starting squence control. More...

uint8_t m_tid
 Traffic ID. More...

uint16_t m_timeout
 Timeout. More...

uint16_t m_winEnd
 Ending sequence number. More...


Detailed Description

Maintains the state and information about transmitted MPDUs with ack policy block ack for an originator station.

Definition at line 33 of file originator-block-ack-agreement.h.

Constructor & Destructor Documentation

ns3::OriginatorBlockAckAgreement::OriginatorBlockAckAgreement ( )

Definition at line 26 of file originator-block-ack-agreement.cc.

ns3::OriginatorBlockAckAgreement::OriginatorBlockAckAgreement ( Mac48Address  recipient,
uint8_t  tid
)

Definition at line 34 of file originator-block-ack-agreement.cc.

ns3::OriginatorBlockAckAgreement::~OriginatorBlockAckAgreement ( )

Definition at line 42 of file originator-block-ack-agreement.cc.

Member Function Documentation

void ns3::OriginatorBlockAckAgreement::CompleteExchange ( void  )

Definition at line 101 of file originator-block-ack-agreement.cc.

References m_needBlockAckReq, and m_sentMpdus.

Referenced by ns3::BlockAckManager::CompleteAmpduExchange(), and ns3::BlockAckManager::ScheduleBlockAckReqIfNeeded().

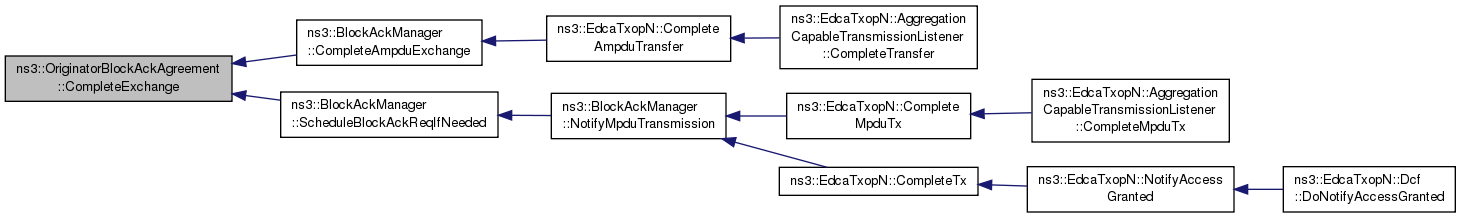

+ Here is the caller graph for this function:

bool ns3::OriginatorBlockAckAgreement::IsBlockAckRequestNeeded ( void  ) const

Returns true if all packets for which a block ack was negotiated have been transmitted so a block ack request is needed in order to acknowledge them.

Returns
true if all packets for which a block ack was negotiated have been transmitted, false otherwise

Definition at line 95 of file originator-block-ack-agreement.cc.

References m_needBlockAckReq.

bool ns3::OriginatorBlockAckAgreement::IsEstablished ( void  ) const

Check if the current state of this agreement is ESTABLISHED.

Returns
true if the current state of this agreement is ESTABLISHED, false otherwise

Definition at line 64 of file originator-block-ack-agreement.cc.

References ESTABLISHED, and m_state.

bool ns3::OriginatorBlockAckAgreement::IsInactive ( void  ) const

Check if the current state of this agreement is INACTIVE.

Returns
true if the current state of this agreement is INACTIVE, false otherwise

Definition at line 70 of file originator-block-ack-agreement.cc.

References INACTIVE, and m_state.

bool ns3::OriginatorBlockAckAgreement::IsPending ( void  ) const

Check if the current state of this agreement is PENDING.

Returns
true if the current state of this agreement is PENDING, false otherwise

Definition at line 58 of file originator-block-ack-agreement.cc.

References m_state, and PENDING.

bool ns3::OriginatorBlockAckAgreement::IsUnsuccessful ( void  ) const

Check if the current state of this agreement is UNSUCCESSFUL.

Returns
true if the current state of this agreement is UNSUCCESSFUL, false otherwise

Definition at line 76 of file originator-block-ack-agreement.cc.

References m_state, and UNSUCCESSFUL.

void ns3::OriginatorBlockAckAgreement::NotifyMpduTransmission ( uint16_t  nextSeqNumber)

Notifies a packet's transmission with ack policy Block Ack.

Parameters
nextSeqNumber

Definition at line 82 of file originator-block-ack-agreement.cc.

References ns3::BlockAckAgreement::m_bufferSize, m_needBlockAckReq, m_sentMpdus, ns3::BlockAckAgreement::m_startingSeq, min, and NS_ASSERT.

void ns3::OriginatorBlockAckAgreement::SetState ( enum State  state)

Definition at line 47 of file originator-block-ack-agreement.cc.

References INACTIVE, m_needBlockAckReq, m_sentMpdus, and m_state.

Referenced by ns3::BlockAckManager::UpdateAgreement().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class BlockAckManager
friend

Definition at line 35 of file originator-block-ack-agreement.h.

Member Data Documentation

bool ns3::OriginatorBlockAckAgreement::m_needBlockAckReq
private
uint16_t ns3::OriginatorBlockAckAgreement::m_sentMpdus
private
enum State ns3::OriginatorBlockAckAgreement::m_state
private
