ns3::RealProtocolRlcSapUser Class Reference

#include "lte-rrc-protocol-real.h"

Inheritance diagram for ns3::RealProtocolRlcSapUser:

Collaboration diagram for ns3::RealProtocolRlcSapUser:

Public Member Functions
	RealProtocolRlcSapUser (LteEnbRrcProtocolReal *pdcp, uint16_t rnti)
virtual void	ReceivePdcpPdu (Ptr< Packet > p)
	Called by the RLC entity to notify the PDCP entity of the reception of a new PDCP PDU. More...
Public Member Functions inherited from ns3::LteRlcSapUser
virtual	~LteRlcSapUser ()

Private Member Functions
	RealProtocolRlcSapUser ()

Private Attributes
LteEnbRrcProtocolReal *	m_pdcp
uint16_t	m_rnti

Detailed Description

Definition at line 159 of file lte-rrc-protocol-real.h.

Constructor & Destructor Documentation

ns3::RealProtocolRlcSapUser::RealProtocolRlcSapUser	(	LteEnbRrcProtocolReal *	pdcp,
		uint16_t	rnti
	)

Definition at line 766 of file lte-rrc-protocol-real.cc.

ns3::RealProtocolRlcSapUser::RealProtocolRlcSapUser ( )

private

Definition at line 772 of file lte-rrc-protocol-real.cc.

Member Function Documentation

void ns3::RealProtocolRlcSapUser::ReceivePdcpPdu ( Ptr< Packet >  p )

virtual

Called by the RLC entity to notify the PDCP entity of the reception of a new PDCP PDU.

Parameters

p	the PDCP PDU

Implements ns3::LteRlcSapUser.

Definition at line 777 of file lte-rrc-protocol-real.cc.

References ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu(), m_pdcp, and m_rnti.

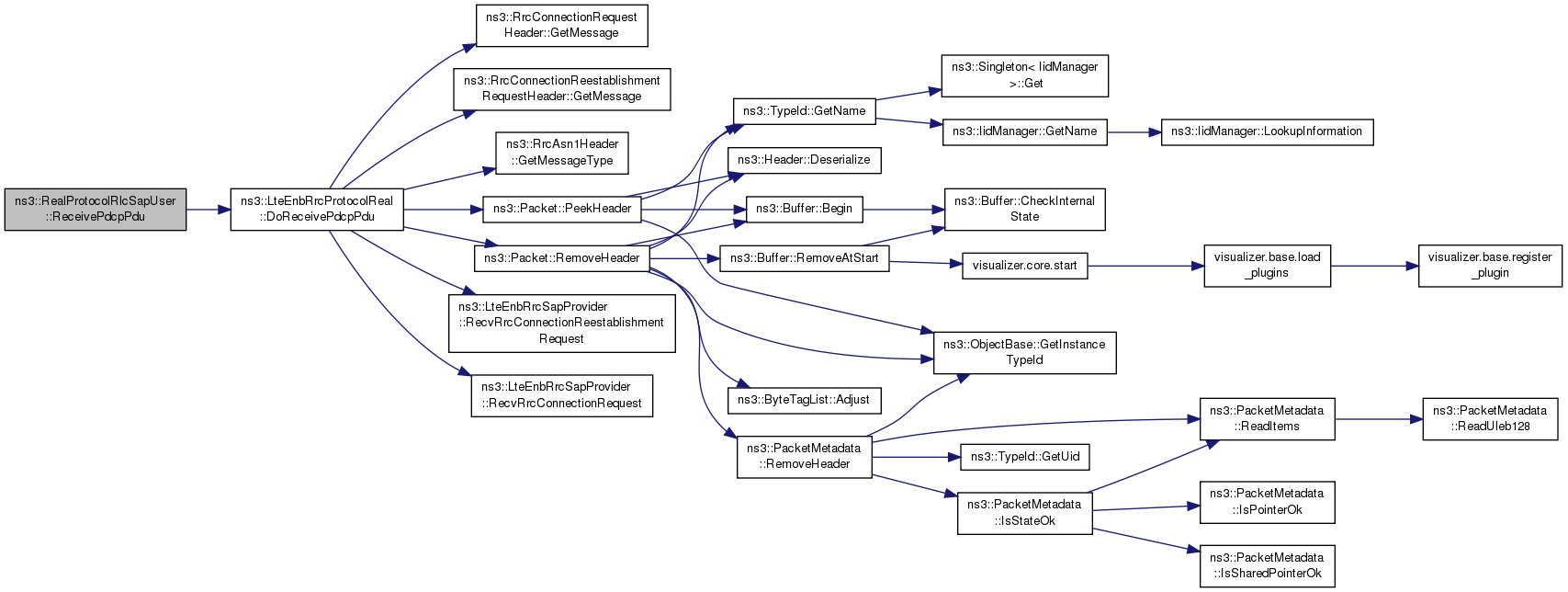

Here is the call graph for this function:

Member Data Documentation

LteEnbRrcProtocolReal* ns3::RealProtocolRlcSapUser::m_pdcp

private

Definition at line 169 of file lte-rrc-protocol-real.h.

Referenced by ReceivePdcpPdu().

uint16_t ns3::RealProtocolRlcSapUser::m_rnti

private

Definition at line 170 of file lte-rrc-protocol-real.h.

Referenced by ReceivePdcpPdu().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-rrc-protocol-real.h
• src/lte/model/lte-rrc-protocol-real.cc
