#include "ss-scheduler.h"

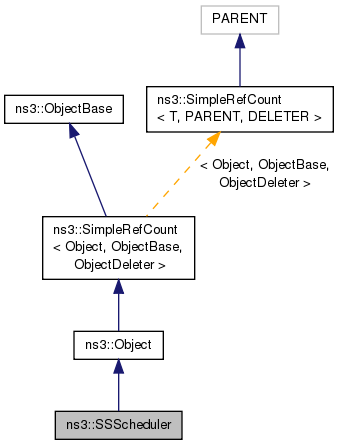

Inheritance diagram for ns3::SSScheduler:

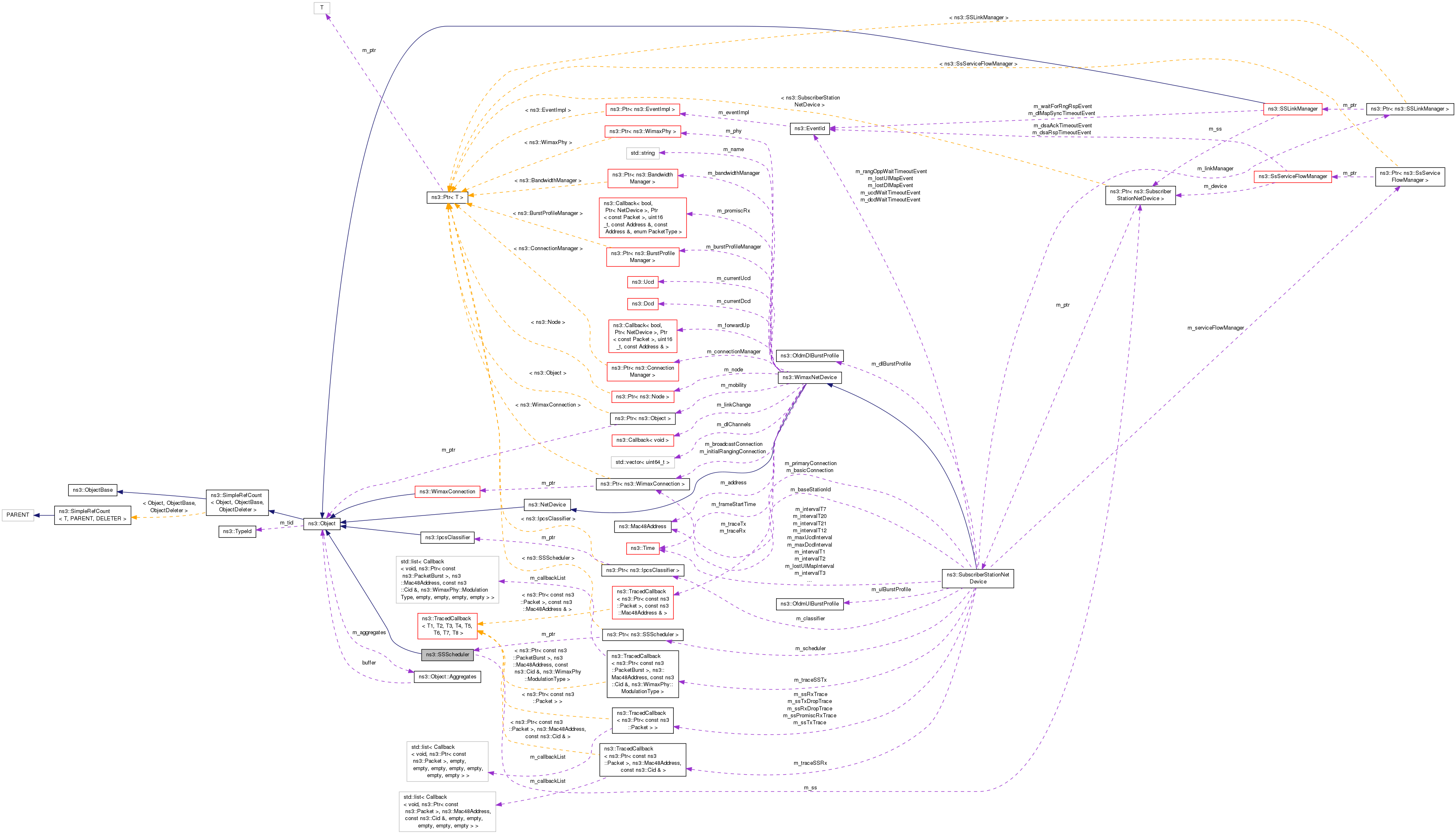

Collaboration diagram for ns3::SSScheduler:

Public Member Functions
	SSScheduler (Ptr< SubscriberStationNetDevice > ss)

	~SSScheduler (void)

void	DoDispose (void)
	Destructor implementation. More...

bool	GetPollMe (void) const

Ptr< PacketBurst >	Schedule (uint16_t availableSymbols, WimaxPhy::ModulationType modulationType, MacHeaderType::HeaderType packetType, Ptr< WimaxConnection > &connection)

void	SetPollMe (bool pollMe)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	SSScheduler (const SSScheduler &)

SSScheduler &	operator= (const SSScheduler &)

Ptr< WimaxConnection >	SelectConnection (void)

Private Attributes
bool	m_pollMe

Ptr< SubscriberStationNetDevice >	m_ss

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Config Paths

ns3::SSScheduler is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler"
"/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 40 of file ss-scheduler.h.

Constructor & Destructor Documentation

ns3::SSScheduler::SSScheduler ( Ptr< SubscriberStationNetDevice > ss )

Definition at line 48 of file ss-scheduler.cc.

ns3::SSScheduler::~SSScheduler ( void )

Definition at line 54 of file ss-scheduler.cc.

ns3::SSScheduler::SSScheduler ( const SSScheduler & )

private

Member Function Documentation

void ns3::SSScheduler::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 59 of file ss-scheduler.cc.

References m_ss.

bool ns3::SSScheduler::GetPollMe ( void ) const

Definition at line 71 of file ss-scheduler.cc.

References m_pollMe.

TypeId ns3::SSScheduler::GetTypeId ( void )

static

Definition at line 40 of file ss-scheduler.cc.

References ns3::TypeId::SetParent().

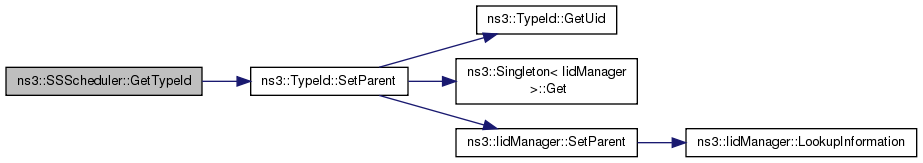

Here is the call graph for this function:

SSScheduler& ns3::SSScheduler::operator= ( const SSScheduler & )

private

Ptr< PacketBurst > ns3::SSScheduler::Schedule	(	uint16_t	availableSymbols,
		WimaxPhy::ModulationType	modulationType,
		MacHeaderType::HeaderType	packetType,
		Ptr< WimaxConnection > &	connection
	)

Returns: a list of packet to be sent in the next opportunity

Parameters

availableSymbols	the available resources in symbols
modulationType	the used modulation
packetType	the type of packets to select from
connection	the connection from wich packets will be selected

Definition at line 77 of file ss-scheduler.cc.

References ns3::Packet::GetSize(), m_ss, NS_ASSERT_MSG, NS_LOG_INFO, SelectConnection(), and ns3::Cid::TRANSPORT.

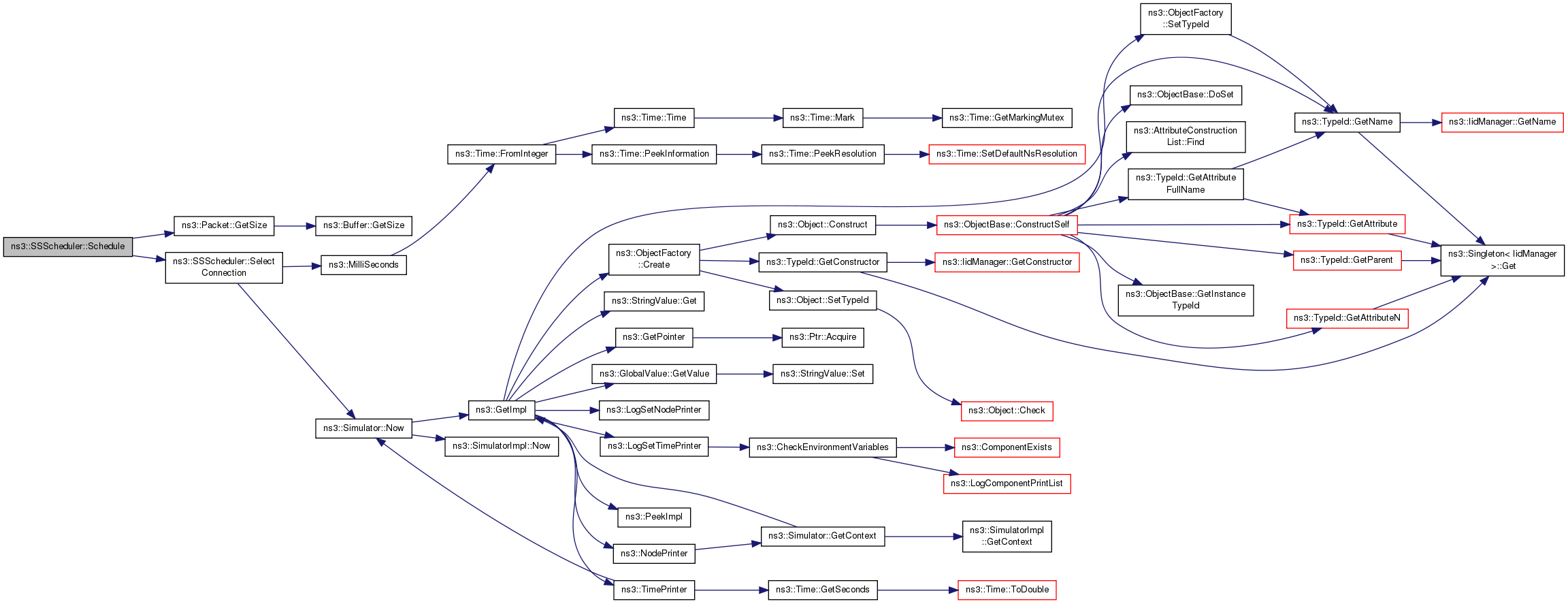

Here is the call graph for this function:
