ns3::SocketSetDontFragmentTag Class Reference

indicates whether packets should be sent out with the DF (Don't Fragment) flag set. More...

#include "socket.h"

+ Inheritance diagram for ns3::SocketSetDontFragmentTag:
+ Collaboration diagram for ns3::SocketSetDontFragmentTag:

Public Member Functions

 SocketSetDontFragmentTag ()

virtual void Deserialize (TagBuffer i)

void Disable (void)
 Disables the DF (Don't Fragment) flag. More...

void Enable (void)
 Enables the DF (Don't Fragment) flag. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

virtual uint32_t GetSerializedSize (void) const

bool IsEnabled (void) const
 Checks if the DF (Don't Fragment) flag is set. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer i) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

bool m_dontFragment
 DF bit value for outgoing packets. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

indicates whether packets should be sent out with the DF (Don't Fragment) flag set.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 1208 of file socket.h.

Constructor & Destructor Documentation

ns3::SocketSetDontFragmentTag::SocketSetDontFragmentTag ( )

Definition at line 721 of file socket.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::SocketSetDontFragmentTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 773 of file socket.cc.

References m_dontFragment, NS_LOG_FUNCTION, and ns3::TagBuffer::ReadU8().

+ Here is the call graph for this function:

void ns3::SocketSetDontFragmentTag::Disable ( void  )

Disables the DF (Don't Fragment) flag.

Definition at line 732 of file socket.cc.

References m_dontFragment, and NS_LOG_FUNCTION.

Referenced by ns3::UdpSocketImpl::DoSendTo().

+ Here is the caller graph for this function:

void ns3::SocketSetDontFragmentTag::Enable ( void  )

Enables the DF (Don't Fragment) flag.

Definition at line 726 of file socket.cc.

References m_dontFragment, and NS_LOG_FUNCTION.

Referenced by ns3::UdpSocketImpl::DoSendTo().

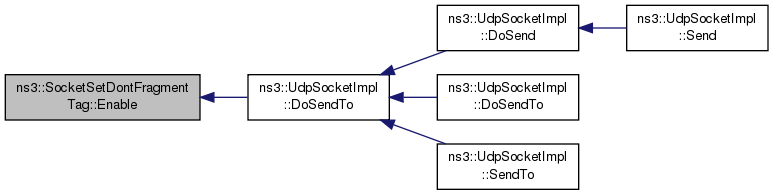

+ Here is the caller graph for this function:

TypeId ns3::SocketSetDontFragmentTag::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 756 of file socket.cc.

References GetTypeId().

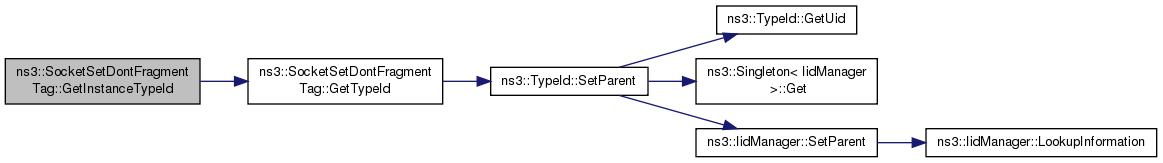

+ Here is the call graph for this function:

uint32_t ns3::SocketSetDontFragmentTag::GetSerializedSize ( void  ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 761 of file socket.cc.

References NS_LOG_FUNCTION.

TypeId ns3::SocketSetDontFragmentTag::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 747 of file socket.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

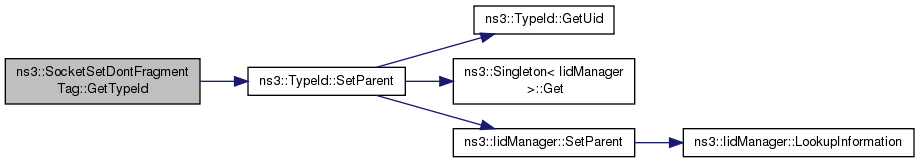

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::SocketSetDontFragmentTag::IsEnabled ( void  ) const

Checks if the DF (Don't Fragment) flag is set.

Returns
true if DF is set.

Definition at line 738 of file socket.cc.

References m_dontFragment, and NS_LOG_FUNCTION.

void ns3::SocketSetDontFragmentTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 779 of file socket.cc.

References m_dontFragment, and NS_LOG_FUNCTION.

void ns3::SocketSetDontFragmentTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 767 of file socket.cc.

References m_dontFragment, NS_LOG_FUNCTION, and ns3::TagBuffer::WriteU8().

+ Here is the call graph for this function:

Member Data Documentation

bool ns3::SocketSetDontFragmentTag::m_dontFragment
private

DF bit value for outgoing packets.

Definition at line 1251 of file socket.h.

Referenced by Deserialize(), Disable(), Enable(), IsEnabled(), Print(), and Serialize().


The documentation for this class was generated from the following files:
