#include "spectrum-helper.h"

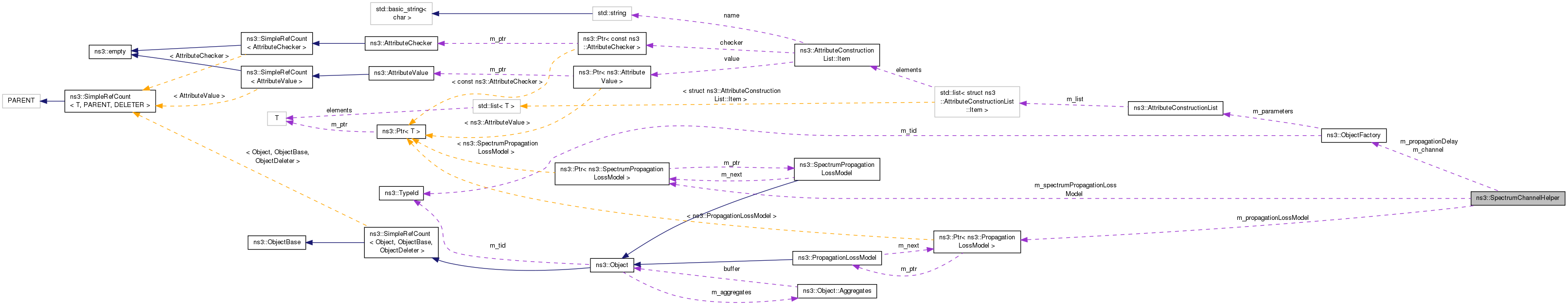

Collaboration diagram for ns3::SpectrumChannelHelper:

Public Member Functions
void	AddPropagationLoss (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	AddPropagationLoss (Ptr< PropagationLossModel > m)
	Add a new single-frequency propagation loss model instance to this channel helper. More...

void	AddSpectrumPropagationLoss (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	AddSpectrumPropagationLoss (Ptr< SpectrumPropagationLossModel > m)
	Add a new frequency-dependent propagation loss model instance to this channel helper. More...

Ptr< SpectrumChannel >	Create (void) const

void	SetChannel (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	SetPropagationDelay (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

Static Public Member Functions
static SpectrumChannelHelper	Default ()
	Setup a default SpectrumChannel. More...

Private Attributes
ObjectFactory	m_channel
	Channel. More...

ObjectFactory	m_propagationDelay
	Propagation delay. More...

Ptr< PropagationLossModel >	m_propagationLossModel
	Propagation loss model. More...

Ptr< SpectrumPropagationLossModel >	m_spectrumPropagationLossModel
	Spectrum propagation loss model. More...

Detailed Description

Setup a SpectrumChannel.

Definition at line 44 of file spectrum-helper.h.

Member Function Documentation

void ns3::SpectrumChannelHelper::AddPropagationLoss	(	std::string	name,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

name	the name of the model to set
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Add a new single-frequency propagation loss model to this channel helper.

Definition at line 68 of file spectrum-helper.cc.

References ns3::ObjectFactory::Create(), ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SpectrumChannelHelper::AddPropagationLoss ( Ptr< PropagationLossModel > m )

Add a new single-frequency propagation loss model instance to this channel helper.

Parameters

m	a pointer to the instance of the propagation loss model

Definition at line 94 of file spectrum-helper.cc.

References m_propagationLossModel, and ns3::PropagationLossModel::SetNext().

Here is the call graph for this function:

void ns3::SpectrumChannelHelper::AddSpectrumPropagationLoss	(	std::string	name,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

name	the name of the model to set
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Add a new frequency-dependent propagation loss model to this channel helper.

Definition at line 101 of file spectrum-helper.cc.

References ns3::ObjectFactory::Create(), ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by Default().

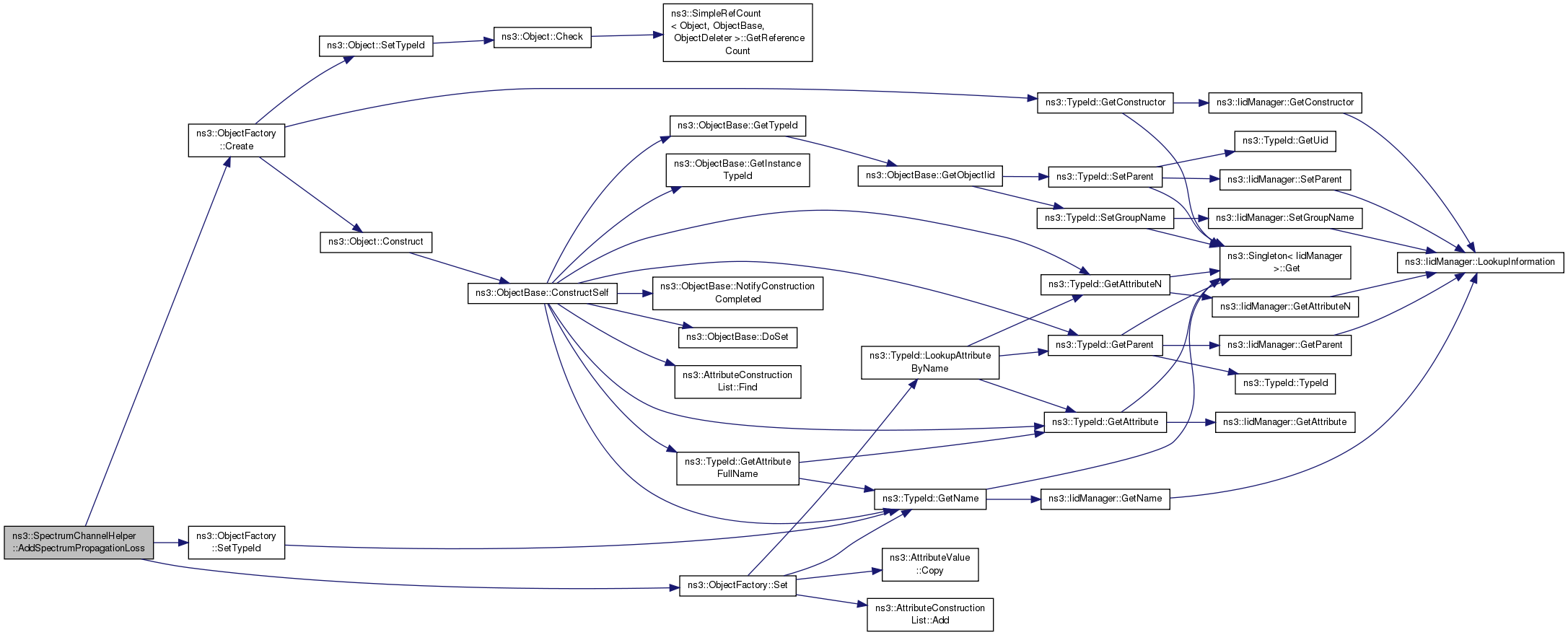

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SpectrumChannelHelper::AddSpectrumPropagationLoss ( Ptr< SpectrumPropagationLossModel > m )

Add a new frequency-dependent propagation loss model instance to this channel helper.

Parameters

m	a pointer to the instance of the propagation loss model

Definition at line 126 of file spectrum-helper.cc.

References m_spectrumPropagationLossModel.

Ptr< SpectrumChannel > ns3::SpectrumChannelHelper::Create ( void ) const

Returns: a new channel

Create a channel based on the configuration parameters set previously.

Definition at line 157 of file spectrum-helper.cc.

References third::channel, ns3::ObjectFactory::Create(), m_channel, m_propagationDelay, m_propagationLossModel, and m_spectrumPropagationLossModel.

Referenced by WaveformGeneratorTestCase::DoRun(), and SpectrumIdealPhyTestCase::DoRun().

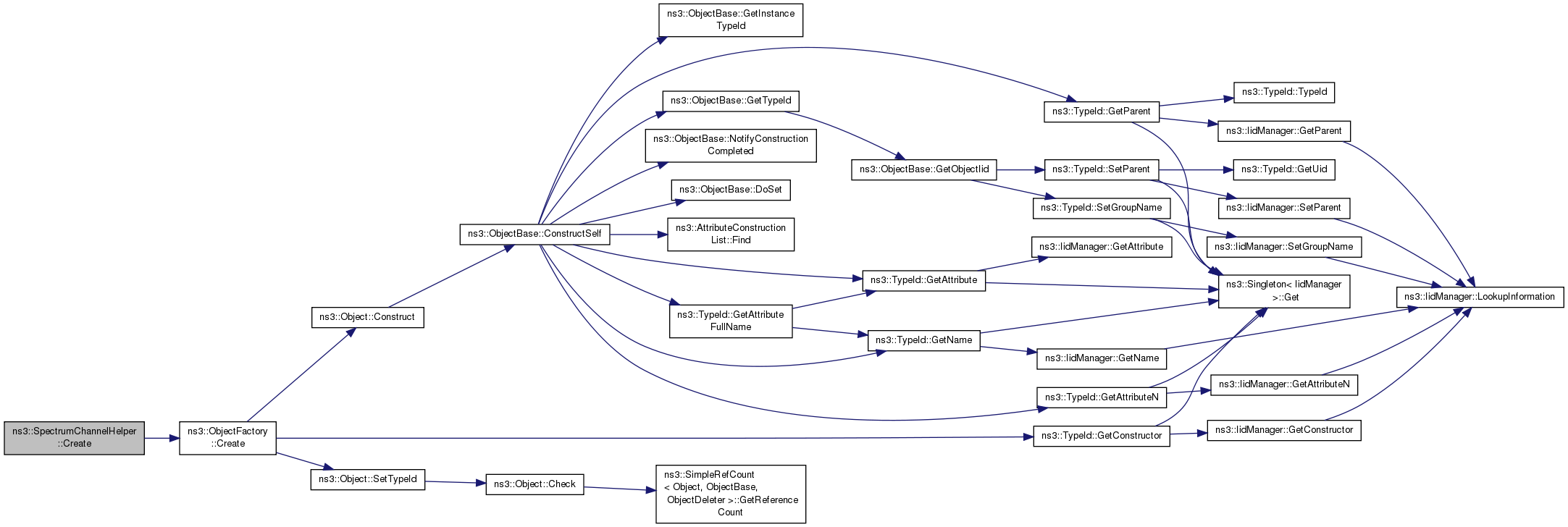

Here is the call graph for this function:

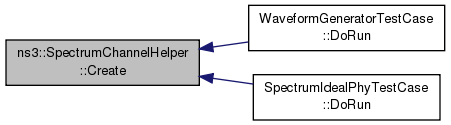

Here is the caller graph for this function:

SpectrumChannelHelper ns3::SpectrumChannelHelper::Default ( void )

static

Setup a default SpectrumChannel.

The Default mode is: Channel: "ns3::SingleModelSpectrumChannel", PropagationDelay: "ns3::ConstantSpeedPropagationDelayModel", and SpectrumPropagationLoss: "ns3::FriisSpectrumPropagationLossModel".

Returns: a Default-configured SpectrumChannelHelper

Definition at line 35 of file spectrum-helper.cc.

References AddSpectrumPropagationLoss(), SetChannel(), and SetPropagationDelay().

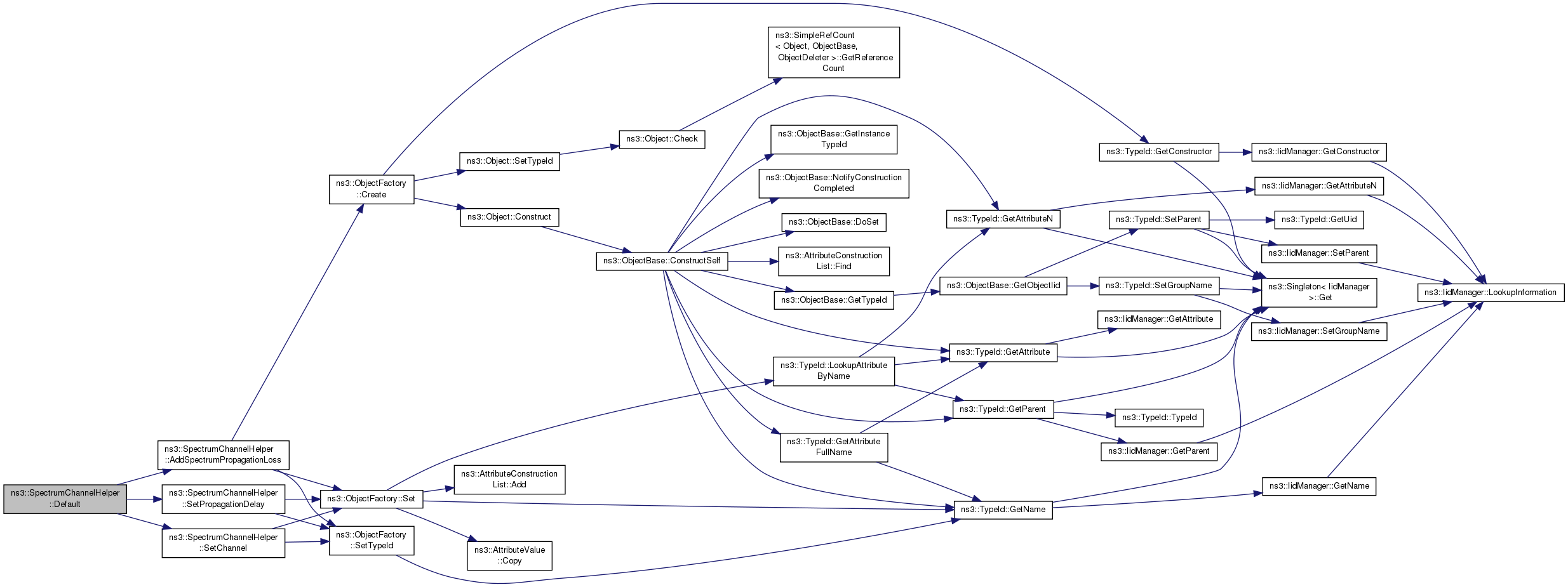

Here is the call graph for this function:

void ns3::SpectrumChannelHelper::SetChannel	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

type	the type of the SpectrumChannel to use
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Definition at line 45 of file spectrum-helper.cc.

References m_channel, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by Default(), WaveformGeneratorTestCase::DoRun(), and SpectrumIdealPhyTestCase::DoRun().

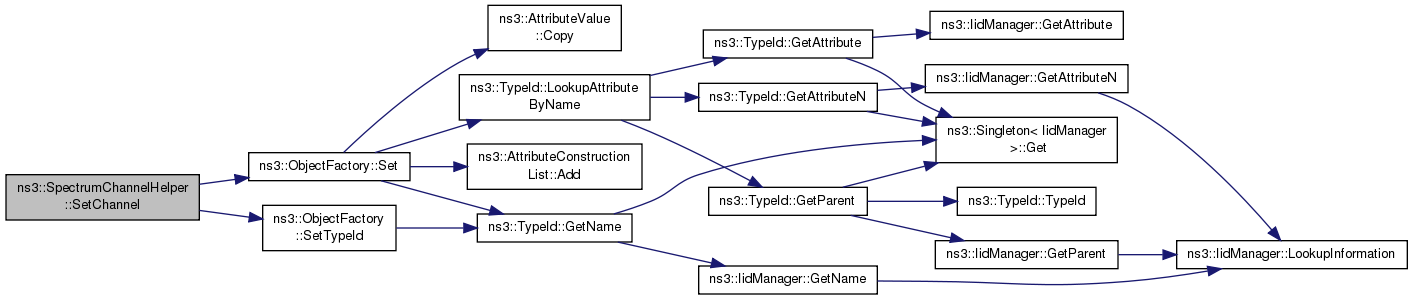

Here is the call graph for this function:

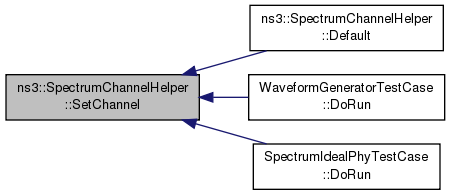

Here is the caller graph for this function:

void ns3::SpectrumChannelHelper::SetPropagationDelay	(	std::string	name,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

name	the name of the model to set
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set
