ns3::Ssid Class Reference

The IEEE 802.11 SSID Information Element. More...

#include "ssid.h"

+ Inheritance diagram for ns3::Ssid:

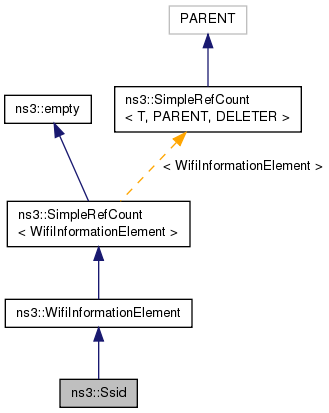

+ Collaboration diagram for ns3::Ssid:

Public Member Functions

 Ssid ()

 Ssid (std::string s)
 Create SSID from a given string. More...

 Ssid (char const ssid[32], uint8_t length)
 Create SSID from a given array of char and given length. More...

uint8_t DeserializeInformationField (Buffer::Iterator start, uint8_t length)
 Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId ElementId () const
 Own unique Element ID. More...

uint8_t GetInformationFieldSize () const
 Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

bool IsBroadcast (void) const
 Check if the SSID is broadcast. More...

bool IsEqual (const Ssid &o) const
 Check if the two SSIDs are equal. More...

char * PeekString (void) const
 Peek the SSID. More...

void SerializeInformationField (Buffer::Iterator start) const
 Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

- Public Member Functions inherited from ns3::WifiInformationElement
virtual ~WifiInformationElement ()

Buffer::Iterator Deserialize (Buffer::Iterator i)
 Deserialize entire IE, which must be present. More...

Buffer::Iterator DeserializeIfPresent (Buffer::Iterator i)
 Deserialize entire IE if it is present. More...

uint16_t GetSerializedSize () const
 Get the size of the serialized IE including Element ID and length fields. More...

virtual bool operator< (WifiInformationElement const &a) const
 Compare information elements using Element ID. More...

virtual bool operator== (WifiInformationElement const &a) const
 Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void Print (std::ostream &os) const
 Generate human-readable form of IE. More...

Buffer::Iterator Serialize (Buffer::Iterator i) const
 Serialize entire IE including Element ID and length fields. More...

- Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Private Attributes

uint8_t m_length
 Length of the SSID. More...

uint8_t m_ssid [33]
 Raw SSID value. More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void Cleanup (void)
 Noop. More...


Detailed Description

The IEEE 802.11 SSID Information Element.

See also
Ssid Attribute

Definition at line 38 of file ssid.h.

Constructor & Destructor Documentation

ns3::Ssid::Ssid ( )

Definition at line 26 of file ssid.cc.

References m_length, and m_ssid.

ns3::Ssid::Ssid ( std::string  s)

Create SSID from a given string.

Parameters
sSSID in string

Definition at line 35 of file ssid.cc.

References m_length, m_ssid, NS_ASSERT, and third::ssid.

ns3::Ssid::Ssid ( char const  ssid[32],
uint8_t  length
)

Create SSID from a given array of char and given length.

Parameters
ssid
length

Definition at line 55 of file ssid.cc.

References m_length, m_ssid, and NS_ASSERT.

Member Function Documentation

uint8_t ns3::Ssid::DeserializeInformationField ( Buffer::Iterator  start,
uint8_t  length
)
virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.
length
Returns
the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 127 of file ssid.cc.

References m_length, m_ssid, NS_ASSERT, and ns3::Buffer::Iterator::Read().

+ Here is the call graph for this function:

WifiInformationElementId ns3::Ssid::ElementId ( ) const
virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 108 of file ssid.cc.

References IE_SSID.

uint8_t ns3::Ssid::GetInformationFieldSize ( ) const
virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns
the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 114 of file ssid.cc.

References m_length.

bool ns3::Ssid::IsBroadcast ( void  ) const

Check if the SSID is broadcast.

Returns
true if the SSID is broadcast, false otherwise

Definition at line 90 of file ssid.cc.

References m_ssid.

bool ns3::Ssid::IsEqual ( const Ssid o) const

Check if the two SSIDs are equal.

Parameters
oSSID to compare to
Returns
true if the two SSIDs are equal, false otherwise

Definition at line 73 of file ssid.cc.

References m_ssid.

Referenced by ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

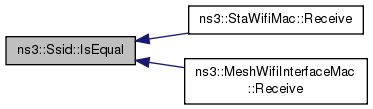

+ Here is the caller graph for this function:

char * ns3::Ssid::PeekString ( void  ) const

Peek the SSID.

Returns
a pointer to SSID string

Definition at line 100 of file ssid.cc.

References m_ssid.

Referenced by ns3::operator<<().

+ Here is the caller graph for this function:

void ns3::Ssid::SerializeInformationField ( Buffer::Iterator  start) const
virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 120 of file ssid.cc.

References m_length, m_ssid, NS_ASSERT, and ns3::Buffer::Iterator::Write().

+ Here is the call graph for this function:

Member Data Documentation

uint8_t ns3::Ssid::m_length
private

Length of the SSID.

Definition at line 89 of file ssid.h.

Referenced by DeserializeInformationField(), GetInformationFieldSize(), SerializeInformationField(), and Ssid().

uint8_t ns3::Ssid::m_ssid[33]
private

Raw SSID value.

Definition at line 88 of file ssid.h.

Referenced by DeserializeInformationField(), IsBroadcast(), IsEqual(), PeekString(), SerializeInformationField(), and Ssid().


The documentation for this class was generated from the following files:
