ns3::TcpOptionNOP Class Reference

Defines the TCP option of kind 1 (no operation) as in RFC 793 More...

#include "tcp-option-rfc793.h"

+ Inheritance diagram for ns3::TcpOptionNOP:
+ Collaboration diagram for ns3::TcpOptionNOP:

Public Member Functions

 TcpOptionNOP ()

virtual ~TcpOptionNOP ()

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the Option from a buffer iterator. More...

virtual TypeId GetInstanceTypeId (void) const
 Implement the GetInstanceTypeId method defined in ObjectBase. More...

virtual uint8_t GetKind (void) const
 Get the `kind' (as in RFC 793) of this option. More...

virtual uint32_t GetSerializedSize (void) const
 Returns number of bytes required for Option serialization. More...

virtual void Print (std::ostream &os) const
 Print the Option contents. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the Option to a buffer iterator. More...

- Public Member Functions inherited from ns3::TcpOption
 TcpOption ()

virtual ~TcpOption ()

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::TcpOption
static Ptr< TcpOptionCreateOption (uint8_t kind)
 Creates an option. More...

static TypeId GetTypeId (void)
 Get the type ID. More...

static bool IsKindKnown (uint8_t kind)
 Check if the option is implemented. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Public Types inherited from ns3::TcpOption
enum  Kind {
  END = 0, NOP = 1, MSS = 2, WINSCALE = 3,
  TS = 8, UNKNOWN = 255
}
 The option Kind, as defined in the respective RFCs. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Defines the TCP option of kind 1 (no operation) as in RFC 793

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 57 of file tcp-option-rfc793.h.

Constructor & Destructor Documentation

ns3::TcpOptionNOP::TcpOptionNOP ( )

Definition at line 104 of file tcp-option-rfc793.cc.

ns3::TcpOptionNOP::~TcpOptionNOP ( )
virtual

Definition at line 109 of file tcp-option-rfc793.cc.

Member Function Documentation

uint32_t ns3::TcpOptionNOP::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the Option from a buffer iterator.

Parameters
startthe buffer iterator
Returns
the number of deserialized bytes

Implements ns3::TcpOption.

Definition at line 150 of file tcp-option-rfc793.cc.

References GetKind(), GetSerializedSize(), NS_LOG_WARN, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

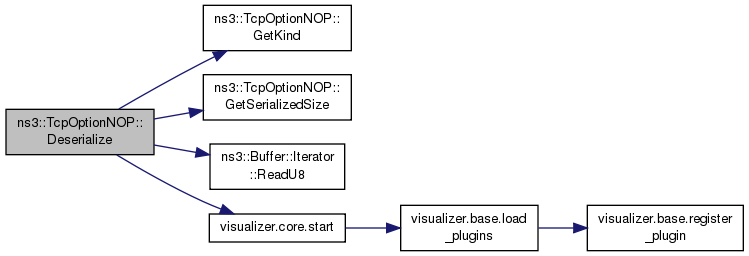

+ Here is the call graph for this function:

TypeId ns3::TcpOptionNOP::GetInstanceTypeId ( void  ) const
virtual

Implement the GetInstanceTypeId method defined in ObjectBase.

Reimplemented from ns3::TcpOption.

Definition at line 125 of file tcp-option-rfc793.cc.

References GetTypeId().

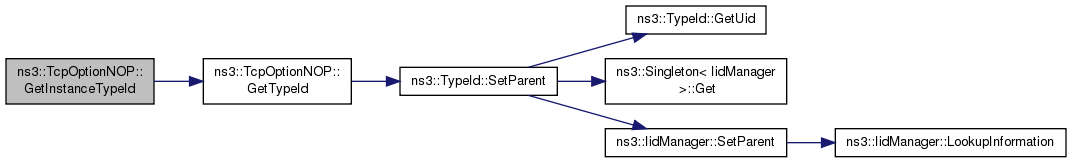

+ Here is the call graph for this function:

uint8_t ns3::TcpOptionNOP::GetKind ( void  ) const
virtual

Get the `kind' (as in RFC 793) of this option.

Returns
the Option Kind

Implements ns3::TcpOption.

Definition at line 165 of file tcp-option-rfc793.cc.

References ns3::TcpOption::NOP.

Referenced by Deserialize(), and Serialize().

+ Here is the caller graph for this function:

uint32_t ns3::TcpOptionNOP::GetSerializedSize ( void  ) const
virtual

Returns number of bytes required for Option serialization.

Returns
number of bytes required for Option serialization

Implements ns3::TcpOption.

Definition at line 137 of file tcp-option-rfc793.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

TypeId ns3::TcpOptionNOP::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 114 of file tcp-option-rfc793.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::TcpOption::CreateOption(), and GetInstanceTypeId().

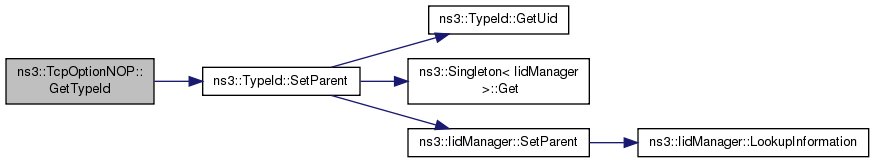

+ Here is the call graph for this function:

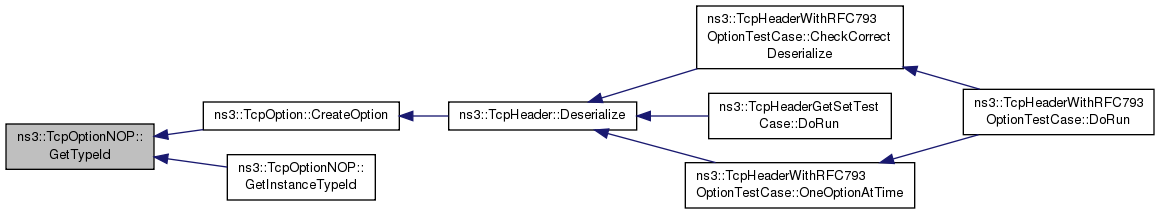

+ Here is the caller graph for this function:

void ns3::TcpOptionNOP::Print ( std::ostream &  os) const
virtual

Print the Option contents.

Parameters
osthe output stream

Implements ns3::TcpOption.

Definition at line 131 of file tcp-option-rfc793.cc.

void ns3::TcpOptionNOP::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the Option to a buffer iterator.

Parameters
startthe buffer iterator

Implements ns3::TcpOption.

Definition at line 143 of file tcp-option-rfc793.cc.

References GetKind(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

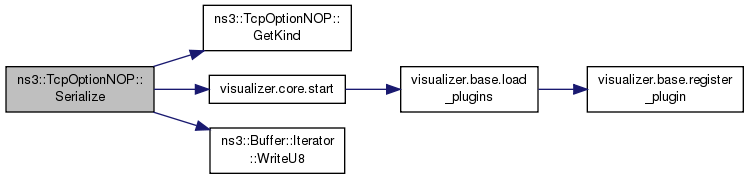

+ Here is the call graph for this function:
