This class implements the Type-Len-Value structure channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems". More...

#include "wimax-tlv.h"

Inheritance diagram for ns3::Tlv:

Collaboration diagram for ns3::Tlv:

Public Types
enum	CommonTypes { HMAC_TUPLE = 149, MAC_VERSION_ENCODING = 148, CURRENT_TRANSMIT_POWER = 147, DOWNLINK_SERVICE_FLOW = 146, UPLINK_SERVICE_FLOW = 145, VENDOR_ID_EMCODING = 144, VENDOR_SPECIFIC_INFORMATION = 143 }

Public Member Functions
	Tlv (uint8_t type, uint64_t length, const TlvValue &value)

	Tlv (void)

	Tlv (const Tlv &tlv)

	~Tlv (void)

Tlv *	Copy (void) const

TlvValue *	CopyValue (void) const

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint64_t	GetLength (void) const

virtual uint32_t	GetSerializedSize (void) const

uint8_t	GetSizeOfLen (void) const

uint8_t	GetType (void) const

Tlv &	operator= (Tlv const &o)

TlvValue *	PeekValue (void)

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint64_t	m_length

uint8_t	m_type

TlvValue *	m_value

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class implements the Type-Len-Value structure channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems".

TLV encodings, page 645

Definition at line 64 of file wimax-tlv.h.

Constructor & Destructor Documentation

ns3::Tlv::Tlv	(	uint8_t	type,
		uint64_t	length,
		const TlvValue &	value
	)

Definition at line 52 of file wimax-tlv.cc.

References ns3::TlvValue::Copy(), m_length, m_type, and m_value.

Here is the call graph for this function:

ns3::Tlv::Tlv ( void )

Definition at line 59 of file wimax-tlv.cc.

References m_length, m_type, and m_value.

Referenced by Copy().

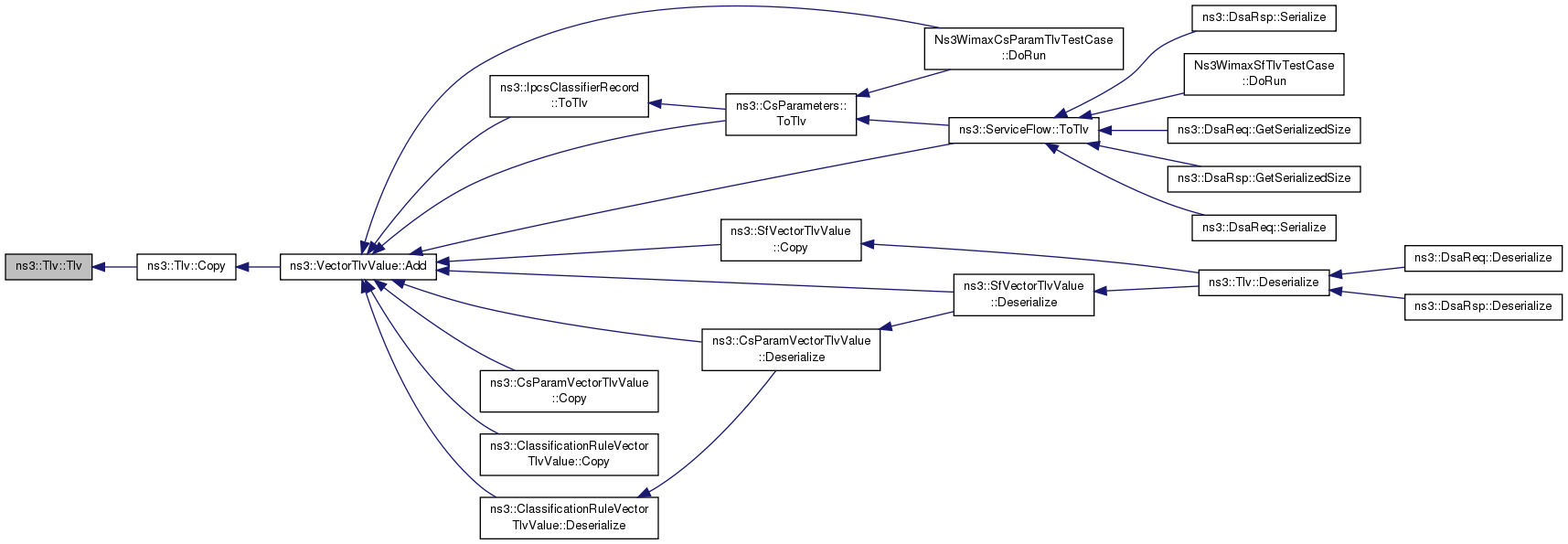

Here is the caller graph for this function:

ns3::Tlv::~Tlv ( void )

Definition at line 66 of file wimax-tlv.cc.

References m_value.

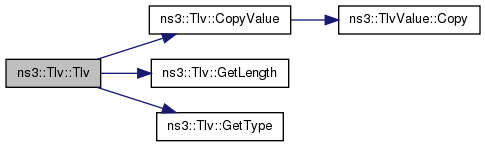

ns3::Tlv::Tlv ( const Tlv & tlv )

Definition at line 81 of file wimax-tlv.cc.

References CopyValue(), GetLength(), GetType(), m_length, m_type, and m_value.

Here is the call graph for this function:

Member Function Documentation

Tlv * ns3::Tlv::Copy ( void ) const

Definition at line 230 of file wimax-tlv.cc.

References m_length, m_type, m_value, and Tlv().

Referenced by ns3::VectorTlvValue::Add().

Here is the call graph for this function:

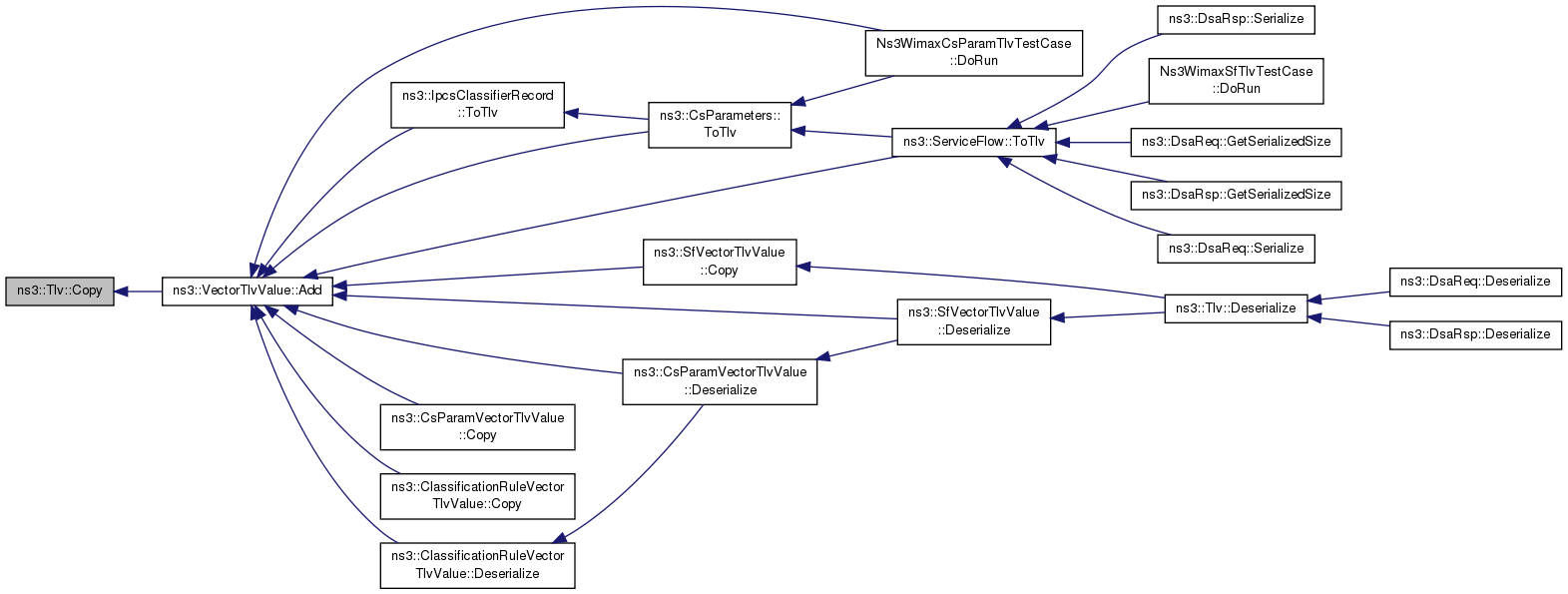

Here is the caller graph for this function:

TlvValue * ns3::Tlv::CopyValue ( void ) const

Definition at line 76 of file wimax-tlv.cc.

References ns3::TlvValue::Copy(), and m_value.

Referenced by operator=(), and Tlv().

Here is the call graph for this function:

Here is the caller graph for this function:

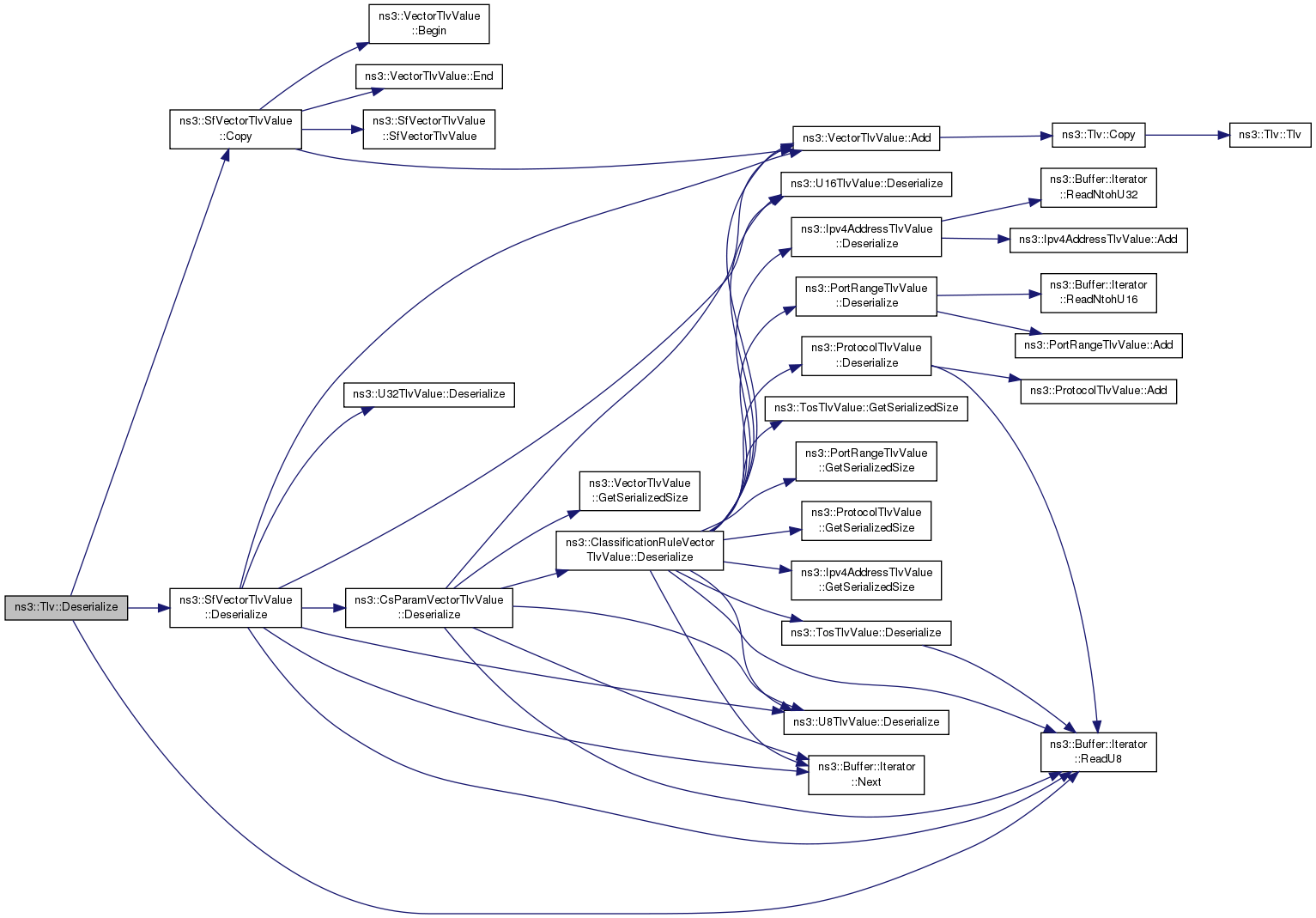

uint32_t ns3::Tlv::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Todo:: implement Deserialize HMAC_TUPLE

Todo:: implement Deserialize MAC_VERSION_ENCODING

Todo:: implement Deserialize CURRENT_TRANSMIT_POWER

Todo:: implement Deserialize VENDOR_ID_EMCODING

Todo:: implement Deserialize VENDOR_SPECIFIC_INFORMATION

Implements ns3::Header.

Definition at line 147 of file wimax-tlv.cc.

References ns3::SfVectorTlvValue::Copy(), CURRENT_TRANSMIT_POWER, ns3::SfVectorTlvValue::Deserialize(), DOWNLINK_SERVICE_FLOW, HMAC_TUPLE, m_length, m_type, m_value, MAC_VERSION_ENCODING, NS_ASSERT_MSG, NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadU8(), UPLINK_SERVICE_FLOW, VENDOR_ID_EMCODING, VENDOR_SPECIFIC_INFORMATION, and WIMAX_TLV_EXTENDED_LENGTH_MASK.

Referenced by ns3::DsaReq::Deserialize(), and ns3::DsaRsp::Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::Tlv::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 42 of file wimax-tlv.cc.

References GetTypeId().

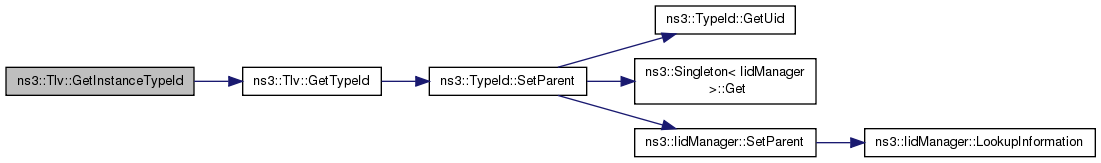

Here is the call graph for this function:

uint64_t ns3::Tlv::GetLength ( void ) const

Definition at line 219 of file wimax-tlv.cc.

References m_length.

Referenced by operator=(), and Tlv().

Here is the caller graph for this function:

uint32_t ns3::Tlv::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 103 of file wimax-tlv.cc.

References ns3::TlvValue::GetSerializedSize(), GetSizeOfLen(), and m_value.

Referenced by ns3::DsaReq::GetSerializedSize(), and ns3::DsaRsp::GetSerializedSize().

Here is the call graph for this function:

Here is the caller graph for this function:

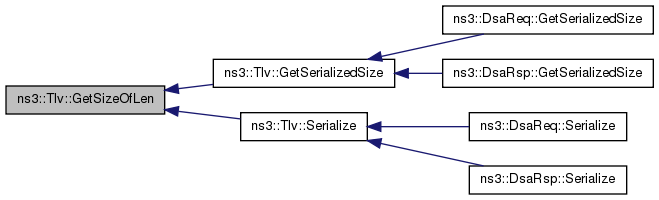

uint8_t ns3::Tlv::GetSizeOfLen ( void ) const

Definition at line 109 of file wimax-tlv.cc.

References m_length.

Referenced by GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

uint8_t ns3::Tlv::GetType ( void ) const

Definition at line 214 of file wimax-tlv.cc.

References m_type.

Referenced by ns3::CsParameters::CsParameters(), Ns3WimaxCsParamTlvTestCase::DoRun(), ns3::IpcsClassifierRecord::IpcsClassifierRecord(), operator=(), ns3::ServiceFlow::ServiceFlow(), and Tlv().

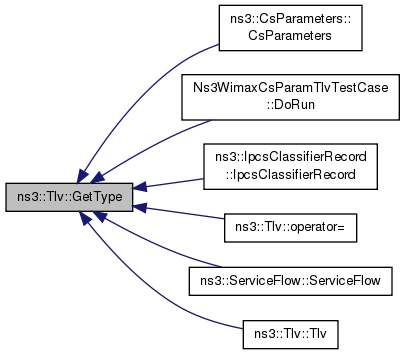

Here is the caller graph for this function:

TypeId ns3::Tlv::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 32 of file wimax-tlv.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

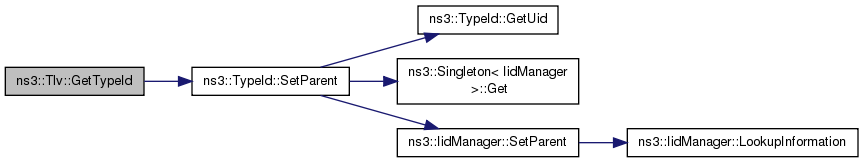

Here is the call graph for this function:

Here is the caller graph for this function:

Tlv & ns3::Tlv::operator= ( Tlv const & o )

Definition at line 89 of file wimax-tlv.cc.

References CopyValue(), GetLength(), GetType(), m_length, m_type, and m_value.

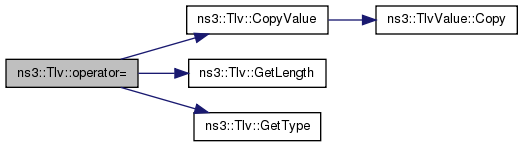

Here is the call graph for this function:

TlvValue * ns3::Tlv::PeekValue ( void )

Definition at line 224 of file wimax-tlv.cc.

References m_value.

Referenced by ns3::CsParameters::CsParameters(), Ns3WimaxCsParamTlvTestCase::DoRun(), ns3::IpcsClassifierRecord::IpcsClassifierRecord(), and ns3::ServiceFlow::ServiceFlow().

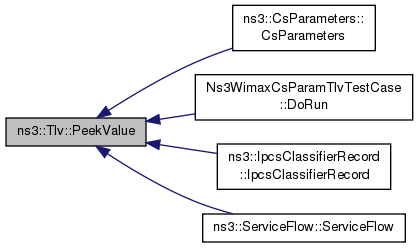

Here is the caller graph for this function:

void ns3::Tlv::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 47 of file wimax-tlv.cc.

References m_length, and m_type.

void ns3::Tlv::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 127 of file wimax-tlv.cc.

References GetSizeOfLen(), m_length, m_type, m_value, ns3::TlvValue::Serialize(), WIMAX_TLV_EXTENDED_LENGTH_MASK, and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::DsaReq::Serialize(), and ns3::DsaRsp::Serialize().

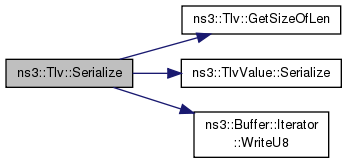

Here is the call graph for this function:
