ns3::TypeIdValue Class Reference

AttributeValue implementation for TypeId. More...

#include "type-id.h"

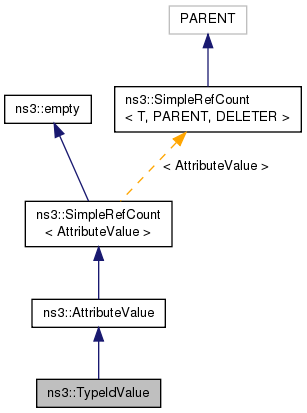

Inheritance diagram for ns3::TypeIdValue:

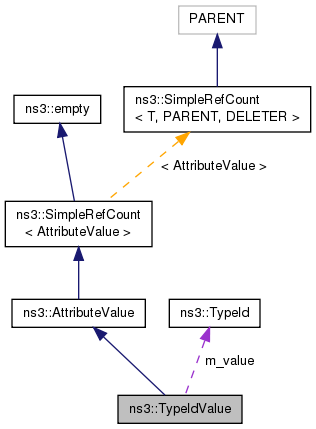

Collaboration diagram for ns3::TypeIdValue:

Public Member Functions
	TypeIdValue ()
	TypeIdValue (const TypeId &value)
	Copy constructor. More...
virtual Ptr< AttributeValue >	Copy (void) const
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)
TypeId	Get (void) const
template<typename T >
bool	GetAccessor (T &value) const
	Access the TypeId value as type T. More...
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const
void	Set (const TypeId &value)
	Set the value. More...
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
TypeId	m_value
	The stored TypeId instance. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
static void	Cleanup (void)
	Noop. More...

Detailed Description

AttributeValue implementation for TypeId.

See also

AttributeValue

Definition at line 608 of file type-id.h.

Constructor & Destructor Documentation

ns3::TypeIdValue::TypeIdValue

(

)

Definition at line 1202 of file type-id.cc.

ns3::TypeIdValue::TypeIdValue

(

const TypeId &

value

)

Copy constructor.

Parameters

[in]

value

The TypeId value to copy.

Definition at line 1202 of file type-id.cc.

Member Function Documentation

Ptr< AttributeValue > ns3::TypeIdValue::Copy ( void  ) const

virtual

Returns

a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 1202 of file type-id.cc.

bool ns3::TypeIdValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

virtual

Parameters

[in]	value	A string representation of the value
[in]	checker	A pointer to the checker associated to the attribute.

Returns

true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 1202 of file type-id.cc.

TypeId ns3::TypeIdValue::Get

(

void

)

const

Returns

The TypeId value.

Definition at line 1202 of file type-id.cc.

template<typename T >

bool ns3::TypeIdValue::GetAccessor ( T &  value ) const

inline

Access the TypeId value as type T.

Template Parameters

T	[explicit] The type to cast to.

Parameters

[out]

value

The TypeId value, as type T.

Returns

true.

Definition at line 608 of file type-id.h.

std::string ns3::TypeIdValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

virtual

Parameters

[in]

checker

The checker associated to the attribute

Returns

A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 1202 of file type-id.cc.

void ns3::TypeIdValue::Set

(

const TypeId &

value

)

Set the value.

Parameters

[in]

value

The value to adopt.

Definition at line 1202 of file type-id.cc.

Member Data Documentation

TypeId ns3::TypeIdValue::m_value

private

The stored TypeId instance.

Definition at line 608 of file type-id.h.

---

The documentation for this class was generated from the following files:

• src/core/model/type-id.h
• doc/introspected-doxygen.h
• src/core/model/type-id.cc
