ns3::UeMemberLteUeCmacSapUser Class Reference

Inheritance diagram for ns3::UeMemberLteUeCmacSapUser:

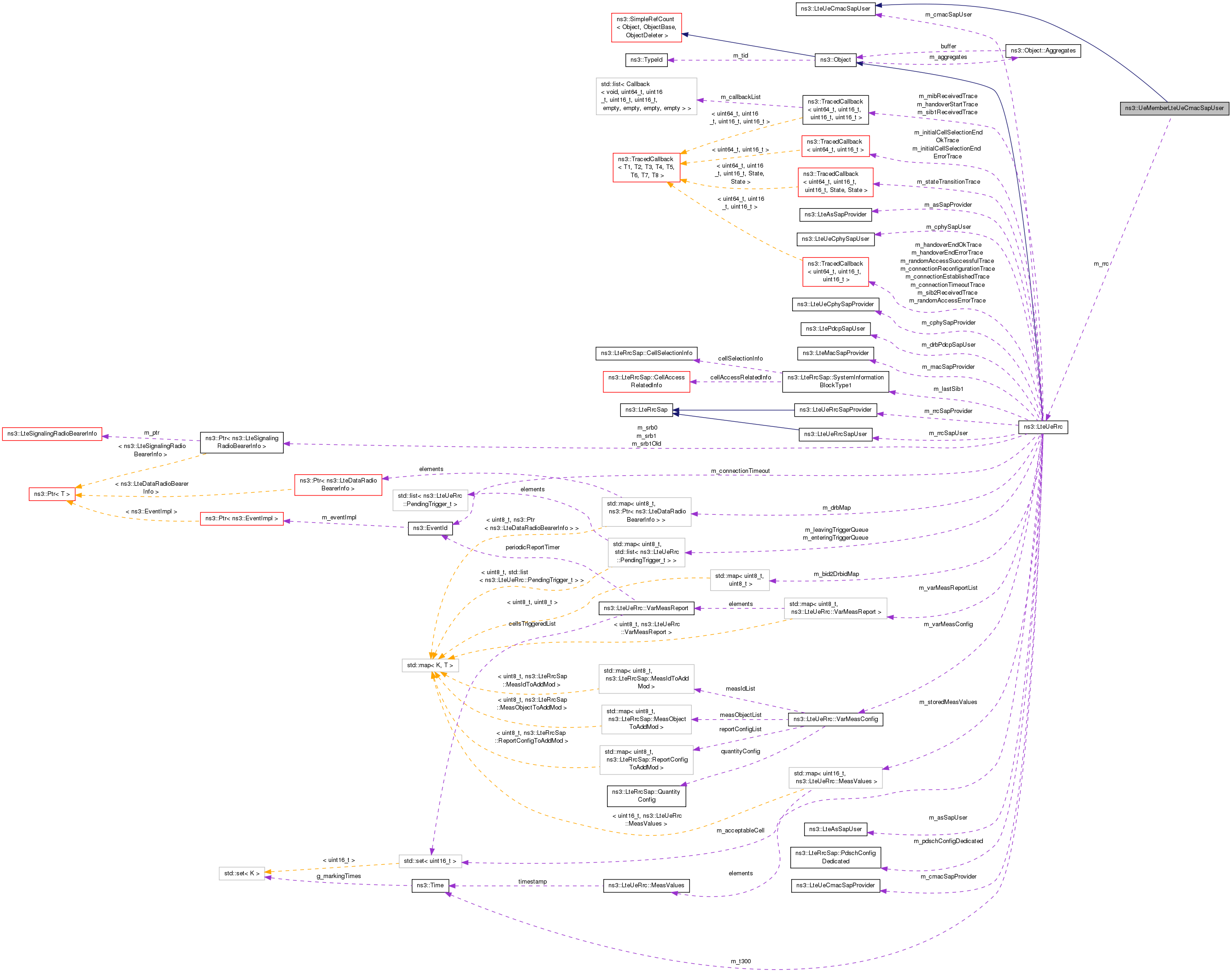

Collaboration diagram for ns3::UeMemberLteUeCmacSapUser:

Public Member Functions
	UeMemberLteUeCmacSapUser (LteUeRrc *rrc)
virtual void	NotifyRandomAccessFailed ()
	Notify the RRC that the MAC Random Access procedure failed. More...
virtual void	NotifyRandomAccessSuccessful ()
	Notify the RRC that the MAC Random Access procedure completed successfully. More...
virtual void	SetTemporaryCellRnti (uint16_t rnti)
Public Member Functions inherited from ns3::LteUeCmacSapUser
virtual	~LteUeCmacSapUser ()

Private Attributes
LteUeRrc *	m_rrc

Detailed Description

Definition at line 47 of file lte-ue-rrc.cc.

Constructor & Destructor Documentation

ns3::UeMemberLteUeCmacSapUser::UeMemberLteUeCmacSapUser

(

LteUeRrc *

rrc

)

Definition at line 60 of file lte-ue-rrc.cc.

Member Function Documentation

void ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessFailed ( )

virtual

Notify the RRC that the MAC Random Access procedure failed.

Implements ns3::LteUeCmacSapUser.

Definition at line 79 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoNotifyRandomAccessFailed(), and m_rrc.

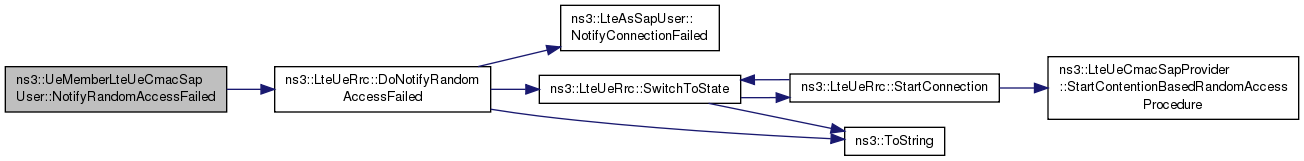

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessSuccessful ( )

virtual

Notify the RRC that the MAC Random Access procedure completed successfully.

Implements ns3::LteUeCmacSapUser.

Definition at line 73 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoNotifyRandomAccessSuccessful(), and m_rrc.

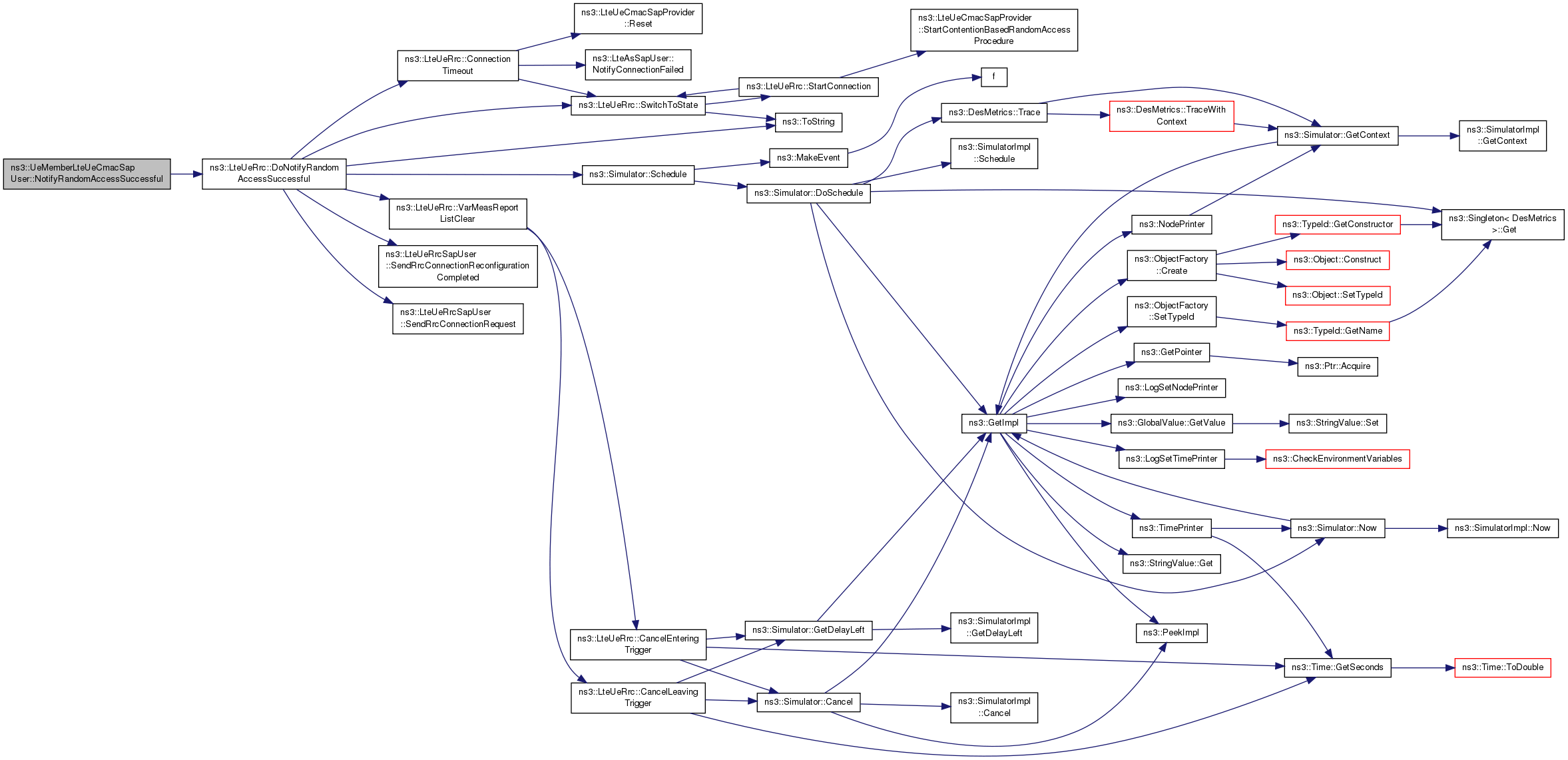

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapUser::SetTemporaryCellRnti ( uint16_t  rnti )

virtual

Parameters

rnti	the T-C-RNTI, which will eventually become the C-RNTI after contention resolution

Implements ns3::LteUeCmacSapUser.

Definition at line 66 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoSetTemporaryCellRnti(), and m_rrc.

Here is the call graph for this function:

Member Data Documentation

LteUeRrc* ns3::UeMemberLteUeCmacSapUser::m_rrc

private

Definition at line 57 of file lte-ue-rrc.cc.

Referenced by NotifyRandomAccessFailed(), NotifyRandomAccessSuccessful(), and SetTemporaryCellRnti().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-ue-rrc.cc
