This class mimics the TXVECTOR which is to be passed to the PHY in order to define the parameters which are to be used for a transmission. More...

#include "wifi-tx-vector.h"

Collaboration diagram for ns3::WifiTxVector:

Public Member Functions
	WifiTxVector ()

	WifiTxVector (WifiMode mode, uint8_t powerLevel, uint8_t retries, bool shortGuardInterval, uint8_t nss, uint8_t ness, uint32_t channelWidth, bool aggregation, bool stbc)
	Create a TXVECTOR with the given parameters. More...

uint32_t	GetChannelWidth (void) const

WifiMode	GetMode (void) const

uint8_t	GetNess (void) const

uint8_t	GetNss (void) const

uint8_t	GetRetries (void) const

uint8_t	GetTxPowerLevel (void) const

bool	IsAggregation (void) const
	Checks whether the PSDU contains A-MPDU. More...

bool	IsShortGuardInterval (void) const

bool	IsStbc (void) const
	Check if STBC is used or not. More...

void	SetAggregation (bool aggregation)
	Sets if PSDU contains A-MPDU. More...

void	SetChannelWidth (uint32_t channelWidth)
	Sets the selected channelWidth (in MHz) More...

void	SetMode (WifiMode mode)
	Sets the selected payload transmission mode. More...

void	SetNess (uint8_t ness)
	Sets the Ness number refer to IEEE 802.11n Table 20-6 for explanation. More...

void	SetNss (uint8_t nss)
	Sets the number of Nss refer to IEEE 802.11n Table 20-28 for explanation and range. More...

void	SetRetries (uint8_t retries)
	Sets the number of retries. More...

void	SetShortGuardInterval (bool guardinterval)
	Sets if short gurad interval is being used. More...

void	SetStbc (bool stbc)
	Sets if STBC is being used. More...

void	SetTxPowerLevel (uint8_t powerlevel)
	Sets the selected transmission power level. More...

Private Attributes
bool	m_aggregation

uint32_t	m_channelWidth
	channel width in MHz More...

WifiMode	m_mode
	The DATARATE parameter in Table 15-4. More...

bool	m_modeInitialized

uint8_t	m_ness
	number of streams in beamforming More...

uint8_t	m_nss
	number of streams More...

uint8_t	m_retries
	The DATA_RETRIES/RTS_RETRIES parameter for Click radiotap information. More...

bool	m_shortGuardInterval
	true if short GI is going to be used More...

bool	m_stbc
	Flag whether the PSDU contains A-MPDU. More...

uint8_t	m_txPowerLevel
	The TXPWR_LEVEL parameter in Table 15-4. More...

bool	m_txPowerLevelInitialized

Detailed Description

This class mimics the TXVECTOR which is to be passed to the PHY in order to define the parameters which are to be used for a transmission.

See IEEE 802.11-2007 15.2.6 "Transmit PLCP", and also 15.4.4.2 "PMD_SAP peer-to-peer service primitive parameters".

If this class is constructed with the constructor that takes no arguments, then the client must explicitly set the mode and transmit power level parameters before using them. Default member initializers are provided for the other parameters, to conform to a non-MIMO/long guard configuration, although these may also be explicitly set after object construction.

When used in a infrastructure context, WifiTxVector values should be drawn from WifiRemoteStationManager parameters since rate adaptation is responsible for picking the mode, number of streams, etc., but in the case in which there is no such manager (e.g. mesh), the client still needs to initialize at least the mode and transmit power level appropriately.

Note: the above reference is valid for the DSSS PHY only (clause 15). TXVECTOR is defined also for the other PHYs, however they don't include the TXPWRLVL explicitly in the TXVECTOR. This is somewhat strange, since all PHYs actually have a PMD_TXPWRLVL.request primitive. We decide to include the power level in WifiTxVector for all PHYs, since it serves better our purposes, and furthermore it seems close to the way real devices work (e.g., madwifi).

Definition at line 61 of file wifi-tx-vector.h.

Constructor & Destructor Documentation

ns3::WifiTxVector::WifiTxVector ( )

Definition at line 27 of file wifi-tx-vector.cc.

ns3::WifiTxVector::WifiTxVector	(	WifiMode	mode,
		uint8_t	powerLevel,
		uint8_t	retries,
		bool	shortGuardInterval,
		uint8_t	nss,
		uint8_t	ness,
		uint32_t	channelWidth,
		bool	aggregation,
		bool	stbc
	)

Create a TXVECTOR with the given parameters.

Parameters

mode	WifiMode
powerLevel	transmission power level
retries	retries
shortGuardInterval	enable or disable short guard interval
nss	the number of spatial STBC streams (NSS)
ness	the number of extension spatial streams (NESS)
channelWidth	the channel width in MHz
aggregation	enable or disable MPDU aggregation
stbc	enable or disable STBC

Definition at line 40 of file wifi-tx-vector.cc.

Member Function Documentation

uint32_t ns3::WifiTxVector::GetChannelWidth ( void ) const

Returns: the channel width (in MHz)

Definition at line 84 of file wifi-tx-vector.cc.

References m_channelWidth.

Referenced by ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::WifiMode::GetDataRate(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiMode::GetPhyRate(), ns3::WifiPhy::GetPlcpHeaderDuration(), ns3::WifiPhy::GetPlcpHeaderMode(), ns3::WifiPhy::GetPlcpPreambleDuration(), ns3::IdealWifiManager::GetSnrThreshold(), ns3::WifiPhy::IsValidTxVector(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), ns3::YansWifiPhy::SendPacket(), ns3::SpectrumWifiPhy::SendPacket(), PowerRateAdaptationTest::TestAparf(), and PowerRateAdaptationTest::TestParf().

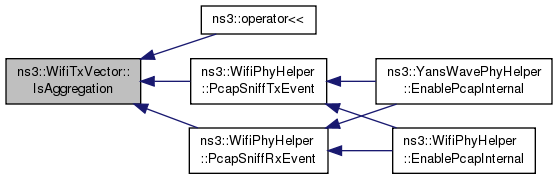

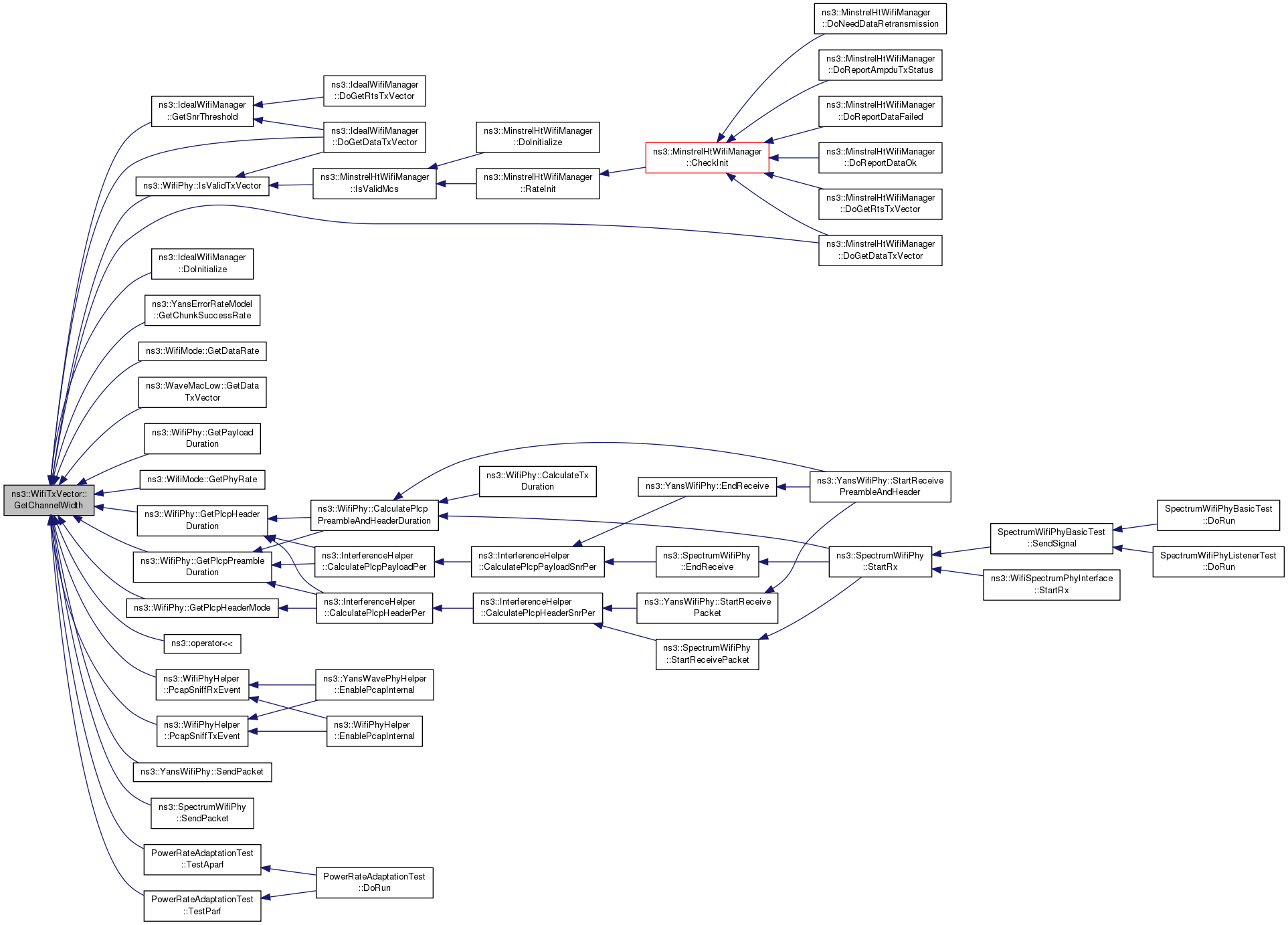

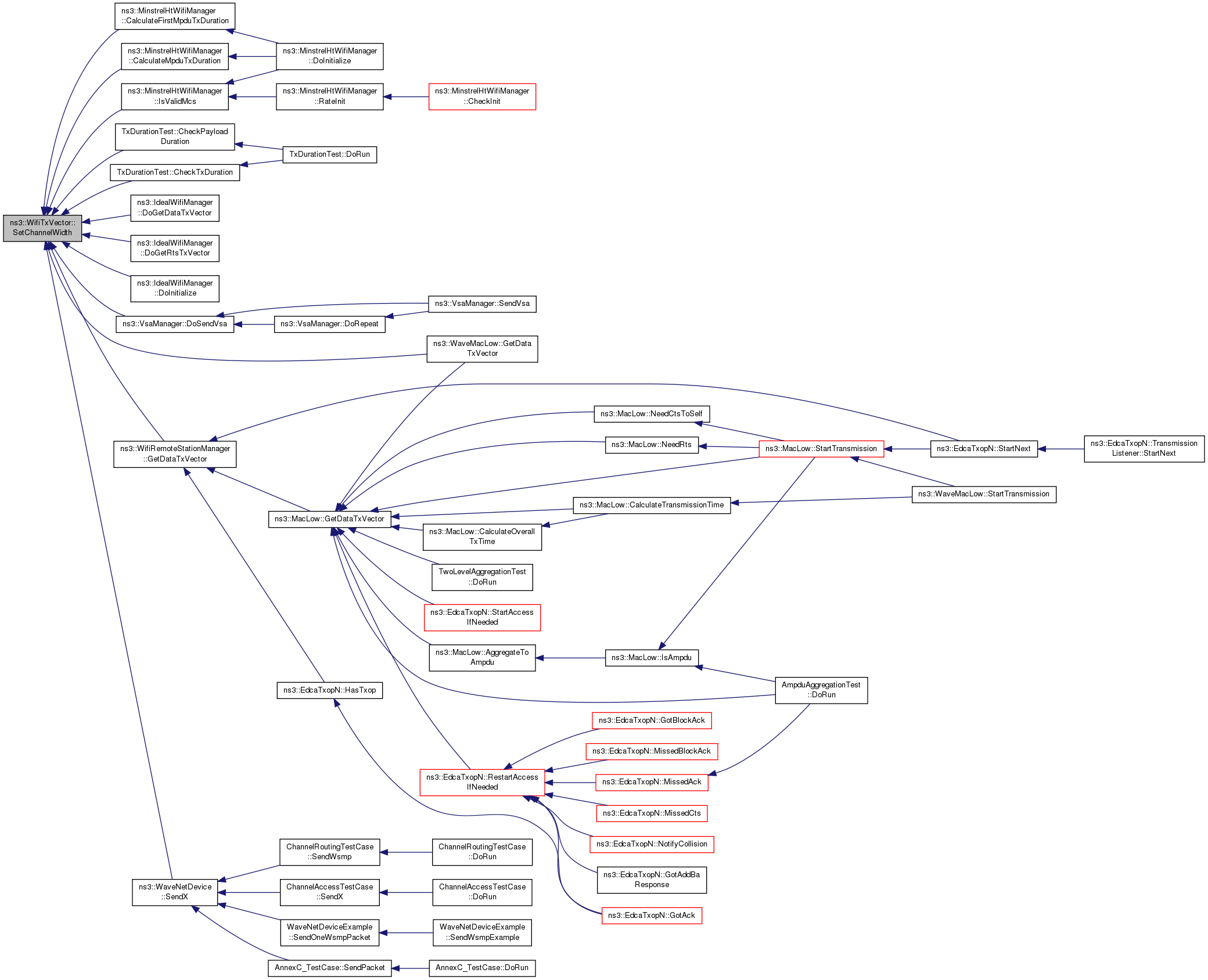

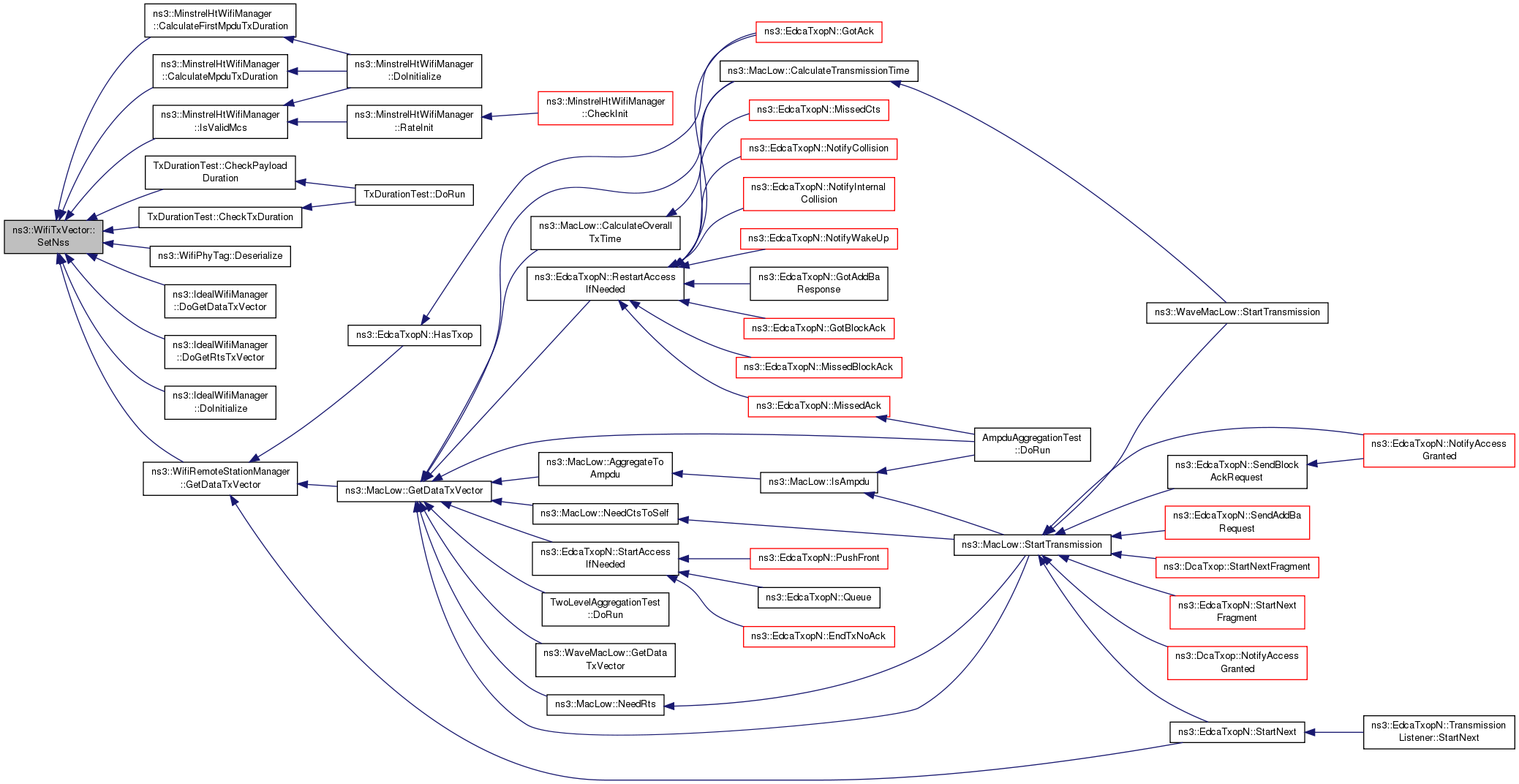

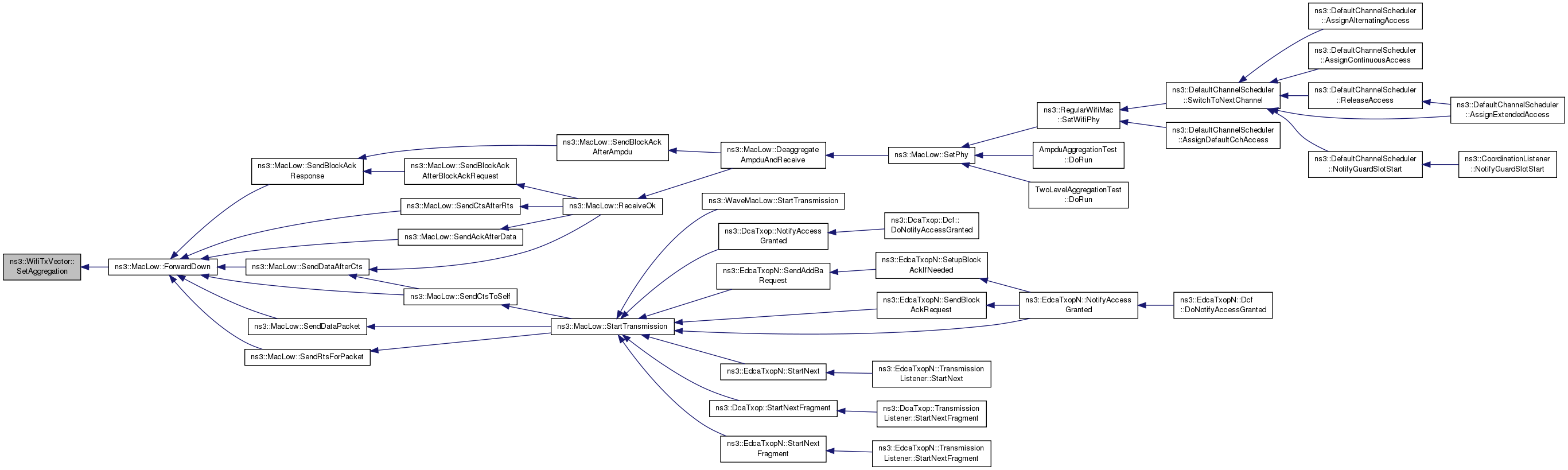

Here is the caller graph for this function:

WifiMode ns3::WifiTxVector::GetMode ( void ) const

Returns: the selected payload transmission mode

Definition at line 58 of file wifi-tx-vector.cc.

References m_mode, m_modeInitialized, and NS_FATAL_ERROR.

Referenced by ns3::IdealWifiManager::AddSnrThreshold(), ns3::MacLow::AggregateToAmpdu(), ns3::MacLow::CalculateOverallTxTime(), ns3::ErrorRateModel::CalculateSnr(), ns3::MacLow::CalculateTransmissionTime(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MacLow::ForwardDown(), ns3::MacLow::GetAckDuration(), ns3::MacLow::GetBlockAckDuration(), ns3::NistErrorRateModel::GetChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::MacLow::GetCtsDuration(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiPhy::GetPlcpHeaderDuration(), ns3::WifiPhy::GetPlcpPreambleDuration(), ns3::IdealWifiManager::GetSnrThreshold(), ns3::WifiPhy::IsValidTxVector(), ns3::WifiRemoteStationManager::NeedCtsToSelf(), ns3::WifiRemoteStationManager::NeedRts(), ns3::operator<<(), ns3::MacLow::ReceiveOk(), ns3::MacLow::SendBlockAckAfterAmpdu(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::YansWifiPhy::SendPacket(), ns3::SpectrumWifiPhy::SendPacket(), ns3::MacLow::SendRtsForPacket(), ns3::WifiPhyTag::Serialize(), ns3::MacLow::StartDataTxTimers(), ns3::YansWifiPhy::StartReceivePacket(), ns3::SpectrumWifiPhy::StartReceivePacket(), ns3::YansWifiPhy::StartReceivePreambleAndHeader(), ns3::MacLow::StopMpduAggregation(), ns3::WifiPhyStateHelper::SwitchFromRxEndOk(), ns3::WifiPhyStateHelper::SwitchToTx(), PowerRateAdaptationTest::TestAparf(), and PowerRateAdaptationTest::TestParf().

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetNess ( void ) const

Returns: the number of Ness

Definition at line 102 of file wifi-tx-vector.cc.

References m_ness.

Referenced by ns3::WifiPhy::GetPlcpHtTrainingSymbolDuration(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), and ns3::WifiPhyTag::Serialize().

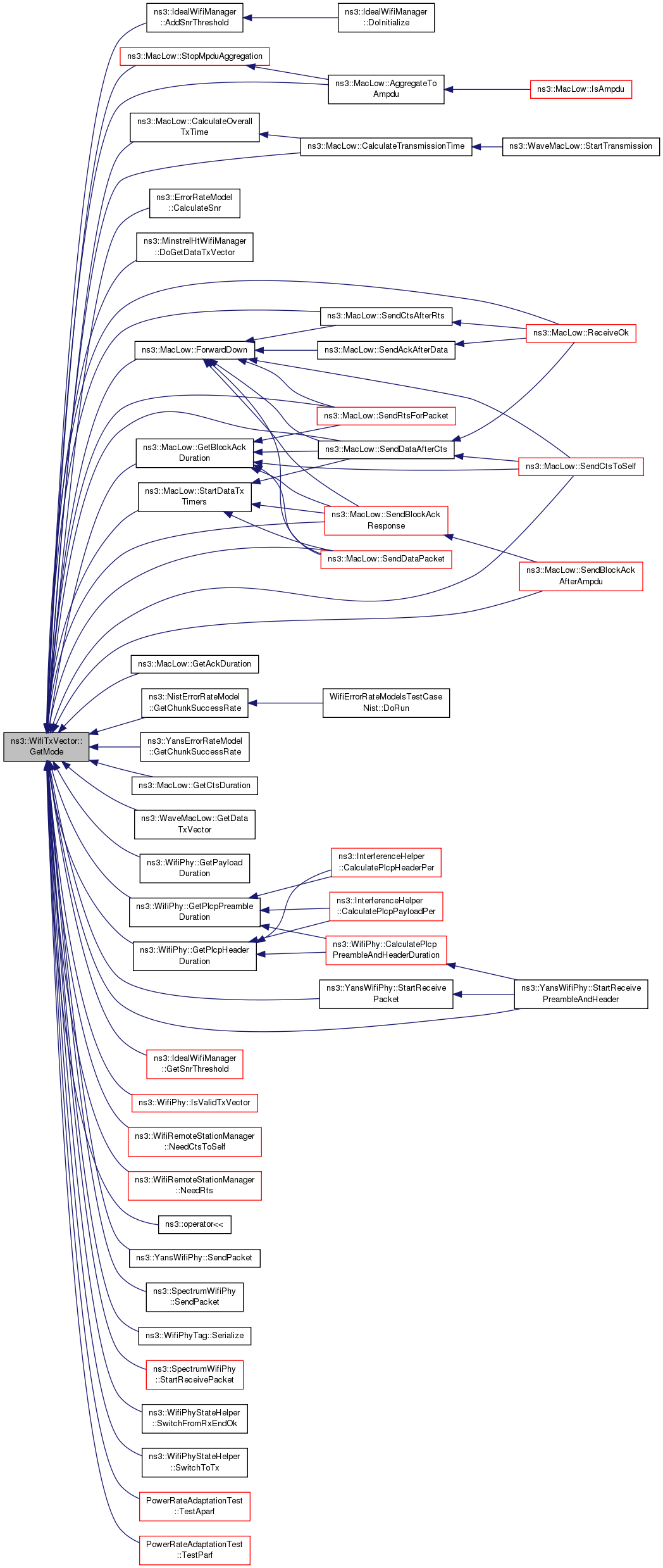

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetNss ( void ) const

Returns: the number of Nss

Definition at line 96 of file wifi-tx-vector.cc.

References m_nss.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiMode::GetPhyRate(), ns3::WifiPhy::GetPlcpHtTrainingSymbolDuration(), ns3::IdealWifiManager::GetSnrThreshold(), ns3::WifiPhy::IsValidTxVector(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), ns3::YansWifiPhy::SendPacket(), ns3::SpectrumWifiPhy::SendPacket(), ns3::WifiPhyTag::Serialize(), and ns3::SpectrumWifiPhy::StartRx().

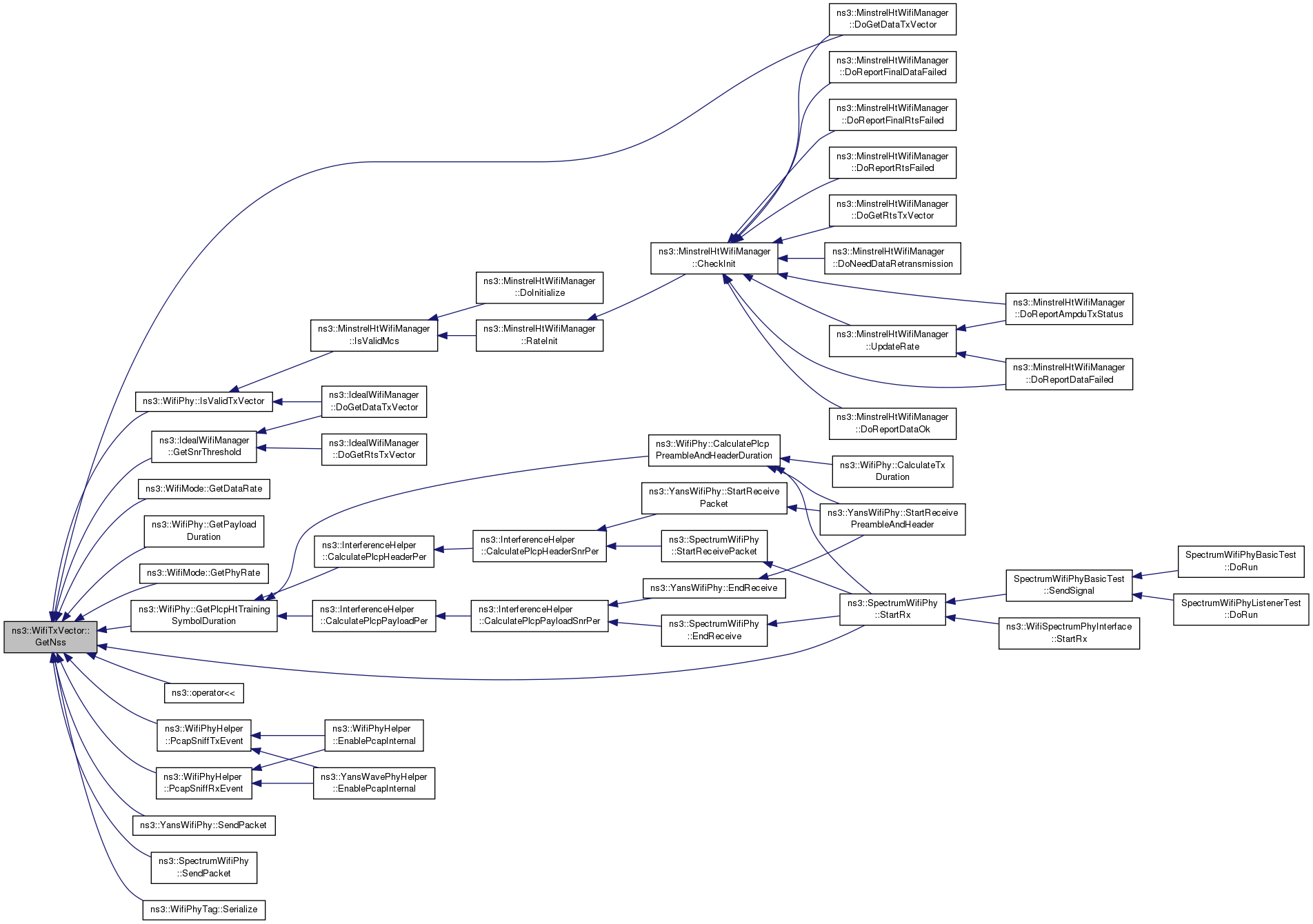

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetRetries ( void ) const

Returns: the number of retries

Definition at line 78 of file wifi-tx-vector.cc.

References m_retries.

Referenced by ns3::operator<<(), and ns3::WifiPhyTag::Serialize().

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetTxPowerLevel ( void ) const

Returns: the transmission power level

Definition at line 68 of file wifi-tx-vector.cc.

References m_txPowerLevel, m_txPowerLevelInitialized, and NS_FATAL_ERROR.

Referenced by ns3::WaveMacLow::GetDataTxVector(), ns3::operator<<(), ns3::YansWifiPhy::SendPacket(), ns3::SpectrumWifiPhy::SendPacket(), ns3::WifiPhyTag::Serialize(), ns3::WifiPhyStateHelper::SwitchToTx(), PowerRateAdaptationTest::TestAparf(), and PowerRateAdaptationTest::TestParf().

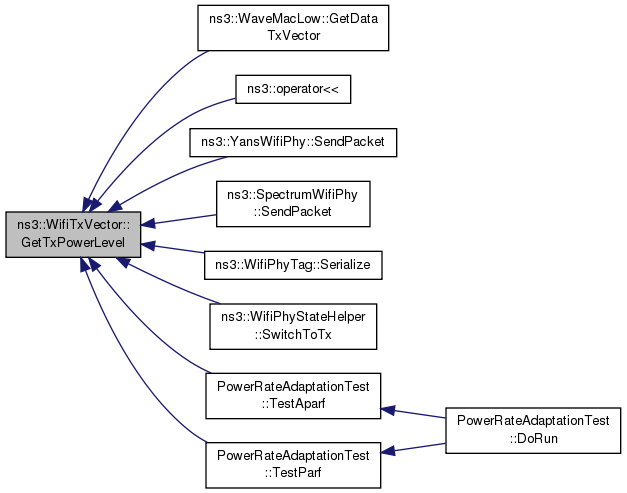

Here is the caller graph for this function:

bool ns3::WifiTxVector::IsAggregation ( void ) const

Checks whether the PSDU contains A-MPDU.

Returns: true if this PSDU has A-MPDU aggregation, false otherwise.

Definition at line 108 of file wifi-tx-vector.cc.

References m_aggregation.

Referenced by ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the caller graph for this function:

bool ns3::WifiTxVector::IsShortGuardInterval ( void ) const

Returns: if ShortGuardInterval is used or not

Definition at line 90 of file wifi-tx-vector.cc.

References m_shortGuardInterval.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::WifiMode::GetDataRate(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiMode::GetPhyRate(), ns3::IdealWifiManager::GetSnrThreshold(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), ns3::YansWifiPhy::SendPacket(), ns3::SpectrumWifiPhy::SendPacket(), ns3::WifiPhyTag::Serialize(), PowerRateAdaptationTest::TestAparf(), and PowerRateAdaptationTest::TestParf().

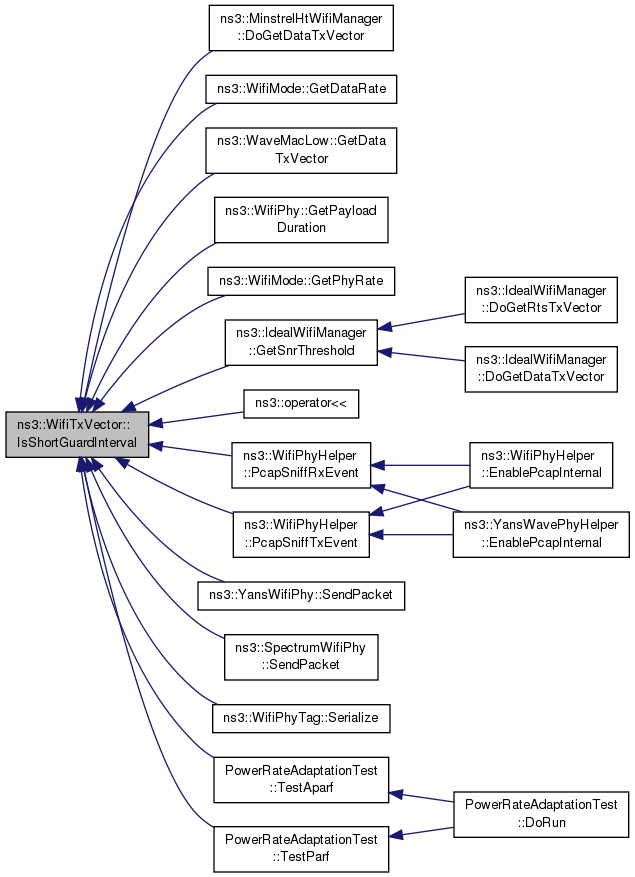

Here is the caller graph for this function:

bool ns3::WifiTxVector::IsStbc ( void ) const

Check if STBC is used or not.

Returns: true if STBC is used, false otherwise

Definition at line 114 of file wifi-tx-vector.cc.

References m_stbc.

Referenced by ns3::WifiPhy::GetPayloadDuration(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), and ns3::WifiPhyTag::Serialize().

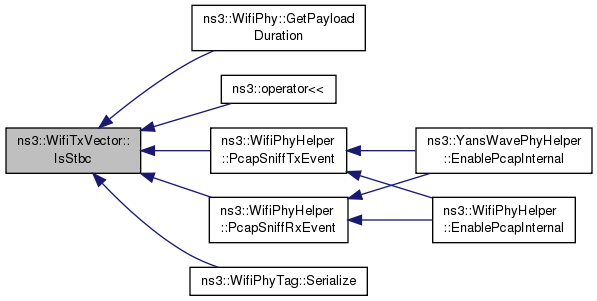

Here is the caller graph for this function:

void ns3::WifiTxVector::SetAggregation ( bool aggregation )

Sets if PSDU contains A-MPDU.

Parameters

aggregated whether the PSDU contains A-MPDU or not.

Definition at line 164 of file wifi-tx-vector.cc.

References m_aggregation.

Referenced by ns3::MacLow::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetChannelWidth ( uint32_t channelWidth )

Sets the selected channelWidth (in MHz)

Parameters

channelWidth

Definition at line 140 of file wifi-tx-vector.cc.

References m_channelWidth.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::VsaManager::DoSendVsa(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), ns3::MinstrelHtWifiManager::IsValidMcs(), and ns3::WaveNetDevice::SendX().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetMode ( WifiMode mode )

Sets the selected payload transmission mode.

Parameters

mode

Definition at line 120 of file wifi-tx-vector.cc.

References m_mode, and m_modeInitialized.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::WifiPhyTag::Deserialize(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::VsaManager::DoSendVsa(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), ns3::MinstrelHtWifiManager::IsValidMcs(), PsrExperiment::Send(), ns3::WaveNetDevice::Send(), CollisionExperiment::SendA(), CollisionExperiment::SendB(), ns3::WaveNetDevice::SendX(), NodeStatistics::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

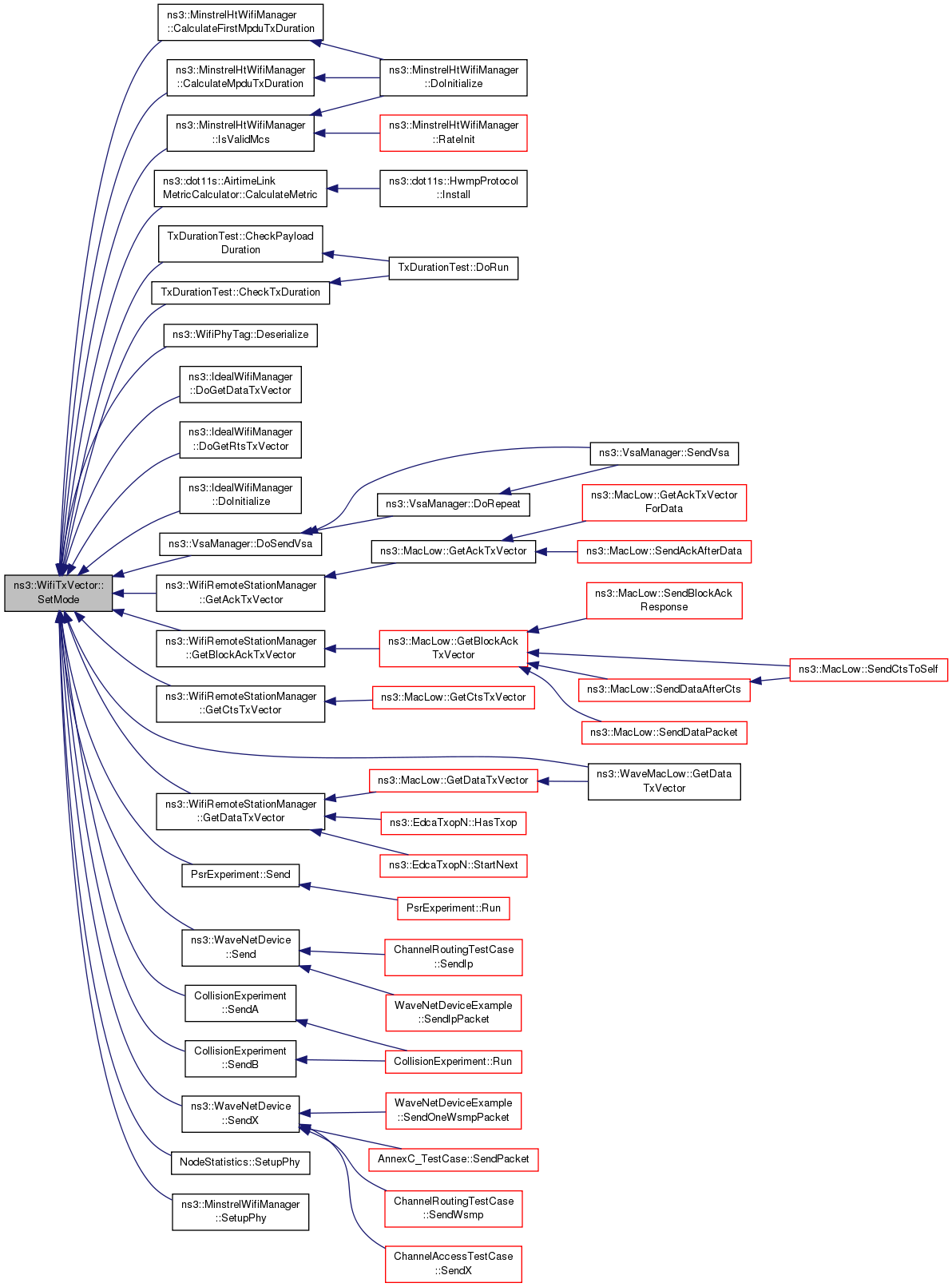

Here is the caller graph for this function:

void ns3::WifiTxVector::SetNess ( uint8_t ness )

Sets the Ness number refer to IEEE 802.11n Table 20-6 for explanation.

Parameters

ness

Definition at line 158 of file wifi-tx-vector.cc.

References m_ness.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::WifiPhyTag::Deserialize(), and ns3::WifiRemoteStationManager::GetDataTxVector().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetNss ( uint8_t nss )

Sets the number of Nss refer to IEEE 802.11n Table 20-28 for explanation and range.

Parameters

nss

Definition at line 152 of file wifi-tx-vector.cc.

References m_nss.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::WifiPhyTag::Deserialize(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::WifiRemoteStationManager::GetDataTxVector(), and ns3::MinstrelHtWifiManager::IsValidMcs().

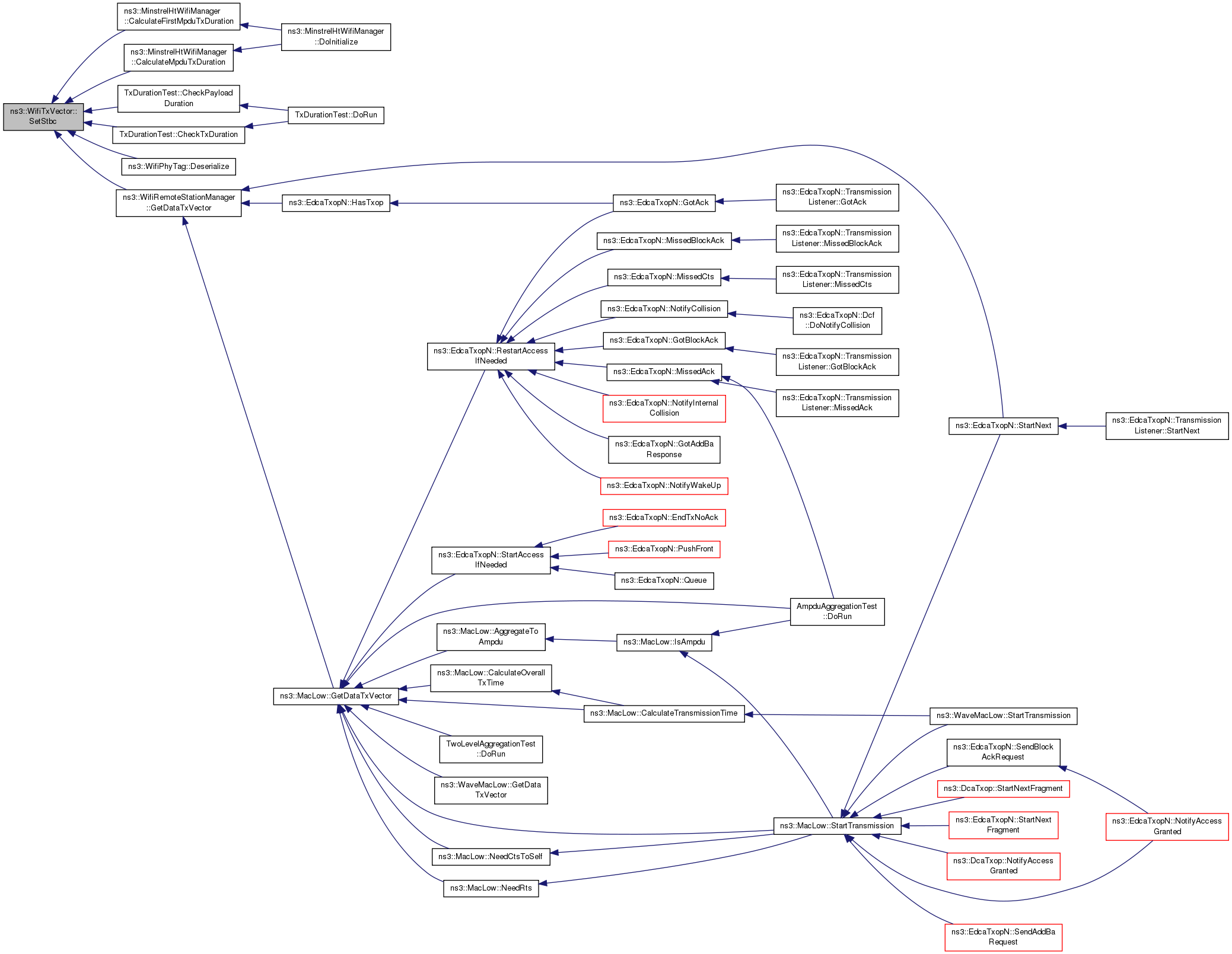

Here is the caller graph for this function:

void ns3::WifiTxVector::SetRetries ( uint8_t retries )

Sets the number of retries.

Parameters

retries

Definition at line 134 of file wifi-tx-vector.cc.

References m_retries.

Referenced by ns3::WifiPhyTag::Deserialize().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetShortGuardInterval ( bool guardinterval )

Sets if short gurad interval is being used.

Parameters

guardinterval enable or disable short guard interval

Definition at line 146 of file wifi-tx-vector.cc.

References m_shortGuardInterval.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::WifiPhyTag::Deserialize(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), and ns3::WifiRemoteStationManager::GetDataTxVector().

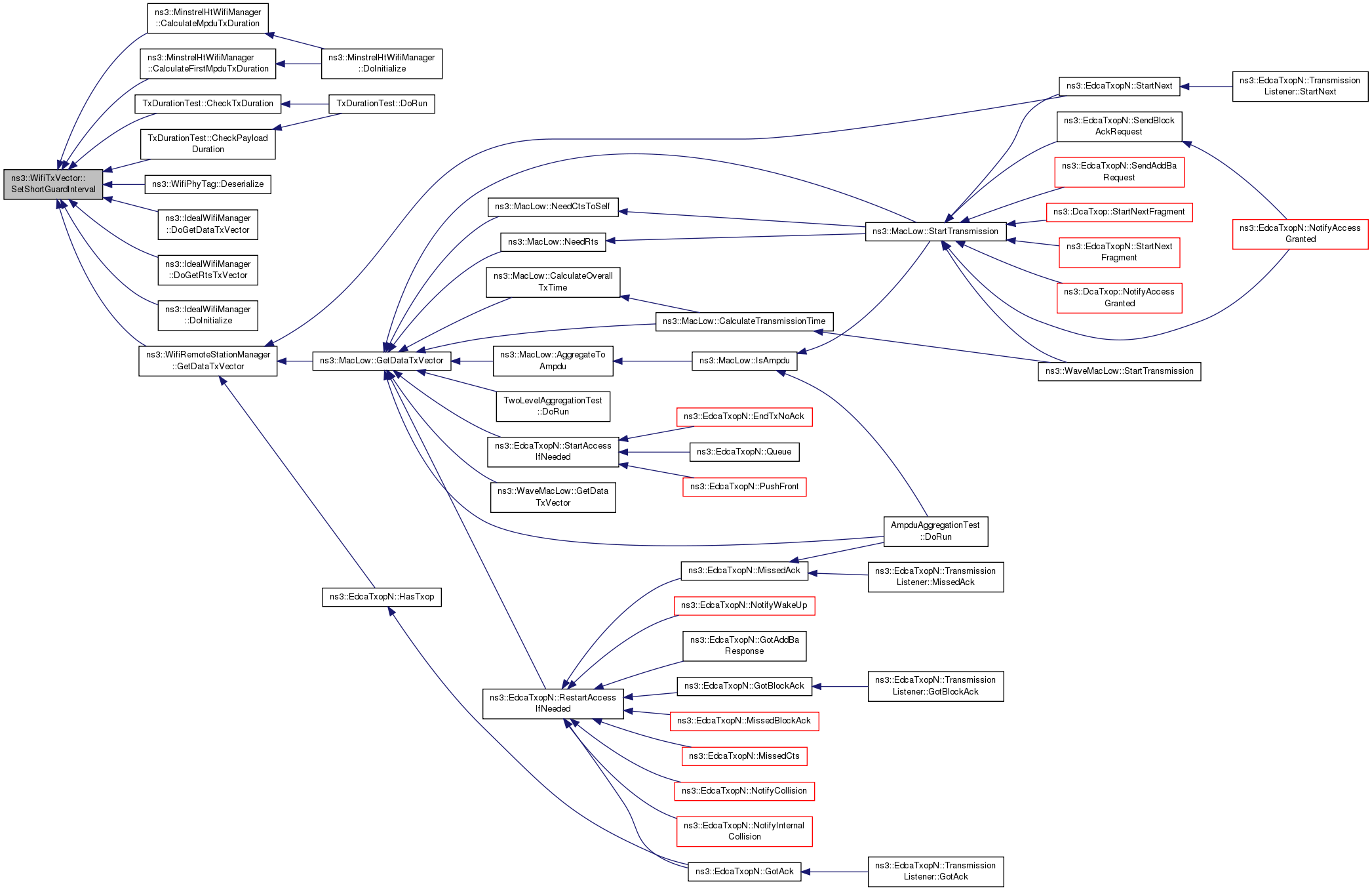

Here is the caller graph for this function:

void ns3::WifiTxVector::SetStbc ( bool stbc )

Sets if STBC is being used.

Parameters

stbc	enable or disable STBC

Definition at line 170 of file wifi-tx-vector.cc.

References m_stbc.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::WifiPhyTag::Deserialize(), and ns3::WifiRemoteStationManager::GetDataTxVector().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetTxPowerLevel ( uint8_t powerlevel )

Sets the selected transmission power level.

Parameters

powerlevel

Definition at line 127 of file wifi-tx-vector.cc.

References m_txPowerLevel, and m_txPowerLevelInitialized.

Referenced by ns3::WifiPhyTag::Deserialize(), ns3::VsaManager::DoSendVsa(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), PsrExperiment::Send(), ns3::WaveNetDevice::Send(), InterferenceExperiment::SendA(), CollisionExperiment::SendA(), InterferenceExperiment::SendB(), CollisionExperiment::SendB(), and ns3::WaveNetDevice::SendX().

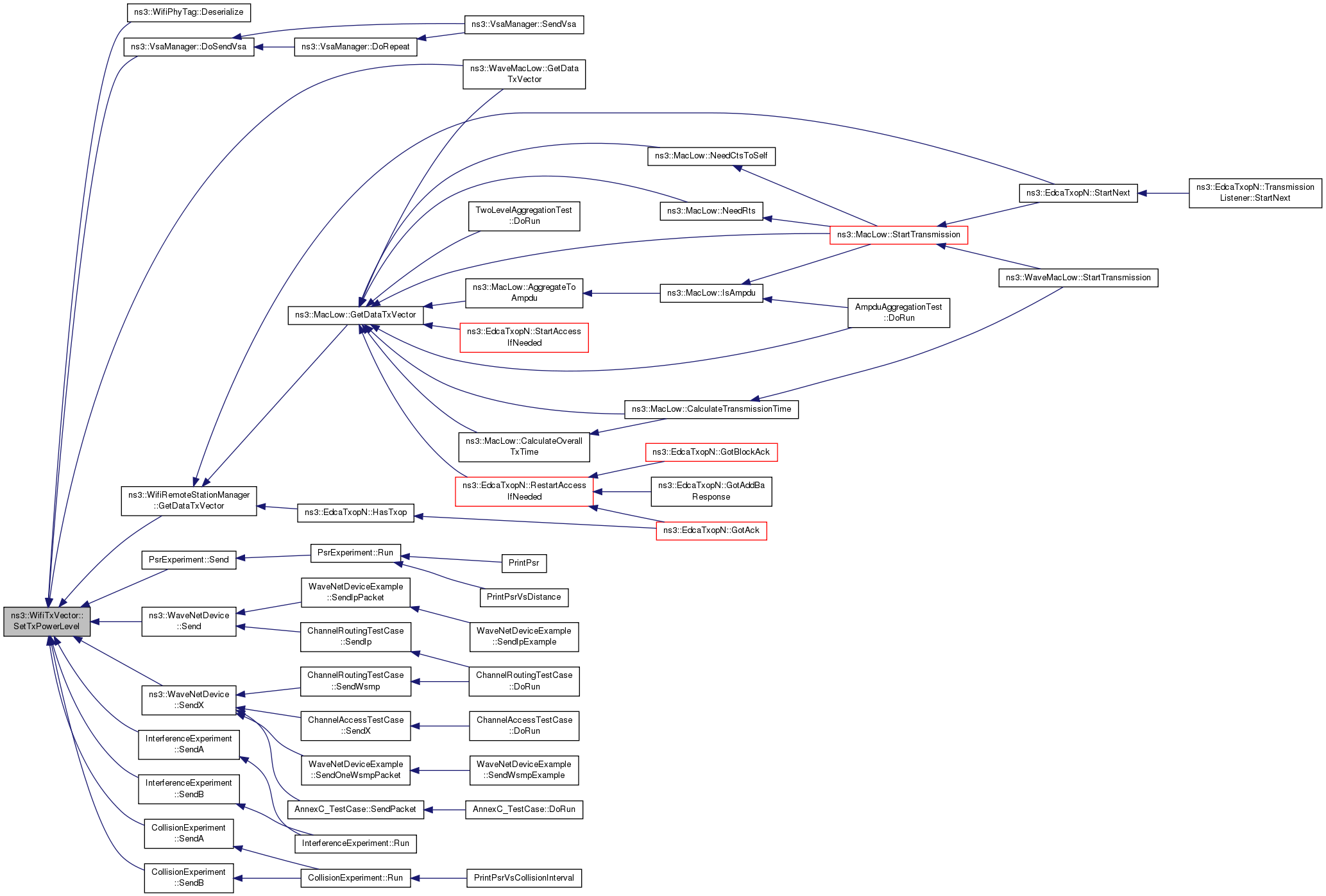

Here is the caller graph for this function:

Member Data Documentation

bool ns3::WifiTxVector::m_aggregation

private

Definition at line 197 of file wifi-tx-vector.h.

Referenced by IsAggregation(), and SetAggregation().

uint32_t ns3::WifiTxVector::m_channelWidth

private

channel width in MHz

Definition at line 193 of file wifi-tx-vector.h.

Referenced by GetChannelWidth(), and SetChannelWidth().

WifiMode ns3::WifiTxVector::m_mode

private

The DATARATE parameter in Table 15-4.

It is the value that will be passed to PMD_RATE.request

Definition at line 185 of file wifi-tx-vector.h.

Referenced by GetMode(), and SetMode().

bool ns3::WifiTxVector::m_modeInitialized

private

Definition at line 200 of file wifi-tx-vector.h.

Referenced by GetMode(), and SetMode().

uint8_t ns3::WifiTxVector::m_ness

private

number of streams in beamforming

Definition at line 196 of file wifi-tx-vector.h.

Referenced by GetNess(), and SetNess().

uint8_t ns3::WifiTxVector::m_nss

private

number of streams

Definition at line 195 of file wifi-tx-vector.h.

Referenced by GetNss(), and SetNss().

uint8_t ns3::WifiTxVector::m_retries

private

The DATA_RETRIES/RTS_RETRIES parameter for Click radiotap information.

Definition at line 191 of file wifi-tx-vector.h.

Referenced by GetRetries(), and SetRetries().

bool ns3::WifiTxVector::m_shortGuardInterval

private

true if short GI is going to be used

Definition at line 194 of file wifi-tx-vector.h.

Referenced by IsShortGuardInterval(), and SetShortGuardInterval().

bool ns3::WifiTxVector::m_stbc

private

Flag whether the PSDU contains A-MPDU.

STBC used or not

Definition at line 198 of file wifi-tx-vector.h.

Referenced by IsStbc(), and SetStbc().

uint8_t ns3::WifiTxVector::m_txPowerLevel

private

The TXPWR_LEVEL parameter in Table 15-4.

It is the value that will be passed to PMD_TXPWRLVL.request

Definition at line 188 of file wifi-tx-vector.h.

Referenced by GetTxPowerLevel(), and SetTxPowerLevel().

bool ns3::WifiTxVector::m_txPowerLevelInitialized

private

Definition at line 201 of file wifi-tx-vector.h.

Referenced by GetTxPowerLevel(), and SetTxPowerLevel().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-tx-vector.h
src/wifi/model/wifi-tx-vector.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
