a IEEE 802.11s Mesh ID 7.3.2.88 of 802.11s draft 3.0 More...
#include "ie-dot11s-metric-report.h"

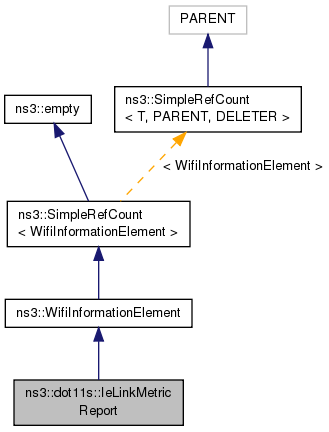

Inheritance diagram for ns3::dot11s::IeLinkMetricReport: Collaboration diagram for ns3::dot11s::IeLinkMetricReport:Public Member Functions | |
| IeLinkMetricReport () | |
| IeLinkMetricReport (uint32_t metric) | |
| virtual uint8_t | DeserializeInformationField (Buffer::Iterator start, uint8_t length) |
| Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
| virtual WifiInformationElementId | ElementId () const |
| Own unique Element ID. More... | |
| virtual uint8_t | GetInformationFieldSize () const |
| Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More... | |
| uint32_t | GetMetric () |
| virtual void | Print (std::ostream &os) const |
| Generate human-readable form of IE. More... | |
| virtual void | SerializeInformationField (Buffer::Iterator i) const |
| Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
| void | SetMetric (uint32_t metric) |
| Public Member Functions inherited from ns3::WifiInformationElement | |
| virtual | ~WifiInformationElement () |
| Buffer::Iterator | Deserialize (Buffer::Iterator i) |
| Deserialize entire IE, which must be present. More... | |
| Buffer::Iterator | DeserializeIfPresent (Buffer::Iterator i) |
| Deserialize entire IE if it is present. More... | |
| uint16_t | GetSerializedSize () const |
| Get the size of the serialized IE including Element ID and length fields. More... | |
| virtual bool | operator< (WifiInformationElement const &a) const |
| Compare information elements using Element ID. More... | |
| virtual bool | operator== (WifiInformationElement const &a) const |
| Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More... | |
| Buffer::Iterator | Serialize (Buffer::Iterator i) const |
| Serialize entire IE including Element ID and length fields. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
Private Attributes | |
| uint32_t | m_metric |
Friends | |
| bool | operator< (const IeLinkMetricReport &a, const IeLinkMetricReport &b) |
| bool | operator== (const IeLinkMetricReport &a, const IeLinkMetricReport &b) |
| bool | operator> (const IeLinkMetricReport &a, const IeLinkMetricReport &b) |
Additional Inherited Members | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement > | |
| static void | Cleanup (void) |
| Noop. More... | |
a IEEE 802.11s Mesh ID 7.3.2.88 of 802.11s draft 3.0
Definition at line 34 of file ie-dot11s-metric-report.h.
| ns3::dot11s::IeLinkMetricReport::IeLinkMetricReport | ( | ) |
Definition at line 26 of file ie-dot11s-metric-report.cc.
| ns3::dot11s::IeLinkMetricReport::IeLinkMetricReport | ( | uint32_t | metric | ) |
Definition at line 30 of file ie-dot11s-metric-report.cc.
References m_metric.
|
virtual |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)
| start | an iterator which points to where the information should be written. |
| length |
Implements ns3::WifiInformationElement.
Definition at line 60 of file ie-dot11s-metric-report.cc.
References ns3::Buffer::Iterator::GetDistanceFrom(), m_metric, ns3::Buffer::Iterator::ReadLsbtohU32(), and visualizer.core::start().

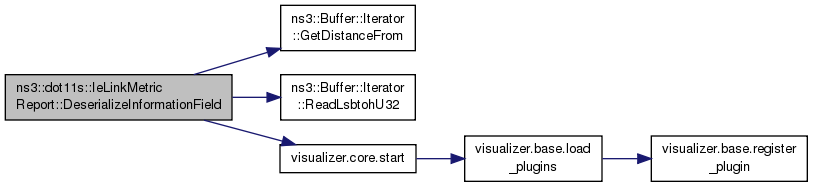

Here is the call graph for this function:
|
virtual |
Own unique Element ID.
Implements ns3::WifiInformationElement.
Definition at line 35 of file ie-dot11s-metric-report.cc.
References IE11S_LINK_METRIC_REPORT.
|
virtual |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.
This is the value that will appear in the second octet of the entire IE - the length field)
Implements ns3::WifiInformationElement.
Definition at line 40 of file ie-dot11s-metric-report.cc.
| uint32_t ns3::dot11s::IeLinkMetricReport::GetMetric | ( | void | ) |
Definition at line 45 of file ie-dot11s-metric-report.cc.
References m_metric.
|
virtual |
Generate human-readable form of IE.
| os | output stream |
Reimplemented from ns3::WifiInformationElement.
Definition at line 67 of file ie-dot11s-metric-report.cc.
References m_metric.
Referenced by ns3::dot11s::operator<<().
Here is the caller graph for this function:
|
virtual |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets)
| start | an iterator which points to where the information should be written. |
Implements ns3::WifiInformationElement.
Definition at line 55 of file ie-dot11s-metric-report.cc.
References m_metric, and ns3::Buffer::Iterator::WriteHtolsbU32().
Here is the call graph for this function:| void ns3::dot11s::IeLinkMetricReport::SetMetric | ( | uint32_t | metric | ) |
Definition at line 50 of file ie-dot11s-metric-report.cc.
References m_metric.
|
friend |
Definition at line 77 of file ie-dot11s-metric-report.cc.
|
friend |
Definition at line 72 of file ie-dot11s-metric-report.cc.
|
friend |
Definition at line 82 of file ie-dot11s-metric-report.cc.
|
private |
Definition at line 50 of file ie-dot11s-metric-report.h.
Referenced by DeserializeInformationField(), GetMetric(), IeLinkMetricReport(), ns3::dot11s::operator<(), ns3::dot11s::operator==(), ns3::dot11s::operator>(), Print(), SerializeInformationField(), and SetMetric().
