See 7.3.2.98 of 802.11s draft 2.07. More...
#include "ie-dot11s-perr.h"
Public Member Functions | |
IePerr () | |
~IePerr () | |
void | AddAddressUnit (HwmpProtocol::FailedDestination unit) |
void | DeleteAddressUnit (Mac48Address address) |
virtual uint8_t | DeserializeInformationField (Buffer::Iterator start, uint8_t length) |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
virtual WifiInformationElementId | ElementId () const |
Own unique Element ID. More... | |
std::vector< HwmpProtocol::FailedDestination > | GetAddressUnitVector () const |
virtual uint8_t | GetInformationFieldSize () const |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More... | |
uint8_t | GetNumOfDest () const |
bool | IsFull () const |
virtual void | Print (std::ostream &os) const |
Generate human-readable form of IE. More... | |
void | ResetPerr () |
virtual void | SerializeInformationField (Buffer::Iterator i) const |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
Public Member Functions inherited from ns3::WifiInformationElement | |
virtual | ~WifiInformationElement () |
Buffer::Iterator | Deserialize (Buffer::Iterator i) |
Deserialize entire IE, which must be present. More... | |
Buffer::Iterator | DeserializeIfPresent (Buffer::Iterator i) |
Deserialize entire IE if it is present. More... | |
uint16_t | GetSerializedSize () const |
Get the size of the serialized IE including Element ID and length fields. More... | |
virtual bool | operator< (WifiInformationElement const &a) const |
Compare information elements using Element ID. More... | |
virtual bool | operator== (WifiInformationElement const &a) const |
Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More... | |
Buffer::Iterator | Serialize (Buffer::Iterator i) const |
Serialize entire IE including Element ID and length fields. More... | |
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement > | |
SimpleRefCount () | |
Constructor. More... | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. More... | |
uint32_t | GetReferenceCount (void) const |
Get the reference count of the object. More... | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment. More... | |
void | Ref (void) const |
Increment the reference count. More... | |
void | Unref (void) const |
Decrement the reference count. More... | |
Private Attributes | |
std::vector< HwmpProtocol::FailedDestination > | m_addressUnits |
Friends | |
bool | operator== (const IePerr &a, const IePerr &b) |
Additional Inherited Members | |
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement > | |
static void | Cleanup (void) |
Noop. More... | |
See 7.3.2.98 of 802.11s draft 2.07.
Definition at line 34 of file ie-dot11s-perr.h.
ns3::dot11s::IePerr::IePerr | ( | ) |
Definition at line 26 of file ie-dot11s-perr.cc.
ns3::dot11s::IePerr::~IePerr | ( | ) |
Definition at line 29 of file ie-dot11s-perr.cc.
void ns3::dot11s::IePerr::AddAddressUnit | ( | HwmpProtocol::FailedDestination | unit | ) |
Definition at line 99 of file ie-dot11s-perr.cc.
References ns3::dot11s::HwmpProtocol::FailedDestination::destination, and m_addressUnits.
Referenced by MeshInformationElementVectorBist::DoRun().
void ns3::dot11s::IePerr::DeleteAddressUnit | ( | Mac48Address | address | ) |
Definition at line 130 of file ie-dot11s-perr.cc.
References m_addressUnits.
|
virtual |

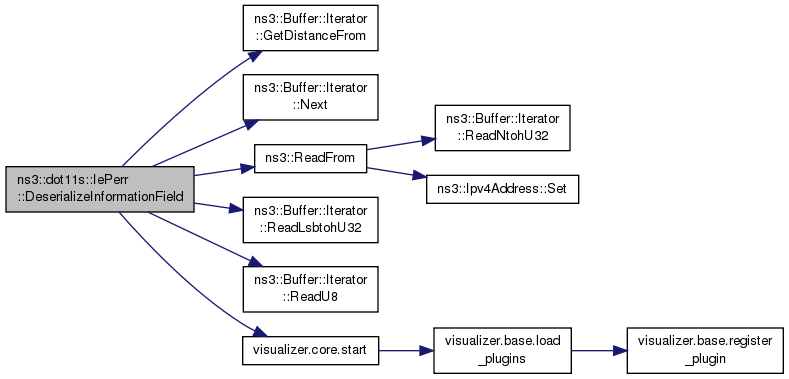

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)
start | an iterator which points to where the information should be written. |
length |
Implements ns3::WifiInformationElement.
Definition at line 68 of file ie-dot11s-perr.cc.
References ns3::dot11s::HwmpProtocol::FailedDestination::destination, ns3::Buffer::Iterator::GetDistanceFrom(), m_addressUnits, ns3::Buffer::Iterator::Next(), NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::dot11s::HwmpProtocol::FailedDestination::seqnum, and visualizer.core::start().
|
virtual |
Own unique Element ID.
Implements ns3::WifiInformationElement.
Definition at line 33 of file ie-dot11s-perr.cc.
References IE11S_PERR.
std::vector< HwmpProtocol::FailedDestination > ns3::dot11s::IePerr::GetAddressUnitVector | ( | ) | const |
Definition at line 125 of file ie-dot11s-perr.cc.
References m_addressUnits.
|
virtual |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.
This is the value that will appear in the second octet of the entire IE - the length field)
Implements ns3::WifiInformationElement.
Definition at line 88 of file ie-dot11s-perr.cc.
References m_addressUnits.
Referenced by IsFull().
uint8_t ns3::dot11s::IePerr::GetNumOfDest | ( | ) | const |
Definition at line 49 of file ie-dot11s-perr.cc.
References m_addressUnits.
bool ns3::dot11s::IePerr::IsFull | ( | ) | const |
Definition at line 115 of file ie-dot11s-perr.cc.
References GetInformationFieldSize().
|
virtual |
Generate human-readable form of IE.
os | output stream |
Reimplemented from ns3::WifiInformationElement.
Definition at line 38 of file ie-dot11s-perr.cc.
References m_addressUnits.
Referenced by ns3::dot11s::operator<<().
void ns3::dot11s::IePerr::ResetPerr | ( | ) |
Definition at line 143 of file ie-dot11s-perr.cc.
References m_addressUnits.
|
virtual |

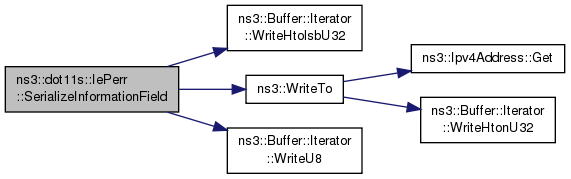

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)
start | an iterator which points to where the information should be written. |
Implements ns3::WifiInformationElement.
Definition at line 54 of file ie-dot11s-perr.cc.
References m_addressUnits, ns3::Buffer::Iterator::WriteHtolsbU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().
Definition at line 148 of file ie-dot11s-perr.cc.
|
private |
Definition at line 54 of file ie-dot11s-perr.h.
Referenced by AddAddressUnit(), DeleteAddressUnit(), DeserializeInformationField(), GetAddressUnitVector(), GetInformationFieldSize(), GetNumOfDest(), ns3::dot11s::operator==(), Print(), ResetPerr(), and SerializeInformationField().
