Create EventImpl instances from function pointers which take varying numbers of arguments. More...

Collaboration diagram for MakeEvent from Function Pointers.:

Functions
EventImpl *	ns3::MakeEvent (void(*f)(void))
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename T1 >
EventImpl *	ns3::MakeEvent (void(*f)(U1), T1 a1)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename T1 , typename T2 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2), T1 a1, T2 a2)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

Detailed Description

Create EventImpl instances from function pointers which take varying numbers of arguments.

Function Documentation

EventImpl * ns3::MakeEvent ( void(*)(void) f )

Make an EventImpl from a function pointer taking varying numbers of arguments.

Parameters

[in] f The function pointer.

Returns: The constructed EventImpl.

Definition at line 34 of file make-event.cc.

References f(), and NS_LOG_FUNCTION.

Referenced by FakeNetDevice::Doit3(), ns3::TapBridge::ReadCallback(), ns3::FdNetDevice::ReceiveCallback(), ns3::Simulator::Schedule(), ns3::Simulator::ScheduleDestroy(), ns3::Simulator::ScheduleNow(), ns3::Simulator::ScheduleWithContext(), and test().

Here is the call graph for this function:

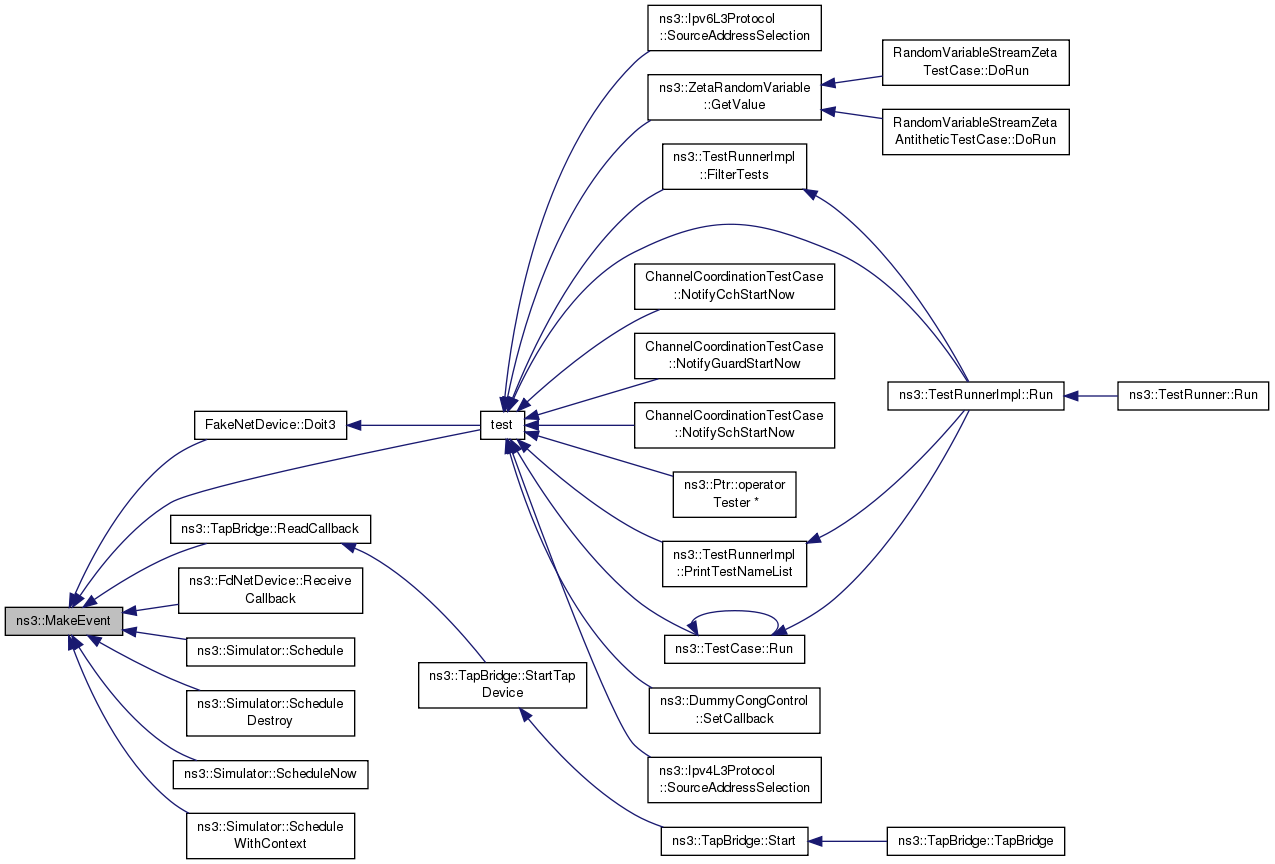

Here is the caller graph for this function:

template<typename U1 , typename T1 >

EventImpl * ns3::MakeEvent	(	void(*)(U1)	f,
		T1	a1
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the argument to the function.
T1	[deduced] Actual type of the argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	Argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 504 of file make-event.h.

References f().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename T1 , typename T2 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2)	f,
		T1	a1,
		T2	a2
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
T1	[deduced] Actual type of the first argument to the function.
T2	[deduced] Actual type of the second argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	First argument to be bound to the function.
[in]	a2	Second argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 533 of file make-event.h.

References f().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2, U3)	f,
		T1	a1,
		T2	a2,
		T3	a3
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
T1	[deduced] Actual type of the first argument to the function.
T2	[deduced] Actual type of the second argument to the function.
T3	[deduced] Actual type of the third argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	First argument to be bound to the function.
[in]	a2	Second argument to be bound to the function.
[in]	a3	Third argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 565 of file make-event.h.

References f().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2, U3, U4)	f,
		T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
T1	[deduced] Actual type of the first argument to the function.
T2	[deduced] Actual type of the second argument to the function.
T3	[deduced] Actual type of the third argument to the function.
T4	[deduced] Actual type of the fourth argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	First argument to be bound to the function.
[in]	a2	Second argument to be bound to the function.
[in]	a3	Third argument to be bound to the function.
[in]	a4	Fourth argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 599 of file make-event.h.

References f().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2, U3, U4, U5)	f,
		T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
U5	[deduced] Formal type of the fifth argument to the function.
T1	[deduced] Actual type of the first argument to the function.
T2	[deduced] Actual type of the second argument to the function.
T3	[deduced] Actual type of the third argument to the function.
T4	[deduced] Actual type of the fourth argument to the function.
T5	[deduced] Actual type of the fifth argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	First argument to be bound to the function.
[in]	a2	Second argument to be bound to the function.
[in]	a3	Third argument to be bound to the function.
[in]	a4	Fourth argument to be bound to the function.
[in]	a5	Fifth argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 635 of file make-event.h.

References f().

Here is the call graph for this function:
