minstrel-ht-wifi-manager.h File Reference

#include "wifi-remote-station-manager.h"
#include "minstrel-wifi-manager.h"
#include "wifi-mode.h"
#include "ns3/nstime.h"
#include "ns3/random-variable-stream.h"
#include <vector>
#include <map>
#include <deque>

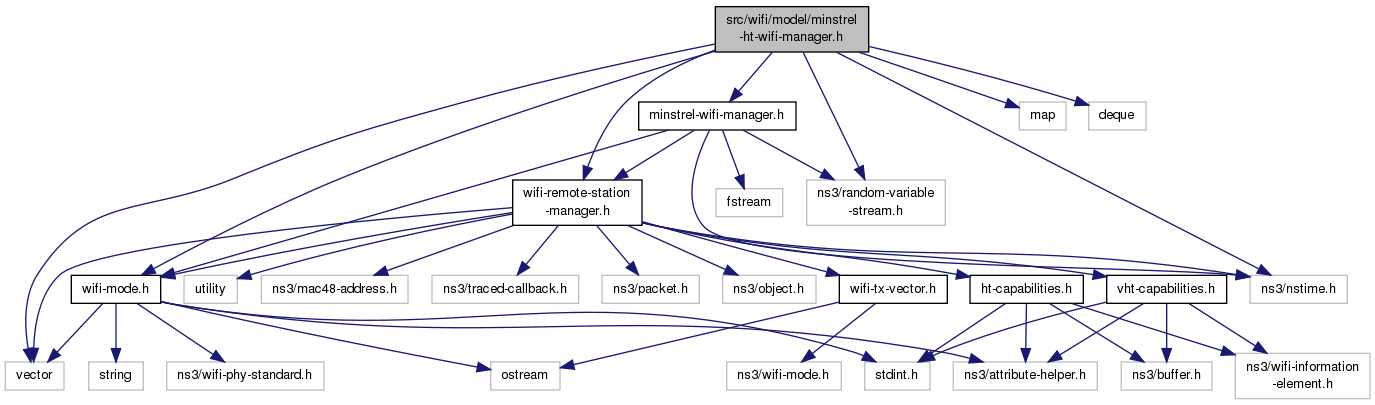

Include dependency graph for minstrel-ht-wifi-manager.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::GroupInfo
	A struct to contain information of a group. More...
struct	ns3::HtRateInfo
	A struct to contain all statistics information related to a data rate. More...
struct	ns3::McsGroup
	Data structure to contain the information that defines a group. More...
class	ns3::MinstrelHtWifiManager
	Implementation of Minstrel HT Rate Control AlgorithmMinstrel-HT is a rate adaptation mechanism for the 802.11n/ac standard based on Minstrel, and is based on the approach of probing the channel to dynamically learn about working rates that can be supported. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Typedefs
typedef std::vector< struct HtRateInfo >	ns3::HtMinstrelRate
	Data structure for a Minstrel Rate table. More...
typedef std::vector< std::vector< uint32_t > >	ns3::HtSampleRate
	Data structure for a Sample Rate table. More...
typedef std::vector< struct GroupInfo >	ns3::McsGroupData
	Data structure for a table of groups. More...
typedef std::vector< struct McsGroup >	ns3::MinstrelMcsGroups
	Data structure for a table of group definitions. More...
typedef std::vector< std::pair< Time, WifiMode > >	ns3::TxTime
	Data structure to save transmission time calculations per rate. More...

Variables
static const uint8_t	ns3::MAX_HT_GROUP_RATES = 8
	Number of rates (or MCS) per HT group. More...
static const uint8_t	ns3::MAX_HT_STREAM_GROUPS = 4
	Maximal number of groups per stream in HT (2 possible channel widths and 2 possible SGI configurations). More...
static const uint8_t	ns3::MAX_HT_WIDTH = 40
	Maximal channel width. More...
static const uint8_t	ns3::MAX_SUPPORTED_STREAMS = 4
	Constants for maximum values. More...
static const uint8_t	ns3::MAX_VHT_GROUP_RATES = 10
	Number of rates (or MCS) per VHT group. More...
static const uint8_t	ns3::MAX_VHT_STREAM_GROUPS = 8
	Maximal number of groups per stream in VHT (4 possible channel widths and 2 possible SGI configurations). More...
static const uint8_t	ns3::MAX_VHT_WIDTH = 160
	Maximal channel width. More...
