#include <assert.h>
#include <errno.h>
#include "ns3/simulator.h"
#include "ns3/log.h"
#include "ns3/net-device.h"
#include "ns3/packet.h"
#include "ns3/address.h"
#include "ns3/nstime.h"
#include "ns3/mac48-address.h"
#include <set>
#include <map>
#include <limits>
#include "openflow/openflow.h"
#include "openflow/nicira-ext.h"
#include "openflow/ericsson-ext.h"
#include "openflow/private/csum.h"
#include "openflow/private/poll-loop.h"
#include "openflow/private/rconn.h"
#include "openflow/private/stp.h"
#include "openflow/private/vconn.h"
#include "openflow/private/xtoxll.h"
#include "openflow/private/chain.h"
#include "openflow/private/table.h"
#include "openflow/private/datapath.h"
#include "openflow/private/dp_act.h"
#include "openflow/private/pt_act.h"

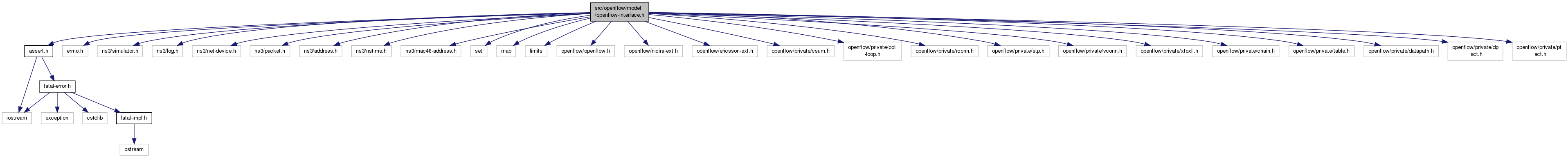

Include dependency graph for openflow-interface.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::ofi::Action
	Class for handling flow table actions. More...

class	ns3::ofi::Controller
	An interface for a Controller of OpenFlowSwitchNetDevices. More...

class	ns3::ofi::DropController
	Demonstration of a Drop controller. More...

struct	ns3::ofi::EricssonAction
	Class for handling Ericsson Vendor-defined actions. More...

struct	ns3::ofi::Stats::FlowStatsState
	State of the FlowStats request/reply. More...

struct	ns3::ofi::LearningController::LearnedState

class	ns3::ofi::LearningController
	Demonstration of a Learning controller. More...

struct	ns3::ofi::Port
	Port and its metadata. More...

struct	ns3::ofi::Stats::PortStatsState
	State of the PortStats request/reply. More...

class	ns3::ofi::Stats

struct	ns3::ofi::StatsDumpCallback
	Callback for a stats dump request. More...

struct	ns3::ofi::SwitchPacketMetadata
	Packet Metadata, allows us to track the packet's metadata as it passes through the switch. More...

struct	ns3::ofi::VPortAction
	Class for handling virtual port table actions. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

	ns3::ofi

Macros
#define	delete _delete

#define	list List

#define	N_PKT_BUFFERS (1 << PKT_BUFFER_BITS)

#define	OFP_SUPPORTED_ACTIONS

#define	OFP_SUPPORTED_CAPABILITIES

#define	OFP_SUPPORTED_VPORT_TABLE_ACTIONS

#define	PKT_BUFFER_BITS 8

#define	PKT_BUFFER_MASK (N_PKT_BUFFERS - 1)

#define	PKT_COOKIE_BITS (32 - PKT_BUFFER_BITS)

#define	private _private

Functions
void	discard_buffer (uint32_t id)

void	ns3::ofi::ExecuteActions (Ptr< OpenFlowSwitchNetDevice > swtch, uint64_t packet_uid, ofpbuf buffer, sw_flow_key key, const ofp_action_header *actions, size_t actions_len, int ignore_no_fwd)
	Executes a list of flow table actions. More...

void	ns3::ofi::ExecuteVendor (ofpbuf buffer, const sw_flow_key key, const ofp_action_header *ah)
	Executes a vendor-defined action. More...

void	ns3::ofi::ExecuteVPortActions (Ptr< OpenFlowSwitchNetDevice > swtch, uint64_t packet_uid, ofpbuf buffer, sw_flow_key key, const ofp_action_header *actions, size_t actions_len)
	Executes a list of virtual port table entry actions. More...

ofpbuf *	retrieve_buffer (uint32_t id)

uint32_t	save_buffer (ofpbuf *)

void	set_dl_addr (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_mpls_exp (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_mpls_label (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_nw_addr (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_tp_port (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_vlan_pcp (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_vlan_vid (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	strip_vlan (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

uint16_t	ns3::ofi::ValidateActions (const sw_flow_key key, const ofp_action_header actions, size_t actions_len)
	Validates a list of flow table actions. More...

uint16_t	ns3::ofi::ValidateVendor (const sw_flow_key key, const ofp_action_header ah, uint16_t len)
	Validates a vendor-defined action. More...

uint16_t	ns3::ofi::ValidateVPortActions (const ofp_action_header *actions, size_t actions_len)
	Validates a list of virtual port table entry actions. More...

Macro Definition Documentation

#define delete _delete

Definition at line 46 of file openflow-interface.h.

#define list List

Definition at line 47 of file openflow-interface.h.

Referenced by visualizer.ipython_view.IterableIPShell::__update_namespace(), ns3::ByteTagList::AddAtEnd(), ns3::ByteTagList::AddAtStart(), ns3::Packet::AddByteTag(), ns3::TrafficControlHelper::AddChildQueueDiscs(), ns3::TrafficControlHelper::AddQueueDiscClasses(), ns3::AodvHelper::AssignStreams(), ns3::RipNgHelper::AssignStreams(), ns3::RipHelper::AssignStreams(), ns3::OlsrHelper::AssignStreams(), ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), ns3::LteInterference::ConditionallyEvaluateChunk(), ns3::SimpleOfdmWimaxPhy::ConvertBurstToBits(), ns3::PacketBurst::Copy(), ns3::UplinkSchedulerMBQoS::CountSymbolsQueue(), ns3::Ipv4ListRoutingHelper::Create(), ns3::Ipv6ListRoutingHelper::Create(), ns3::BaseStationNetDevice::CreateDlMap(), ns3::FlowMonitor::DoDispose(), ns3::SimpleOfdmWimaxChannel::DoGetDevice(), ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::LteUeMac::DoReceiveLteControlMessage(), Ns3WimaxFragmentationTestCase::DoRun(), ThreadedSimulatorEventsTestCase::DoRun(), ns3::LteEnbMac::DoSchedDlConfigInd(), ns3::dsr::DsrErrorBuffer::DropPacketForErrLink(), ThreadedSimulatorEventsTestCase::End(), ns3::LteInterference::EndRx(), ns3::LteSpectrumPhy::EndRxData(), ns3::LteHarqPhy::GetAccumulatedMiDl(), ns3::LteHarqPhy::GetAccumulatedMiUl(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::Ipv6ExtensionFragment::Fragments::GetPacket(), ns3::PyViz::GetPacketDropSamples(), ns3::Ipv6ExtensionFragment::Fragments::GetPartialPacket(), ns3::UplinkSchedulerMBQoS::GetPendingSize(), ns3::PacketBurst::GetSize(), ns3::PyViz::GetTransmissionSamples(), ns3::SixLowPanNetDevice::HandleFragmentsTimeout(), ns3::IpcsClassifierRecord::IpcsClassifierRecord(), ns3::Ipv6ExtensionFragment::Fragments::IsEntire(), ns3::SixLowPanNetDevice::Fragments::IsEntire(), ns3::Ipv4L3Protocol::Fragments::IsEntire(), visualizer.base::load_plugins(), ns3::AnimationInterface::LteSpectrumPhyRxStart(), ns3::AnimationInterface::LteSpectrumPhyTxStart(), ns3::operator<<(), ns3::PcapSniffTxRxEvent(), ns3::SixLowPanNetDevice::ProcessFragment(), ns3::WimaxNetDevice::Receive(), ns3::Reservation::Reservation(), Experiment::Run(), RoutingExperiment::Run(), ns3::SimpleOfdmWimaxChannel::Send(), ns3::Radvd::Send(), ns3::FlowMonitor::SerializeToXmlStream(), ns3::RipHelper::SetDefaultRouter(), ns3::RipNgHelper::SetDefaultRouter(), RoutingHelper::SetupRoutingProtocol(), ns3::LteInterference::StartRx(), ns3::Ipv4ListRoutingHelper::~Ipv4ListRoutingHelper(), ns3::Ipv6ListRoutingHelper::~Ipv6ListRoutingHelper(), and ns3::PacketBurst::~PacketBurst().

#define N_PKT_BUFFERS (1 << PKT_BUFFER_BITS)

Definition at line 553 of file openflow-interface.h.

#define OFP_SUPPORTED_ACTIONS

Value:

( (1 << OFPAT_OUTPUT)             \
                                | (1 << OFPAT_SET_VLAN_VID)     \
                                | (1 << OFPAT_SET_VLAN_PCP)     \
                                | (1 << OFPAT_STRIP_VLAN)       \
                                | (1 << OFPAT_SET_DL_SRC)       \
                                | (1 << OFPAT_SET_DL_DST)       \
                                | (1 << OFPAT_SET_NW_SRC)       \
                                | (1 << OFPAT_SET_NW_DST)       \
                                | (1 << OFPAT_SET_TP_SRC)       \
                                | (1 << OFPAT_SET_TP_DST)       \
                                | (1 << OFPAT_SET_MPLS_LABEL)   \
                                | (1 << OFPAT_SET_MPLS_EXP) )

Definition at line 88 of file openflow-interface.h.

#define OFP_SUPPORTED_CAPABILITIES

Value:

( OFPC_FLOW_STATS            \
                                     | OFPC_TABLE_STATS         \
                                     | OFPC_PORT_STATS          \
                                     | OFPC_MULTI_PHY_TX        \
                                     | OFPC_VPORT_TABLE)

Definition at line 81 of file openflow-interface.h.

#define OFP_SUPPORTED_VPORT_TABLE_ACTIONS

Value:

( (1 << OFPPAT_OUTPUT)                \
                                            | (1 << OFPPAT_POP_MPLS)            \
                                            | (1 << OFPPAT_PUSH_MPLS)           \
                                            | (1 << OFPPAT_SET_MPLS_LABEL)      \
                                            | (1 << OFPPAT_SET_MPLS_EXP) )      \

Definition at line 101 of file openflow-interface.h.

#define PKT_BUFFER_BITS 8

Definition at line 552 of file openflow-interface.h.

#define PKT_BUFFER_MASK (N_PKT_BUFFERS - 1)

Definition at line 554 of file openflow-interface.h.

#define PKT_COOKIE_BITS (32 - PKT_BUFFER_BITS)

Definition at line 555 of file openflow-interface.h.

#define private _private

Definition at line 45 of file openflow-interface.h.

Function Documentation

void discard_buffer ( uint32_t id )

ofpbuf* retrieve_buffer ( uint32_t id )

uint32_t save_buffer ( ofpbuf * )

void set_dl_addr	(	ofpbuf *	buffer,
		sw_flow_key *	key,
		const ofp_action_header *	ah
	)

void set_mpls_exp	(	ofpbuf *	buffer,
		sw_flow_key *	key,
		const ofp_action_header *	ah
	)

void set_mpls_label	(	ofpbuf *	buffer,
		sw_flow_key *	key,
		const ofp_action_header *	ah
	)

void set_nw_addr	(	ofpbuf *	buffer,
		sw_flow_key *	key,
		const ofp_action_header *	ah
	)

void set_tp_port	(	ofpbuf *	buffer,
		sw_flow_key *	key,
		const ofp_action_header *	ah
	)

void set_vlan_pcp	(	ofpbuf *	buffer,
		sw_flow_key *	key,
		const ofp_action_header *	ah
	)

void set_vlan_vid	(	ofpbuf *	buffer,
		sw_flow_key *	key,
		const ofp_action_header *	ah
	)

void strip_vlan	(	ofpbuf *	buffer,
		sw_flow_key *	key,
		const ofp_action_header *	ah
	)
