channel-manager.h File Reference

#include <map>
#include <vector>
#include "ns3/object.h"
#include "ns3/wifi-mode.h"
#include "ns3/wifi-preamble.h"

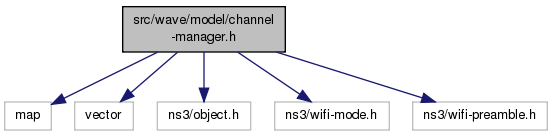

Include dependency graph for channel-manager.h:

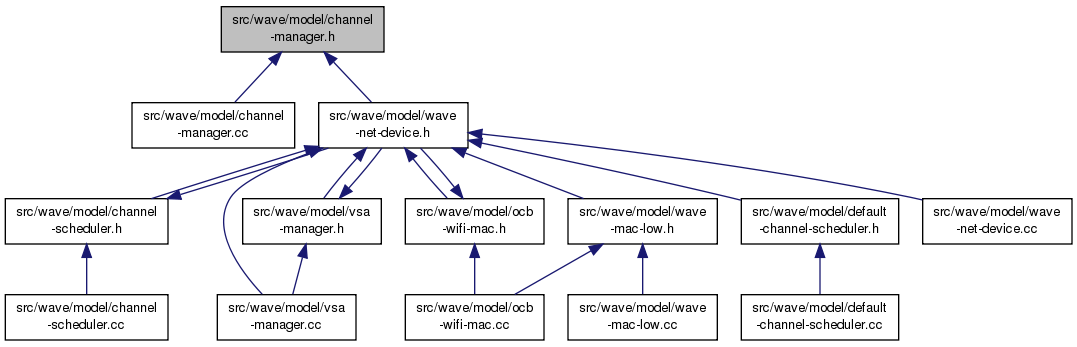

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ns3::ChannelManager
	manage 7 WaveChannels and the tx information such as data rate and txPowerLevel. More...
struct	ns3::ChannelManager::WaveChannel
	WaveChannel structure. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	CCH   178
#define	CH172   172
	WAVE channels channel number | 172 | 174 | 176 | 178 | 180 | 182 | 184 | channel bandwidth 10MHz 10MHz 10MHz 10MHz 10MHz 10MHz 10MHz channel name SCH1 SCH2 SCH3 CCH SCH4 SCH5 SCH6 another name CH172 CH174 CH176 CH178 CH180 CH182 CH184. More...
#define	CH174   174
#define	CH176   176
#define	CH178   178
#define	CH180   180
#define	CH182   182
#define	CH184   184
#define	SCH1   172
#define	SCH2   174
#define	SCH3   176
#define	SCH4   180
#define	SCH5   182
#define	SCH6   184

Macro Definition Documentation

#define CCH   178

Definition at line 52 of file channel-manager.h.

Referenced by ns3::DefaultChannelScheduler::AssignAlternatingAccess(), ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), ns3::ChannelManager::ChannelManager(), ChannelRoutingTestCase::DoRun(), ChannelAccessTestCase::DoRun(), AnnexC_TestCase::DoRun(), ns3::WaveNetDevice::ForwardUp(), ns3::WaveNetDevice::GetAddress(), ns3::DefaultChannelScheduler::GetAssignedAccessType(), ns3::ChannelManager::GetCch(), ns3::ChannelManager::GetWaveChannels(), ns3::ChannelManager::IsCch(), ns3::ChannelScheduler::IsCchAccessAssigned(), ns3::ChannelScheduler::IsDefaultCchAccessAssigned(), ns3::ChannelManager::IsSch(), ns3::DefaultChannelScheduler::NotifyGuardSlotStart(), ns3::WaveNetDevice::RegisterTxProfile(), ns3::DefaultChannelScheduler::ReleaseAccess(), WaveNetDeviceExample::SendWsmpExample(), ns3::WaveNetDevice::SendX(), and ns3::WaveNetDevice::SupportsSendFrom().

#define CH174   174

Definition at line 42 of file channel-manager.h.

#define CH176   176

Definition at line 43 of file channel-manager.h.

#define CH178   178

Definition at line 44 of file channel-manager.h.

#define CH180   180

Definition at line 45 of file channel-manager.h.

#define CH182   182

Definition at line 46 of file channel-manager.h.

#define CH184   184

Definition at line 47 of file channel-manager.h.

#define SCH1   172

Definition at line 49 of file channel-manager.h.

Referenced by ns3::ChannelManager::ChannelManager(), ChannelRoutingTestCase::DoRun(), ChannelAccessTestCase::DoRun(), AnnexC_TestCase::DoRun(), ns3::ChannelManager::GetSchs(), ns3::ChannelManager::GetWaveChannels(), ns3::ChannelScheduler::IsSchAccessAssigned(), WaveNetDeviceExample::SendIpExample(), WaveNetDeviceExample::SendWsaExample(), and WaveNetDeviceExample::SendWsmpExample().

#define SCH2   174

Definition at line 50 of file channel-manager.h.

Referenced by ns3::ChannelManager::ChannelManager(), ChannelRoutingTestCase::DoRun(), ChannelAccessTestCase::DoRun(), ns3::ChannelManager::GetSchs(), ns3::ChannelManager::GetWaveChannels(), ns3::ChannelScheduler::IsSchAccessAssigned(), and WaveNetDeviceExample::SendWsmpExample().

#define SCH3   176

Definition at line 51 of file channel-manager.h.

Referenced by ns3::ChannelManager::ChannelManager(), ChannelRoutingTestCase::DoRun(), ChannelAccessTestCase::DoRun(), ns3::ChannelManager::GetSchs(), ns3::ChannelManager::GetWaveChannels(), and ns3::ChannelScheduler::IsSchAccessAssigned().

#define SCH4   180

Definition at line 53 of file channel-manager.h.

Referenced by ns3::ChannelManager::ChannelManager(), ChannelRoutingTestCase::DoRun(), ChannelAccessTestCase::DoRun(), ns3::ChannelManager::GetSchs(), ns3::ChannelManager::GetWaveChannels(), and ns3::ChannelScheduler::IsSchAccessAssigned().

#define SCH5   182

Definition at line 54 of file channel-manager.h.

Referenced by ns3::ChannelManager::ChannelManager(), ChannelRoutingTestCase::DoRun(), ChannelAccessTestCase::DoRun(), ns3::ChannelManager::GetSchs(), ns3::ChannelManager::GetWaveChannels(), and ns3::ChannelScheduler::IsSchAccessAssigned().

#define SCH6   184

Definition at line 55 of file channel-manager.h.

Referenced by ns3::ChannelManager::ChannelManager(), ChannelRoutingTestCase::DoRun(), ChannelAccessTestCase::DoRun(), ns3::ChannelManager::GetSchs(), ns3::ChannelManager::GetWaveChannels(), ns3::ChannelManager::IsSch(), ns3::ChannelScheduler::IsSchAccessAssigned(), and ns3::ChannelManager::IsWaveChannel().
