LteAggregationThroughputScaleTestCase Class Reference

Testing that UE throughput scales linearly with number of component carriers. More...

#include "lte-test-aggregation-throughput-scale.h"

Inheritance diagram for LteAggregationThroughputScaleTestCase:

Collaboration diagram for LteAggregationThroughputScaleTestCase:

Public Member Functions
	LteAggregationThroughputScaleTestCase (std::string name)
	Creates an instance of the carrier aggregation throughput scaling test case. More...
virtual	~LteAggregationThroughputScaleTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun ()
	Setup the simulation, run it, and verify the result. More...
double	GetThroughput (uint8_t numberOfComponentCarriers)

Private Attributes
uint16_t	m_actualCellId
uint16_t	m_expectedCellId

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Testing that UE throughput scales linearly with number of component carriers.

Also attaches UE to last component carrier to make sure no code assumes that primary carrier is first.

Definition at line 47 of file lte-test-aggregation-throughput-scale.h.

Constructor & Destructor Documentation

LteAggregationThroughputScaleTestCase::LteAggregationThroughputScaleTestCase

(

std::string

name

)

Creates an instance of the carrier aggregation throughput scaling test case.

Parameters

name	name of this test

Definition at line 59 of file lte-test-aggregation-throughput-scale.cc.

References ns3::TestCase::GetName(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

LteAggregationThroughputScaleTestCase::~LteAggregationThroughputScaleTestCase ( )

virtual

Definition at line 66 of file lte-test-aggregation-throughput-scale.cc.

References ns3::TestCase::GetName(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

void LteAggregationThroughputScaleTestCase::DoRun ( void  )

privatevirtual

Setup the simulation, run it, and verify the result.

Implements ns3::TestCase.

Definition at line 156 of file lte-test-aggregation-throughput-scale.cc.

References GetThroughput(), m_actualCellId, m_expectedCellId, NS_TEST_ASSERT_MSG_EQ, and NS_TEST_ASSERT_MSG_EQ_TOL.

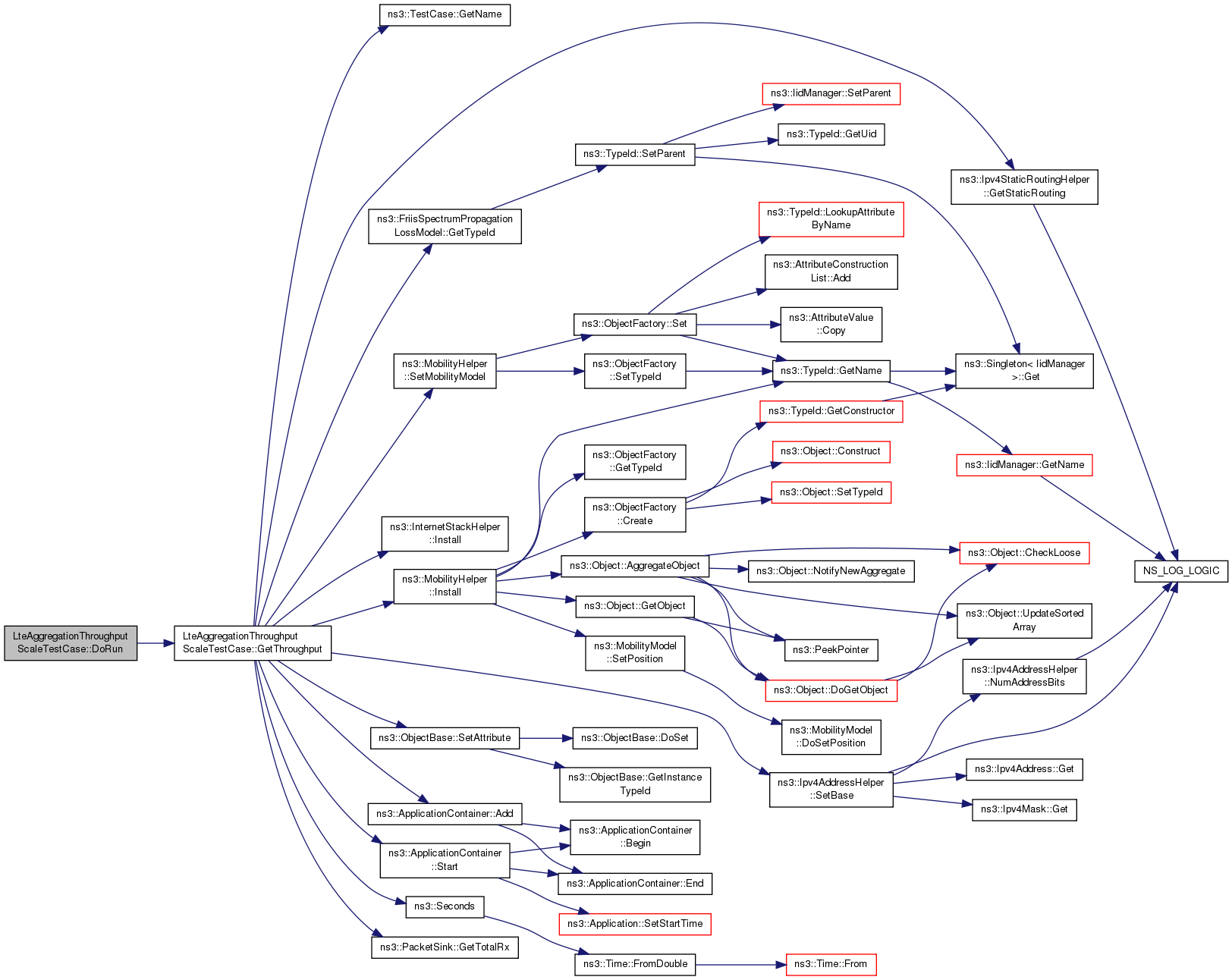

Here is the call graph for this function:

double LteAggregationThroughputScaleTestCase::GetThroughput ( uint8_t  numberOfComponentCarriers )

private

Definition at line 72 of file lte-test-aggregation-throughput-scale.cc.

References ns3::ApplicationContainer::Add(), ns3::TestCase::GetName(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::PacketSink::GetTotalRx(), ns3::FriisSpectrumPropagationLossModel::GetTypeId(), ns3::InternetStackHelper::Install(), ns3::MobilityHelper::Install(), m_actualCellId, m_expectedCellId, third::mobility, NS_LOG_FUNCTION, port, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::MobilityHelper::SetMobilityModel(), sink, and ns3::ApplicationContainer::Start().

Referenced by DoRun().

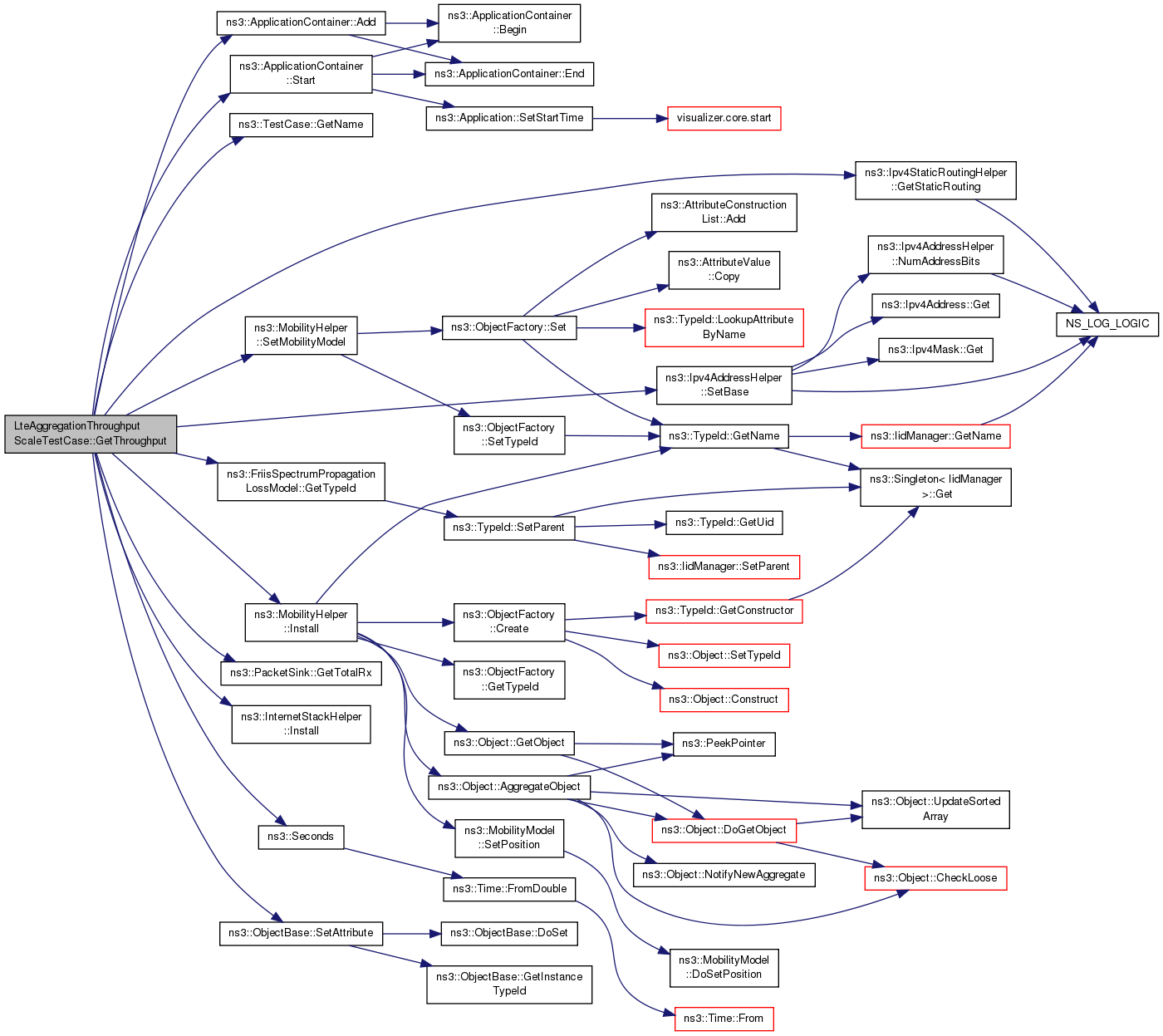

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint16_t LteAggregationThroughputScaleTestCase::m_actualCellId

private

Definition at line 67 of file lte-test-aggregation-throughput-scale.h.

Referenced by DoRun(), and GetThroughput().

uint16_t LteAggregationThroughputScaleTestCase::m_expectedCellId

private

Definition at line 66 of file lte-test-aggregation-throughput-scale.h.

Referenced by DoRun(), and GetThroughput().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-aggregation-throughput-scale.h
• src/lte/test/lte-test-aggregation-throughput-scale.cc
