LteTxPsdTestCase Class Reference

Test that the funtcion for the creation of the Lte transmission power spectral density is working as expected. More...

+ Inheritance diagram for LteTxPsdTestCase:

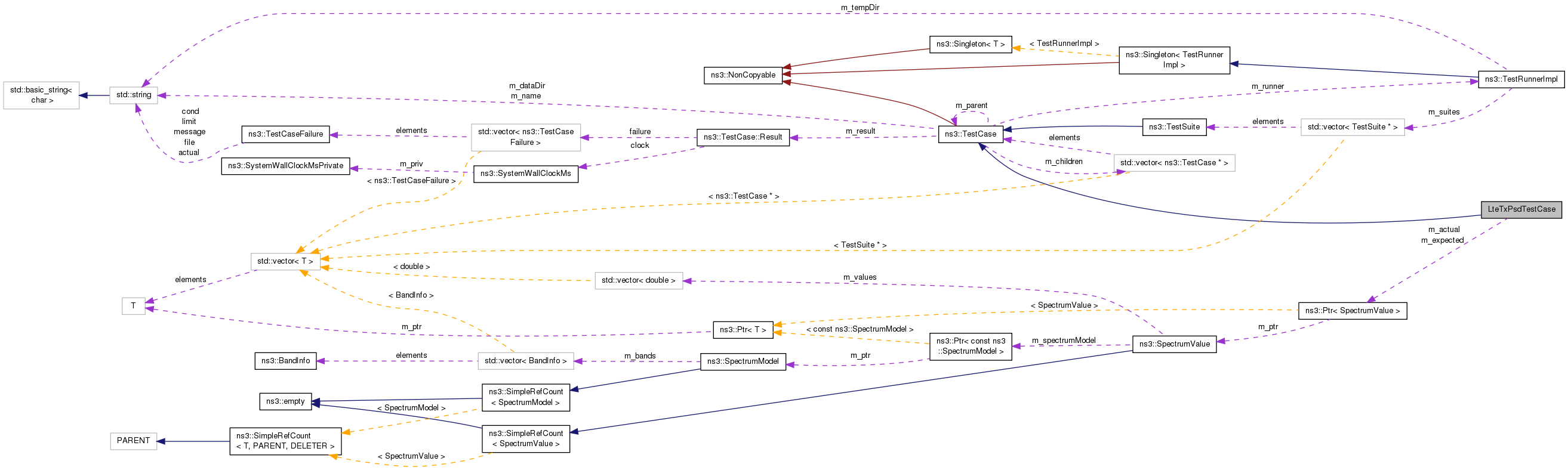

+ Collaboration diagram for LteTxPsdTestCase:

Public Member Functions

 LteTxPsdTestCase (const char *str, uint16_t earfcn, uint8_t bw, double txPowerDbm, std::vector< int > activeRbs, SpectrumValue &expected)
 Constructor. More...

virtual ~LteTxPsdTestCase ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Protected Attributes

Ptr< SpectrumValuem_actual
 actual spectrum value More...

Ptr< SpectrumValuem_expected
 expected spectrum value More...


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

Test that the funtcion for the creation of the Lte transmission power spectral density is working as expected.

Definition at line 144 of file lte-test-spectrum-value-helper.cc.

Constructor & Destructor Documentation

LteTxPsdTestCase::LteTxPsdTestCase ( const char *  str,
uint16_t  earfcn,
uint8_t  bw,
double  txPowerDbm,
std::vector< int >  activeRbs,
SpectrumValue expected
)

Constructor.

Parameters
strthe reference name
earfcn
bwbandwidth
txPowerDbmtranmit power in dBm
activeRbsactive RBs
expectedexected spectrum value

Definition at line 168 of file lte-test-spectrum-value-helper.cc.

References NS_LOG_FUNCTION.

LteTxPsdTestCase::~LteTxPsdTestCase ( )
virtual

Definition at line 176 of file lte-test-spectrum-value-helper.cc.

Member Function Documentation

void LteTxPsdTestCase::DoRun ( void  )
privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 181 of file lte-test-spectrum-value-helper.cc.

References ns3::SpectrumValue::GetSpectrumModelUid(), m_actual, m_expected, NS_TEST_ASSERT_MSG_EQ, and NS_TEST_ASSERT_MSG_SPECTRUM_VALUE_EQ_TOL.

+ Here is the call graph for this function:

Member Data Documentation

Ptr<SpectrumValue> LteTxPsdTestCase::m_actual
protected

actual spectrum value

Definition at line 161 of file lte-test-spectrum-value-helper.cc.

Referenced by DoRun().

Ptr<SpectrumValue> LteTxPsdTestCase::m_expected
protected

expected spectrum value

Definition at line 162 of file lte-test-spectrum-value-helper.cc.

Referenced by DoRun().


The documentation for this class was generated from the following file:
