StaticInformation Class Reference

Gather aggregation and configuration path information from registered types. More...

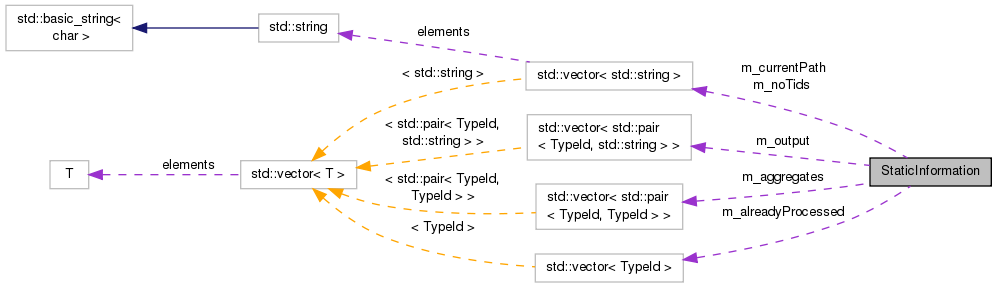

Collaboration diagram for StaticInformation:

Public Member Functions
void	Gather (TypeId tid)
	Gather aggregation and configuration path information for tid. More...
std::vector< std::string >	Get (TypeId tid) const
std::vector< std::string >	GetNoTypeIds (void) const
void	Print (void) const
	Print output in "a -> b" form on std::cout. More...
void	RecordAggregationInfo (std::string a, std::string b)
	Record the a -> b aggregation relation. More...

Private Member Functions
void	DoGather (TypeId tid)
	Gather attribute, configuration path information for tid. More...
std::string	GetCurrentPath (void) const
bool	HasAlreadyBeenProcessed (TypeId tid) const
void	RecordOutput (TypeId tid)
	Record the current config path for tid. More...

Private Attributes
std::vector< std::pair< TypeId, TypeId > >	m_aggregates
	List of aggregation relationships. More...
std::vector< TypeId >	m_alreadyProcessed
	List of TypeIds we've already processed. More...
std::vector< std::string >	m_currentPath
	Current configuration path. More...
std::vector< std::string >	m_noTids
	List of type names without TypeIds, because those modules aren't enabled. More...
std::vector< std::pair< TypeId, std::string > >	m_output
	Configuration path for each TypeId. More...

Detailed Description

Gather aggregation and configuration path information from registered types.

Definition at line 970 of file print-introspected-doxygen.cc.

Member Function Documentation

void StaticInformation::DoGather ( TypeId  tid )

private

Gather attribute, configuration path information for tid.

Parameters

tid	[in] the TypeId to gather information from

Definition at line 1183 of file print-introspected-doxygen.cc.

References ns3::TypeId::AttributeInformation::checker, ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::ObjectPtrContainerChecker::GetItemTypeId(), ns3::TypeId::GetName(), ns3::PointerChecker::GetPointeeTypeId(), ns3::TypeId::GetRegistered(), ns3::TypeId::GetRegisteredN(), ns3::TypeId::IsChildOf(), ns3::TypeId::AttributeInformation::name, NS_LOG_FUNCTION, and ns3::PeekPointer().

Here is the call graph for this function:

void StaticInformation::Gather

(

TypeId

tid

)

Gather aggregation and configuration path information for tid.

Parameters

tid	[in] the TypeId to gather information from

Definition at line 1174 of file print-introspected-doxygen.cc.

References NS_LOG_FUNCTION, and Uniquefy().

Referenced by GetTypicalAggregations().

Here is the call graph for this function:

Here is the caller graph for this function:

std::vector< std::string > StaticInformation::Get

(

TypeId

tid

)

const

Returns

the configuration paths for tid

Parameters

tid	[in] the TypeId to return information for

Definition at line 1126 of file print-introspected-doxygen.cc.

References NS_LOG_FUNCTION.

Referenced by PrintConfigPaths().

Here is the caller graph for this function:

std::string StaticInformation::GetCurrentPath ( void  ) const

private

Returns

the current configuration path

Definition at line 1089 of file print-introspected-doxygen.cc.

References NS_LOG_FUNCTION.

std::vector< std::string > StaticInformation::GetNoTypeIds

(

void

)

const

Returns

the type names we couldn't aggregate.

Definition at line 1165 of file print-introspected-doxygen.cc.

References NS_LOG_FUNCTION, and Uniquefy().

Referenced by GetNameMap().

Here is the call graph for this function:

Here is the caller graph for this function:

bool StaticInformation::HasAlreadyBeenProcessed ( TypeId  tid ) const

private

Returns

whether the tid has already been processed

Parameters

tid	[in] the TypeId to check.

Definition at line 1111 of file print-introspected-doxygen.cc.

References NS_LOG_FUNCTION.

void StaticInformation::Print

(

void

)

const

Print output in "a -> b" form on std::cout.

Definition at line 1077 of file print-introspected-doxygen.cc.

References NS_LOG_FUNCTION.

void StaticInformation::RecordAggregationInfo	(	std::string	a,
		std::string	b
	)

Record the a -> b aggregation relation.

Parameters

a	[in] the source(?) TypeId name
b	[in] the destination(?) TypeId name

Definition at line 1054 of file print-introspected-doxygen.cc.

References ns3::TypeId::LookupByNameFailSafe(), and NS_LOG_FUNCTION.

Referenced by GetTypicalAggregations().

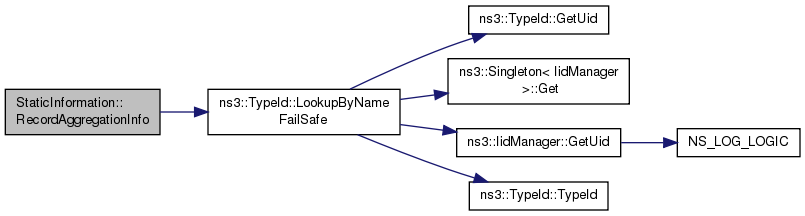

Here is the call graph for this function:

Here is the caller graph for this function:

void StaticInformation::RecordOutput ( TypeId  tid )

private

Record the current config path for tid.

Parameters

tid	[in] the TypeId to record.

Definition at line 1103 of file print-introspected-doxygen.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

std::vector<std::pair<TypeId,TypeId> > StaticInformation::m_aggregates

private

List of aggregation relationships.

Definition at line 1041 of file print-introspected-doxygen.cc.

std::vector<TypeId> StaticInformation::m_alreadyProcessed

private

List of TypeIds we've already processed.

Definition at line 1037 of file print-introspected-doxygen.cc.

std::vector<std::string> StaticInformation::m_currentPath

private

Current configuration path.

Definition at line 1033 of file print-introspected-doxygen.cc.

std::vector<std::string> StaticInformation::m_noTids

mutableprivate

List of type names without TypeIds, because those modules aren't enabled.

This is mutable because GetNoTypeIds sorts and uniquifies this list before returning it.

Definition at line 1048 of file print-introspected-doxygen.cc.

std::vector<std::pair<TypeId,std::string> > StaticInformation::m_output

private

Configuration path for each TypeId.

Definition at line 1029 of file print-introspected-doxygen.cc.

---

The documentation for this class was generated from the following file:

• utils/print-introspected-doxygen.cc
