ns3::Config::ArrayMatcher Class Reference

Helper to test if an array entry matches a config path specification. More...

Collaboration diagram for ns3::Config::ArrayMatcher:

Public Member Functions
	ArrayMatcher (std::string element)
	Construct from a Config path specification. More...
bool	Matches (uint32_t i) const
	Test if a specific index matches the Config Path. More...

Private Member Functions
bool	StringToUint32 (std::string str, uint32_t *value) const
	Convert a string to an uint32_t. More...

Private Attributes
std::string	m_element
	The Config path element. More...

Detailed Description

Helper to test if an array entry matches a config path specification.

Definition at line 154 of file config.cc.

Constructor & Destructor Documentation

ns3::Config::ArrayMatcher::ArrayMatcher

(

std::string

element

)

Construct from a Config path specification.

Parameters

[in]

element

The Config path specification.

Definition at line 185 of file config.cc.

References NS_LOG_FUNCTION.

Referenced by Matches().

Here is the caller graph for this function:

Member Function Documentation

bool ns3::Config::ArrayMatcher::Matches

(

uint32_t

i

)

const

Test if a specific index matches the Config Path.

Parameters

[in]

i

The index.

Returns

true if the index matches the Config Path.

Definition at line 191 of file config.cc.

References ArrayMatcher(), m_element, Matches(), max, min, NS_LOG_DEBUG, NS_LOG_FUNCTION, and StringToUint32().

Referenced by ns3::Config::Resolver::DoArrayResolve(), and Matches().

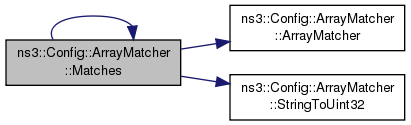

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Config::ArrayMatcher::StringToUint32 ( std::string  str, uint32_t *  value  ) const

private

Convert a string to an uint32_t.

Parameters

[in]	str	The string.
[in]	value	The location to store the uint32_t.

Returns

true if the string could be converted.

Definition at line 255 of file config.cc.

References NS_LOG_FUNCTION.

Referenced by Matches().

Here is the caller graph for this function:

Member Data Documentation

std::string ns3::Config::ArrayMatcher::m_element

private

The Config path element.

Definition at line 180 of file config.cc.

Referenced by Matches().

---

The documentation for this class was generated from the following file:

• src/core/model/config.cc
