keep track of the state needed for a single DCF function. More...

#include "dcf-state.h"

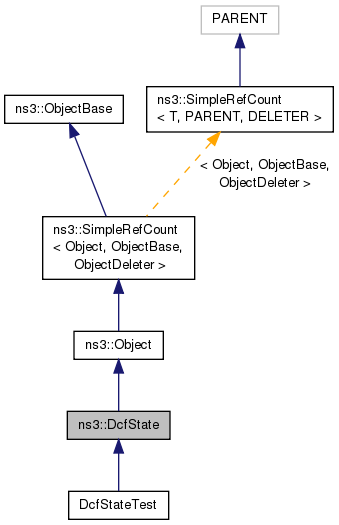

Inheritance diagram for ns3::DcfState:

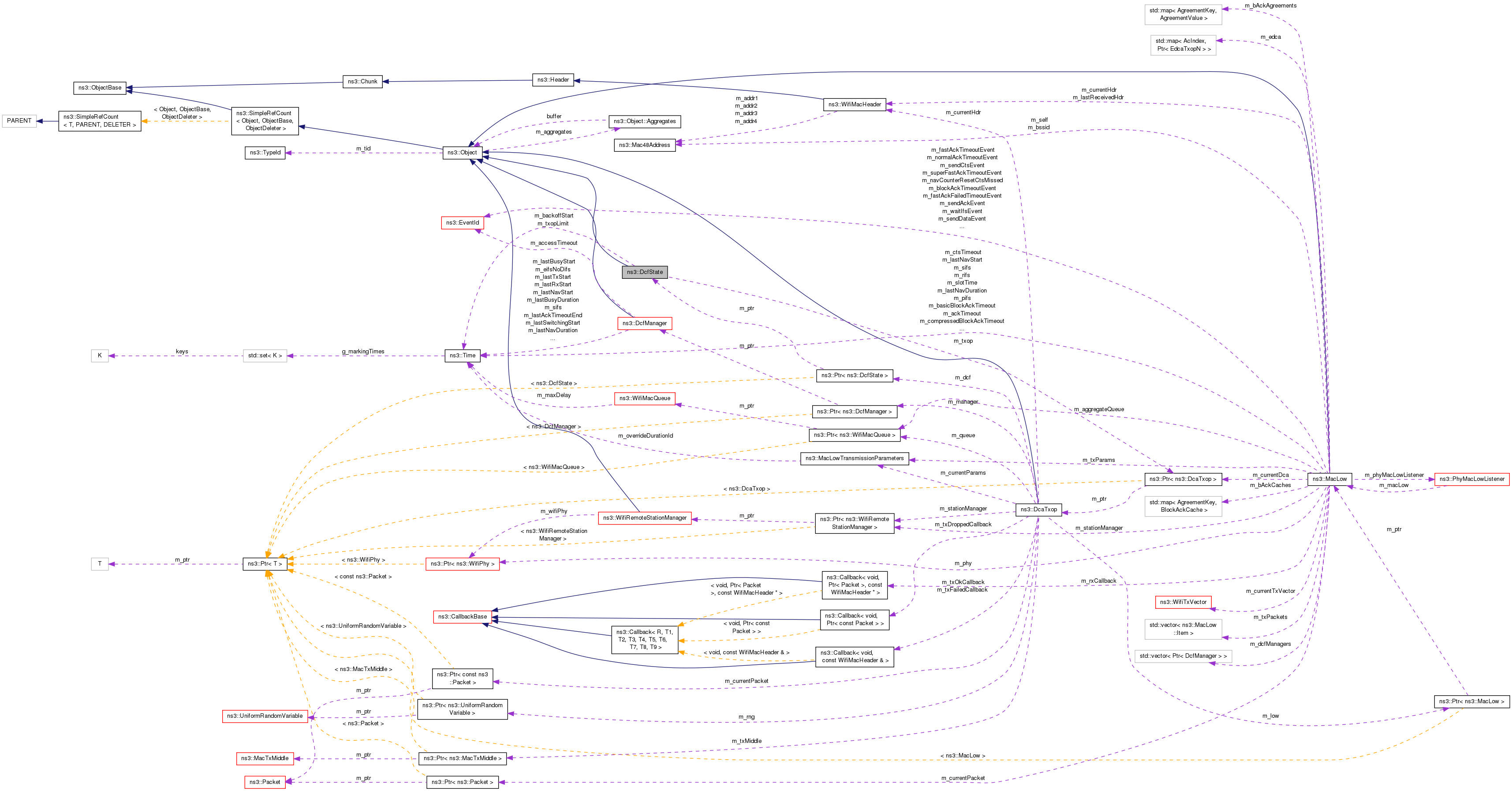

Collaboration diagram for ns3::DcfState:

Public Member Functions
	DcfState (Ptr< DcaTxop > txop)
	Constructor. More...

virtual	~DcfState ()

uint32_t	GetAifsn (void) const
	Return the number of slots that make up an AIFS. More...

uint32_t	GetCw (void) const

uint32_t	GetCwMax (void) const
	Return the maximum congestion window size. More...

uint32_t	GetCwMin (void) const
	Return the minimum congestion window size. More...

Time	GetTxopLimit (void) const
	Return the TXOP limit. More...

bool	IsAccessRequested (void) const

bool	IsEdca (void) const

void	ResetCw (void)
	Update the value of the CW variable to take into account a transmission success or a transmission abort (stop transmission of a packet after the maximum number of retransmissions has been reached). More...

void	SetAifsn (uint32_t aifsn)

void	SetCwMax (uint32_t maxCw)
	Set the maximum congestion window size. More...

void	SetCwMin (uint32_t minCw)
	Set the minimum congestion window size. More...

void	SetTxopLimit (Time txopLimit)
	Set the TXOP limit. More...

void	StartBackoffNow (uint32_t nSlots)

void	UpdateFailedCw (void)
	Update the value of the CW variable to take into account a transmission failure. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoDispose (void)
	Destructor implementation. More...

uint32_t	GetBackoffSlots (void) const
	Return the current number of backoff slots. More...

Time	GetBackoffStart (void) const
	Return the time when the backoff procedure started. More...

void	NotifyAccessGranted (void)
	Notify that access has been granted. More...

void	NotifyAccessRequested (void)
	Notify that access request has been received. More...

void	NotifyChannelSwitching (void)
	Notify that the device is switching channel. More...

void	NotifyCollision (void)
	Notify that collision has occurred. More...

void	NotifyInternalCollision (void)
	Notify that internal collision has occurred. More...

void	NotifySleep (void)
	Notify that the device has started to sleep. More...

void	NotifyWakeUp (void)
	Notify that the device has started to wake up. More...

void	UpdateBackoffSlotsNow (uint32_t nSlots, Time backoffUpdateBound)
	Update backoff slots that nSlots has passed. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
bool	m_accessRequested
	flag whether channel access is already requested More...

uint32_t	m_aifsn
	the AIFSN More...

uint32_t	m_backoffSlots
	the backoff slots More...

Time	m_backoffStart
	the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated. More...

uint32_t	m_cw
	the current CW More...

uint32_t	m_cwMax
	the CW maximum More...

uint32_t	m_cwMin
	the CW minimum More...

Ptr< DcaTxop >	m_txop
	the DCA TXOP More...

Time	m_txopLimit
	the txop limit time More...

Friends
class	DcfManager
	DcfManager associated class. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

keep track of the state needed for a single DCF function.

Introspection did not find any typical Config paths.

Multiple instances of a DcfState can be registered in a single DcfManager to implement 802.11e-style relative QoS. DcfState::SetAifsn and DcfState::SetCwBounds allow the user to control the relative QoS differentiation.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 88 bytes (on a 64-bit architecture).

Definition at line 41 of file dcf-state.h.

Constructor & Destructor Documentation

ns3::DcfState::DcfState ( Ptr< DcaTxop > txop )

Constructor.

Parameters

txop	the DCA txop

Definition at line 41 of file dcf-state.cc.

References NS_LOG_FUNCTION.

ns3::DcfState::~DcfState ( )

virtual

Definition at line 53 of file dcf-state.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::DcfState::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 59 of file dcf-state.cc.

References m_txop, and NS_LOG_FUNCTION.

uint32_t ns3::DcfState::GetAifsn ( void ) const

Return the number of slots that make up an AIFS.

Returns: the number of slots that make up an AIFS

Definition at line 106 of file dcf-state.cc.

References m_aifsn.

Referenced by ns3::DcaTxop::GetAifsn(), ns3::DcfManager::GetBackoffStartFor(), and ns3::DcfManager::IsWithinAifs().

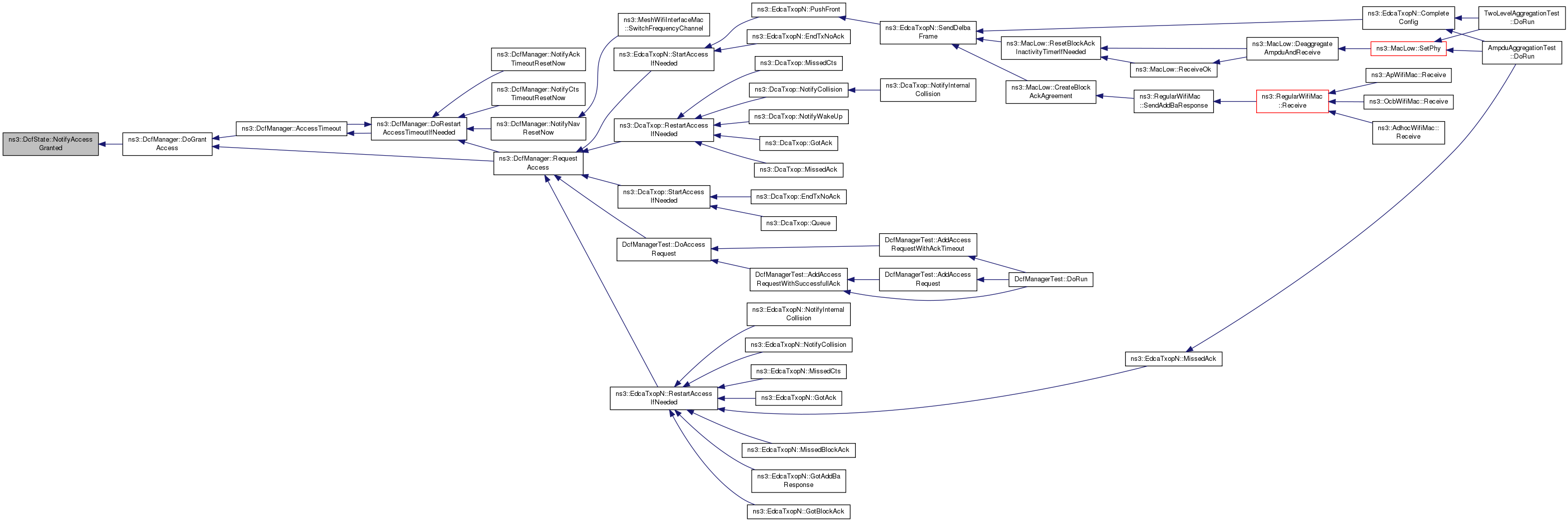

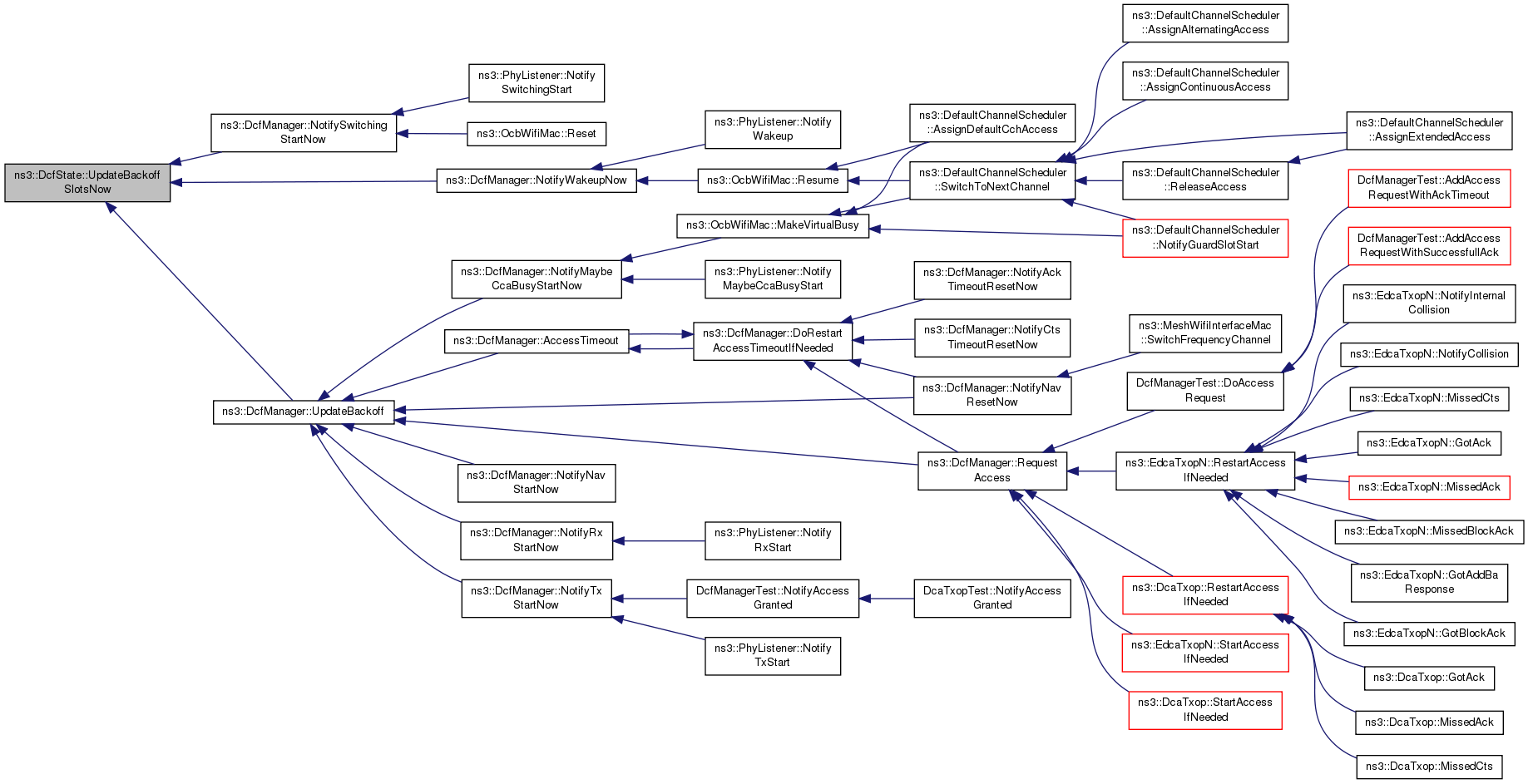

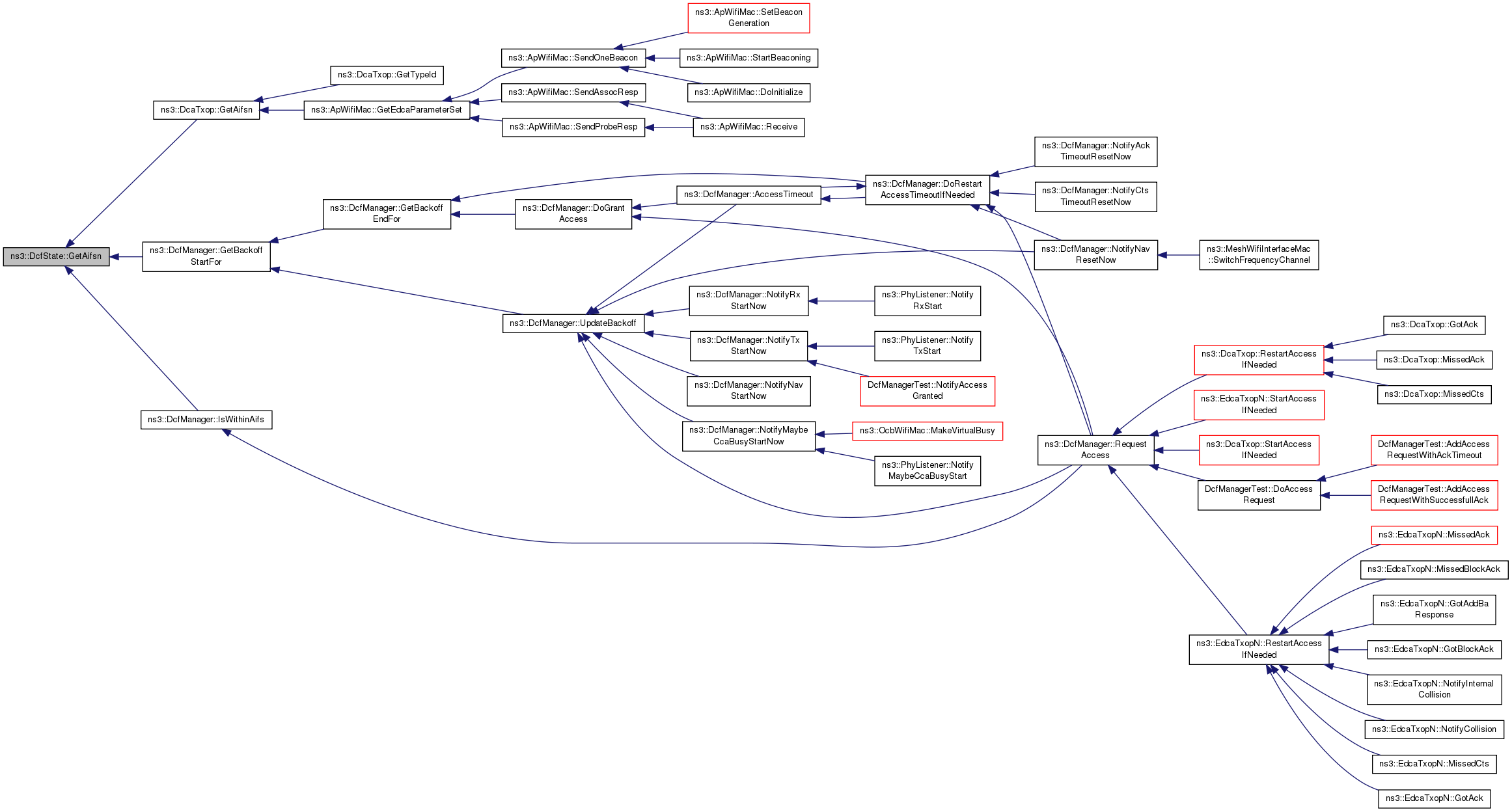

Here is the caller graph for this function:

uint32_t ns3::DcfState::GetBackoffSlots ( void ) const

protected

Return the current number of backoff slots.

Returns: the current number of backoff slots

Definition at line 176 of file dcf-state.cc.

References m_backoffSlots.

Referenced by ns3::DcfManager::DoGrantAccess(), ns3::DcfManager::GetBackoffEndFor(), ns3::DcfManager::NotifySwitchingStartNow(), ns3::DcfManager::NotifyWakeupNow(), ns3::DcfManager::RequestAccess(), and ns3::DcfManager::UpdateBackoff().

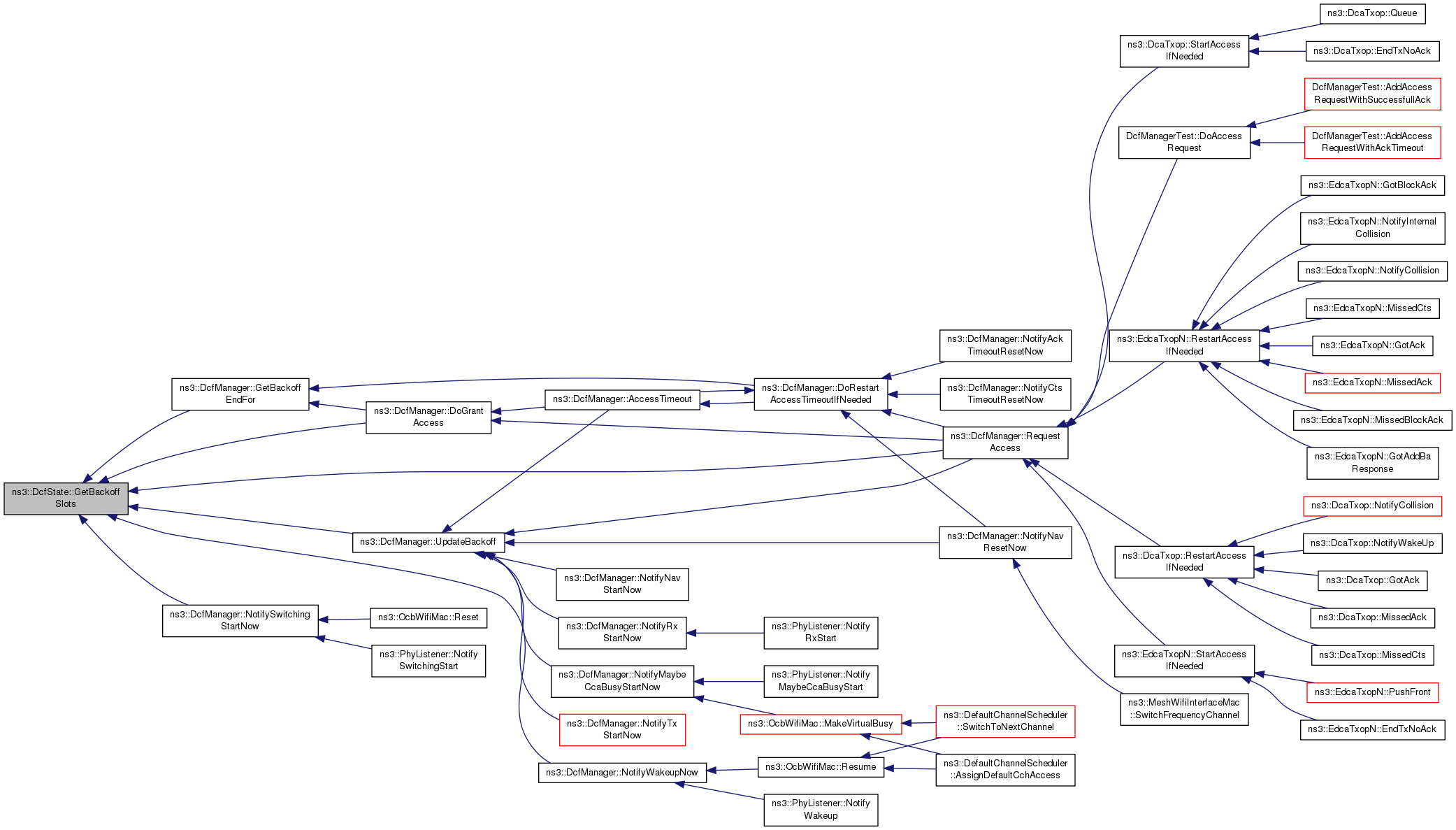

Here is the caller graph for this function:

Time ns3::DcfState::GetBackoffStart ( void ) const

protected

Return the time when the backoff procedure started.

Returns: the time when the backoff procedure started

Definition at line 182 of file dcf-state.cc.

References m_backoffStart.

Referenced by ns3::DcfManager::GetBackoffStartFor().

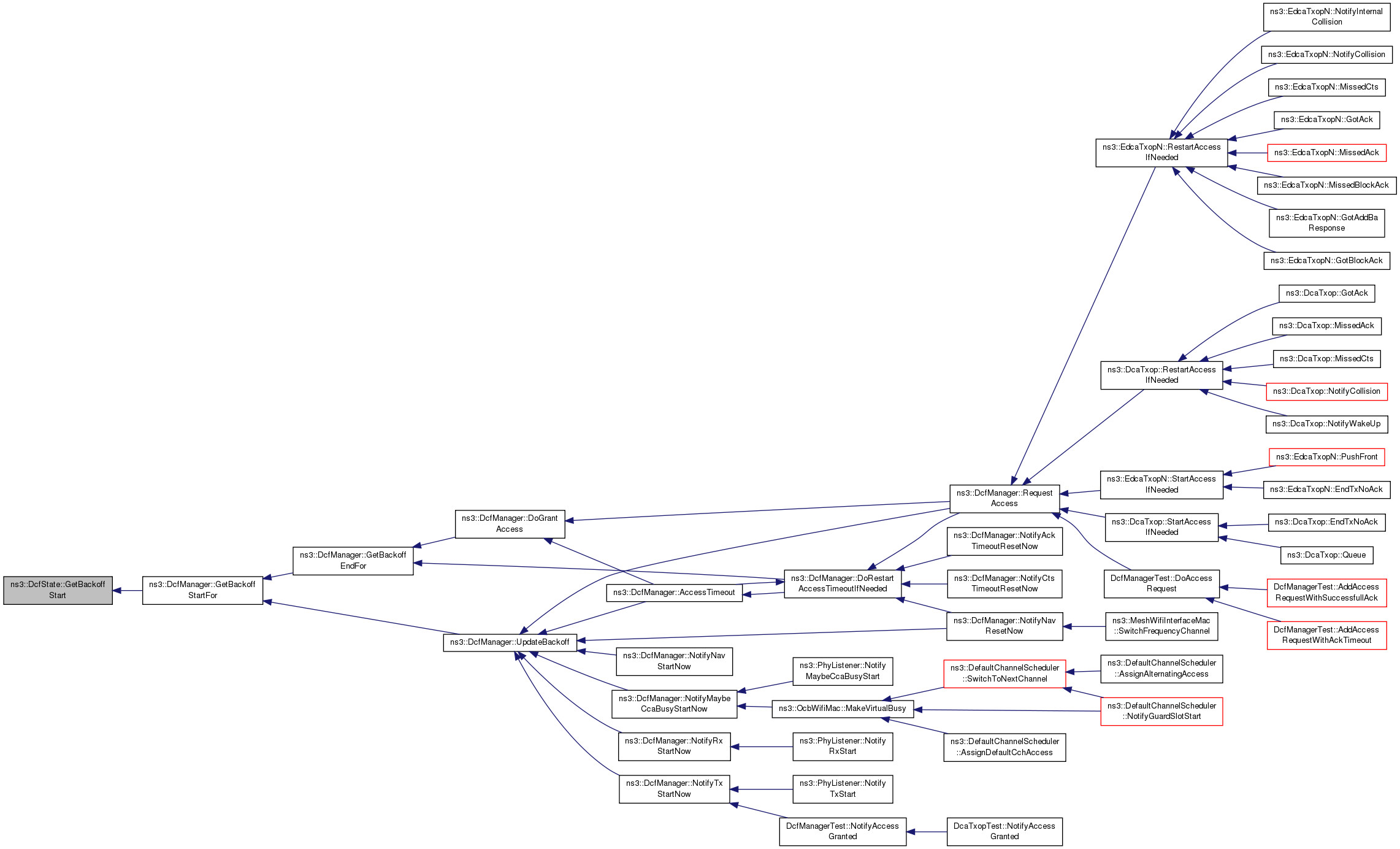

Here is the caller graph for this function:

uint32_t ns3::DcfState::GetCw ( void ) const

Returns: the current value of the CW variable. The initial value is minCW.

Definition at line 170 of file dcf-state.cc.

References m_cw.

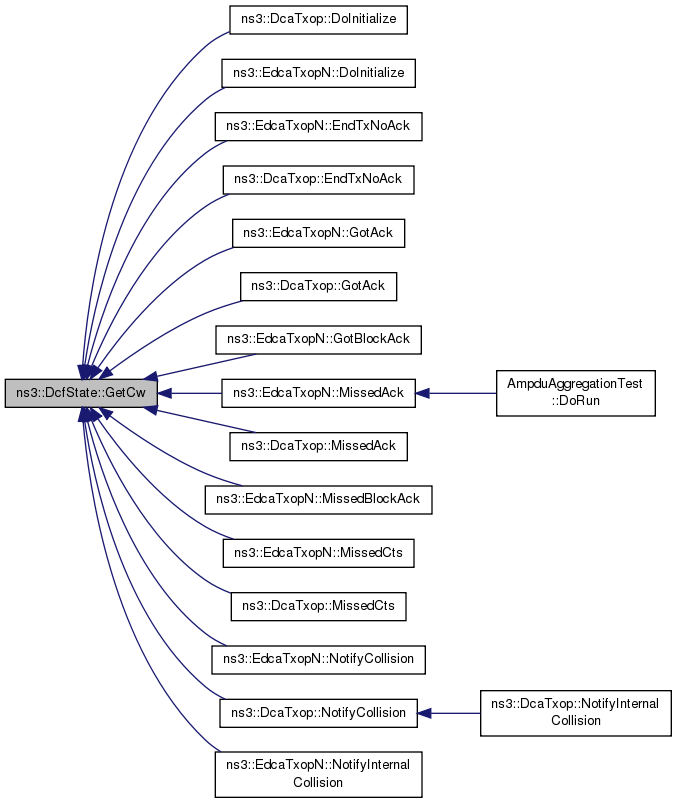

Referenced by ns3::DcaTxop::DoInitialize(), ns3::EdcaTxopN::DoInitialize(), ns3::EdcaTxopN::EndTxNoAck(), ns3::DcaTxop::EndTxNoAck(), ns3::EdcaTxopN::GotAck(), ns3::DcaTxop::GotAck(), ns3::EdcaTxopN::GotBlockAck(), ns3::EdcaTxopN::MissedAck(), ns3::DcaTxop::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::DcaTxop::MissedCts(), ns3::EdcaTxopN::NotifyCollision(), ns3::DcaTxop::NotifyCollision(), and ns3::EdcaTxopN::NotifyInternalCollision().

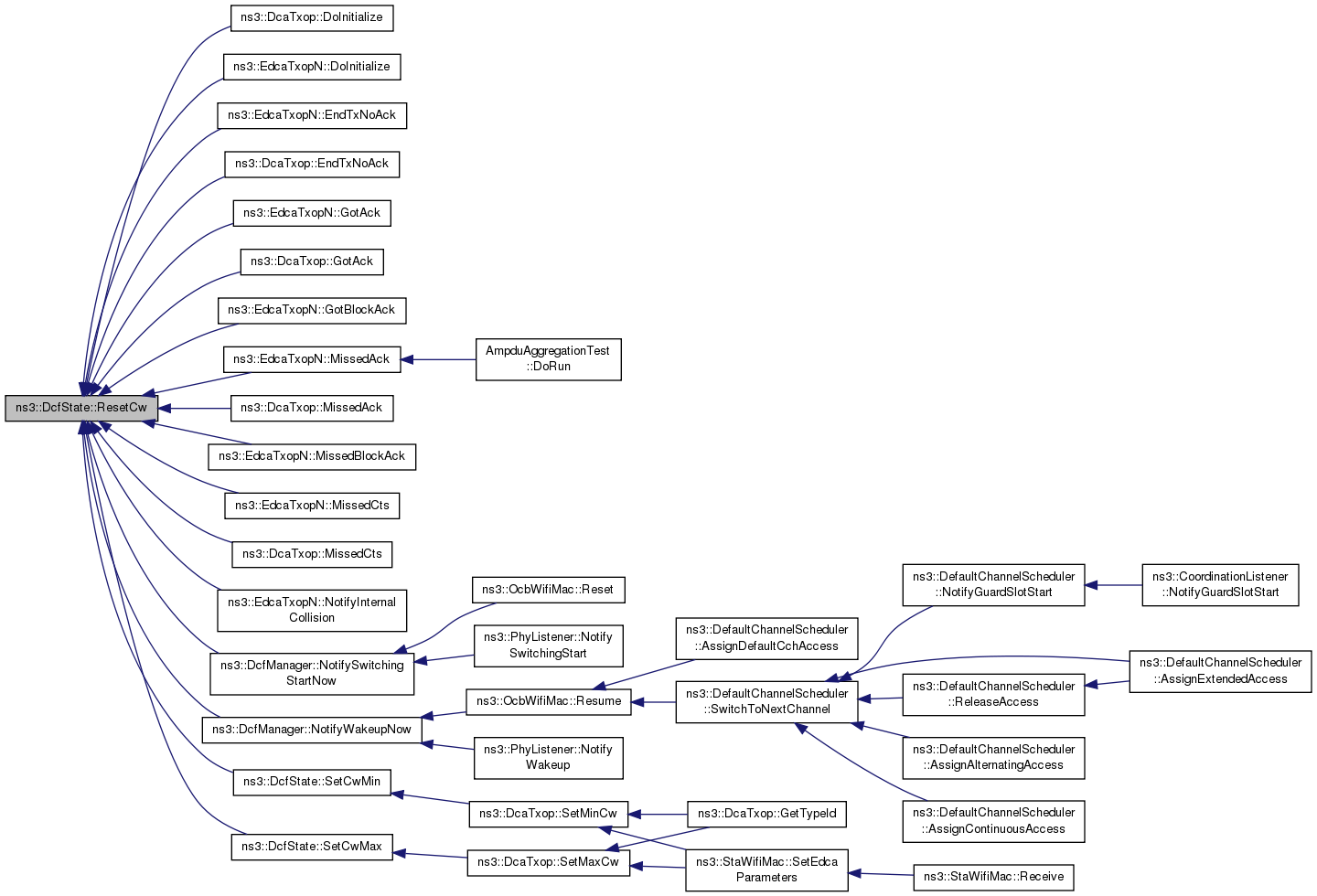

Here is the caller graph for this function:

uint32_t ns3::DcfState::GetCwMax ( void ) const

Return the maximum congestion window size.

Returns: the maximum congestion window size

Definition at line 124 of file dcf-state.cc.

References m_cwMax.

Referenced by ns3::DcaTxop::GetMaxCw().

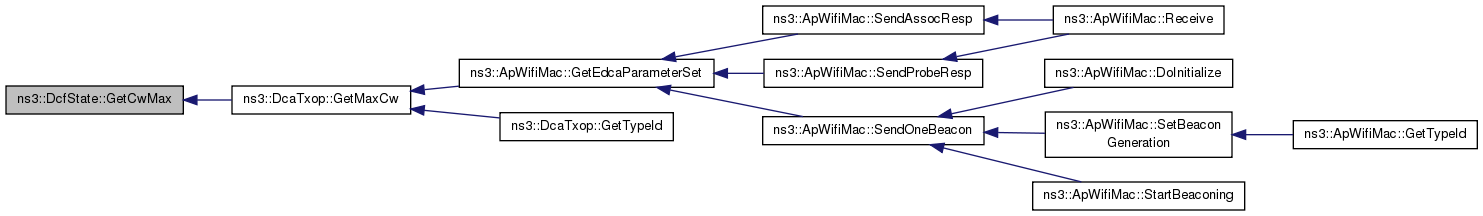

Here is the caller graph for this function:

uint32_t ns3::DcfState::GetCwMin ( void ) const

Return the minimum congestion window size.

Returns: the minimum congestion window size

Definition at line 118 of file dcf-state.cc.

References m_cwMin.

Referenced by ns3::DcaTxop::GetMinCw().

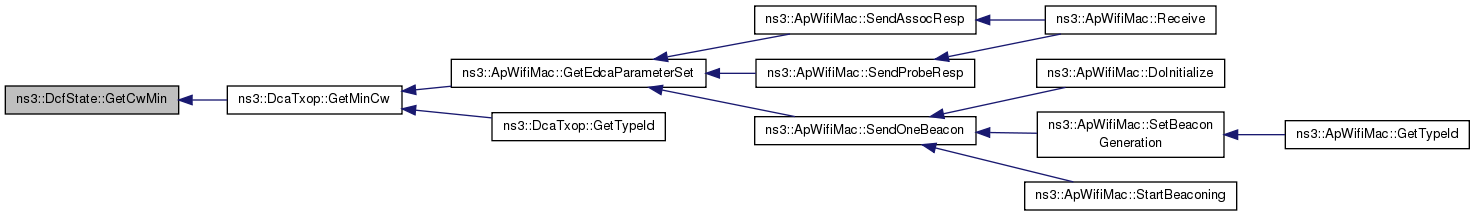

Here is the caller graph for this function:

Time ns3::DcfState::GetTxopLimit ( void ) const

Return the TXOP limit.

Returns: the TXOP limit

Definition at line 112 of file dcf-state.cc.

References m_txopLimit.

Referenced by ns3::DcaTxop::GetTxopLimit().

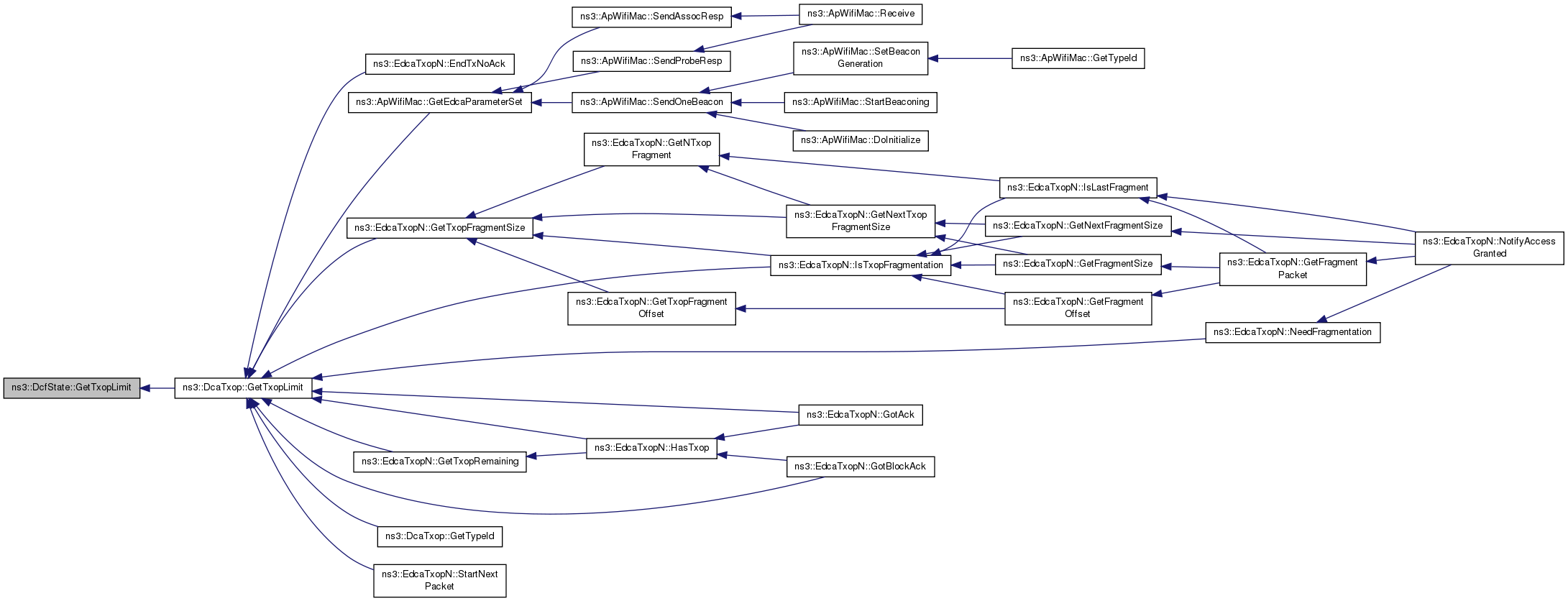

Here is the caller graph for this function:

TypeId ns3::DcfState::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 32 of file dcf-state.cc.

References ns3::TypeId::SetParent().

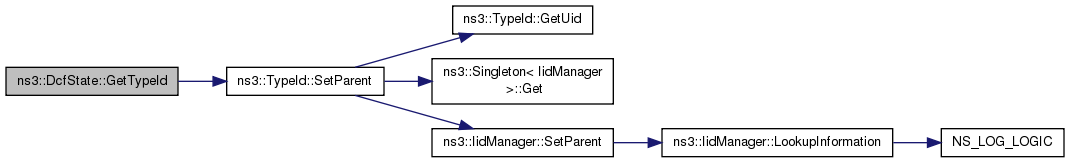

Here is the call graph for this function:

bool ns3::DcfState::IsAccessRequested ( void ) const

Returns: true if access has been requested for this DcfState and has not been granted already, false otherwise.

Definition at line 188 of file dcf-state.cc.

References m_accessRequested.

Referenced by ns3::DcfManager::DoGrantAccess(), ns3::DcfManager::DoRestartAccessTimeoutIfNeeded(), ns3::DcfManager::RequestAccess(), ns3::EdcaTxopN::RestartAccessIfNeeded(), ns3::DcaTxop::RestartAccessIfNeeded(), ns3::EdcaTxopN::StartAccessIfNeeded(), and ns3::DcaTxop::StartAccessIfNeeded().

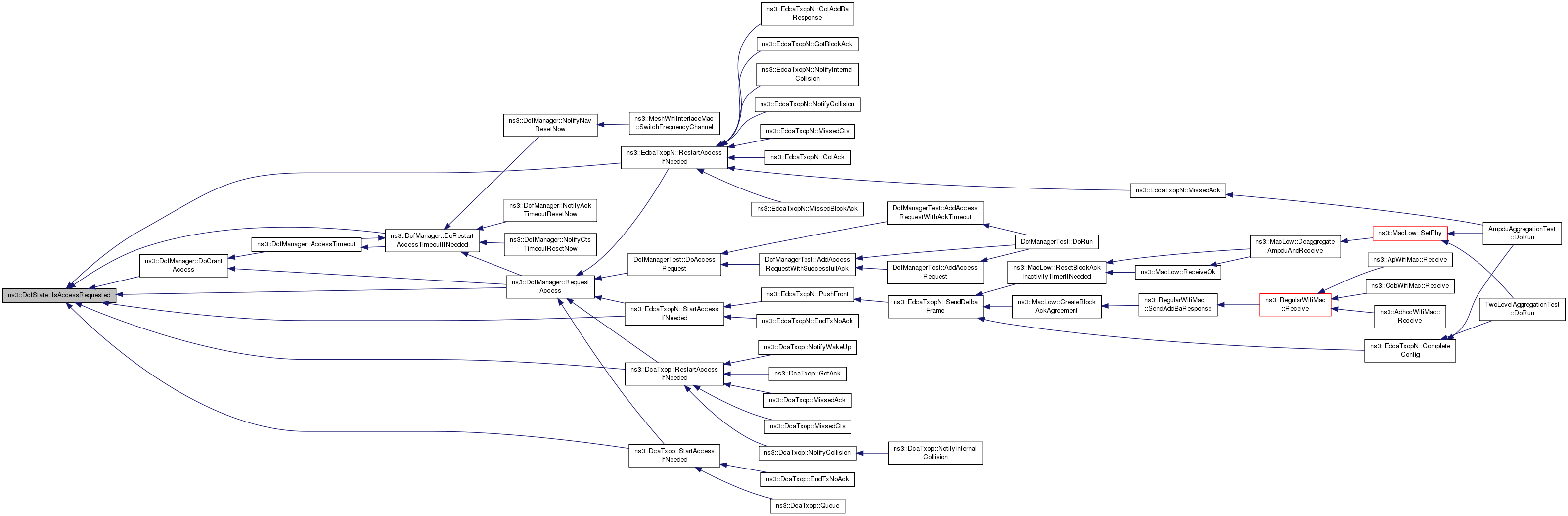

Here is the caller graph for this function:

bool ns3::DcfState::IsEdca ( void ) const

Returns: whether this DCF state is an EDCA state

Definition at line 245 of file dcf-state.cc.

References m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::UpdateBackoff().

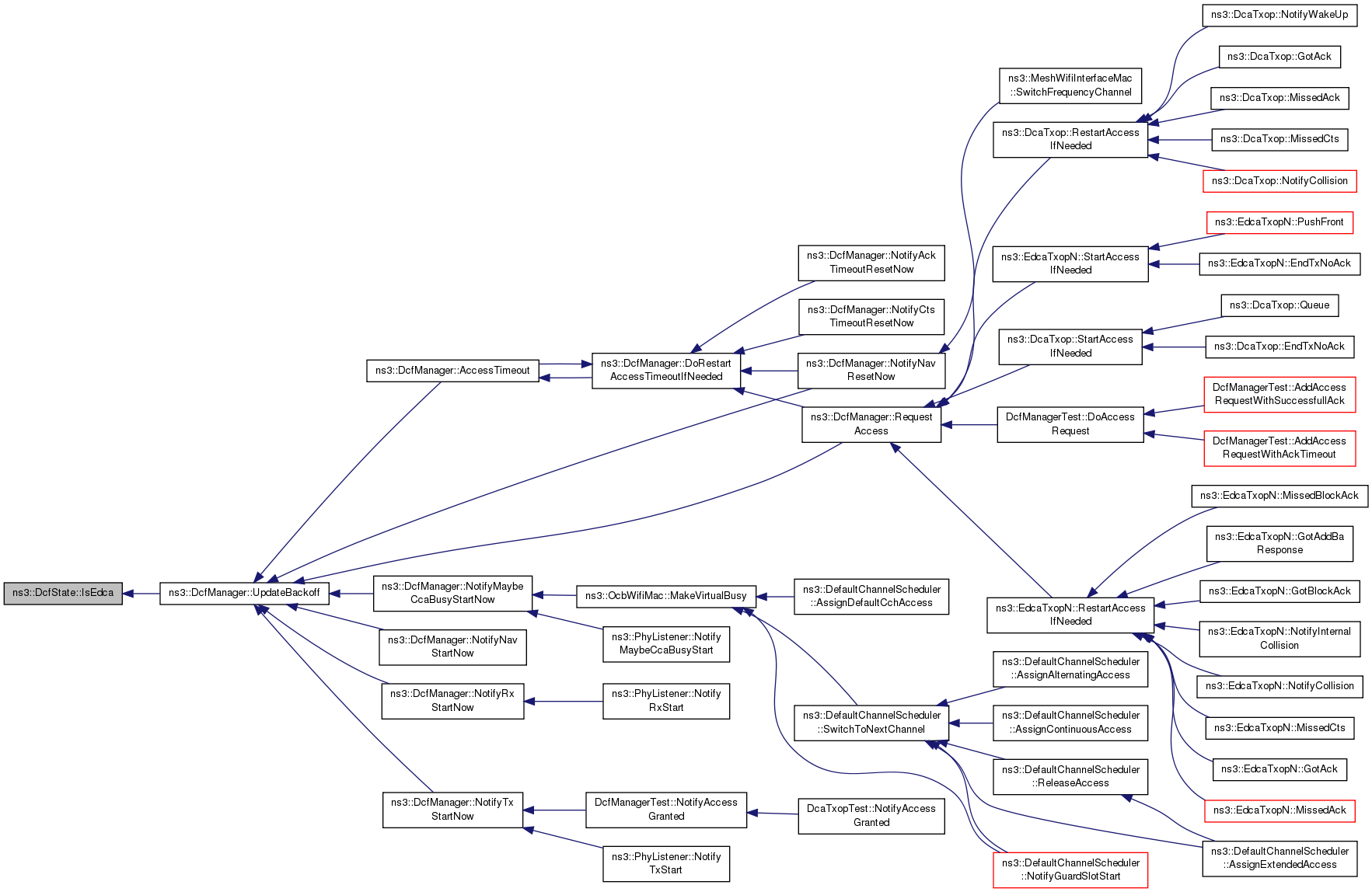

Here is the caller graph for this function:

void ns3::DcfState::NotifyAccessGranted ( void )

protected

Notify that access has been granted.

Definition at line 201 of file dcf-state.cc.

References m_accessRequested, m_txop, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::DoGrantAccess().

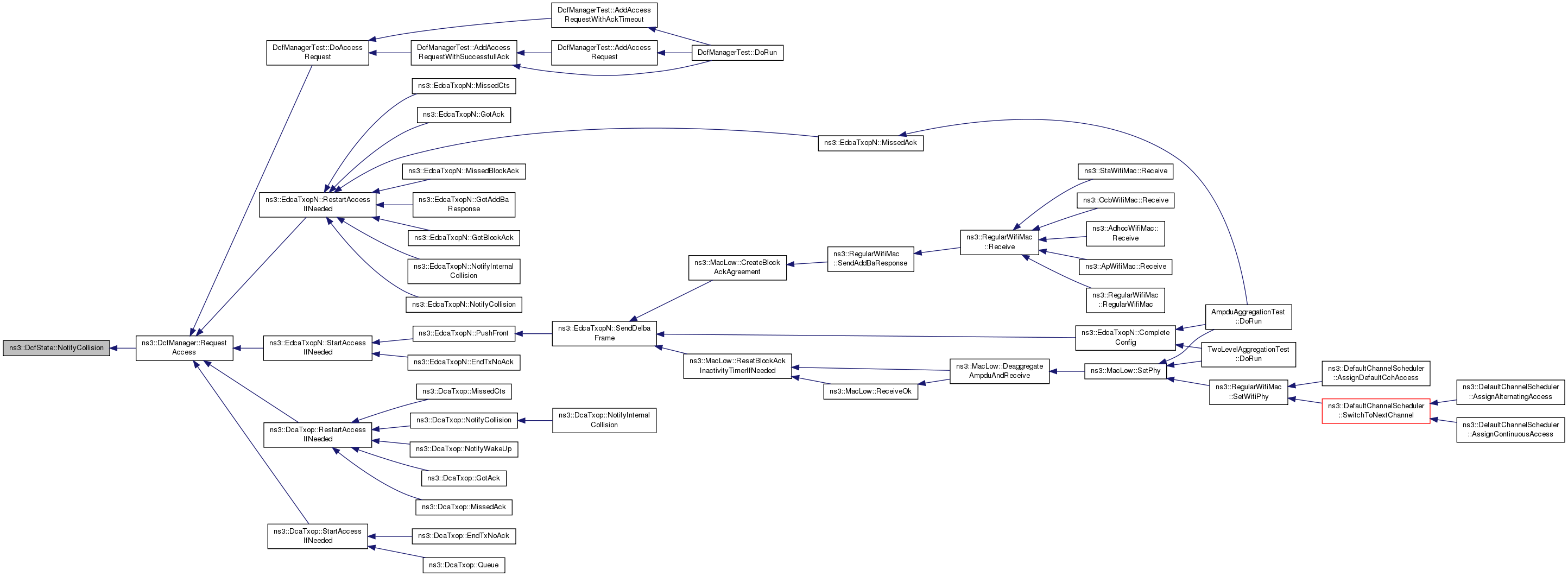

Here is the caller graph for this function:

void ns3::DcfState::NotifyAccessRequested ( void )

protected

Notify that access request has been received.

Definition at line 194 of file dcf-state.cc.

References m_accessRequested, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::RequestAccess().

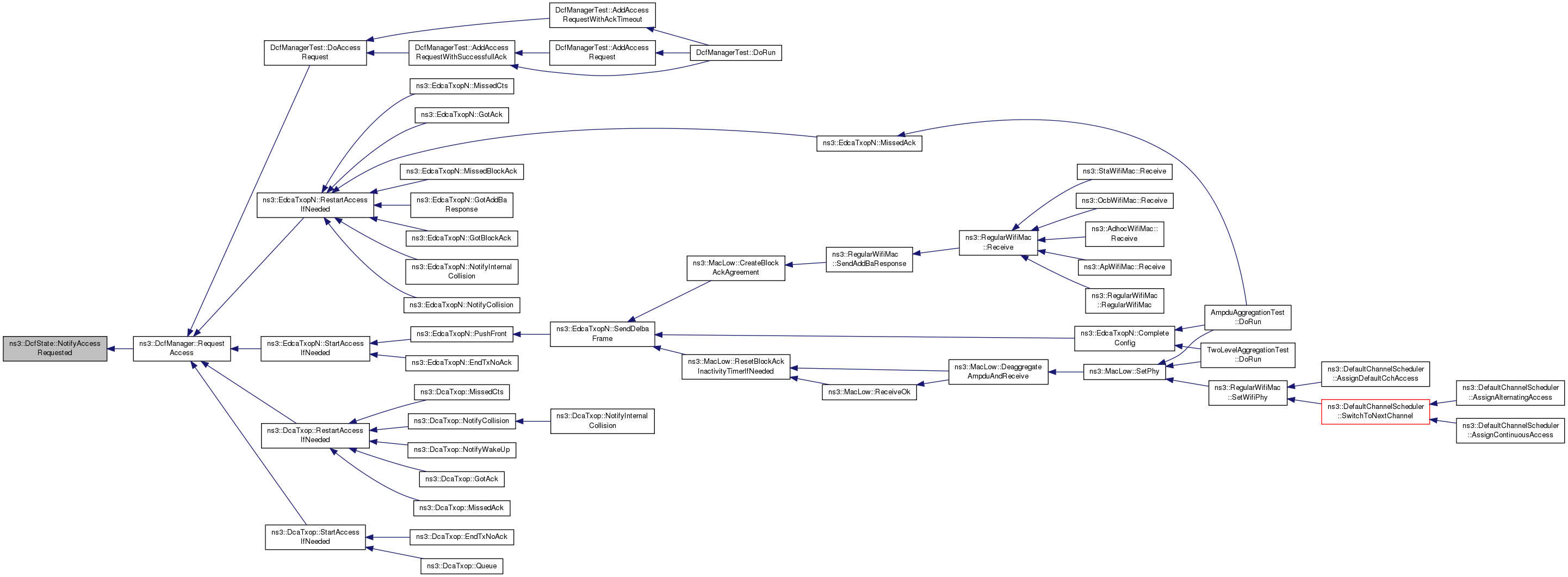

Here is the caller graph for this function:

void ns3::DcfState::NotifyChannelSwitching ( void )

protected

Notify that the device is switching channel.

Definition at line 224 of file dcf-state.cc.

References m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::NotifySwitchingStartNow().

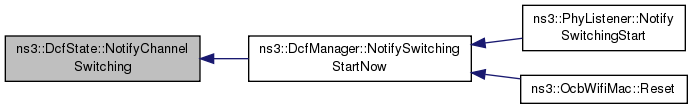

Here is the caller graph for this function:

void ns3::DcfState::NotifyCollision ( void )

protected

Notify that collision has occurred.

Definition at line 210 of file dcf-state.cc.

References m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::RequestAccess().

Here is the caller graph for this function:

void ns3::DcfState::NotifyInternalCollision ( void )

protected

Notify that internal collision has occurred.

Definition at line 217 of file dcf-state.cc.

References m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::RequestAccess().

Here is the caller graph for this function:

void ns3::DcfState::NotifySleep ( void )

protected

Notify that the device has started to sleep.

Definition at line 231 of file dcf-state.cc.

References m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::NotifySleepNow().

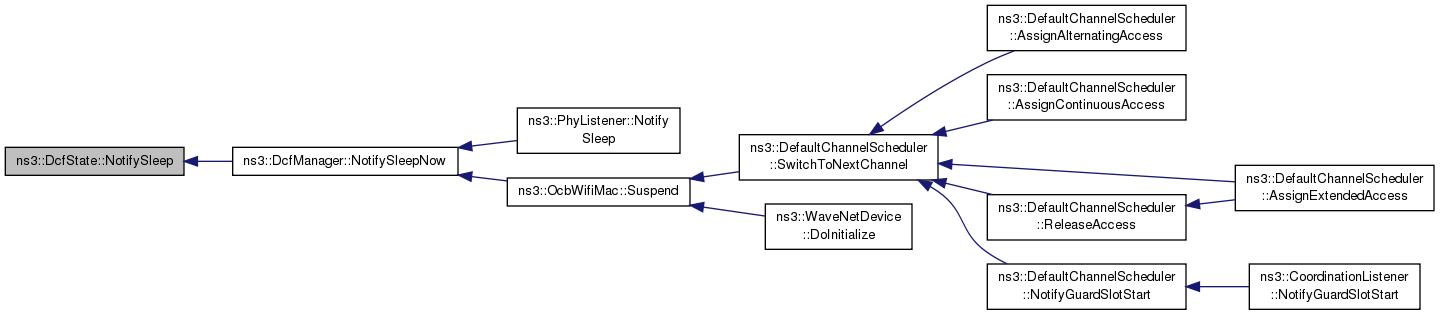

Here is the caller graph for this function:

void ns3::DcfState::NotifyWakeUp ( void )

protected

Notify that the device has started to wake up.

Definition at line 238 of file dcf-state.cc.

References m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::NotifyWakeupNow().

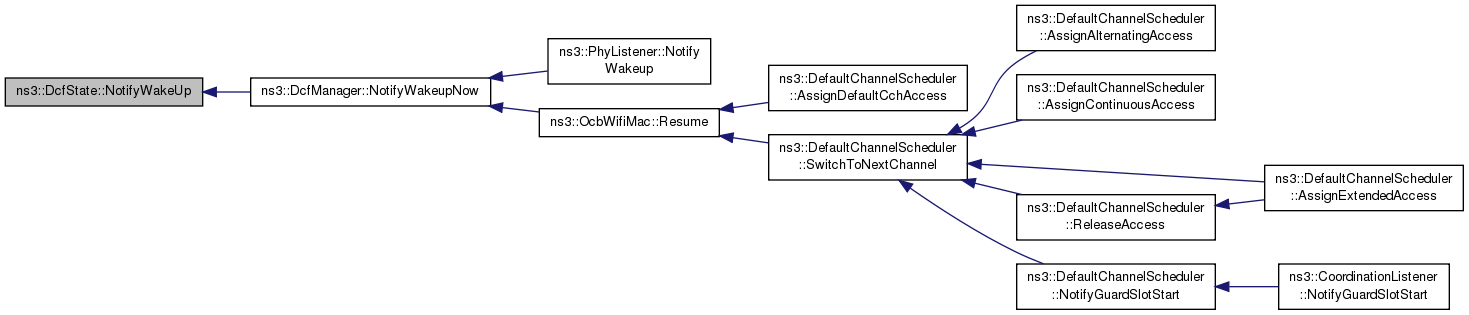

Here is the caller graph for this function:

void ns3::DcfState::ResetCw ( void )

Update the value of the CW variable to take into account a transmission success or a transmission abort (stop transmission of a packet after the maximum number of retransmissions has been reached).

By default, this resets the CW variable to minCW.

Definition at line 130 of file dcf-state.cc.

References m_cw, m_cwMin, and NS_LOG_FUNCTION.

Here is the caller graph for this function:

void ns3::DcfState::SetAifsn ( uint32_t aifsn )

Parameters

aifsn the number of slots which make up an AIFS for a specific DCF. a DIFS corresponds to an AIFSN = 2.

Calling this method after DcfManager::Add has been called is not recommended.

Definition at line 67 of file dcf-state.cc.

References m_aifsn, and NS_LOG_FUNCTION.

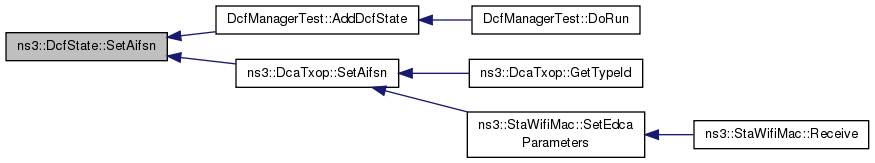

Referenced by DcfManagerTest::AddDcfState(), and ns3::DcaTxop::SetAifsn().

Here is the caller graph for this function:

void ns3::DcfState::SetCwMax ( uint32_t maxCw )

Set the maximum congestion window size.

Parameters

maxCw the maximum congestion window size

Definition at line 94 of file dcf-state.cc.

References m_cwMax, NS_LOG_FUNCTION, and ResetCw().

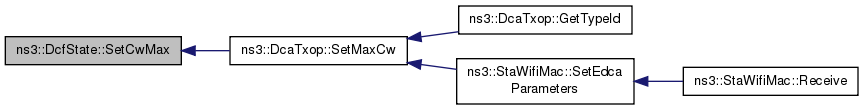

Referenced by ns3::DcaTxop::SetMaxCw().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcfState::SetCwMin ( uint32_t minCw )

Set the minimum congestion window size.

Parameters

minCw the minimum congestion window size

Definition at line 82 of file dcf-state.cc.

References m_cwMin, NS_LOG_FUNCTION, and ResetCw().

Referenced by ns3::DcaTxop::SetMinCw().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcfState::SetTxopLimit ( Time txopLimit )

Set the TXOP limit.

Parameters

txopLimit the TXOP limit

Definition at line 74 of file dcf-state.cc.

References ns3::Time::GetMicroSeconds(), m_txopLimit, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

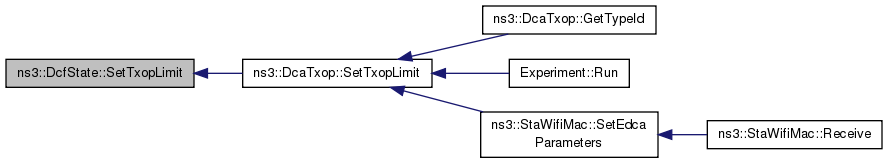

Referenced by ns3::DcaTxop::SetTxopLimit().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcfState::StartBackoffNow ( uint32_t nSlots )

Parameters

nSlots the number of slots of the backoff.

Start a backoff by initializing the backoff counter to the number of slots specified.

Definition at line 154 of file dcf-state.cc.

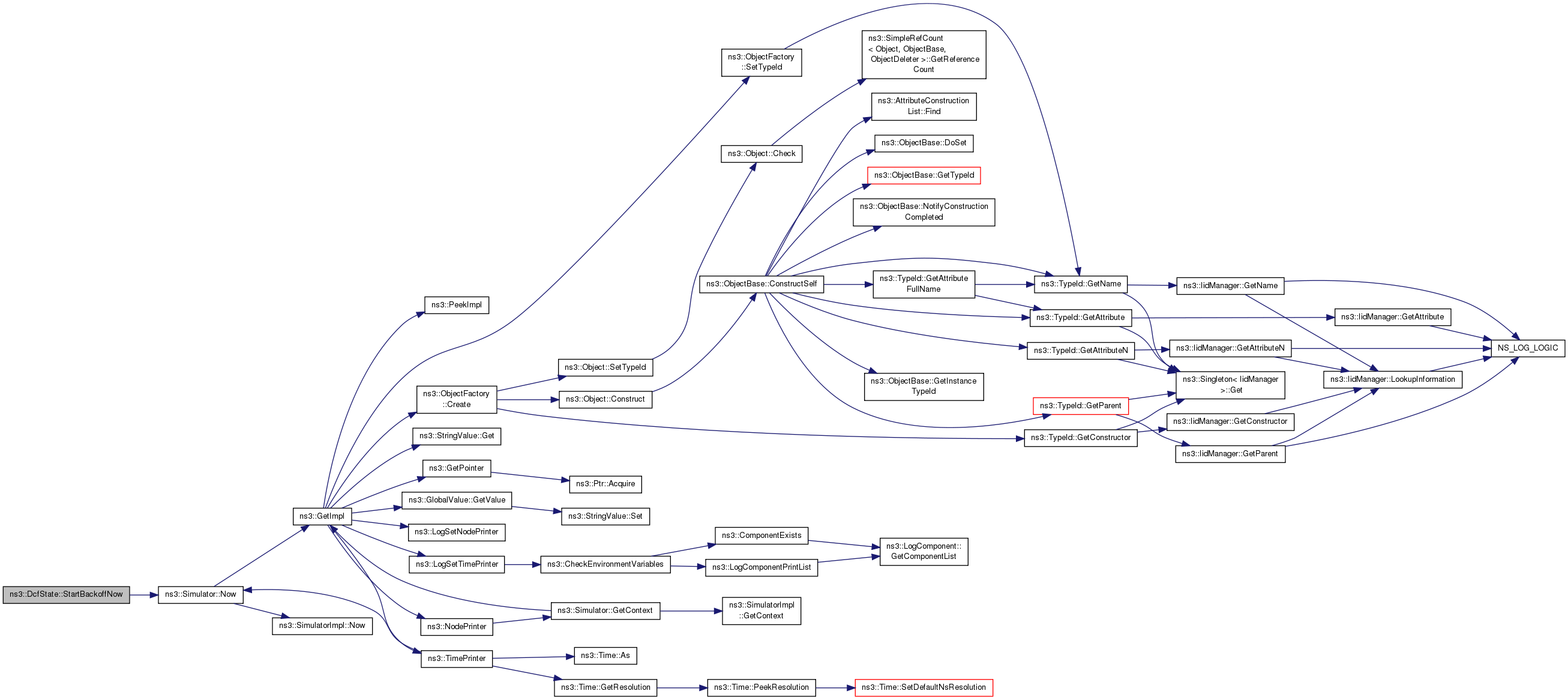

References m_backoffSlots, m_backoffStart, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

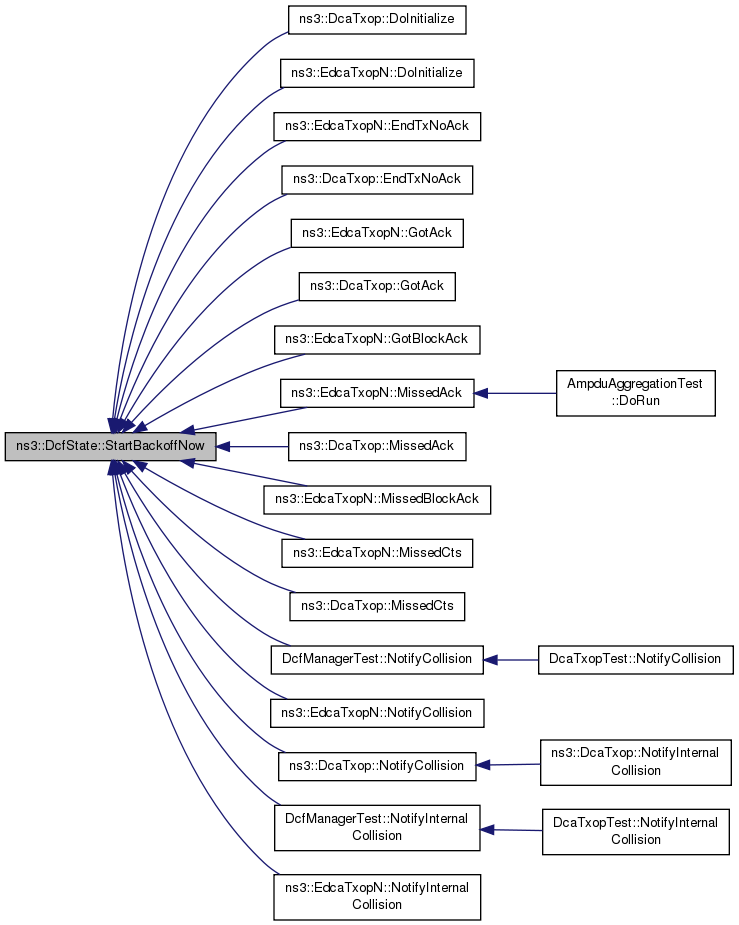

Here is the caller graph for this function:

void ns3::DcfState::UpdateBackoffSlotsNow	(	uint32_t	nSlots,
		Time	backoffUpdateBound
	)

protected

Update backoff slots that nSlots has passed.

Parameters

nSlots
backoffUpdateBound

Definition at line 145 of file dcf-state.cc.

References m_backoffSlots, m_backoffStart, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DcfManager::NotifySwitchingStartNow(), ns3::DcfManager::NotifyWakeupNow(), and ns3::DcfManager::UpdateBackoff().

Here is the caller graph for this function:

void ns3::DcfState::UpdateFailedCw ( void )

Update the value of the CW variable to take into account a transmission failure.

By default, this triggers a doubling of CW (capped by maxCW).

Definition at line 137 of file dcf-state.cc.

References m_cw, m_cwMax, min, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::MissedAck(), ns3::DcaTxop::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::DcaTxop::MissedCts(), and ns3::EdcaTxopN::NotifyInternalCollision().

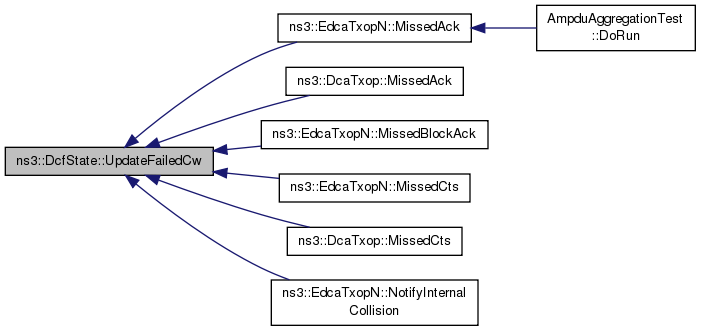

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class DcfManager

friend

DcfManager associated class.

Definition at line 148 of file dcf-state.h.

Member Data Documentation

bool ns3::DcfState::m_accessRequested

protected

flag whether channel access is already requested

Definition at line 213 of file dcf-state.h.

Referenced by IsAccessRequested(), NotifyAccessGranted(), NotifyAccessRequested(), ns3::DcfManager::NotifySwitchingStartNow(), and ns3::DcfManager::NotifyWakeupNow().

uint32_t ns3::DcfState::m_aifsn

protected

the AIFSN

Definition at line 201 of file dcf-state.h.

Referenced by GetAifsn(), and SetAifsn().

uint32_t ns3::DcfState::m_backoffSlots

protected

the backoff slots

Definition at line 202 of file dcf-state.h.

Referenced by GetBackoffSlots(), StartBackoffNow(), and UpdateBackoffSlotsNow().

Time ns3::DcfState::m_backoffStart

protected

the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated.

Definition at line 208 of file dcf-state.h.

Referenced by GetBackoffStart(), StartBackoffNow(), and UpdateBackoffSlotsNow().

uint32_t ns3::DcfState::m_cw

protected

the current CW

Definition at line 211 of file dcf-state.h.

Referenced by GetCw(), ResetCw(), and UpdateFailedCw().

uint32_t ns3::DcfState::m_cwMax

protected

the CW maximum

Definition at line 210 of file dcf-state.h.

Referenced by GetCwMax(), SetCwMax(), and UpdateFailedCw().

uint32_t ns3::DcfState::m_cwMin

protected

the CW minimum

Definition at line 209 of file dcf-state.h.

Referenced by GetCwMin(), ResetCw(), and SetCwMin().

Ptr<DcaTxop> ns3::DcfState::m_txop

protected

the DCA TXOP

Definition at line 214 of file dcf-state.h.

Referenced by DoDispose(), IsEdca(), NotifyAccessGranted(), NotifyChannelSwitching(), NotifyCollision(), NotifyInternalCollision(), NotifySleep(), and NotifyWakeUp().

Time ns3::DcfState::m_txopLimit

protected

the txop limit time

Definition at line 212 of file dcf-state.h.

Referenced by GetTxopLimit(), and SetTxopLimit().

The documentation for this class was generated from the following files:

src/wifi/model/dcf-state.h
src/wifi/model/dcf-state.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
