Holds a vector of ns3::EnergyHarvester pointers. More...

#include "energy-harvester-container.h"

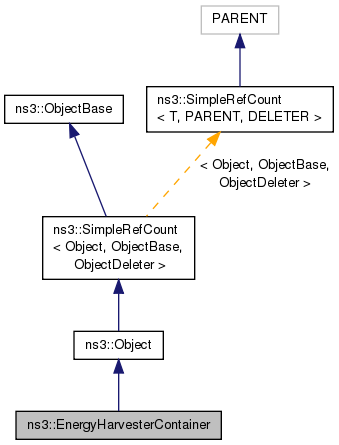

Inheritance diagram for ns3::EnergyHarvesterContainer:

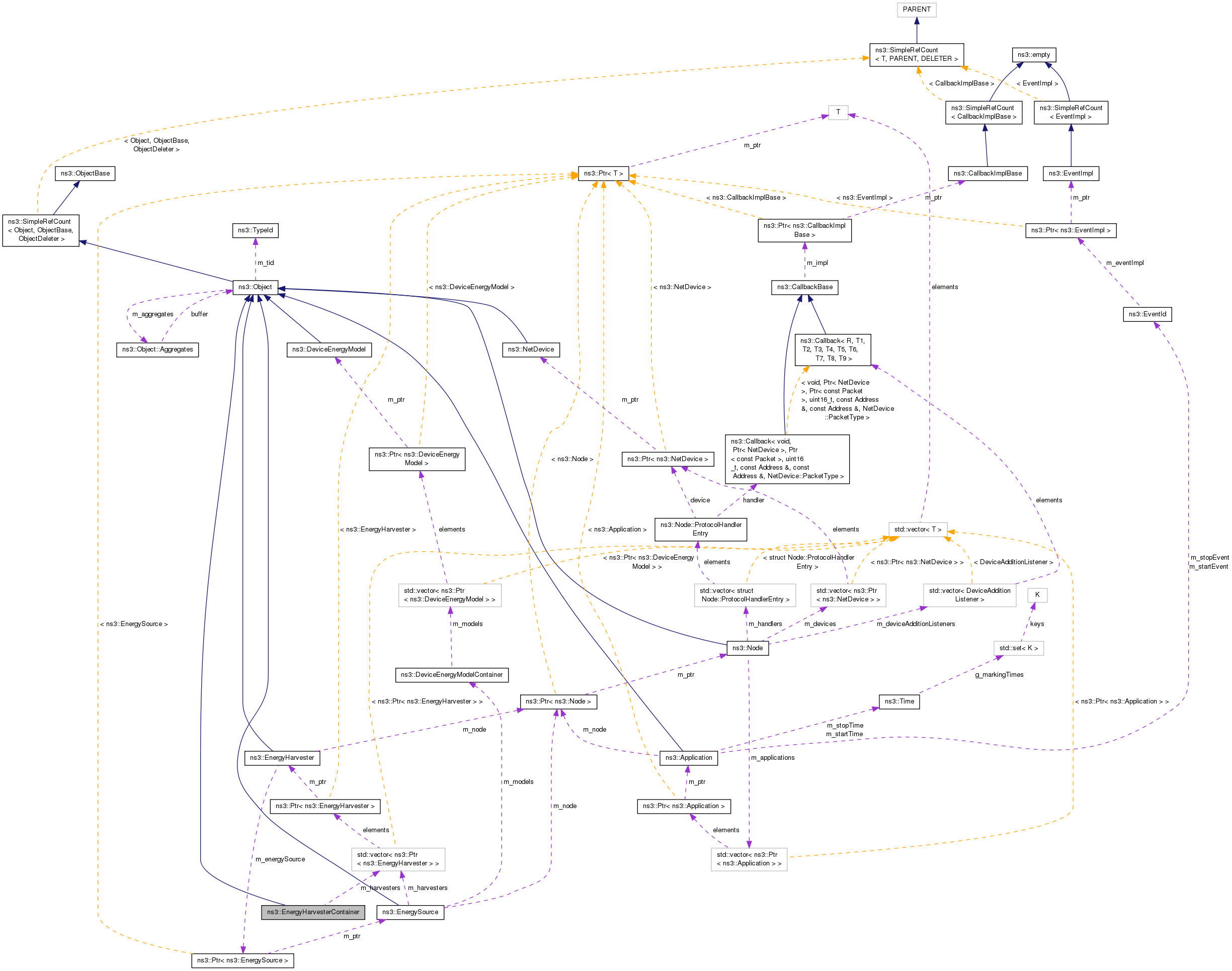

Collaboration diagram for ns3::EnergyHarvesterContainer:

Public Types
typedef std::vector< Ptr< EnergyHarvester > >::const_iterator	Iterator

Public Member Functions
	EnergyHarvesterContainer ()
	Creates an empty EnergyHarvesterContainer. More...

	EnergyHarvesterContainer (Ptr< EnergyHarvester > harvester)

	EnergyHarvesterContainer (std::string harvesterName)

	EnergyHarvesterContainer (const EnergyHarvesterContainer &a, const EnergyHarvesterContainer &b)

	~EnergyHarvesterContainer ()

void	Add (EnergyHarvesterContainer container)

void	Add (Ptr< EnergyHarvester > harvester)
	Append a single Ptr<EnergyHarvester> to the end of this container. More...

void	Add (std::string harvesterName)
	Append a single Ptr<EnergyHarvester> referred to by its object name to the end of this container. More...

Iterator	Begin (void) const
	Get an iterator which refers to the first EnergyHarvester pointer in the container. More...

void	Clear (void)
	Removes all elements in the container. More...

Iterator	End (void) const
	Get an iterator which refers to the last EnergyHarvester pointer in the container. More...

Ptr< EnergyHarvester >	Get (uint32_t i) const
	Get the i-th Ptr<EnergyHarvester> stored in this container. More...

uint32_t	GetN (void) const
	Get the number of Ptr<EnergyHarvester> stored in this container. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Calls Object::Initialize () for all EnergySource objects. More...

Private Attributes
std::vector< Ptr< EnergyHarvester > >	m_harvesters

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Holds a vector of ns3::EnergyHarvester pointers.

EnergyHarvesterContainer returns a list of EnergyHarvester pointers installed on a node. Users can use this list to access EnergyHarvester objects to obtain the total energy harvested on a node easily.

See also: NetDeviceContainer

Config Paths

ns3::EnergyHarvesterContainer is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/$ns3::EnergyHarvesterContainer"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 45 of file energy-harvester-container.h.

Member Typedef Documentation

typedef std::vector< Ptr<EnergyHarvester> >::const_iterator ns3::EnergyHarvesterContainer::Iterator

Definition at line 48 of file energy-harvester-container.h.

Constructor & Destructor Documentation

ns3::EnergyHarvesterContainer::EnergyHarvesterContainer ( )

Creates an empty EnergyHarvesterContainer.

Definition at line 44 of file energy-harvester-container.cc.

References NS_LOG_FUNCTION.

ns3::EnergyHarvesterContainer::~EnergyHarvesterContainer ( )

Definition at line 49 of file energy-harvester-container.cc.

References NS_LOG_FUNCTION.

ns3::EnergyHarvesterContainer::EnergyHarvesterContainer ( Ptr< EnergyHarvester > harvester )

Parameters

harvester Pointer to an EnergyHarvester.

Creates a EnergyHarvesterContainer with exactly one EnergyHarvester previously instantiated.

Definition at line 54 of file energy-harvester-container.cc.

References m_harvesters, NS_ASSERT, and NS_LOG_FUNCTION.

ns3::EnergyHarvesterContainer::EnergyHarvesterContainer ( std::string harvesterName )

Parameters

harvesterName Name of EnergyHarvester.

Creates an EnergyHarvesterContainer with exactly one EnergyHarvester previously instantiated and assigned a name using the Object name service. This EnergyHarvester is specified by its assigned name.

Definition at line 61 of file energy-harvester-container.cc.

References m_harvesters, NS_ASSERT, and NS_LOG_FUNCTION.

ns3::EnergyHarvesterContainer::EnergyHarvesterContainer	(	const EnergyHarvesterContainer &	a,
		const EnergyHarvesterContainer &	b
	)

Parameters

a	A EnergyHarvesterContainer.
b	Another EnergyHarvesterContainer.

Creates a EnergyHarvesterContainer by concatenating EnergyHarvesterContainer b to EnergyHarvesterContainer a.

Note: Can be used to concatenate 2 Ptr<EnergyHarvester> directly. C++ will be calling EnergyHarvesterContainer constructor with Ptr<EnergyHarvester> first.

Definition at line 69 of file energy-harvester-container.cc.

References Add(), and NS_LOG_FUNCTION.

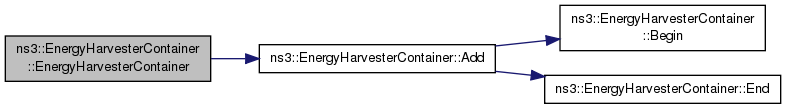

Here is the call graph for this function:

Member Function Documentation

void ns3::EnergyHarvesterContainer::Add ( EnergyHarvesterContainer container )

Parameters

container Another EnergyHarvesterContainer.

Appends the contents of another EnergyHarvesterContainer to the end of this EnergyHarvesterContainer.

Definition at line 106 of file energy-harvester-container.cc.

References Begin(), End(), m_harvesters, and NS_LOG_FUNCTION.

Referenced by EnergyHarvesterContainer(), and ns3::EnergyHarvesterHelper::Install().

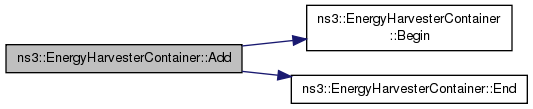

Here is the call graph for this function:

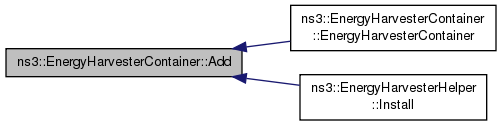

Here is the caller graph for this function:

void ns3::EnergyHarvesterContainer::Add ( Ptr< EnergyHarvester > harvester )

Append a single Ptr<EnergyHarvester> to the end of this container.

Parameters

harvester Pointer to an EnergyHarvester.

Definition at line 116 of file energy-harvester-container.cc.

References m_harvesters, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::EnergyHarvesterContainer::Add ( std::string harvesterName )

Append a single Ptr<EnergyHarvester> referred to by its object name to the end of this container.

Parameters

harvesterName Name of EnergyHarvester object.

Definition at line 124 of file energy-harvester-container.cc.

References m_harvesters, NS_ASSERT, and NS_LOG_FUNCTION.

EnergyHarvesterContainer::Iterator ns3::EnergyHarvesterContainer::Begin ( void ) const

Get an iterator which refers to the first EnergyHarvester pointer in the container.

Returns: An iterator which refers to the first EnergyHarvester in container.

EnergyHarvesters can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the EnergyHarvesters.

EnergyHarvesterContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    (*i)->method ();  // some EnergyHarvester method
  }

Definition at line 78 of file energy-harvester-container.cc.

References m_harvesters, and NS_LOG_FUNCTION.

Referenced by Add().

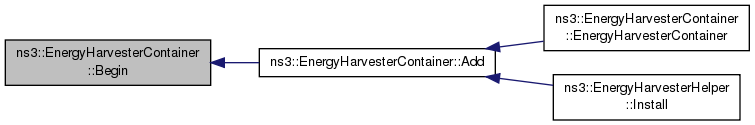

Here is the caller graph for this function:

void ns3::EnergyHarvesterContainer::Clear ( void )

Removes all elements in the container.

Definition at line 133 of file energy-harvester-container.cc.

References m_harvesters, and NS_LOG_FUNCTION.

void ns3::EnergyHarvesterContainer::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 145 of file energy-harvester-container.cc.

References m_harvesters.

void ns3::EnergyHarvesterContainer::DoInitialize ( void )

privatevirtual

Calls Object::Initialize () for all EnergySource objects.

Reimplemented from ns3::Object.

Definition at line 157 of file energy-harvester-container.cc.

References m_harvesters.

EnergyHarvesterContainer::Iterator ns3::EnergyHarvesterContainer::End ( void ) const

Get an iterator which refers to the last EnergyHarvester pointer in the container.

Returns: An iterator which refers to the last EnergyHarvester in container.

EnergyHarvesters can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the EnergyHarvesters.

EnergyHarvesterContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    (*i)->method ();  // some EnergyHarvester method
  }

Definition at line 85 of file energy-harvester-container.cc.

References m_harvesters, and NS_LOG_FUNCTION.

Referenced by Add().

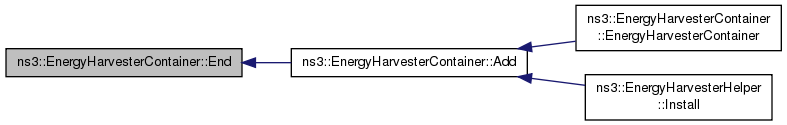

Here is the caller graph for this function:
