ns3::EpcTftClassifier Class Reference

classifies IP packets accoding to Traffic Flow Templates (TFTs) More...

#include "epc-tft-classifier.h"

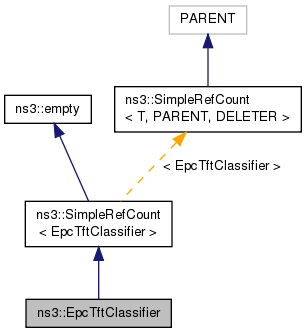

Inheritance diagram for ns3::EpcTftClassifier:

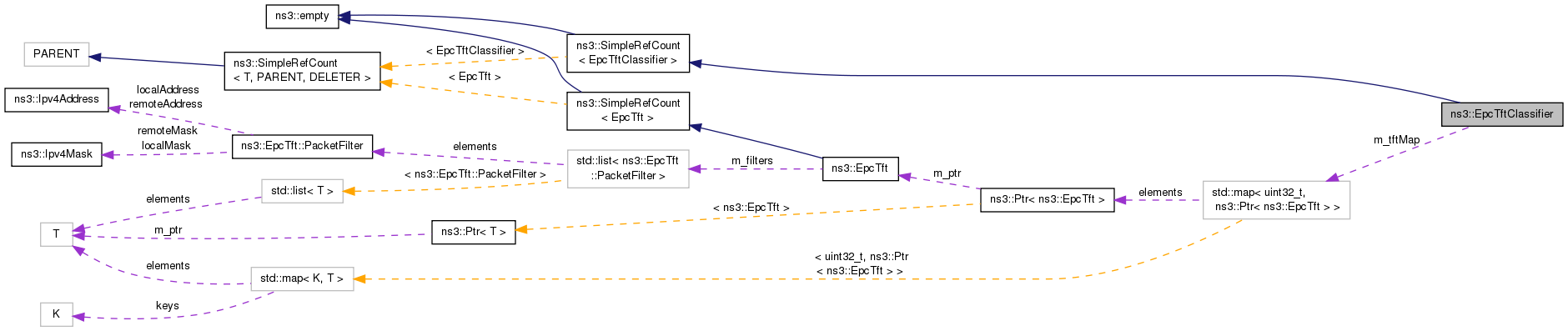

Collaboration diagram for ns3::EpcTftClassifier:

Public Member Functions
	EpcTftClassifier ()
void	Add (Ptr< EpcTft > tft, uint32_t id)
	add a TFT to the Classifier More...
uint32_t	Classify (Ptr< Packet > p, EpcTft::Direction direction)
	classify an IP packet More...
void	Delete (uint32_t id)
	delete an existing TFT from the classifier More...
Public Member Functions inherited from ns3::SimpleRefCount< EpcTftClassifier >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Protected Attributes
std::map< uint32_t, Ptr< EpcTft > >	m_tftMap
	TFT map. More...

Detailed Description

classifies IP packets accoding to Traffic Flow Templates (TFTs)

Note

this implementation works with IPv4 only.

Definition at line 43 of file epc-tft-classifier.h.

Constructor & Destructor Documentation

ns3::EpcTftClassifier::EpcTftClassifier

(

)

Definition at line 43 of file epc-tft-classifier.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcTftClassifier::Add	(	Ptr< EpcTft >	tft,
		uint32_t	id
	)

add a TFT to the Classifier

Parameters

tft	the TFT to be added
id	the ID of the bearer which will be classified by specified TFT classifier

Definition at line 49 of file epc-tft-classifier.cc.

References m_tftMap, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::EpcUeNas::DoActivateEpsBearer(), and EpcTftClassifierTestSuite::EpcTftClassifierTestSuite().

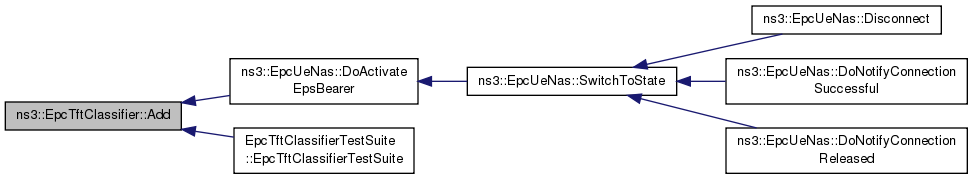

Here is the caller graph for this function:

uint32_t ns3::EpcTftClassifier::Classify	(	Ptr< Packet >	p,
		EpcTft::Direction	direction
	)

classify an IP packet

Parameters

p	the IP packet. It is assumed that the outmost header is an IPv4 header.
direction	the EPC TFT direction (can be downlink, uplink or bi-directional)

Returns

the identifier (>0) of the first TFT that matches with the IP packet; 0 if no TFT matched.

Definition at line 68 of file epc-tft-classifier.cc.

References ns3::Packet::Copy(), ns3::EpcTft::DOWNLINK, ns3::Ipv4Header::GetDestination(), ns3::UdpHeader::GetDestinationPort(), ns3::TcpHeader::GetDestinationPort(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::UdpHeader::GetSourcePort(), ns3::TcpHeader::GetSourcePort(), ns3::Ipv4Header::GetTos(), m_tftMap, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC(), ns3::UdpL4Protocol::PROT_NUMBER, ns3::TcpL4Protocol::PROT_NUMBER, ns3::Packet::RemoveHeader(), and ns3::EpcTft::UPLINK.

Referenced by EpcTftClassifierTestCase::DoRun(), and ns3::EpcUeNas::Send().

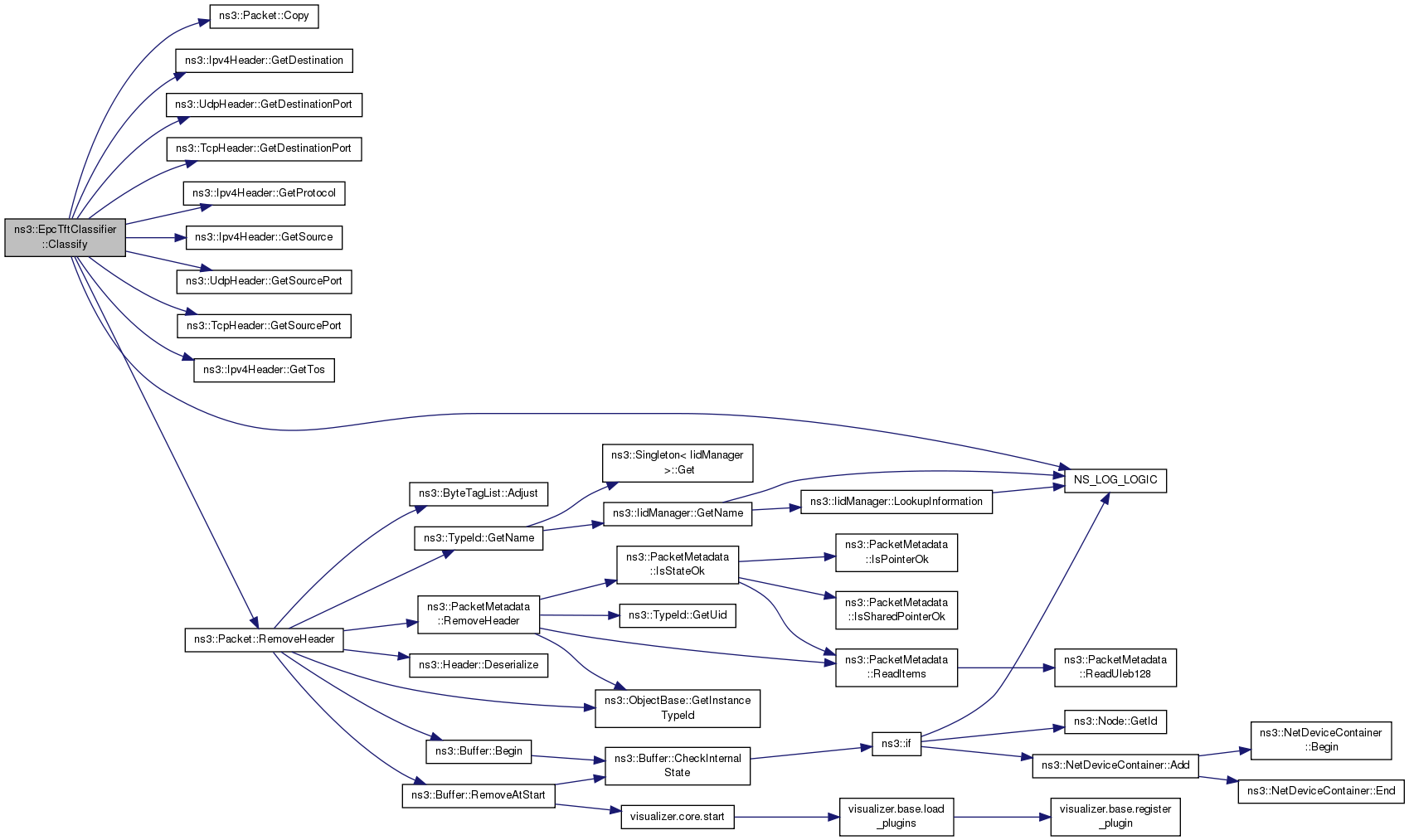

Here is the call graph for this function:

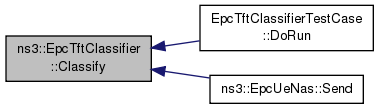

Here is the caller graph for this function:

void ns3::EpcTftClassifier::Delete

(

uint32_t

id

)

delete an existing TFT from the classifier

Parameters

id	the identifier of the TFT to be deleted

Definition at line 60 of file epc-tft-classifier.cc.

References m_tftMap, and NS_LOG_FUNCTION.

Member Data Documentation

std::map<uint32_t, Ptr<EpcTft> > ns3::EpcTftClassifier::m_tftMap

protected

TFT map.

Definition at line 78 of file epc-tft-classifier.h.

Referenced by Add(), Classify(), and Delete().

---

The documentation for this class was generated from the following files:

• src/lte/model/epc-tft-classifier.h
• src/lte/model/epc-tft-classifier.cc
