ns3::EpcX2Header Class Reference

Introspection did not find any typical Config paths. More...

#include "epc-x2-header.h"

+ Inheritance diagram for ns3::EpcX2Header:
+ Collaboration diagram for ns3::EpcX2Header:

Public Types

enum  ProcedureCode_t {
  HandoverPreparation = 0, LoadIndication = 2, SnStatusTransfer = 4, UeContextRelease = 5,
  ResourceStatusReporting = 10
}
 Procedure code enumeration. More...

enum  TypeOfMessage_t { InitiatingMessage = 0, SuccessfulOutcome = 1, UnsuccessfulOutcome = 2 }
 Type of message enumeration. More...


Public Member Functions

 EpcX2Header ()

virtual ~EpcX2Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint8_t GetMessageType () const
 Get message type function. More...

uint8_t GetProcedureCode () const
 Get procedure code function. More...

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetLengthOfIes (uint32_t lengthOfIes)
 Set length of IEs function. More...

void SetMessageType (uint8_t messageType)
 Set message type function. More...

void SetNumberOfIes (uint32_t numberOfIes)
 Set number of IEs function. More...

void SetProcedureCode (uint8_t procedureCode)
 Set procedure code function. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint32_t m_lengthOfIes
 length of IEs More...

uint8_t m_messageType
 message type More...

uint32_t m_numberOfIes
 number of IEs More...

uint8_t m_procedureCode
 procedure code More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 33 of file epc-x2-header.h.

Member Enumeration Documentation

Procedure code enumeration.

Enumerator
HandoverPreparation
LoadIndication
SnStatusTransfer
UeContextRelease
ResourceStatusReporting

Definition at line 86 of file epc-x2-header.h.

Type of message enumeration.

Enumerator
InitiatingMessage
SuccessfulOutcome
UnsuccessfulOutcome

Definition at line 95 of file epc-x2-header.h.

Constructor & Destructor Documentation

ns3::EpcX2Header::EpcX2Header ( )

Definition at line 31 of file epc-x2-header.cc.

ns3::EpcX2Header::~EpcX2Header ( )
virtual

Definition at line 39 of file epc-x2-header.cc.

References m_lengthOfIes, m_messageType, m_numberOfIes, and m_procedureCode.

Member Function Documentation

uint32_t ns3::EpcX2Header::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 85 of file epc-x2-header.cc.

References GetSerializedSize(), m_lengthOfIes, m_messageType, m_numberOfIes, m_procedureCode, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

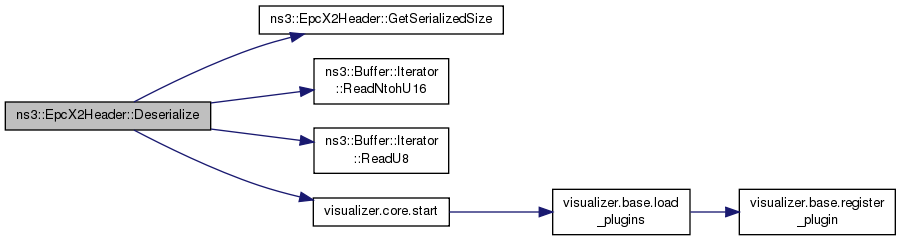

+ Here is the call graph for this function:

TypeId ns3::EpcX2Header::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 59 of file epc-x2-header.cc.

References GetTypeId().

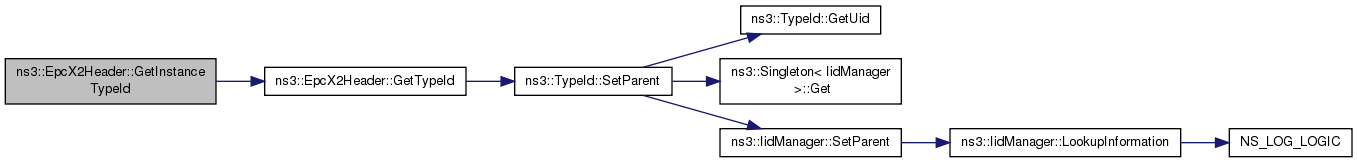

+ Here is the call graph for this function:

uint8_t ns3::EpcX2Header::GetMessageType ( ) const

Get message type function.

Returns
the message type

Definition at line 110 of file epc-x2-header.cc.

References m_messageType.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

uint8_t ns3::EpcX2Header::GetProcedureCode ( ) const

Get procedure code function.

Returns
the procedure code

Definition at line 122 of file epc-x2-header.cc.

References m_procedureCode.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

uint32_t ns3::EpcX2Header::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 65 of file epc-x2-header.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

TypeId ns3::EpcX2Header::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 48 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

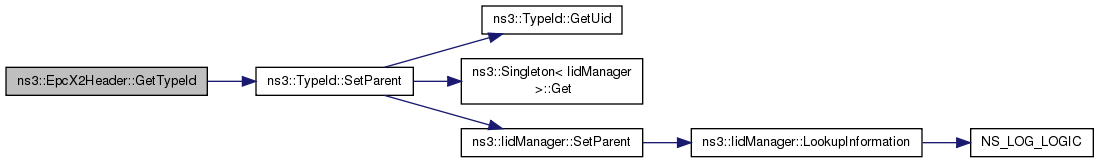

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EpcX2Header::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 101 of file epc-x2-header.cc.

References m_lengthOfIes, m_messageType, m_numberOfIes, and m_procedureCode.

void ns3::EpcX2Header::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 71 of file epc-x2-header.cc.

References m_lengthOfIes, m_messageType, m_numberOfIes, m_procedureCode, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

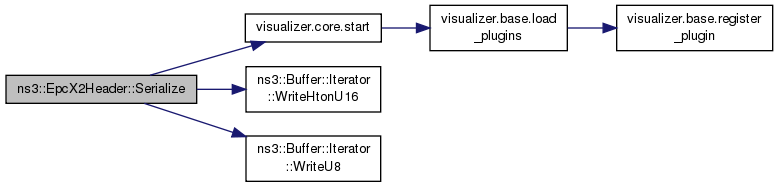

+ Here is the call graph for this function:

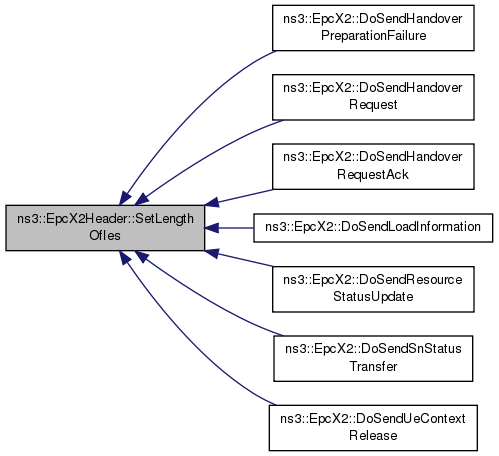

void ns3::EpcX2Header::SetLengthOfIes ( uint32_t  lengthOfIes)

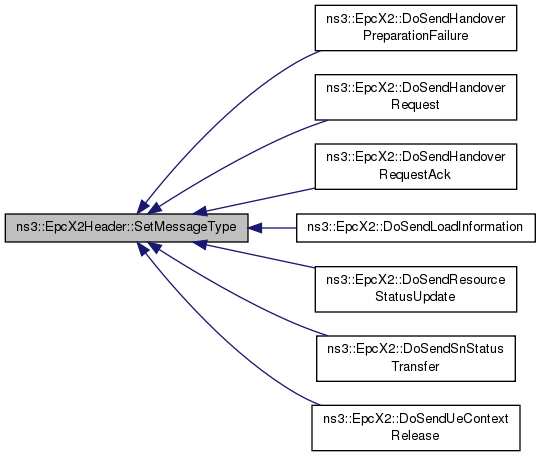

void ns3::EpcX2Header::SetMessageType ( uint8_t  messageType)

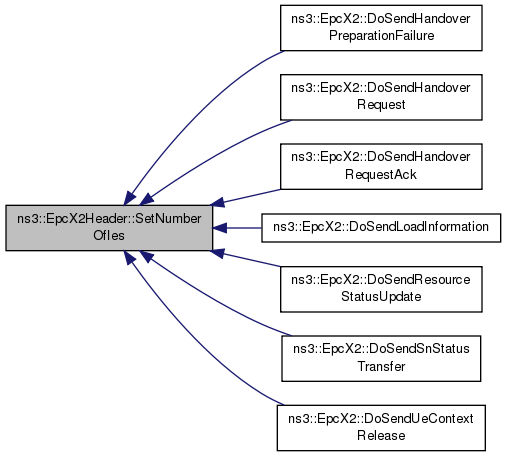

void ns3::EpcX2Header::SetNumberOfIes ( uint32_t  numberOfIes)

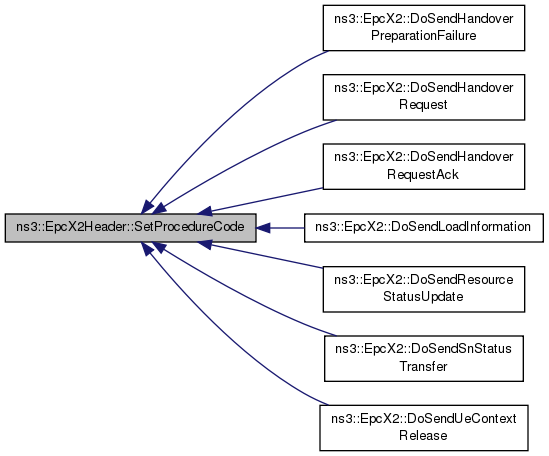

void ns3::EpcX2Header::SetProcedureCode ( uint8_t  procedureCode)

Member Data Documentation

uint32_t ns3::EpcX2Header::m_lengthOfIes
private

length of IEs

Definition at line 105 of file epc-x2-header.h.

Referenced by Deserialize(), Print(), Serialize(), SetLengthOfIes(), and ~EpcX2Header().

uint8_t ns3::EpcX2Header::m_messageType
private

message type

Definition at line 102 of file epc-x2-header.h.

Referenced by Deserialize(), GetMessageType(), Print(), Serialize(), SetMessageType(), and ~EpcX2Header().

uint32_t ns3::EpcX2Header::m_numberOfIes
private

number of IEs

Definition at line 106 of file epc-x2-header.h.

Referenced by Deserialize(), Print(), Serialize(), SetNumberOfIes(), and ~EpcX2Header().

uint8_t ns3::EpcX2Header::m_procedureCode
private

procedure code

Definition at line 103 of file epc-x2-header.h.

Referenced by Deserialize(), GetProcedureCode(), Print(), Serialize(), SetProcedureCode(), and ~EpcX2Header().


The documentation for this class was generated from the following files:
