ns3::Ipv4Route Class Reference

IPv4 route cache entry (similar to Linux struct rtable) More...

#include "ipv4-route.h"

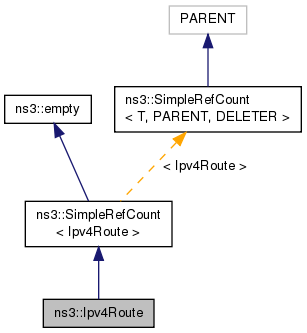

+ Inheritance diagram for ns3::Ipv4Route:

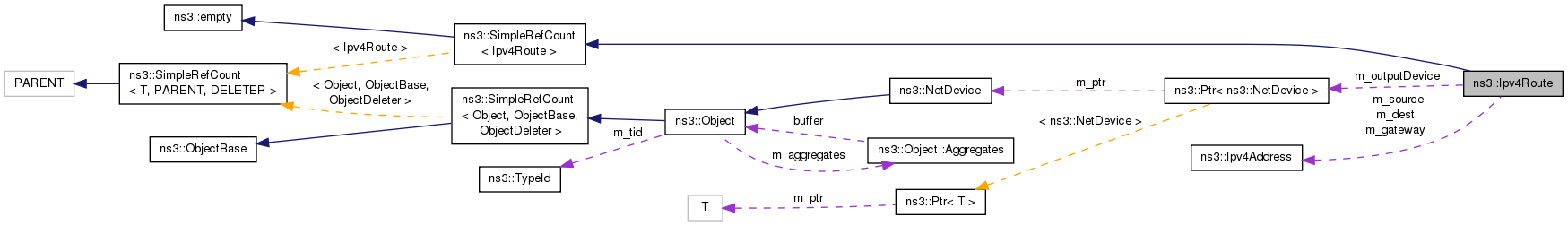

+ Collaboration diagram for ns3::Ipv4Route:

Public Member Functions

 Ipv4Route ()
Ipv4Address GetDestination (void) const

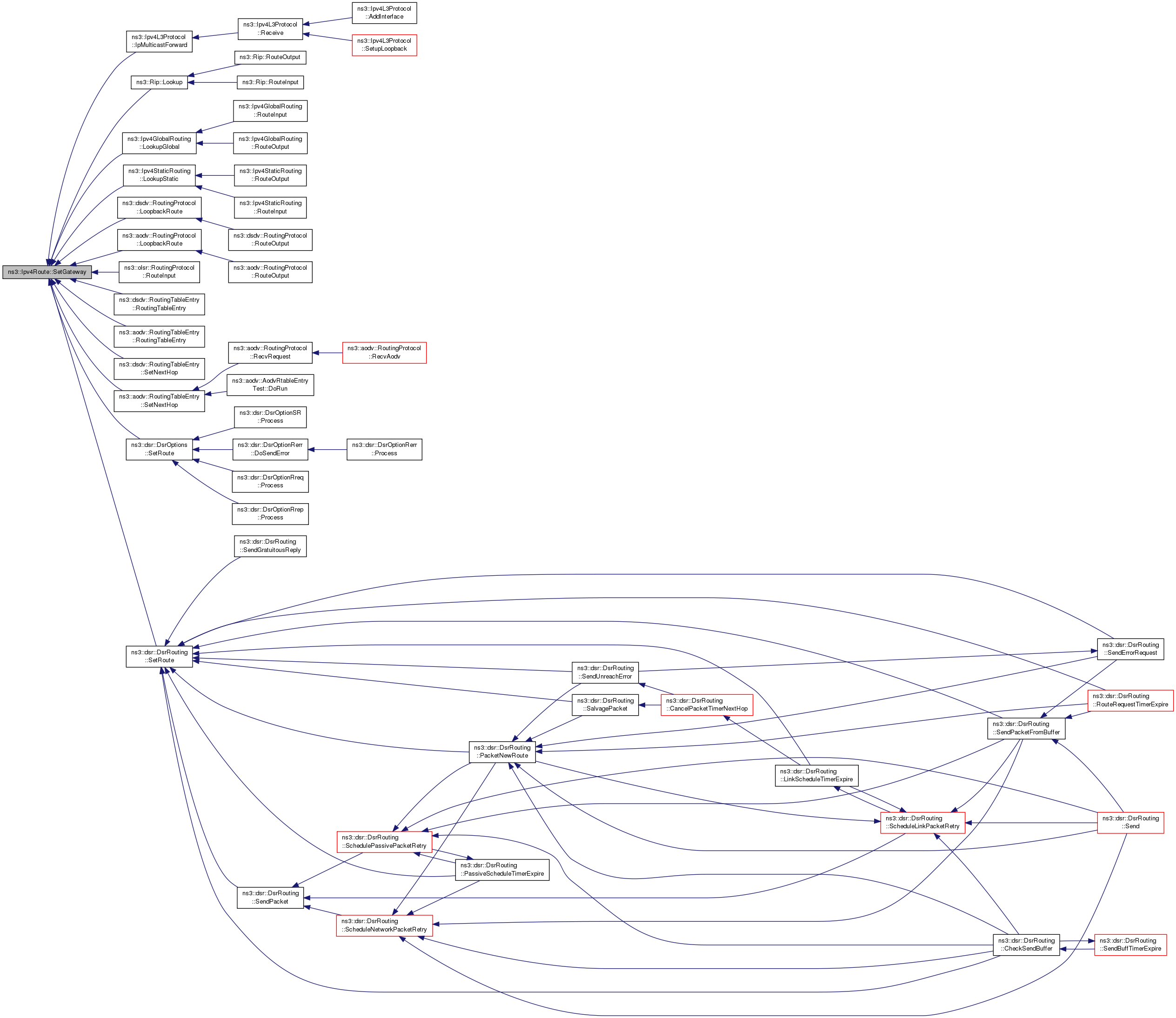

Ipv4Address GetGateway (void) const
Ptr< NetDeviceGetOutputDevice (void) const

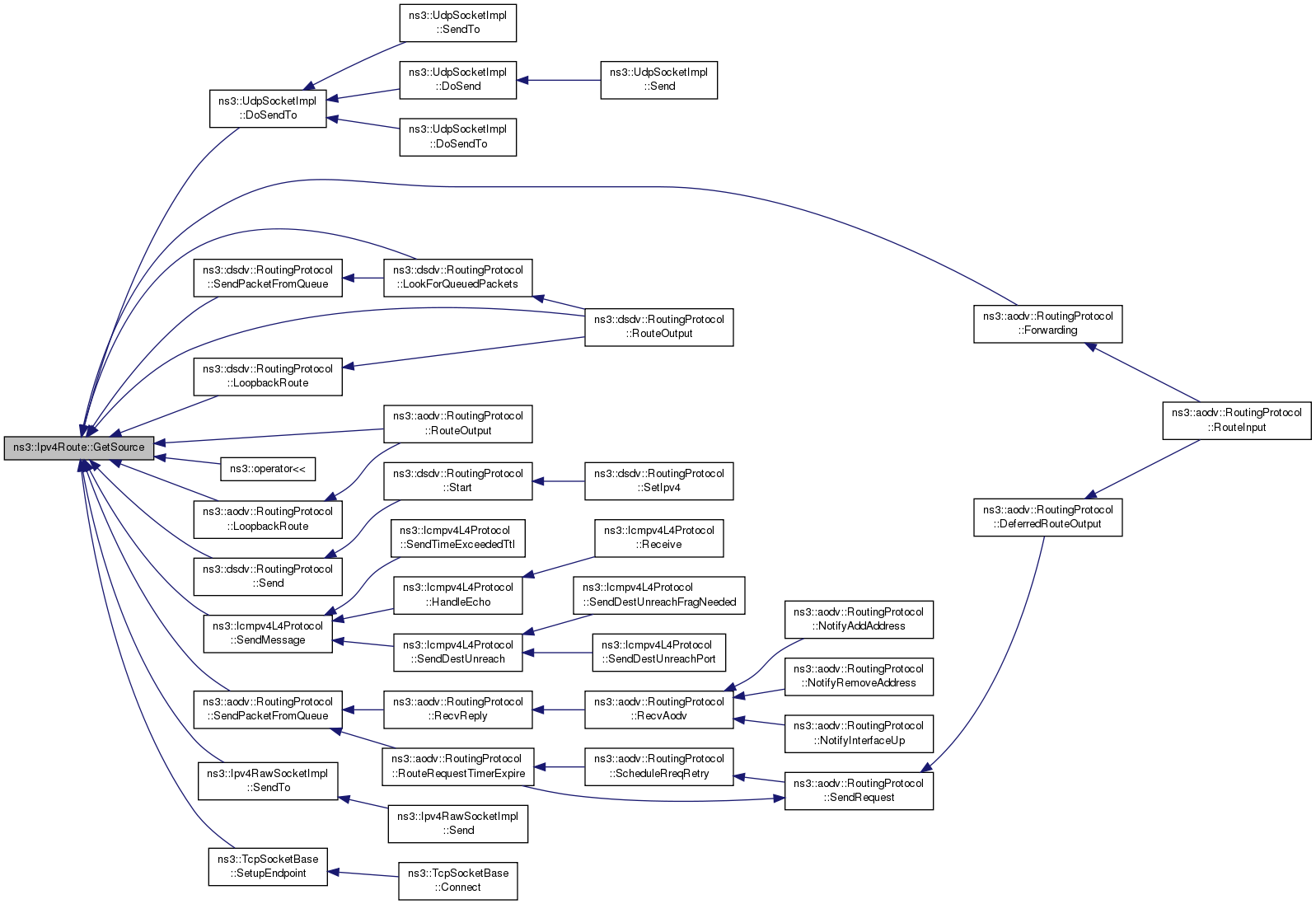

Ipv4Address GetSource (void) const
void SetDestination (Ipv4Address dest)
void SetGateway (Ipv4Address gw)
void SetOutputDevice (Ptr< NetDevice > outputDevice)
 Equivalent in Linux to dst_entry.dev. More...
void SetSource (Ipv4Address src)
- Public Member Functions inherited from ns3::SimpleRefCount< Ipv4Route >
 SimpleRefCount ()
 Default constructor. More...
 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...
uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...
SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...
void Ref (void) const
 Increment the reference count. More...
void Unref (void) const
 Decrement the reference count. More...

Private Attributes

Ipv4Address m_dest
 Destination address. More...
Ipv4Address m_gateway
 Gateway address. More...
Ptr< NetDevicem_outputDevice
 Output device. More...
Ipv4Address m_source
 Source address. More...

Detailed Description

IPv4 route cache entry (similar to Linux struct rtable)

This is a reference counted object. In the future, we will add other entries from struct dst_entry, struct rtable, and struct dst_ops as needed.

Definition at line 41 of file ipv4-route.h.

Constructor & Destructor Documentation

ns3::Ipv4Route::Ipv4Route ( )

Definition at line 29 of file ipv4-route.cc.


Member Function Documentation

Member Data Documentation

Ipv4Address ns3::Ipv4Route::m_dest

Destination address.

Definition at line 91 of file ipv4-route.h.

Referenced by GetDestination(), and SetDestination().

Ipv4Address ns3::Ipv4Route::m_gateway

Gateway address.

Definition at line 93 of file ipv4-route.h.

Referenced by GetGateway(), and SetGateway().

Ptr<NetDevice> ns3::Ipv4Route::m_outputDevice

Output device.

Definition at line 94 of file ipv4-route.h.

Referenced by GetOutputDevice(), and SetOutputDevice().

Ipv4Address ns3::Ipv4Route::m_source

Source address.

Definition at line 92 of file ipv4-route.h.

Referenced by GetSource(), and SetSource().

The documentation for this class was generated from the following files:
