ns3::Ipv6ExtensionRoutingDemux Class Reference

IPv6 Extension Routing Demux. More...

#include "ipv6-extension.h"

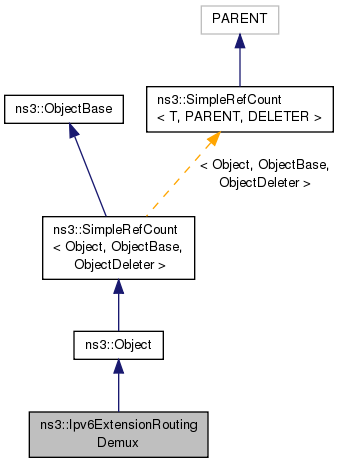

+ Inheritance diagram for ns3::Ipv6ExtensionRoutingDemux:

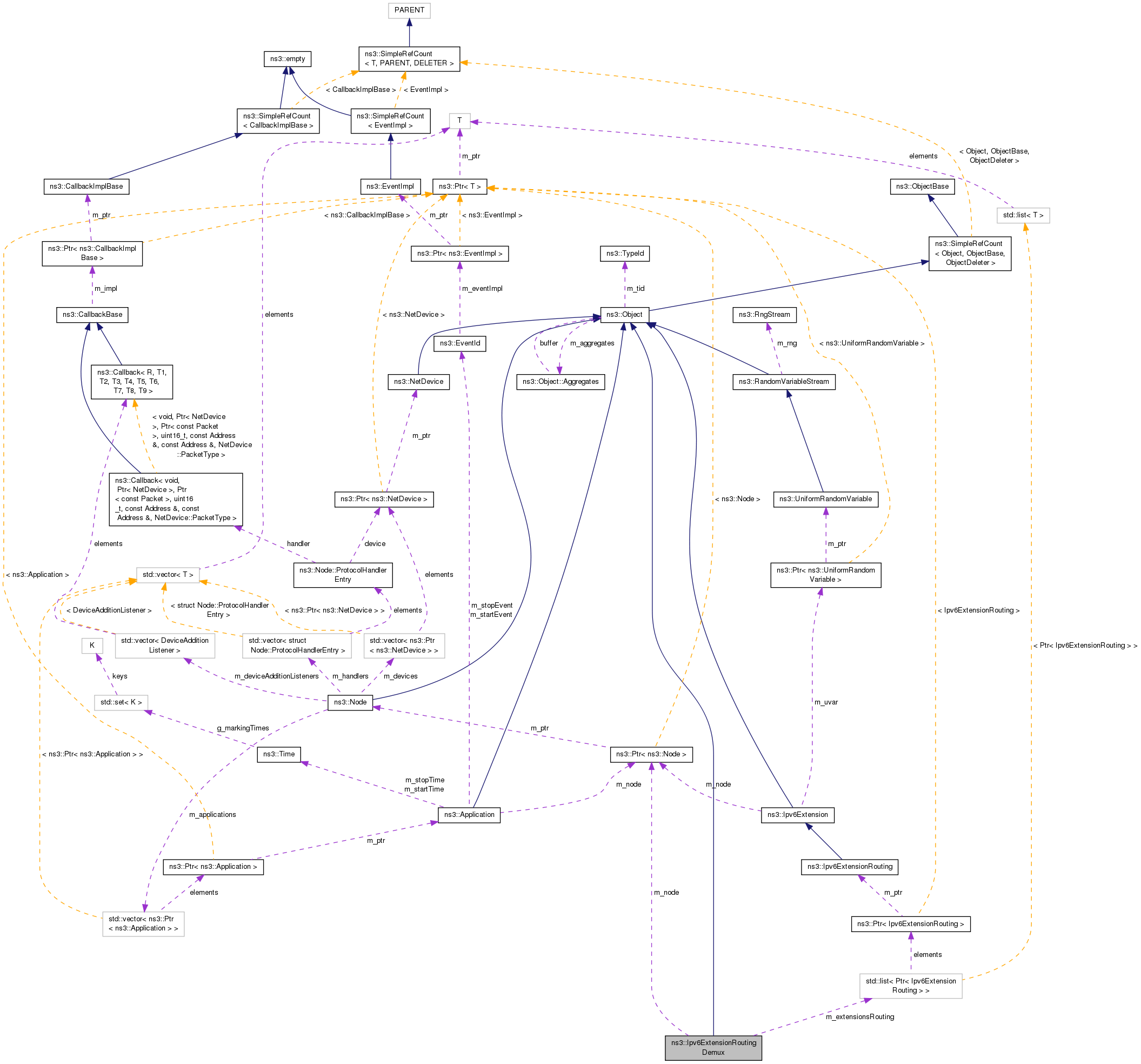

+ Collaboration diagram for ns3::Ipv6ExtensionRoutingDemux:

Public Member Functions

 Ipv6ExtensionRoutingDemux ()
 Constructor. More...

virtual ~Ipv6ExtensionRoutingDemux ()
 Destructor. More...

Ptr< Ipv6ExtensionRoutingGetExtensionRouting (uint8_t typeRouting)
 Get the routing extension corresponding to typeRouting. More...

void Insert (Ptr< Ipv6ExtensionRouting > extensionRouting)
 Insert a new IPv6 Routing Extension. More...

void Remove (Ptr< Ipv6ExtensionRouting > extensionRouting)
 Remove a routing extension from this demux. More...

void SetNode (Ptr< Node > node)
 Set the node. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 The interface ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose ()
 Dispose this object. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Types

typedef std::list< Ptr< Ipv6ExtensionRouting > > Ipv6ExtensionRoutingList_t
 Container for the extension routing. More...


Private Attributes

Ipv6ExtensionRoutingList_t m_extensionsRouting
 List of IPv6 Routing Extensions supported. More...

Ptr< Nodem_node
 The node. More...


Additional Inherited Members

Detailed Description

IPv6 Extension Routing Demux.

Introspection did not find any typical Config paths.


Attributes

No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 496 of file ipv6-extension.h.

Member Typedef Documentation

Container for the extension routing.

Definition at line 550 of file ipv6-extension.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionRoutingDemux::Ipv6ExtensionRoutingDemux ( )

Constructor.

Definition at line 843 of file ipv6-extension.cc.

ns3::Ipv6ExtensionRoutingDemux::~Ipv6ExtensionRoutingDemux ( )
virtual

Destructor.

Definition at line 847 of file ipv6-extension.cc.

Member Function Documentation

void ns3::Ipv6ExtensionRoutingDemux::DoDispose ( void  )
protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 851 of file ipv6-extension.cc.

References ns3::Object::DoDispose(), and ns3::Ipv6Extension::m_node.

+ Here is the call graph for this function:

Ptr< Ipv6ExtensionRouting > ns3::Ipv6ExtensionRoutingDemux::GetExtensionRouting ( uint8_t  typeRouting)

Get the routing extension corresponding to typeRouting.

Parameters
typeRoutingthe number of the routing extension to retrieve
Returns
a matching IPv6 routing extension

Definition at line 873 of file ipv6-extension.cc.

TypeId ns3::Ipv6ExtensionRoutingDemux::GetTypeId ( void  )
static

The interface ID.

Returns
type ID

Definition at line 830 of file ipv6-extension.cc.

References m_extensionsRouting, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

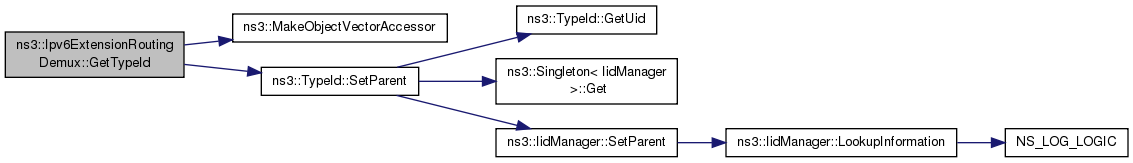

+ Here is the call graph for this function:

void ns3::Ipv6ExtensionRoutingDemux::Insert ( Ptr< Ipv6ExtensionRouting extensionRouting)

Insert a new IPv6 Routing Extension.

Parameters
extensionRoutingthe routing extension to insert

Definition at line 868 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionRoutingDemux::Remove ( Ptr< Ipv6ExtensionRouting extensionRouting)

Remove a routing extension from this demux.

Parameters
extensionRoutingpointer on the extension to remove

Definition at line 885 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionRoutingDemux::SetNode ( Ptr< Node node)

Set the node.

Parameters
nodethe node to set

Definition at line 863 of file ipv6-extension.cc.

References ns3::Ipv6Extension::m_node.

Member Data Documentation

Ipv6ExtensionRoutingList_t ns3::Ipv6ExtensionRoutingDemux::m_extensionsRouting
private

List of IPv6 Routing Extensions supported.

Definition at line 555 of file ipv6-extension.h.

Referenced by GetTypeId().

Ptr<Node> ns3::Ipv6ExtensionRoutingDemux::m_node
private

The node.

Definition at line 560 of file ipv6-extension.h.
