IPv6 raw socket. More...

#include "ipv6-raw-socket-impl.h"

Inheritance diagram for ns3::Ipv6RawSocketImpl:

Collaboration diagram for ns3::Ipv6RawSocketImpl:

Classes
struct	Data
	IPv6 raw data and additional information. More...

struct	Icmpv6Filter
	Struct to hold the ICMPv6 filter. More...

Public Member Functions

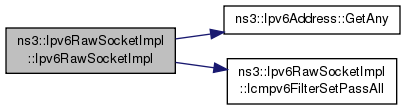

	Ipv6RawSocketImpl ()

virtual	~Ipv6RawSocketImpl ()

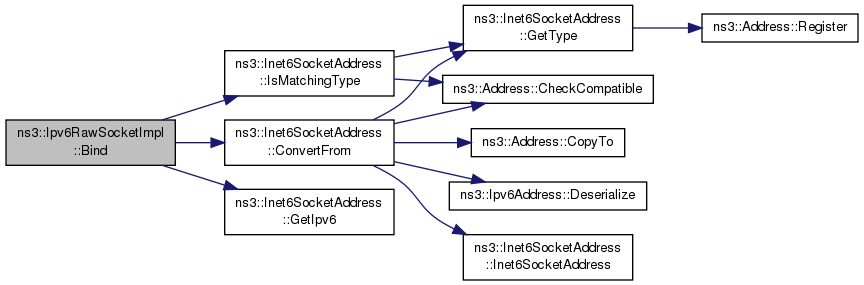

virtual int	Bind (const Address &address)
	Allocate a local endpoint for this socket. More...

virtual int	Bind ()
	Allocate a local IPv4 endpoint for this socket. More...

virtual int	Bind6 ()
	Allocate a local IPv6 endpoint for this socket. More...

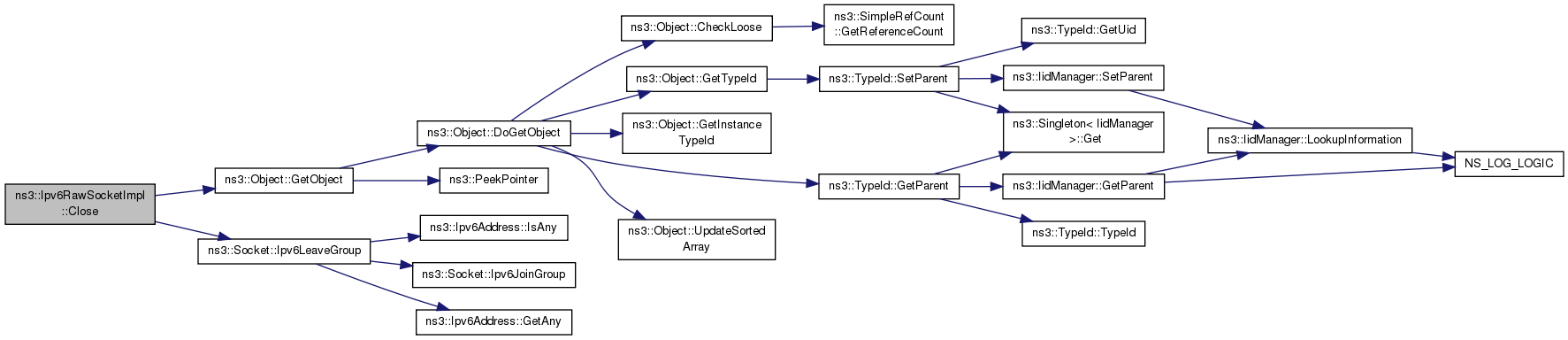

virtual int	Close ()
	Close a socket. More...

virtual int	Connect (const Address &address)
	Initiate a connection to a remote host. More...

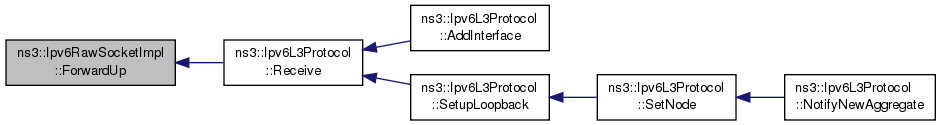

bool	ForwardUp (Ptr< const Packet > p, Ipv6Header hdr, Ptr< NetDevice > device)
	Forward up to receive method. More...

virtual bool	GetAllowBroadcast () const
	Query whether broadcast datagram transmissions are allowed. More...

virtual enum Socket::SocketErrno	GetErrno () const
	Get last error number. More...

virtual Ptr< Node >	GetNode () const
	Return the node this socket is associated with. More...

virtual int	GetPeerName (Address &address) const
	Get the peer address of a connected socket. More...

virtual uint32_t	GetRxAvailable () const
	Return number of bytes which can be returned from one or multiple calls to Recv. More...

virtual enum Socket::SocketType	GetSocketType () const
	Get socket type (NS3_SOCK_RAW) More...

virtual int	GetSockName (Address &address) const
	Get socket address. More...

virtual uint32_t	GetTxAvailable () const
	Returns the number of bytes which can be sent in a single call to Send. More...

void	Icmpv6FilterSetBlock (uint8_t type)
	Set the filter to block one ICMPv6 type. More...

void	Icmpv6FilterSetBlockAll ()
	Set the filter to block all the ICMPv6 types. More...

void	Icmpv6FilterSetPass (uint8_t type)
	Set the filter to pass one ICMPv6 type. More...

void	Icmpv6FilterSetPassAll ()
	Clean the ICMPv6 filter structure. More...

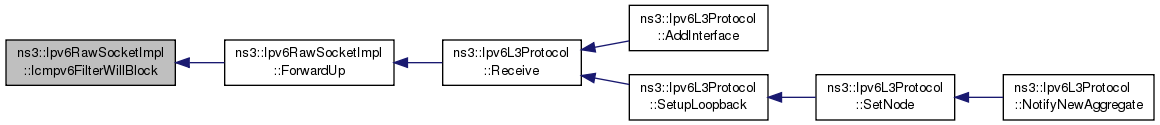

bool	Icmpv6FilterWillBlock (uint8_t type)
	Ask the filter about the status of one ICMPv6 type. More...

bool	Icmpv6FilterWillPass (uint8_t type)
	Ask the filter about the status of one ICMPv6 type. More...

virtual void	Ipv6JoinGroup (Ipv6Address address, Socket::Ipv6MulticastFilterMode filterMode, std::vector< Ipv6Address > sourceAddresses)
	Joins a IPv6 multicast group. More...

virtual int	Listen ()
	Listen for incoming connections. More...

virtual Ptr< Packet >	Recv (uint32_t maxSize, uint32_t flags)
	Read data from the socket. More...

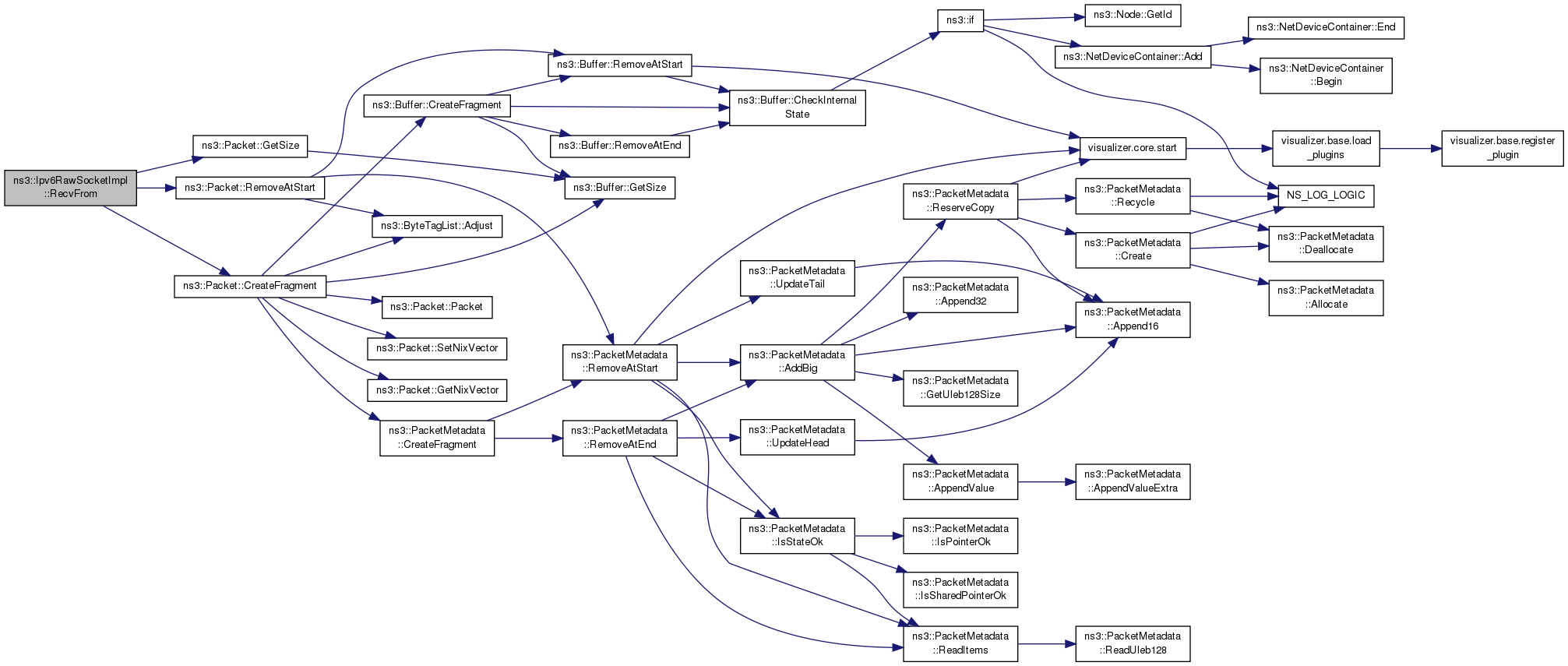

virtual Ptr< Packet >	RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

virtual int	Send (Ptr< Packet > p, uint32_t flags)
	Send data (or dummy data) to the remote host. More...

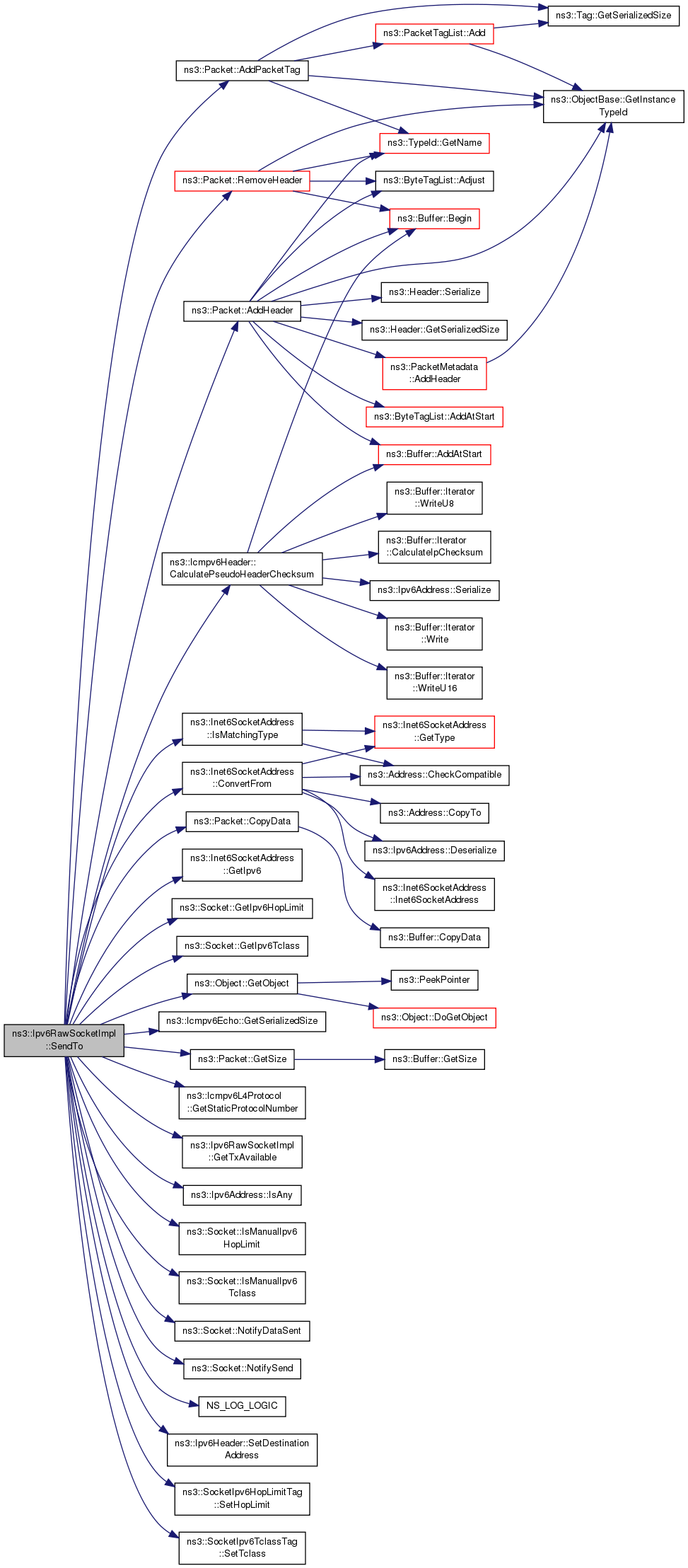

virtual int	SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)
	Send data to a specified peer. More...

virtual bool	SetAllowBroadcast (bool allowBroadcast)
	Configure whether broadcast datagram transmissions are allowed. More...

void	SetNode (Ptr< Node > node)
	Set the node associated with this socket. More...

void	SetProtocol (uint16_t protocol)
	Set protocol field. More...

virtual int	ShutdownRecv ()

virtual int	ShutdownSend ()

Public Member Functions inherited from ns3::Socket
	Socket (void)

virtual	~Socket (void)

virtual void	BindToNetDevice (Ptr< NetDevice > netdevice)
	Bind a socket to specific device. More...

Ptr< NetDevice >	GetBoundNetDevice ()
	Returns socket's bound NetDevice, if any. More...

uint8_t	GetIpTos (void) const
	Query the value of IP Type of Service of this socket. More...

virtual uint8_t	GetIpTtl (void) const
	Query the value of IP Time to Live field of this socket. More...

virtual uint8_t	GetIpv6HopLimit (void) const
	Query the value of IP Hop Limit field of this socket. More...

uint8_t	GetIpv6Tclass (void) const
	Query the value of IPv6 Traffic Class field of this socket. More...

uint8_t	GetPriority (void) const
	Query the priority value of this socket. More...

virtual void	Ipv6JoinGroup (Ipv6Address address)
	Joins a IPv6 multicast group without filters. More...

virtual void	Ipv6LeaveGroup (void)
	Leaves IPv6 multicast group this socket is joined to. More...

bool	IsIpRecvTos (void) const
	Ask if the socket is currently passing information about IP Type of Service up the stack. More...

bool	IsIpRecvTtl (void) const
	Ask if the socket is currently passing information about IP_TTL up the stack. More...

bool	IsIpv6RecvHopLimit (void) const
	Ask if the socket is currently passing information about IPv6 Hop Limit up the stack. More...

bool	IsIpv6RecvTclass (void) const
	Ask if the socket is currently passing information about IPv6 Traffic Class up the stack. More...

bool	IsRecvPktInfo () const
	Get status indicating whether enable/disable packet information to socket. More...

Ptr< Packet >	Recv (void)
	Read a single packet from the socket. More...

int	Recv (uint8_t *buf, uint32_t size, uint32_t flags)
	Recv data (or dummy data) from the remote host. More...

Ptr< Packet >	RecvFrom (Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	Send (Ptr< Packet > p)
	Send data (or dummy data) to the remote host. More...

int	Send (const uint8_t *buf, uint32_t size, uint32_t flags)
	Send data (or dummy data) to the remote host. More...

int	SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address)
	Send data to a specified peer. More...

void	SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated)
	Accept connection requests from remote hosts. More...

void	SetCloseCallbacks (Callback< void, Ptr< Socket > > normalClose, Callback< void, Ptr< Socket > > errorClose)
	Detect socket recv() events such as graceful shutdown or error. More...

void	SetConnectCallback (Callback< void, Ptr< Socket > > connectionSucceeded, Callback< void, Ptr< Socket > > connectionFailed)
	Specify callbacks to allow the caller to determine if the connection succeeds of fails. More...

void	SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent)
	Notify application when a packet has been sent from transport protocol (non-standard socket call) More...

void	SetIpRecvTos (bool ipv4RecvTos)
	Tells a socket to pass information about IP Type of Service up the stack. More...

void	SetIpRecvTtl (bool ipv4RecvTtl)
	Tells a socket to pass information about IP_TTL up the stack. More...

void	SetIpTos (uint8_t ipTos)
	Manually set IP Type of Service field. More...

virtual void	SetIpTtl (uint8_t ipTtl)
	Manually set IP Time to Live field. More...

virtual void	SetIpv6HopLimit (uint8_t ipHopLimit)
	Manually set IPv6 Hop Limit. More...

void	SetIpv6RecvHopLimit (bool ipv6RecvHopLimit)
	Tells a socket to pass information about IPv6 Hop Limit up the stack. More...

void	SetIpv6RecvTclass (bool ipv6RecvTclass)
	Tells a socket to pass information about IPv6 Traffic Class up the stack. More...

void	SetIpv6Tclass (int ipTclass)
	Manually set IPv6 Traffic Class field. More...

void	SetPriority (uint8_t priority)
	Manually set the socket priority. More...

void	SetRecvCallback (Callback< void, Ptr< Socket > >)
	Notify application when new data is available to be read. More...

void	SetRecvPktInfo (bool flag)
	Enable/Disable receive packet information to socket. More...

void	SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb)
	Notify application when space in transmit buffer is added. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

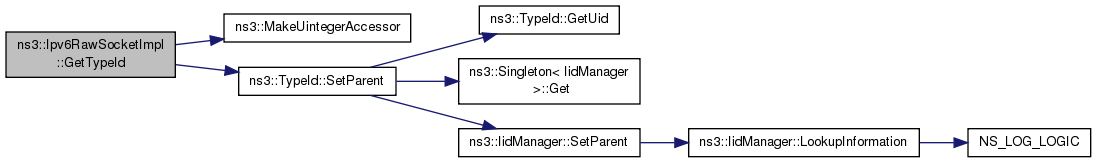

static TypeId	GetTypeId ()
	Get the type ID of this class. More...

Static Public Member Functions inherited from ns3::Socket
static Ptr< Socket >	CreateSocket (Ptr< Node > node, TypeId tid)
	This method wraps the creation of sockets that is performed on a given node by a SocketFactory specified by TypeId. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

static uint8_t	IpTos2Priority (uint8_t ipTos)
	Return the priority corresponding to a given TOS value. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose ()
	Dispose object. More...

Private Attributes
std::list< Data >	m_data
	Packet waiting to be processed. More...

Ipv6Address	m_dst
	Destination address. More...

enum Socket::SocketErrno	m_err
	Last error number. More...

Icmpv6Filter	m_icmpFilter
	ICMPv6 filter. More...

Ptr< Node >	m_node
	Node. More...

uint16_t	m_protocol
	Protocol. More...

bool	m_shutdownRecv
	Flag to shutdown receive capability. More...

bool	m_shutdownSend
	Flag to shutdown send capability. More...

Ipv6Address	m_src
	Source address. More...

Additional Inherited Members
Public Types inherited from ns3::Socket
enum	Ipv6MulticastFilterMode { INCLUDE =1, EXCLUDE }
	Enumeration of the possible filter of a socket. More...

enum	SocketErrno { ERROR_NOTERROR, ERROR_ISCONN, ERROR_NOTCONN, ERROR_MSGSIZE, ERROR_AGAIN, ERROR_SHUTDOWN, ERROR_OPNOTSUPP, ERROR_AFNOSUPPORT, ERROR_INVAL, ERROR_BADF, ERROR_NOROUTETOHOST, ERROR_NODEV, ERROR_ADDRNOTAVAIL, ERROR_ADDRINUSE, SOCKET_ERRNO_LAST }
	Enumeration of the possible errors returned by a socket. More...

enum	SocketPriority { NS3_PRIO_BESTEFFORT = 0, NS3_PRIO_FILLER = 1, NS3_PRIO_BULK = 2, NS3_PRIO_INTERACTIVE_BULK = 4, NS3_PRIO_INTERACTIVE = 6, NS3_PRIO_CONTROL = 7 }
	Enumeration of the possible socket priorities. More...

enum	SocketType { NS3_SOCK_STREAM, NS3_SOCK_SEQPACKET, NS3_SOCK_DGRAM, NS3_SOCK_RAW }
	Enumeration of the possible socket types. More...

Protected Member Functions inherited from ns3::Socket
bool	IsManualIpTtl (void) const
	Checks if the socket has a specific IPv4 TTL set. More...

bool	IsManualIpv6HopLimit (void) const
	Checks if the socket has a specific IPv6 Hop Limit set. More...

bool	IsManualIpv6Tclass (void) const
	Checks if the socket has a specific IPv6 Tclass set. More...

void	NotifyConnectionFailed (void)
	Notify through the callback (if set) that the connection has not been established due to an error. More...

bool	NotifyConnectionRequest (const Address &from)
	Notify through the callback (if set) that an incoming connection is being requested by a remote host. More...

void	NotifyConnectionSucceeded (void)
	Notify through the callback (if set) that the connection has been established. More...

void	NotifyDataRecv (void)
	Notify through the callback (if set) that some data have been received. More...

void	NotifyDataSent (uint32_t size)
	Notify through the callback (if set) that some data have been sent. More...

void	NotifyErrorClose (void)
	Notify through the callback (if set) that the connection has been closed due to an error. More...

void	NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from)
	Notify through the callback (if set) that a new connection has been created. More...

void	NotifyNormalClose (void)
	Notify through the callback (if set) that the connection has been closed. More...

void	NotifySend (uint32_t spaceAvailable)
	Notify through the callback (if set) that some data have been sent. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::Socket
Ptr< NetDevice >	m_boundnetdevice
	the device this socket is bound to (might be null). More...

Ipv6Address	m_ipv6MulticastGroupAddress
	IPv6 multicast group address. More...

bool	m_recvPktInfo
	if the socket should add packet info tags to the packet forwarded to L4. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

IPv6 raw socket.

Introspection did not find any typical Config paths.

A RAW Socket typically is used to access specific IP layers not usually available through L4 sockets, e.g., ICMP. The implementer should take particular care to define the Ipv6RawSocketImpl Attributes, and in particular the Protocol attribute. Not setting it will result in a zero protocol at IP level (corresponding to the HopByHop IPv6 Extension header, i.e., Ipv6ExtensionHopByHopHeader) when sending data through the socket, which is probably not the intended behavior.

A correct example is (from src/applications/model/radvd.cc):

if (!m_socket)
  {
    TypeId tid = TypeId::LookupByName ("ns3::Ipv6RawSocketFactory");
    m_socket = Socket::CreateSocket (GetNode (), tid);
    NS_ASSERT (m_socket);
    m_socket->SetAttribute ("Protocol", UintegerValue(Ipv6Header::IPV6_ICMPV6));
    m_socket->SetRecvCallback (MakeCallback (&Radvd::HandleRead, this));
  }

Attributes

Protocol: Protocol number to match.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 256 bytes (on a 64-bit architecture).

Definition at line 66 of file ipv6-raw-socket-impl.h.

Constructor & Destructor Documentation

ns3::Ipv6RawSocketImpl::Ipv6RawSocketImpl ( )

Definition at line 58 of file ipv6-raw-socket-impl.cc.

References ns3::Socket::ERROR_NOTERROR, ns3::Ipv6Address::GetAny(), Icmpv6FilterSetPassAll(), m_dst, m_err, m_node, m_protocol, m_shutdownRecv, m_shutdownSend, m_src, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

ns3::Ipv6RawSocketImpl::~Ipv6RawSocketImpl ( )

virtual

Definition at line 71 of file ipv6-raw-socket-impl.cc.

Member Function Documentation

int ns3::Ipv6RawSocketImpl::Bind ( const Address & address )

virtual

Allocate a local endpoint for this socket.

Parameters

address the address to try to allocate

Returns: 0 on success, -1 on failure.

Implements ns3::Socket.

Definition at line 104 of file ipv6-raw-socket-impl.cc.

References ns3::Inet6SocketAddress::ConvertFrom(), ns3::Socket::ERROR_INVAL, ns3::Inet6SocketAddress::GetIpv6(), ns3::Inet6SocketAddress::IsMatchingType(), m_err, m_src, and NS_LOG_FUNCTION.

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::Bind ( )

virtual

Allocate a local IPv4 endpoint for this socket.

Returns: 0 on success, -1 on failure.

Implements ns3::Socket.

Definition at line 118 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6Address::GetAny(), m_src, and NS_LOG_FUNCTION_NOARGS.

Referenced by Bind6().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::Ipv6RawSocketImpl::Bind6 ( )

virtual

Allocate a local IPv6 endpoint for this socket.

Returns: 0 on success, -1 on failure.

Implements ns3::Socket.

Definition at line 125 of file ipv6-raw-socket-impl.cc.

References Bind().

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::Close ( )

virtual

Close a socket.

Returns: zero on success, -1 on failure.

After the Close call, the socket is no longer valid, and cannot safely be used for subsequent operations.

Implements ns3::Socket.

Definition at line 153 of file ipv6-raw-socket-impl.cc.

References ns3::Object::GetObject(), ns3::Socket::Ipv6LeaveGroup(), m_node, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::Connect ( const Address & address )

virtual

Initiate a connection to a remote host.

Parameters

address Address of remote.

Returns: 0 on success, -1 on error (in which case errno is set).

Implements ns3::Socket.

Definition at line 180 of file ipv6-raw-socket-impl.cc.

References ns3::Inet6SocketAddress::ConvertFrom(), ns3::Socket::ERROR_INVAL, ns3::Inet6SocketAddress::GetIpv6(), ns3::Inet6SocketAddress::IsMatchingType(), m_dst, m_err, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6RawSocketImpl::DoDispose ( void )

privatevirtual

Dispose object.

Reimplemented from ns3::Socket.

Definition at line 75 of file ipv6-raw-socket-impl.cc.

References ns3::Socket::DoDispose(), m_node, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

bool ns3::Ipv6RawSocketImpl::ForwardUp	(	Ptr< const Packet >	p,
		Ipv6Header	hdr,
		Ptr< NetDevice >	device
	)

Forward up to receive method.

Parameters

p	packet
hdr	IPv6 header
device	device

Returns: true if forwarded, false otherwise

Definition at line 397 of file ipv6-raw-socket-impl.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Packet::Copy(), data, ns3::Ipv6RawSocketImpl::Data::fromIp, ns3::Ipv6RawSocketImpl::Data::fromProtocol, ns3::Ipv6Address::GetAny(), ns3::Socket::GetBoundNetDevice(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetHopLimit(), ns3::Ipv6Header::GetNextHeader(), ns3::Ipv6Header::GetSourceAddress(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Ipv6Header::GetTrafficClass(), ns3::Icmpv6Header::GetType(), Icmpv6FilterWillBlock(), ns3::Socket::IsIpv6RecvHopLimit(), ns3::Socket::IsIpv6RecvTclass(), ns3::Socket::IsRecvPktInfo(), m_data, m_dst, m_protocol, m_shutdownRecv, m_src, ns3::Socket::NotifyDataRecv(), NS_LOG_FUNCTION, ns3::Ipv6RawSocketImpl::Data::packet, ns3::Packet::PeekHeader(), ns3::Packet::RemovePacketTag(), ns3::SocketIpv6HopLimitTag::SetHopLimit(), ns3::Ipv6PacketInfoTag::SetRecvIf(), and ns3::SocketIpv6TclassTag::SetTclass().

Referenced by ns3::Ipv6L3Protocol::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv6RawSocketImpl::GetAllowBroadcast ( ) const

virtual

Query whether broadcast datagram transmissions are allowed.

This method corresponds to using getsockopt() SO_BROADCAST of real network or BSD sockets.

Returns: true if broadcast is allowed, false otherwise

Implements ns3::Socket.

Definition at line 482 of file ipv6-raw-socket-impl.cc.

enum Socket::SocketErrno ns3::Ipv6RawSocketImpl::GetErrno ( ) const

virtual

Get last error number.

Returns: the errno associated to the last call which failed in this socket. Each socket's errno is initialized to zero when the socket is created.

Implements ns3::Socket.

Definition at line 93 of file ipv6-raw-socket-impl.cc.

References m_err, and NS_LOG_FUNCTION_NOARGS.

Ptr< Node > ns3::Ipv6RawSocketImpl::GetNode ( ) const

virtual

Return the node this socket is associated with.

Returns: the node

Implements ns3::Socket.

Definition at line 88 of file ipv6-raw-socket-impl.cc.

References m_node.

int ns3::Ipv6RawSocketImpl::GetPeerName ( Address & address ) const

virtual

Get the peer address of a connected socket.

Parameters

address the address this socket is connected to.

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 138 of file ipv6-raw-socket-impl.cc.

References ns3::Socket::ERROR_NOTCONN, ns3::Ipv6Address::IsAny(), m_dst, m_err, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::Ipv6RawSocketImpl::GetRxAvailable ( ) const

virtual

Return number of bytes which can be returned from one or multiple calls to Recv.

Must be possible to call this method from the Recv callback.

Returns: the number of bytes which can be returned from one or multiple Recv calls.

Implements ns3::Socket.

Definition at line 384 of file ipv6-raw-socket-impl.cc.

References m_data, and NS_LOG_FUNCTION_NOARGS.

enum Socket::SocketType ns3::Ipv6RawSocketImpl::GetSocketType ( void ) const

virtual

Get socket type (NS3_SOCK_RAW)

Returns: socket type

Implements ns3::Socket.

Definition at line 99 of file ipv6-raw-socket-impl.cc.

References ns3::Socket::NS3_SOCK_RAW.

int ns3::Ipv6RawSocketImpl::GetSockName ( Address & address ) const

virtual

Get socket address.

Parameters

address the address name this socket is associated with.

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 130 of file ipv6-raw-socket-impl.cc.

References m_src, and NS_LOG_FUNCTION_NOARGS.

uint32_t ns3::Ipv6RawSocketImpl::GetTxAvailable ( ) const

virtual

Returns the number of bytes which can be sent in a single call to Send.

For datagram sockets, this returns the number of bytes that can be passed atomically through the underlying protocol.

For stream sockets, this returns the available space in bytes left in the transmit buffer.

Returns: The number of bytes which can be sent in a single Send call.

Implements ns3::Socket.

Definition at line 378 of file ipv6-raw-socket-impl.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by SendTo().

Here is the caller graph for this function:

TypeId ns3::Ipv6RawSocketImpl::GetTypeId ( void )

static

Get the type ID of this class.

Returns: type ID

Definition at line 45 of file ipv6-raw-socket-impl.cc.

References m_protocol, ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::Ipv6RawSocketImpl::Icmpv6FilterSetBlock ( uint8_t type )

Set the filter to block one ICMPv6 type.

Parameters

type	the ICMPv6 type to block

Definition at line 506 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6RawSocketImpl::Icmpv6Filter::icmpv6Filt, and m_icmpFilter.

void ns3::Ipv6RawSocketImpl::Icmpv6FilterSetBlockAll ( )

Set the filter to block all the ICMPv6 types.

Definition at line 494 of file ipv6-raw-socket-impl.cc.

References m_icmpFilter.

void ns3::Ipv6RawSocketImpl::Icmpv6FilterSetPass ( uint8_t type )

Set the filter to pass one ICMPv6 type.

Parameters

type	the ICMPv6 type to pass

Definition at line 500 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6RawSocketImpl::Icmpv6Filter::icmpv6Filt, and m_icmpFilter.

void ns3::Ipv6RawSocketImpl::Icmpv6FilterSetPassAll ( )

Clean the ICMPv6 filter structure.

Definition at line 488 of file ipv6-raw-socket-impl.cc.

References m_icmpFilter.

Referenced by Ipv6RawSocketImpl().

Here is the caller graph for this function:

bool ns3::Ipv6RawSocketImpl::Icmpv6FilterWillBlock ( uint8_t type )

Ask the filter about the status of one ICMPv6 type.

Parameters

type	the ICMPv6 type

Returns: true if the ICMP type is being blocked

Definition at line 518 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6RawSocketImpl::Icmpv6Filter::icmpv6Filt, and m_icmpFilter.

Referenced by ForwardUp().

Here is the caller graph for this function:

bool ns3::Ipv6RawSocketImpl::Icmpv6FilterWillPass ( uint8_t type )

Ask the filter about the status of one ICMPv6 type.

Parameters

type	the ICMPv6 type

Returns: true if the ICMP type is passing through

Definition at line 512 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6RawSocketImpl::Icmpv6Filter::icmpv6Filt, and m_icmpFilter.

void ns3::Ipv6RawSocketImpl::Ipv6JoinGroup	(	Ipv6Address	address,
		Socket::Ipv6MulticastFilterMode	filterMode,
		std::vector< Ipv6Address >	sourceAddresses
	)

virtual

Joins a IPv6 multicast group.

Based on the filter mode and source addresses this can be interpreted as a join, leave, or modification to source filtering on a multicast group.

Mind that a socket can join only one multicast group. Any attempt to join another group will remove the old one.

Parameters

address	Requested multicast address.
filterMode	Socket filtering mode (INCLUDE \| EXCLUDE).
sourceAddresses	All the source addresses on which socket is interested or not interested.

Reimplemented from ns3::Socket.

Definition at line 335 of file ipv6-raw-socket-impl.cc.

References first::address, ns3::Object::GetObject(), ns3::Socket::INCLUDE, ns3::Ipv6Address::IsAny(), ns3::Socket::m_boundnetdevice, ns3::Socket::m_ipv6MulticastGroupAddress, m_node, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::Listen ( )

virtual

Listen for incoming connections.

Returns: 0 on success, -1 on error (in which case errno is set).

Implements ns3::Socket.

Definition at line 195 of file ipv6-raw-socket-impl.cc.

References ns3::Socket::ERROR_OPNOTSUPP, m_err, and NS_LOG_FUNCTION_NOARGS.

Ptr< Packet > ns3::Ipv6RawSocketImpl::Recv	(	uint32_t	maxSize,
		uint32_t	flags
	)

virtual

Read data from the socket.

This function matches closely in semantics to the recv() function call in the standard C library (libc): ssize_t recv (int s, void *buf, size_t len, int flags); except that the receive I/O is asynchronous. This is the primary Recv method at this low-level API and must be implemented by subclasses.

This method is normally used only on a connected socket. In a typical blocking sockets model, this call would block until at least one byte is returned or the connection closes. In ns-3 at this API, the call returns immediately in such a case and returns 0 if nothing is available to be read. However, an application can set a callback, ns3::SetRecvCallback, to be notified of data being available to be read (when it conceptually unblocks); this is an asynchronous I/O model for recv().

This variant of Recv() uses class ns3::Packet to encapsulate data, rather than providing a raw pointer and length field. This allows an ns-3 application to attach tags if desired (such as a flow ID) and may allow the simulator to avoid some data copies. Despite the appearance of receiving Packets on a stream socket, just think of it as a fancy byte buffer with streaming semantics.

The semantics depend on the type of socket. For a datagram socket, each Recv() returns the data from at most one Send(), and order is not necessarily preserved. For a stream socket, the bytes are delivered in order, and on-the-wire packet boundaries are not preserved.

The flags argument is formed by or'ing one or more of the values: MSG_OOB process out-of-band data MSG_PEEK peek at incoming message None of these flags are supported for now.

Some variants of Recv() are supported as additional API, including RecvFrom(), overloaded Recv() without arguments, and variants that use raw character buffers.

Parameters

maxSize	reader will accept packet up to maxSize
flags	Socket control flags

Returns: Ptr<Packet> of the next in-sequence packet. Returns 0 if the socket cannot return a next in-sequence packet conforming to the maxSize and flags.

See also: SetRecvCallback

Implements ns3::Socket.

Definition at line 300 of file ipv6-raw-socket-impl.cc.

References NS_LOG_FUNCTION, and RecvFrom().

Here is the call graph for this function:

Ptr< Packet > ns3::Ipv6RawSocketImpl::RecvFrom	(	uint32_t	maxSize,
		uint32_t	flags,
		Address &	fromAddress
	)

virtual

Read a single packet from the socket and retrieve the sender address.

Calls Recv(maxSize, flags) with maxSize implicitly set to maximum sized integer, and flags set to zero.

This method has similar semantics to Recv () but subclasses may want to provide checks on socket state, so the implementation is pushed to subclasses.

Parameters

maxSize	reader will accept packet up to maxSize
flags	Socket control flags
fromAddress	output parameter that will return the address of the sender of the received packet, if any. Remains untouched if no packet is received.

Returns: Ptr<Packet> of the next in-sequence packet. Returns 0 if the socket cannot return a next in-sequence packet.

Implements ns3::Socket.

Definition at line 307 of file ipv6-raw-socket-impl.cc.

References ns3::Packet::CreateFragment(), data, ns3::Ipv6RawSocketImpl::Data::fromIp, ns3::Ipv6RawSocketImpl::Data::fromProtocol, ns3::Packet::GetSize(), m_data, NS_LOG_FUNCTION, ns3::Ipv6RawSocketImpl::Data::packet, and ns3::Packet::RemoveAtStart().

Referenced by Recv().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::Ipv6RawSocketImpl::Send	(	Ptr< Packet >	p,
		uint32_t	flags
	)

virtual

Send data (or dummy data) to the remote host.

This function matches closely in semantics to the send() function call in the standard C library (libc): ssize_t send (int s, const void *msg, size_t len, int flags); except that the send I/O is asynchronous. This is the primary Send method at this low-level API and must be implemented by subclasses.

In a typical blocking sockets model, this call would block upon lack of space to hold the message to be sent. In ns-3 at this API, the call returns immediately in such a case, but the callback registered with SetSendCallback() is invoked when the socket has space (when it conceptually unblocks); this is an asynchronous I/O model for send().

This variant of Send() uses class ns3::Packet to encapsulate data, rather than providing a raw pointer and length field. This allows an ns-3 application to attach tags if desired (such as a flow ID) and may allow the simulator to avoid some data copies. Despite the appearance of sending Packets on a stream socket, just think of it as a fancy byte buffer with streaming semantics.

If either the message buffer within the Packet is too long to pass atomically through the underlying protocol (for datagram sockets), or the message buffer cannot entirely fit in the transmit buffer (for stream sockets), -1 is returned and SocketErrno is set to ERROR_MSGSIZE. If the packet does not fit, the caller can split the Packet (based on information obtained from GetTxAvailable) and reattempt to send the data.

The flags argument is formed by or'ing one or more of the values: MSG_OOB process out-of-band data MSG_DONTROUTE bypass routing, use direct interface These flags are unsupported as of ns-3.1.

Parameters

p	ns3::Packet to send
flags	Socket control flags

Returns: the number of bytes accepted for transmission if no error occurs, and -1 otherwise.

See also: SetSendCallback

Implements ns3::Socket.

Definition at line 202 of file ipv6-raw-socket-impl.cc.

References m_dst, m_protocol, NS_LOG_FUNCTION, and SendTo().

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::SendTo	(	Ptr< Packet >	p,
		uint32_t	flags,
		const Address &	toAddress
	)

virtual

Send data to a specified peer.

This method has similar semantics to Send () but subclasses may want to provide checks on socket state, so the implementation is pushed to subclasses.

Parameters

p	packet to send
flags	Socket control flags
toAddress	IP Address of remote host

Returns: -1 in case of error or the number of bytes copied in the internal buffer and accepted for transmission.

Implements ns3::Socket.

Definition at line 209 of file ipv6-raw-socket-impl.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::Packet::CopyData(), ns3::Socket::ERROR_INVAL, ns3::Socket::ERROR_NOTERROR, ns3::Inet6SocketAddress::GetIpv6(), ns3::Socket::GetIpv6HopLimit(), ns3::Socket::GetIpv6Tclass(), ns3::Object::GetObject(), ns3::Icmpv6Echo::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), GetTxAvailable(), ns3::Icmpv6Header::ICMPV6_ECHO_REQUEST, ns3::Ipv6Address::IsAny(), ns3::Socket::IsManualIpv6HopLimit(), ns3::Socket::IsManualIpv6Tclass(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::Socket::m_boundnetdevice, m_err, m_node, m_protocol, m_shutdownSend, m_src, ns3::Socket::NotifyDataSent(), ns3::Socket::NotifySend(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::Packet::RemoveHeader(), ns3::Ipv6Header::SetDestinationAddress(), ns3::SocketIpv6HopLimitTag::SetHopLimit(), and ns3::SocketIpv6TclassTag::SetTclass().

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv6RawSocketImpl::SetAllowBroadcast ( bool allowBroadcast )

virtual

Configure whether broadcast datagram transmissions are allowed.

This method corresponds to using setsockopt() SO_BROADCAST of real network or BSD sockets. If set on a socket, this option will enable or disable packets to be transmitted to broadcast destination addresses.

Parameters

allowBroadcast Whether broadcast is allowed
