Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources. More...

#include "lte-rrc-protocol-ideal.h"

Inheritance diagram for ns3::LteEnbRrcProtocolIdeal:

Collaboration diagram for ns3::LteEnbRrcProtocolIdeal:

Public Member Functions
	LteEnbRrcProtocolIdeal ()

virtual	~LteEnbRrcProtocolIdeal ()

virtual void	DoDispose (void)
	Destructor implementation. More...

LteEnbRrcSapUser *	GetLteEnbRrcSapUser ()
	Get LTE ENB RRC SAP user function. More...

LteUeRrcSapProvider *	GetUeRrcSapProvider (uint16_t rnti)
	Get LTE UE RRC SAP provider function. More...

void	SetCellId (uint16_t cellId)
	Set the cell ID function. More...

void	SetLteEnbRrcSapProvider (LteEnbRrcSapProvider *p)
	Set LTE ENB RRC SAP provider function. More...

void	SetUeRrcSapProvider (uint16_t rnti, LteUeRrcSapProvider *p)
	Set UE RRC SAP provider function. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
LteRrcSap::RrcConnectionReconfiguration	DoDecodeHandoverCommand (Ptr< Packet > p)
	Decode handover command function. More...

LteRrcSap::HandoverPreparationInfo	DoDecodeHandoverPreparationInformation (Ptr< Packet > p)
	Encode handover preparation information function. More...

Ptr< Packet >	DoEncodeHandoverCommand (LteRrcSap::RrcConnectionReconfiguration msg)
	Encode handover command function. More...

Ptr< Packet >	DoEncodeHandoverPreparationInformation (LteRrcSap::HandoverPreparationInfo msg)
	Encode handover preparation information function. More...

void	DoRemoveUe (uint16_t rnti)
	Remove UE function. More...

void	DoSendRrcConnectionReconfiguration (uint16_t rnti, LteRrcSap::RrcConnectionReconfiguration msg)
	Send RRC connection reconfiguration function. More...

void	DoSendRrcConnectionReestablishment (uint16_t rnti, LteRrcSap::RrcConnectionReestablishment msg)
	Send RRC connection reestablishment function. More...

void	DoSendRrcConnectionReestablishmentReject (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentReject msg)
	Send RRC connection reestablishment reject function. More...

void	DoSendRrcConnectionReject (uint16_t rnti, LteRrcSap::RrcConnectionReject msg)
	Send RRC connection reject function. More...

void	DoSendRrcConnectionRelease (uint16_t rnti, LteRrcSap::RrcConnectionRelease msg)
	Send RRC connection release function. More...

void	DoSendRrcConnectionSetup (uint16_t rnti, LteRrcSap::RrcConnectionSetup msg)
	Send RRC connection setup function. More...

void	DoSendSystemInformation (uint16_t cellId, LteRrcSap::SystemInformation msg)
	Send system information function. More...

void	DoSetupUe (uint16_t rnti, LteEnbRrcSapUser::SetupUeParameters params)
	Setup UE function. More...

void	SendSystemInformation (LteRrcSap::SystemInformation msg)
	Send system information function. More...

Private Attributes
uint16_t	m_cellId
	the cell ID More...

LteEnbRrcSapProvider *	m_enbRrcSapProvider
	the ENB RRC SAP provider More...

std::map< uint16_t, LteUeRrcSapProvider * >	m_enbRrcSapProviderMap
	the LTE UE RRC SAP provider More...

LteEnbRrcSapUser *	m_enbRrcSapUser
	the ENB RRC SAP user More...

uint16_t	m_rnti
	the RNTI More...

Friends
class	MemberLteEnbRrcSapUser< LteEnbRrcProtocolIdeal >
	allow MemberLteEnbRrcSapUser<LteEnbRrcProtocolIdeal> class friend access More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 96 bytes (on a 64-bit architecture).

Definition at line 151 of file lte-rrc-protocol-ideal.h.

Constructor & Destructor Documentation

ns3::LteEnbRrcProtocolIdeal::LteEnbRrcProtocolIdeal ( )

Definition at line 216 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapUser, and NS_LOG_FUNCTION.

ns3::LteEnbRrcProtocolIdeal::~LteEnbRrcProtocolIdeal ( )

virtual

Definition at line 223 of file lte-rrc-protocol-ideal.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

LteRrcSap::RrcConnectionReconfiguration ns3::LteEnbRrcProtocolIdeal::DoDecodeHandoverCommand ( Ptr< Packet > p )

private

Decode handover command function.

Parameters

p	the packet

Returns: LteRrcSap::RrcConnectionReconfiguration

Definition at line 655 of file lte-rrc-protocol-ideal.cc.

References ns3::IdealHandoverCommandHeader::GetMsgId(), NS_ASSERT_MSG, NS_LOG_INFO, and ns3::Packet::RemoveHeader().

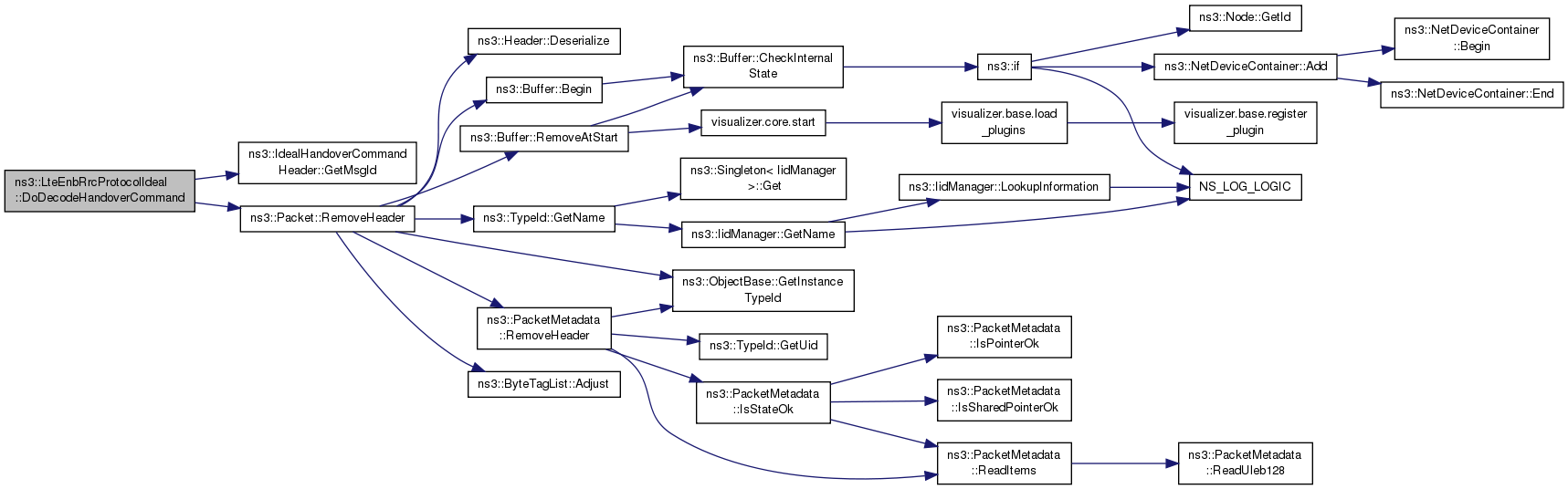

Here is the call graph for this function:

LteRrcSap::HandoverPreparationInfo ns3::LteEnbRrcProtocolIdeal::DoDecodeHandoverPreparationInformation ( Ptr< Packet > p )

private

Encode handover preparation information function.

Parameters

p	the packet

Returns: LteRrcSap::HandoverPreparationInfo

Definition at line 534 of file lte-rrc-protocol-ideal.cc.

References ns3::IdealHandoverPreparationInfoHeader::GetMsgId(), NS_ASSERT_MSG, NS_LOG_INFO, and ns3::Packet::RemoveHeader().

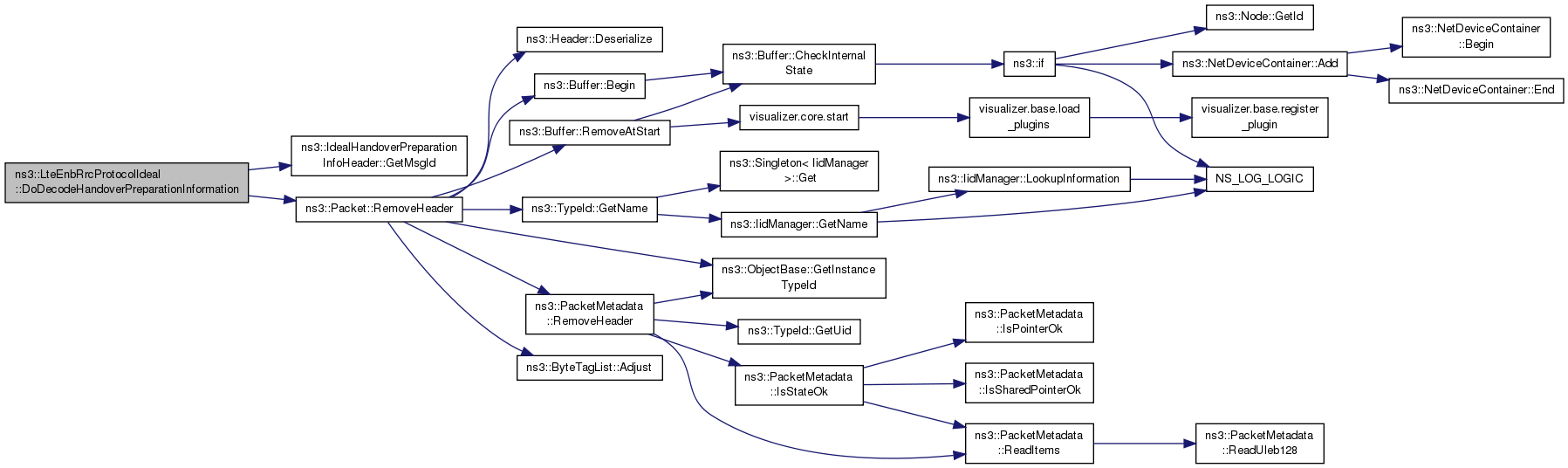

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 229 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapUser, and NS_LOG_FUNCTION.

Ptr< Packet > ns3::LteEnbRrcProtocolIdeal::DoEncodeHandoverCommand ( LteRrcSap::RrcConnectionReconfiguration msg )

private

Encode handover command function.

Parameters

msg	LteRrcSap::RrcConnectionReconfiguration

Returns: rnti the RNTI

Definition at line 641 of file lte-rrc-protocol-ideal.cc.

References ns3::Packet::AddHeader(), ns3::g_handoverCommandMsgIdCounter, NS_ASSERT_MSG, NS_LOG_INFO, and ns3::IdealHandoverCommandHeader::SetMsgId().

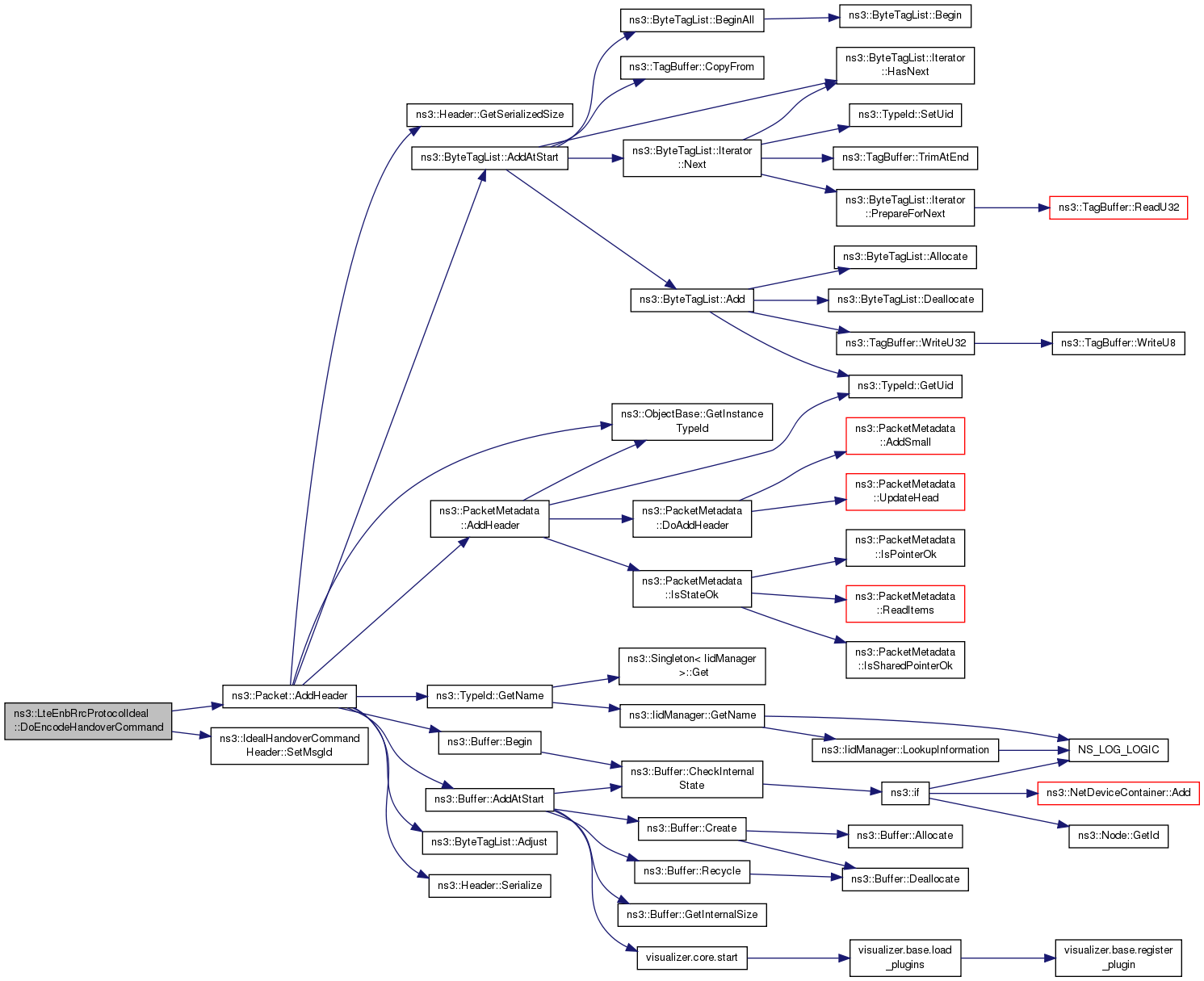

Here is the call graph for this function:

Ptr< Packet > ns3::LteEnbRrcProtocolIdeal::DoEncodeHandoverPreparationInformation ( LteRrcSap::HandoverPreparationInfo msg )

private

Encode handover preparation information function.

Parameters

msg	LteRrcSap::HandoverPreparationInfo

Returns: the packet

Definition at line 520 of file lte-rrc-protocol-ideal.cc.

References ns3::Packet::AddHeader(), ns3::g_handoverPreparationInfoMsgIdCounter, NS_ASSERT_MSG, NS_LOG_INFO, and ns3::IdealHandoverPreparationInfoHeader::SetMsgId().

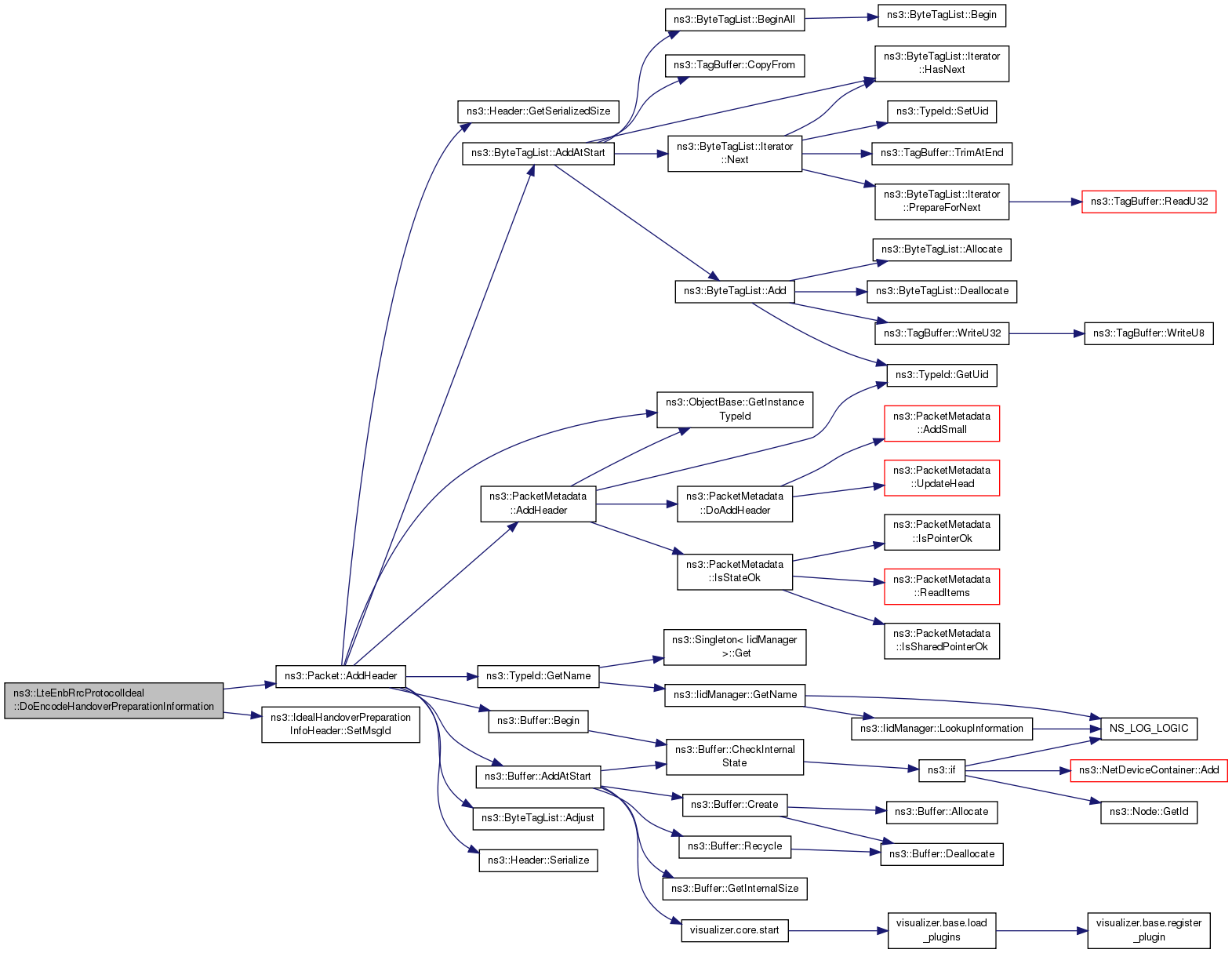

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoRemoveUe ( uint16_t rnti )

private

Remove UE function.

Parameters

rnti the RNTI

Definition at line 325 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProviderMap, and NS_LOG_FUNCTION.

void ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReconfiguration	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReconfiguration	msg
	)

private

Send RRC connection reconfiguration function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionReconfiguration

Definition at line 372 of file lte-rrc-protocol-ideal.cc.

References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReconfiguration(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishment	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReestablishment	msg
	)

private

Send RRC connection reestablishment function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionReestablishment

Definition at line 381 of file lte-rrc-protocol-ideal.cc.

References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishment(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishmentReject	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReestablishmentReject	msg
	)

private

Send RRC connection reestablishment reject function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionReestablishmentReject

Definition at line 390 of file lte-rrc-protocol-ideal.cc.

References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishmentReject(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReject	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReject	msg
	)

private

Send RRC connection reject function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionReject

Definition at line 408 of file lte-rrc-protocol-ideal.cc.

References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReject(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionRelease	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionRelease	msg
	)

private

Send RRC connection release function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionRelease

Definition at line 399 of file lte-rrc-protocol-ideal.cc.

References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionRelease(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionSetup	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionSetup	msg
	)

private

Send RRC connection setup function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionSetup

Definition at line 363 of file lte-rrc-protocol-ideal.cc.

References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionSetup(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation	(	uint16_t	cellId,
		LteRrcSap::SystemInformation	msg
	)

private

Send system information function.

Parameters

cellId	cell ID
msg	LteRrcSap::SystemInformation

Definition at line 332 of file lte-rrc-protocol-ideal.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::LteUeRrcSapProvider::RecvSystemInformation(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolIdeal::DoSetupUe	(	uint16_t	rnti,
		LteEnbRrcSapUser::SetupUeParameters	params
	)

private

Setup UE function.

Parameters

rnti	the RNTI
params	LteEnbRrcSapUser::SetupUeParameters

Definition at line 283 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProviderMap, and NS_LOG_FUNCTION.

LteEnbRrcSapUser * ns3::LteEnbRrcProtocolIdeal::GetLteEnbRrcSapUser ( )

Get LTE ENB RRC SAP user function.

Returns: LTE ENB RRC SAP user

Definition at line 253 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapUser.

TypeId ns3::LteEnbRrcProtocolIdeal::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 236 of file lte-rrc-protocol-ideal.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

LteUeRrcSapProvider * ns3::LteEnbRrcProtocolIdeal::GetUeRrcSapProvider ( uint16_t rnti )

Get LTE UE RRC SAP provider function.

Parameters

rnti the RNTI

Returns: LTE UE RRC SAP provider

Definition at line 265 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProviderMap, and NS_ASSERT_MSG.

Referenced by DoSendRrcConnectionReconfiguration(), DoSendRrcConnectionReestablishment(), DoSendRrcConnectionReestablishmentReject(), DoSendRrcConnectionReject(), DoSendRrcConnectionRelease(), and DoSendRrcConnectionSetup().

Here is the caller graph for this function:

void ns3::LteEnbRrcProtocolIdeal::SendSystemInformation ( LteRrcSap::SystemInformation msg )

private

Send system information function.

Parameters

msg	LteRrcSap::SystemInformation

void ns3::LteEnbRrcProtocolIdeal::SetCellId ( uint16_t cellId )

Set the cell ID function.

Parameters

cellId the cell ID

Definition at line 259 of file lte-rrc-protocol-ideal.cc.

References m_cellId.

void ns3::LteEnbRrcProtocolIdeal::SetLteEnbRrcSapProvider ( LteEnbRrcSapProvider * p )

Set LTE ENB RRC SAP provider function.

Parameters

p	the LTE ENB RRC SAP provider

Definition at line 247 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider.

void ns3::LteEnbRrcProtocolIdeal::SetUeRrcSapProvider	(	uint16_t	rnti,
		LteUeRrcSapProvider *	p
	)

Set UE RRC SAP provider function.

Parameters

rnti	the RNTI
p	the UE RRC SAP provider

Definition at line 274 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProviderMap, and NS_ASSERT_MSG.

Friends And Related Function Documentation

friend class MemberLteEnbRrcSapUser< LteEnbRrcProtocolIdeal >

friend

allow MemberLteEnbRrcSapUser<LteEnbRrcProtocolIdeal> class friend access

Definition at line 154 of file lte-rrc-protocol-ideal.h.

Member Data Documentation

uint16_t ns3::LteEnbRrcProtocolIdeal::m_cellId

private

the cell ID

Definition at line 306 of file lte-rrc-protocol-ideal.h.

Referenced by SetCellId().

LteEnbRrcSapProvider* ns3::LteEnbRrcProtocolIdeal::m_enbRrcSapProvider

private

the ENB RRC SAP provider

Definition at line 307 of file lte-rrc-protocol-ideal.h.

Referenced by SetLteEnbRrcSapProvider().

std::map<uint16_t, LteUeRrcSapProvider*> ns3::LteEnbRrcProtocolIdeal::m_enbRrcSapProviderMap

private

the LTE UE RRC SAP provider

Definition at line 309 of file lte-rrc-protocol-ideal.h.

Referenced by DoRemoveUe(), DoSetupUe(), GetUeRrcSapProvider(), and SetUeRrcSapProvider().

LteEnbRrcSapUser* ns3::LteEnbRrcProtocolIdeal::m_enbRrcSapUser

private

the ENB RRC SAP user

Definition at line 308 of file lte-rrc-protocol-ideal.h.

Referenced by DoDispose(), GetLteEnbRrcSapUser(), and LteEnbRrcProtocolIdeal().

uint16_t ns3::LteEnbRrcProtocolIdeal::m_rnti

private

the RNTI

Definition at line 305 of file lte-rrc-protocol-ideal.h.

The documentation for this class was generated from the following files:

src/lte/model/lte-rrc-protocol-ideal.h
src/lte/model/lte-rrc-protocol-ideal.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
