ns3::LteRlcHeader Class Reference

The packet header for the Radio Link Control (RLC) protocol packets. More...

#include "lte-rlc-header.h"

+ Inheritance diagram for ns3::LteRlcHeader:

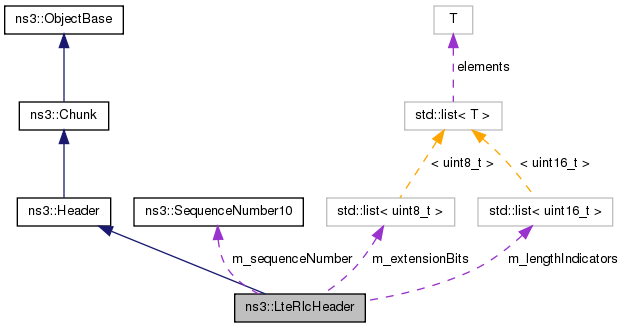

+ Collaboration diagram for ns3::LteRlcHeader:

Public Types

enum  ExtensionBit_t { DATA_FIELD_FOLLOWS = 0, E_LI_FIELDS_FOLLOWS = 1 }
 ExtensionBit_t typedef. More...

enum  FramingInfoFirstByte_t { FIRST_BYTE = 0x00, NO_FIRST_BYTE = 0x02 }
 FramingInfoFirstByte_t typedef. More...

enum  FramingInfoLastByte_t { LAST_BYTE = 0x00, NO_LAST_BYTE = 0x01 }
 FramingInfoLastByte_t tyedef. More...


Public Member Functions

 LteRlcHeader ()
 Constructor. More...

 ~LteRlcHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

uint8_t GetFramingInfo () const
 Get framing info. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

SequenceNumber10 GetSequenceNumber () const
 Get sequence number. More...

virtual uint32_t GetSerializedSize (void) const

uint8_t PopExtensionBit (void)
 Pop extension bit. More...

uint16_t PopLengthIndicator (void)
 Pop length indicator. More...

virtual void Print (std::ostream &os) const

void PushExtensionBit (uint8_t extensionBit)
 Push extension bit. More...

void PushLengthIndicator (uint16_t lengthIndicator)
 Push length indicator. More...

virtual void Serialize (Buffer::Iterator start) const

void SetFramingInfo (uint8_t framingInfo)
 Set framing info. More...

void SetSequenceNumber (SequenceNumber10 sequenceNumber)
 Set sequence number. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::list< uint8_t > m_extensionBits
 Includes extensionBit of the fixed part. More...

uint8_t m_framingInfo
 2 bits More...

uint16_t m_headerLength
 header length More...

std::list< uint16_t > m_lengthIndicators
 length indicators More...

SequenceNumber10 m_sequenceNumber
 sequence number More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

The packet header for the Radio Link Control (RLC) protocol packets.

Introspection did not find any typical Config paths.

This class has fields corresponding to those in an RLC header as well as methods for serialization to and deserialization from a byte buffer. It follows 3GPP TS 36.322 Radio Link Control (RLC) protocol specification.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 39 of file lte-rlc-header.h.

Constructor & Destructor Documentation

ns3::LteRlcHeader::LteRlcHeader ( )

Constructor.

Creates a null header

Definition at line 31 of file lte-rlc-header.cc.

ns3::LteRlcHeader::~LteRlcHeader ( )

Definition at line 38 of file lte-rlc-header.cc.

References m_framingInfo, m_headerLength, and m_sequenceNumber.

Member Function Documentation

uint32_t ns3::LteRlcHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 214 of file lte-rlc-header.cc.

References DATA_FIELD_FOLLOWS, E_LI_FIELDS_FOLLOWS, GetSerializedSize(), m_extensionBits, m_framingInfo, m_headerLength, m_lengthIndicators, m_sequenceNumber, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

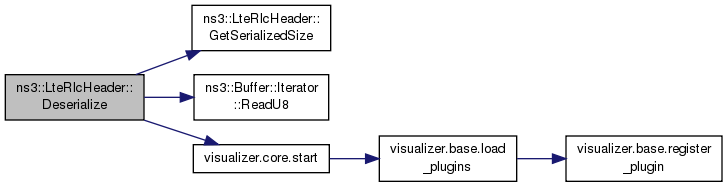

+ Here is the call graph for this function:

uint8_t ns3::LteRlcHeader::GetFramingInfo ( ) const

Get framing info.

Returns
framing info

Definition at line 58 of file lte-rlc-header.cc.

References m_framingInfo.

Referenced by ns3::LteRlcUm::ReassembleAndDeliver().

+ Here is the caller graph for this function:

TypeId ns3::LteRlcHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 126 of file lte-rlc-header.cc.

References GetTypeId().

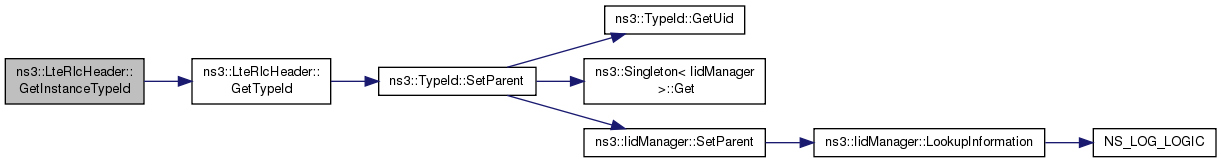

+ Here is the call graph for this function:

SequenceNumber10 ns3::LteRlcHeader::GetSequenceNumber ( void  ) const

Get sequence number.

Returns
sequence number

Definition at line 64 of file lte-rlc-header.cc.

References m_sequenceNumber.

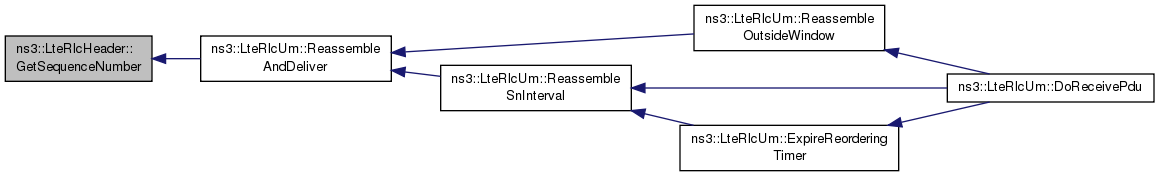

Referenced by ns3::LteRlcUm::ReassembleAndDeliver().

+ Here is the caller graph for this function:

uint32_t ns3::LteRlcHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 163 of file lte-rlc-header.cc.

References m_headerLength.

Referenced by Deserialize().

+ Here is the caller graph for this function:

TypeId ns3::LteRlcHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 115 of file lte-rlc-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

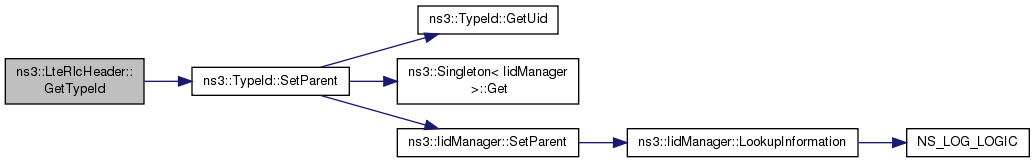

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::LteRlcHeader::PopExtensionBit ( void  )

Pop extension bit.

Returns
the extension bit

Definition at line 96 of file lte-rlc-header.cc.

References m_extensionBits.

Referenced by ns3::LteRlcUm::ReassembleAndDeliver().

+ Here is the caller graph for this function:

uint16_t ns3::LteRlcHeader::PopLengthIndicator ( void  )

Pop length indicator.

Returns
the length indicator

Definition at line 105 of file lte-rlc-header.cc.

References m_lengthIndicators.

Referenced by ns3::LteRlcUm::ReassembleAndDeliver().

+ Here is the caller graph for this function:

void ns3::LteRlcHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 131 of file lte-rlc-header.cc.

References m_extensionBits, m_framingInfo, m_headerLength, m_lengthIndicators, and m_sequenceNumber.

void ns3::LteRlcHeader::PushExtensionBit ( uint8_t  extensionBit)

Push extension bit.

Parameters
extensionBitthe extension bit

Definition at line 71 of file lte-rlc-header.cc.

References m_extensionBits, and m_headerLength.

void ns3::LteRlcHeader::PushLengthIndicator ( uint16_t  lengthIndicator)

Push length indicator.

Parameters
lengthIndicatorthe length indicator

Definition at line 89 of file lte-rlc-header.cc.

References m_lengthIndicators.

void ns3::LteRlcHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 168 of file lte-rlc-header.cc.

References ns3::SequenceNumber10::GetValue(), m_extensionBits, m_framingInfo, m_lengthIndicators, m_sequenceNumber, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

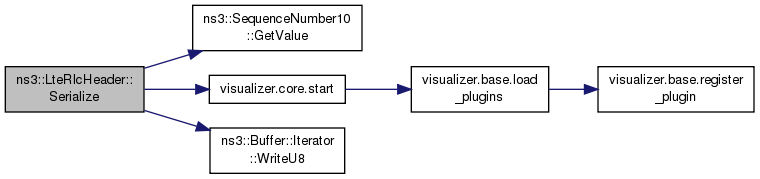

+ Here is the call graph for this function:

void ns3::LteRlcHeader::SetFramingInfo ( uint8_t  framingInfo)

Set framing info.

Parameters
framingInfoframing info

Definition at line 46 of file lte-rlc-header.cc.

References m_framingInfo.

void ns3::LteRlcHeader::SetSequenceNumber ( SequenceNumber10  sequenceNumber)

Set sequence number.

Parameters
sequenceNumbersequence number

Definition at line 52 of file lte-rlc-header.cc.

References m_sequenceNumber.

Member Data Documentation

std::list<uint8_t> ns3::LteRlcHeader::m_extensionBits
private

Includes extensionBit of the fixed part.

Definition at line 138 of file lte-rlc-header.h.

Referenced by Deserialize(), PopExtensionBit(), Print(), PushExtensionBit(), and Serialize().

uint8_t ns3::LteRlcHeader::m_framingInfo
private

2 bits

Definition at line 135 of file lte-rlc-header.h.

Referenced by Deserialize(), GetFramingInfo(), Print(), Serialize(), SetFramingInfo(), and ~LteRlcHeader().

uint16_t ns3::LteRlcHeader::m_headerLength
private

header length

Definition at line 134 of file lte-rlc-header.h.

Referenced by Deserialize(), GetSerializedSize(), Print(), PushExtensionBit(), and ~LteRlcHeader().

std::list<uint16_t> ns3::LteRlcHeader::m_lengthIndicators
private

length indicators

Definition at line 139 of file lte-rlc-header.h.

Referenced by Deserialize(), PopLengthIndicator(), Print(), PushLengthIndicator(), and Serialize().

SequenceNumber10 ns3::LteRlcHeader::m_sequenceNumber
private

sequence number

Definition at line 136 of file lte-rlc-header.h.

Referenced by Deserialize(), GetSequenceNumber(), Print(), Serialize(), SetSequenceNumber(), and ~LteRlcHeader().
