ns3::LteUePhySapProvider Class Referenceabstract

Service Access Point (SAP) offered by the UE-PHY to the UE-MAC. More...

#include "lte-ue-phy-sap.h"

+ Inheritance diagram for ns3::LteUePhySapProvider:

Public Member Functions

virtual ~LteUePhySapProvider ()

virtual void SendLteControlMessage (Ptr< LteControlMessage > msg)=0
 Send SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel. More...

virtual void SendMacPdu (Ptr< Packet > p)=0
 Send the MAC PDU to the channel. More...

virtual void SendRachPreamble (uint32_t prachId, uint32_t raRnti)=0
 send a preamble on the PRACH More...


Detailed Description

Service Access Point (SAP) offered by the UE-PHY to the UE-MAC.

This is the PHY SAP Provider, i.e., the part of the SAP that contains the PHY methods called by the MAC

Definition at line 38 of file lte-ue-phy-sap.h.

Constructor & Destructor Documentation

ns3::LteUePhySapProvider::~LteUePhySapProvider ( )
virtual

Definition at line 28 of file lte-ue-phy-sap.cc.

Member Function Documentation

virtual void ns3::LteUePhySapProvider::SendLteControlMessage ( Ptr< LteControlMessage msg)
pure virtual

Send SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters
msgthe Ideal Control Message to send

Implemented in ns3::UeMemberLteUePhySapProvider.

Referenced by ns3::LteUeMac::SendReportBufferStatus().

+ Here is the caller graph for this function:

virtual void ns3::LteUePhySapProvider::SendMacPdu ( Ptr< Packet p)
pure virtual

Send the MAC PDU to the channel.

Parameters
pthe MAC PDU to send
Returns
true if

Implemented in ns3::UeMemberLteUePhySapProvider.

Referenced by ns3::LteUeMac::DoReceiveLteControlMessage(), and ns3::LteUeMac::DoTransmitPdu().

+ Here is the caller graph for this function:

virtual void ns3::LteUePhySapProvider::SendRachPreamble ( uint32_t  prachId,
uint32_t  raRnti
)
pure virtual

send a preamble on the PRACH

Parameters
prachIdthe ID of the preamble
raRntithe RA rnti

Implemented in ns3::UeMemberLteUePhySapProvider.

Referenced by ns3::LteUeMac::SendRaPreamble().

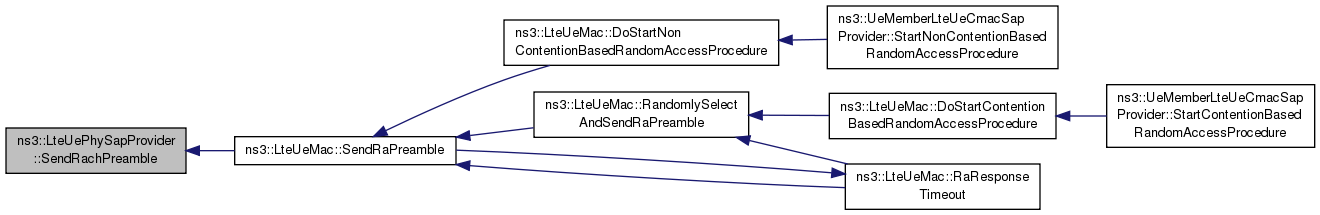

+ Here is the caller graph for this function:


The documentation for this class was generated from the following files:
