Template for the implementation of the LteUeRrcSapProvider as a member of an owner class of type C to which all methods are forwarded. More...

#include "lte-rrc-sap.h"

Inheritance diagram for ns3::MemberLteUeRrcSapProvider< C >:

Collaboration diagram for ns3::MemberLteUeRrcSapProvider< C >:

Public Member Functions
	MemberLteUeRrcSapProvider (C *owner)
	Constructor. More...

virtual void	CompleteSetup (CompleteSetupParameters params)
	Complete setup function. More...

virtual void	RecvRrcConnectionReconfiguration (RrcConnectionReconfiguration msg)
	Receive an RRCConnectionReconfiguration message from the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishment (RrcConnectionReestablishment msg)
	Receive an RRCConnectionReestablishment message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishmentReject (RrcConnectionReestablishmentReject msg)
	Receive an RRCConnectionReestablishmentReject message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionReject (RrcConnectionReject msg)
	Receive an RRCConnectionReject message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	RecvRrcConnectionRelease (RrcConnectionRelease msg)
	Receive an RRCConnectionRelease message from the serving eNodeB during an RRC connection release procedure (Section 5.3.8 of TS 36.331). More...

virtual void	RecvRrcConnectionSetup (RrcConnectionSetup msg)
	Receive an RRCConnectionSetup message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	RecvSystemInformation (SystemInformation msg)
	Receive a SystemInformation message from the serving eNodeB during a system information acquisition procedure (Section 5.2.2 of TS 36.331). More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Private Member Functions
	MemberLteUeRrcSapProvider ()

Private Attributes
C *	m_owner
	the owner class More...

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE, HANDOVER_FAILURE, OTHER_FAILURE }
	ReestablishmentCause enumeration. More...

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
	Convert PDSCH config dedicated function. More...

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 255
	Constraint values. More...

Detailed Description

template<class C>
class ns3::MemberLteUeRrcSapProvider< C >

Template for the implementation of the LteUeRrcSapProvider as a member of an owner class of type C to which all methods are forwarded.

Definition at line 1366 of file lte-rrc-sap.h.

Constructor & Destructor Documentation

template<class C >

ns3::MemberLteUeRrcSapProvider< C >::MemberLteUeRrcSapProvider ( C * owner )

Constructor.

Parameters

owner the owner class

Definition at line 1392 of file lte-rrc-sap.h.

template<class C >

ns3::MemberLteUeRrcSapProvider< C >::MemberLteUeRrcSapProvider ( )

private

Definition at line 1398 of file lte-rrc-sap.h.

Member Function Documentation

template<class C >

void ns3::MemberLteUeRrcSapProvider< C >::CompleteSetup ( CompleteSetupParameters params )

virtual

Complete setup function.

Parameters

params the complete setup parameters

Implements ns3::LteUeRrcSapProvider.

Definition at line 1404 of file lte-rrc-sap.h.

template<class C >

void ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReconfiguration ( RrcConnectionReconfiguration msg )

virtual

Receive an RRCConnectionReconfiguration message from the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapProvider.

Definition at line 1425 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

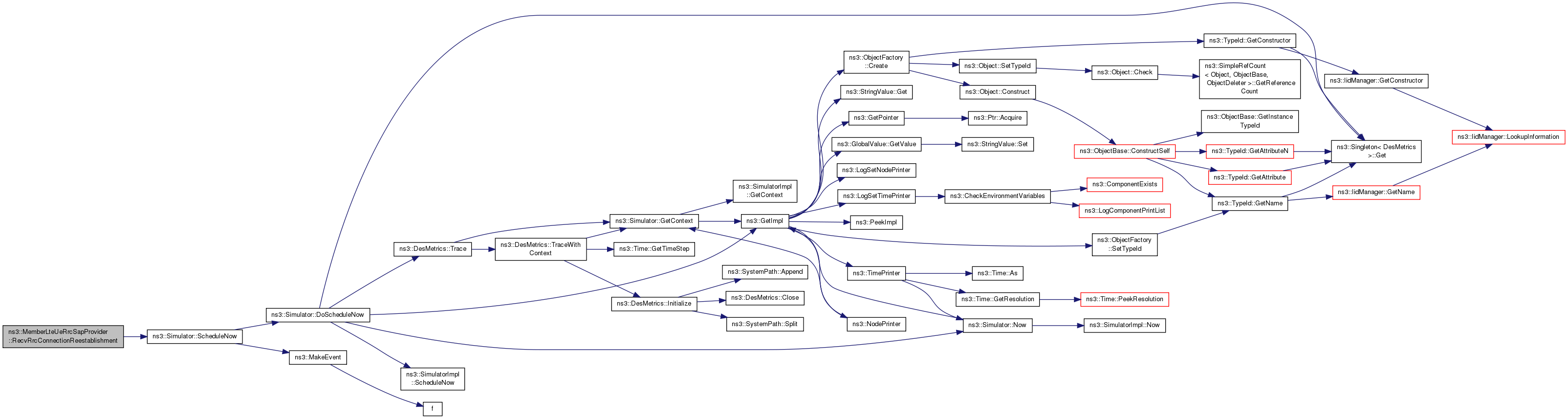

Here is the call graph for this function:

template<class C >

void ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReestablishment ( RrcConnectionReestablishment msg )

virtual

Receive an RRCConnectionReestablishment message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapProvider.

Definition at line 1432 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

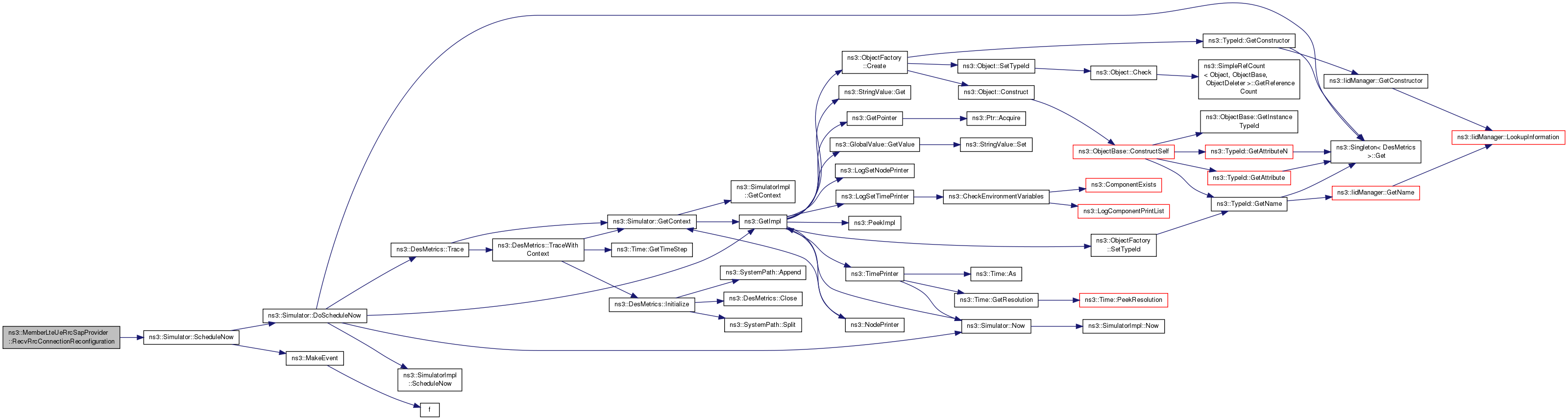

Here is the call graph for this function:

template<class C >

void ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReestablishmentReject ( RrcConnectionReestablishmentReject msg )

virtual

Receive an RRCConnectionReestablishmentReject message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapProvider.

Definition at line 1439 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

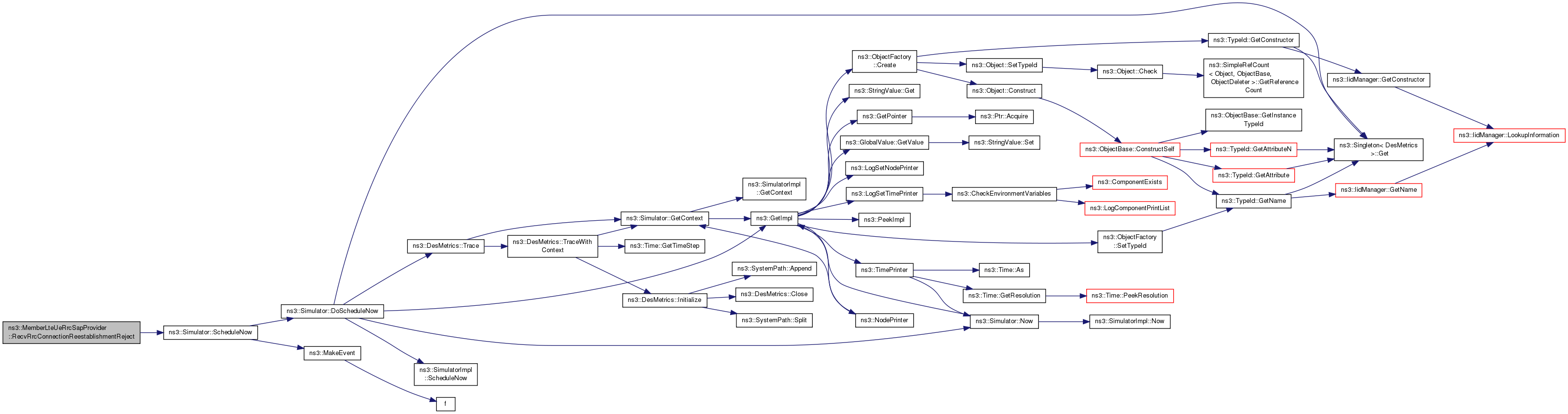

Here is the call graph for this function:

template<class C >

void ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReject ( RrcConnectionReject msg )

virtual

Receive an RRCConnectionReject message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapProvider.

Definition at line 1453 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionRelease ( RrcConnectionRelease msg )

virtual

Receive an RRCConnectionRelease message from the serving eNodeB during an RRC connection release procedure (Section 5.3.8 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapProvider.

Definition at line 1446 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionSetup ( RrcConnectionSetup msg )

virtual

Receive an RRCConnectionSetup message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapProvider.

Definition at line 1418 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteUeRrcSapProvider< C >::RecvSystemInformation ( SystemInformation msg )

virtual

Receive a SystemInformation message from the serving eNodeB during a system information acquisition procedure (Section 5.2.2 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapProvider.

Definition at line 1411 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

Member Data Documentation

template<class C>

C* ns3::MemberLteUeRrcSapProvider< C >::m_owner

private

the owner class

Definition at line 1388 of file lte-rrc-sap.h.

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
