Abstract class that concrete mpdu aggregators have to implement. More...
#include "mpdu-aggregator.h"

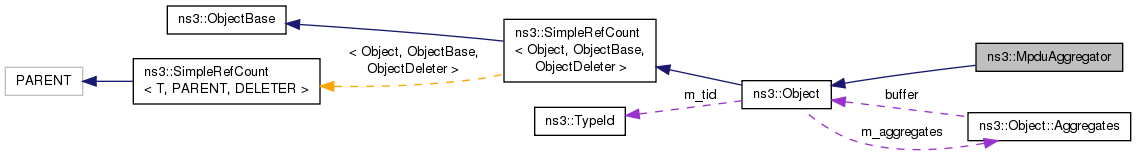

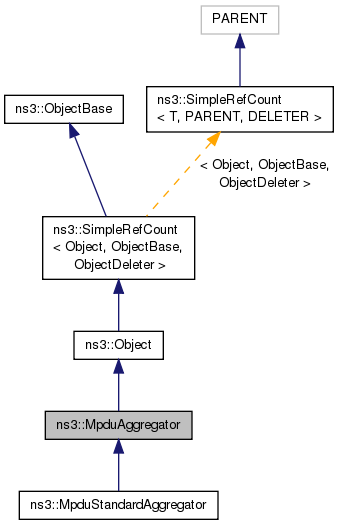

Inheritance diagram for ns3::MpduAggregator: Collaboration diagram for ns3::MpduAggregator:Public Types | |
| typedef std::list< std::pair< Ptr< Packet >, AmpduSubframeHeader > > | DeaggregatedMpdus |
| A list of deaggregated packets and their A-MPDU subframe headers. More... | |
| typedef std::list< std::pair< Ptr< Packet >, AmpduSubframeHeader > >::const_iterator | DeaggregatedMpdusCI |
| A constant iterator for a list of deaggregated packets and their A-MPDU subframe headers. More... | |
Public Member Functions | |
| virtual void | AddHeaderAndPad (Ptr< Packet > packet, bool last, bool isSingleMpdu) const =0 |
| virtual bool | Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket) const =0 |
| virtual void | AggregateSingleMpdu (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket) const =0 |
| virtual uint32_t | CalculatePadding (Ptr< const Packet > packet) const =0 |
| virtual bool | CanBeAggregated (uint32_t packetSize, Ptr< Packet > aggregatedPacket, uint8_t blockAckSize) const =0 |
| virtual uint32_t | GetMaxAmpduSize (void) const =0 |
| Returns the maximum A-MPDU size in bytes. More... | |
| virtual void | SetMaxAmpduSize (uint32_t maxSize)=0 |
| Sets the maximum A-MPDU size in bytes. More... | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| virtual | ~Object () |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose (void) |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| Get an iterator to the Objects aggregated to this one. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Get the most derived TypeId for this Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| Get a pointer to the requested aggregated Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. More... | |
| void | Initialize (void) |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| bool | IsInitialized (void) const |
| Check if the object has been initialized. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static DeaggregatedMpdus | Deaggregate (Ptr< Packet > aggregatedPacket) |
| Deaggregates an A-MPDU by removing the A-MPDU subframe header and padding. More... | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | DoDispose (void) |
| Destructor implementation. More... | |
| virtual void | DoInitialize (void) |
| Initialize() implementation. More... | |
| virtual void | NotifyNewAggregate (void) |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Abstract class that concrete mpdu aggregators have to implement.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).
Definition at line 36 of file mpdu-aggregator.h.
| typedef std::list<std::pair<Ptr<Packet>, AmpduSubframeHeader> > ns3::MpduAggregator::DeaggregatedMpdus |
A list of deaggregated packets and their A-MPDU subframe headers.
Definition at line 42 of file mpdu-aggregator.h.
| typedef std::list<std::pair<Ptr<Packet>, AmpduSubframeHeader> >::const_iterator ns3::MpduAggregator::DeaggregatedMpdusCI |
A constant iterator for a list of deaggregated packets and their A-MPDU subframe headers.
Definition at line 46 of file mpdu-aggregator.h.
|
pure virtual |
| packet | the packet we want to insert into aggregatedPacket. |
| last | true if it is the last packet. |
| isSingleMpdu | true if it is a single MPDU |
Adds A-MPDU subframe header and padding to each MPDU that is part of an A-MPDU before it is sent.
Implemented in ns3::MpduStandardAggregator.
|
pure virtual |
| packet | Packet we have to insert into aggregatedPacket. |
| aggregatedPacket | Packet that will contain packet, if aggregation is possible. |
Adds packet to aggregatedPacket. In concrete aggregator's implementation is specified how and if packet can be added to aggregatedPacket.
Implemented in ns3::MpduStandardAggregator.
|
pure virtual |
| packet | the packet we want to insert into aggregatedPacket. |
| aggregatedPacket | packet that will contain the packet of size packetSize, if aggregation is possible. |
This method performs a VHT/HE single MPDU aggregation.
Implemented in ns3::MpduStandardAggregator.
|
pure virtual |
| packet | the Packet |
Calculates how much padding must be added to the end of an aggregated packet, after that a new packet is added. Each A-MPDU subframe is padded so that its length is multiple of 4 octets.
Implemented in ns3::MpduStandardAggregator.
|
pure virtual |
| packetSize | size of the packet we want to insert into aggregatedPacket. |
| aggregatedPacket | packet that will contain the packet of size packetSize, if aggregation is possible. |
| blockAckSize | size of the piggybacked block ack request |
This method is used to determine if a packet could be aggregated to an A-MPDU without exceeding the maximum packet size.
Implemented in ns3::MpduStandardAggregator.
|
static |
Deaggregates an A-MPDU by removing the A-MPDU subframe header and padding.
| aggregatedPacket | the aggregated packet |
Definition at line 42 of file mpdu-aggregator.cc.
References ns3::Packet::CreateFragment(), ns3::AmpduSubframeHeader::GetLength(), ns3::Packet::GetSize(), NS_LOG_FUNCTION_NOARGS, NS_LOG_INFO, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().
Referenced by ns3::MacLow::DeaggregateAmpduAndReceive().

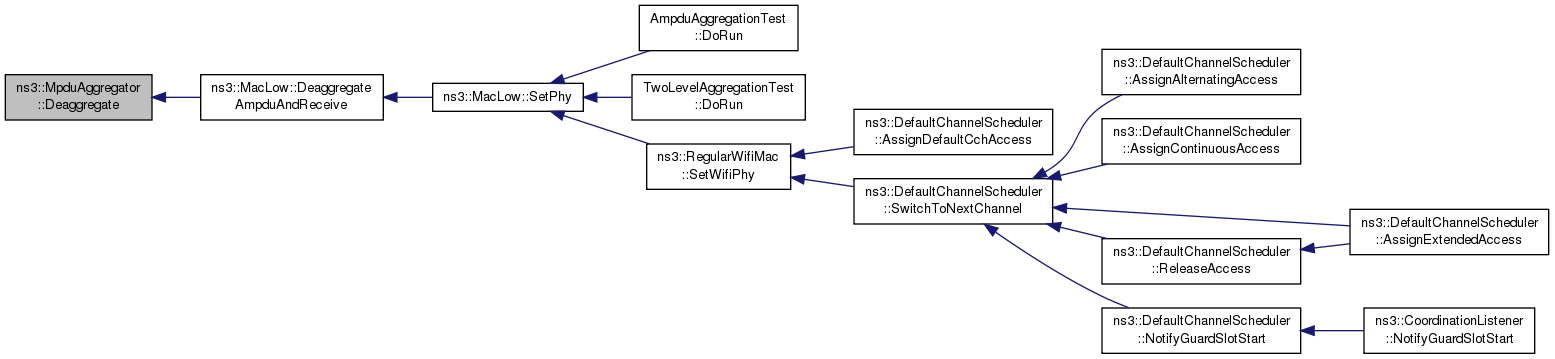

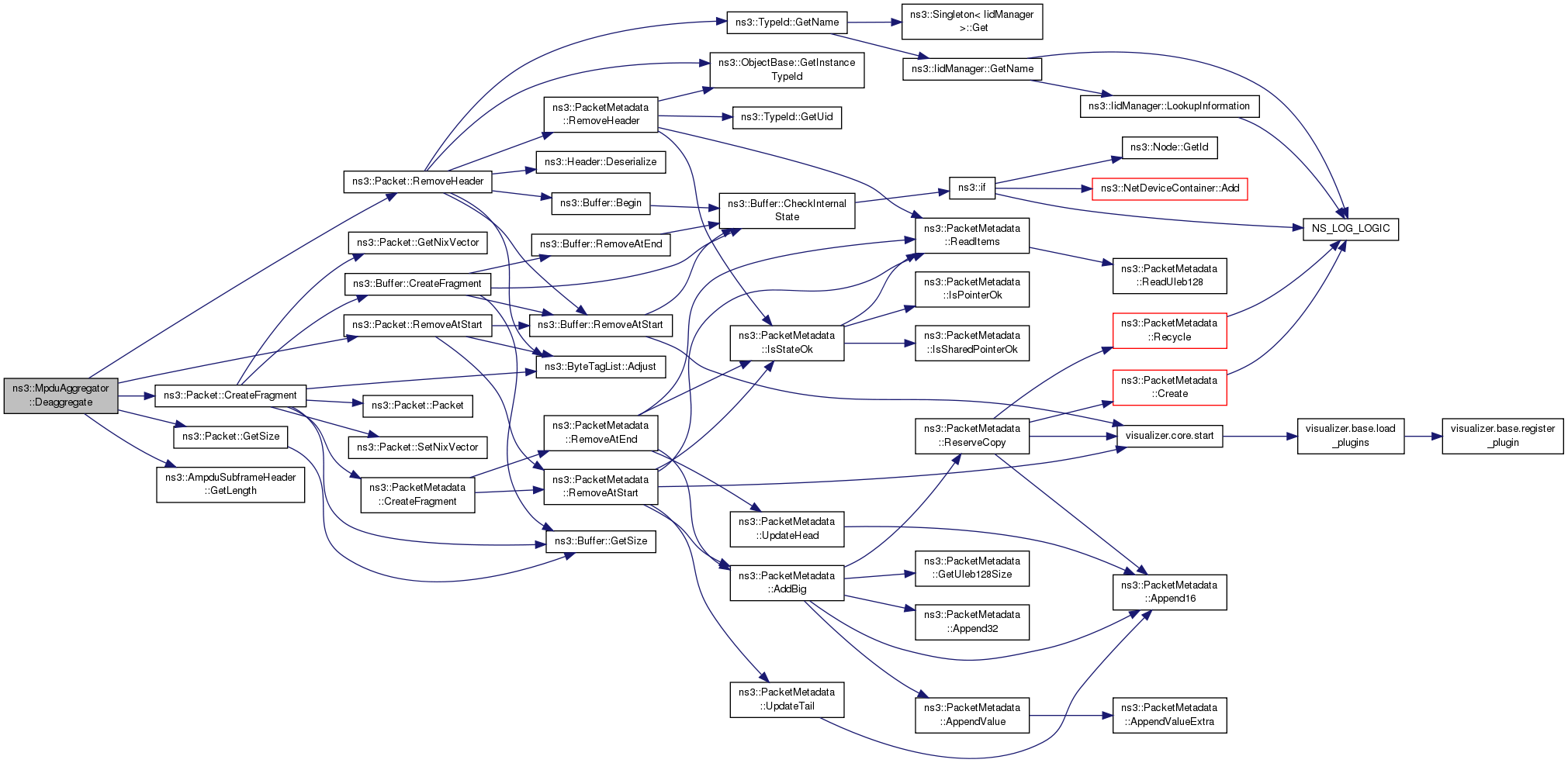

Here is the call graph for this function: Here is the caller graph for this function:
|
pure virtual |
Returns the maximum A-MPDU size in bytes.
Value 0 means that MPDU aggregation is disabled.
Implemented in ns3::MpduStandardAggregator.
Referenced by ns3::EdcaTxopN::NeedFragmentation(), ns3::EdcaTxopN::SetupBlockAckIfNeeded(), and ns3::EdcaTxopN::VerifyBlockAck().

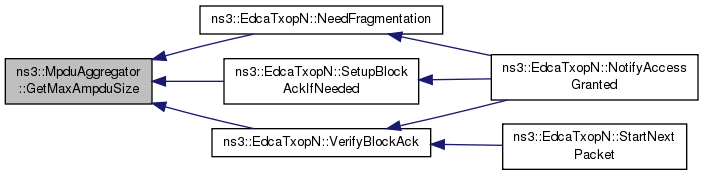

Here is the caller graph for this function:
|
static |
Get the type ID.
Definition at line 31 of file mpdu-aggregator.cc.
References ns3::TypeId::SetParent().

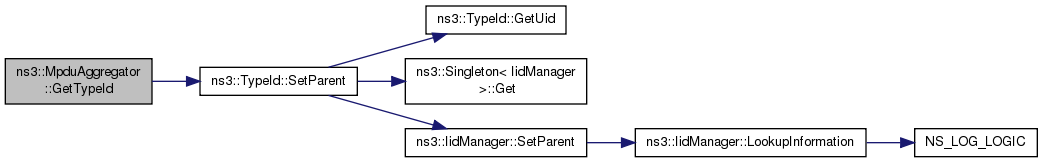

Here is the call graph for this function:
|
pure virtual |
Sets the maximum A-MPDU size in bytes.
Value 0 means that MPDU aggregation is disabled.
| maxSize | the maximum A-MPDU size in bytes. |
Implemented in ns3::MpduStandardAggregator.
Referenced by ns3::RegularWifiMac::ConfigureAggregation().

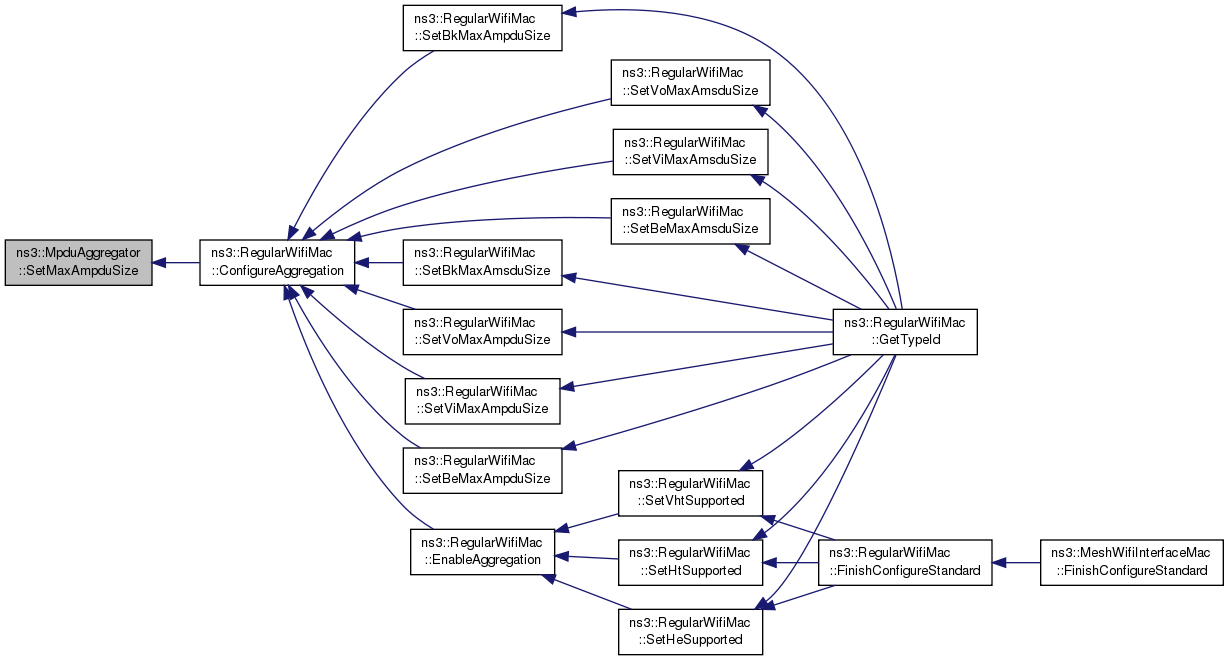

Here is the caller graph for this function:
