Abstract class that concrete msdu aggregators have to implement. More...

#include "msdu-aggregator.h"

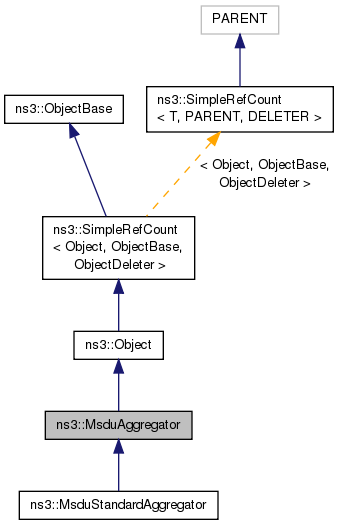

Inheritance diagram for ns3::MsduAggregator:

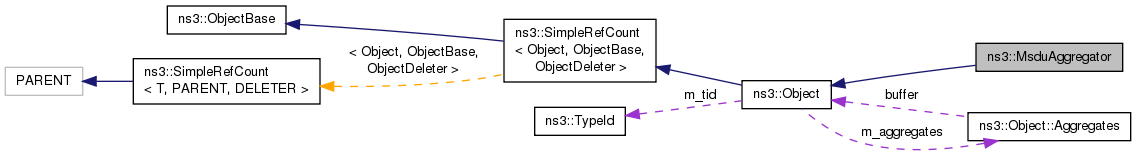

Collaboration diagram for ns3::MsduAggregator:

Public Types
typedef std::list< std::pair< Ptr< Packet >, AmsduSubframeHeader > >	DeaggregatedMsdus
	DeaggregatedMsdus typedef. More...

typedef std::list< std::pair< Ptr< Packet >, AmsduSubframeHeader > >::const_iterator	DeaggregatedMsdusCI
	DeaggregatedMsdusCI typedef. More...

Public Member Functions
virtual bool	Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket, Mac48Address src, Mac48Address dest) const =0
	Adds packet to aggregatedPacket. More...

virtual uint32_t	GetMaxAmsduSize (void) const =0
	Returns the maximum A-MSDU size in bytes. More...

virtual void	SetMaxAmsduSize (uint32_t maxSize)=0
	Sets the maximum A-MSDU size in bytes. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static DeaggregatedMsdus	Deaggregate (Ptr< Packet > aggregatedPacket)

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Abstract class that concrete msdu aggregators have to implement.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 36 of file msdu-aggregator.h.

Member Typedef Documentation

typedef std::list<std::pair<Ptr<Packet>, AmsduSubframeHeader> > ns3::MsduAggregator::DeaggregatedMsdus

DeaggregatedMsdus typedef.

Definition at line 40 of file msdu-aggregator.h.

typedef std::list<std::pair<Ptr<Packet>, AmsduSubframeHeader> >::const_iterator ns3::MsduAggregator::DeaggregatedMsdusCI

DeaggregatedMsdusCI typedef.

Definition at line 42 of file msdu-aggregator.h.

Member Function Documentation

virtual bool ns3::MsduAggregator::Aggregate	(	Ptr< const Packet >	packet,
		Ptr< Packet >	aggregatedPacket,
		Mac48Address	src,
		Mac48Address	dest
	)		const

pure virtual

Adds packet to aggregatedPacket.

In concrete aggregator's implementation is specified how and if packet can be added to aggregatedPacket. If packet can be added returns true, false otherwise.

Parameters
