A record that holds information about a NdiscCache entry. More...

#include "ndisc-cache.h"

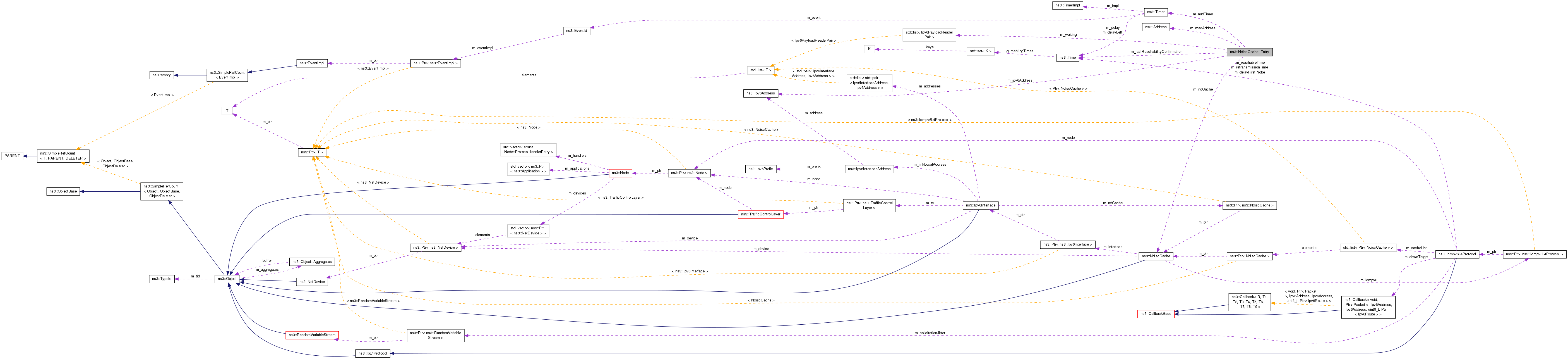

Collaboration diagram for ns3::NdiscCache::Entry:

Public Member Functions
	Entry (NdiscCache *nd)
	Constructor. More...

void	AddWaitingPacket (Ipv6PayloadHeaderPair p)
	Add a packet (or replace old value) in the queue. More...

void	ClearWaitingPacket ()
	Clear the waiting packet list. More...

void	FunctionDelayTimeout ()
	Function called when delay timer timeout. More...

void	FunctionProbeTimeout ()
	Function called when probe timer timeout. More...

void	FunctionReachableTimeout ()
	Function called when reachable timer timeout. More...

void	FunctionRetransmitTimeout ()
	Function called when retransmit timer timeout. More...

Time	GetLastReachabilityConfirmation () const
	Get the time of last reachability confirmation. More...

Address	GetMacAddress () const
	Get the MAC address of this entry. More...

bool	IsDelay () const
	Is the entry DELAY. More...

bool	IsIncomplete () const
	Is the entry INCOMPLETE. More...

bool	IsPermanent () const
	Is the entry PERMANENT. More...

bool	IsProbe () const
	Is the entry PROBE. More...

bool	IsReachable () const
	Is the entry REACHABLE. More...

bool	IsRouter () const
	If the entry is a host or a router. More...

bool	IsStale () const
	Is the entry STALE. More...

void	MarkDelay ()
	Change the state to this entry to DELAY. More...

void	MarkIncomplete (Ipv6PayloadHeaderPair p)
	Changes the state to this entry to INCOMPLETE. More...

void	MarkPermanent ()
	Change the state to this entry to PERMANENT. More...

void	MarkProbe ()
	Changes the state to this entry to PROBE. More...

std::list< Ipv6PayloadHeaderPair >	MarkReachable (Address mac)
	Changes the state to this entry to REACHABLE. More...

void	MarkReachable ()
	Changes the state to this entry to REACHABLE. More...

std::list< Ipv6PayloadHeaderPair >	MarkStale (Address mac)
	Changes the state to this entry to STALE. More...

void	MarkStale ()
	Changes the state to this entry to STALE. More...

void	SetIpv6Address (Ipv6Address ipv6Address)
	Set the IPv6 address. More...

void	SetMacAddress (Address mac)
	Set the MAC address of this entry. More...

void	SetRouter (bool router)
	Set the node type. More...

void	StartDelayTimer ()
	Start delay timer. More...

void	StartProbeTimer ()
	Start probe timer. More...

void	StartReachableTimer ()
	Start the reachable timer. More...

void	StartRetransmitTimer ()
	Start retransmit timer. More...

void	StopNudTimer ()
	Stop NUD timer and reset the NUD retransmission counter. More...

void	UpdateReachableTimer ()
	Update the reachable timer. More...

Private Types
enum	NdiscCacheEntryState_e { INCOMPLETE, REACHABLE, STALE, DELAY, PROBE, PERMANENT }
	The Entry state enumeration. More...

Private Attributes
Ipv6Address	m_ipv6Address
	The IPv6 address. More...

Time	m_lastReachabilityConfirmation
	Last time we see a reachability confirmation. More...

Address	m_macAddress
	The MAC address. More...

NdiscCache *	m_ndCache
	the NdiscCache associated. More...

uint8_t	m_nsRetransmit
	Number of NS retransmission. More...

Timer	m_nudTimer
	Timer (used for NUD). More...

bool	m_router
	Type of node (router or host). More...

NdiscCacheEntryState_e	m_state
	The state of the entry. More...

std::list< Ipv6PayloadHeaderPair >	m_waiting
	The list of packet waiting. More...

Detailed Description

A record that holds information about a NdiscCache entry.

Definition at line 156 of file ndisc-cache.h.

Constructor & Destructor Documentation

ns3::NdiscCache::Entry::Entry ( NdiscCache * nd )

Constructor.

Parameters

nd	The NdiscCache this entry belongs to.

Definition at line 224 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void ns3::NdiscCache::Entry::AddWaitingPacket ( Ipv6PayloadHeaderPair p )

Add a packet (or replace old value) in the queue.

Parameters

p	packet to add

Todo:: report packet as 'dropped'

Definition at line 247 of file ndisc-cache.cc.

References ns3::NdiscCache::m_ndCache, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

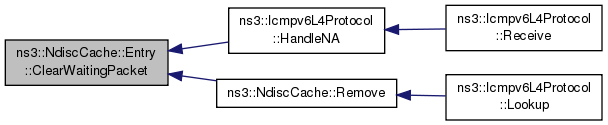

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::ClearWaitingPacket ( )

Clear the waiting packet list.

Todo:: report packets as 'dropped'

Definition at line 260 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), and ns3::NdiscCache::Remove().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::FunctionDelayTimeout ( )

Function called when delay timer timeout.

Definition at line 322 of file ndisc-cache.cc.

References ns3::Ipv6Address::IsAny(), ns3::NdiscCache::m_ndCache, NS_LOG_FUNCTION_NOARGS, and ns3::Ipv6L3Protocol::PROT_NUMBER.

Referenced by StartDelayTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::FunctionProbeTimeout ( )

Function called when probe timer timeout.

Definition at line 357 of file ndisc-cache.cc.

References ns3::Ipv6Address::IsAny(), ns3::NdiscCache::m_icmpv6, ns3::NdiscCache::m_ndCache, NS_LOG_FUNCTION_NOARGS, and ns3::Ipv6L3Protocol::PROT_NUMBER.

Referenced by StartProbeTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::FunctionReachableTimeout ( )

Function called when reachable timer timeout.

Definition at line 267 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by StartReachableTimer().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::FunctionRetransmitTimeout ( )

Function called when retransmit timer timeout.

It verify that the NS retransmit has reached the max so discard the entry otherwise it retransmit a NS.

Definition at line 273 of file ndisc-cache.cc.

References ns3::Icmpv6Header::ICMPV6_ADDR_UNREACHABLE, ns3::Ipv6Address::IsAny(), ns3::NdiscCache::m_icmpv6, ns3::NdiscCache::m_ndCache, ns3::Ipv6Address::MakeSolicitedAddress(), and NS_LOG_FUNCTION_NOARGS.

Referenced by StartRetransmitTimer().

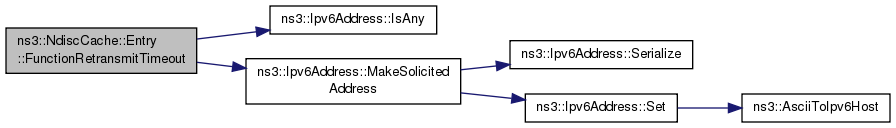

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::NdiscCache::Entry::GetLastReachabilityConfirmation ( ) const

Get the time of last reachability confirmation.

Returns: time

Definition at line 408 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Address ns3::NdiscCache::Entry::GetMacAddress ( void ) const

Get the MAC address of this entry.

Returns: the L2 address

Definition at line 583 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::HandleRS(), ns3::Icmpv6L4Protocol::Lookup(), and ns3::NdiscCache::LookupInverse().

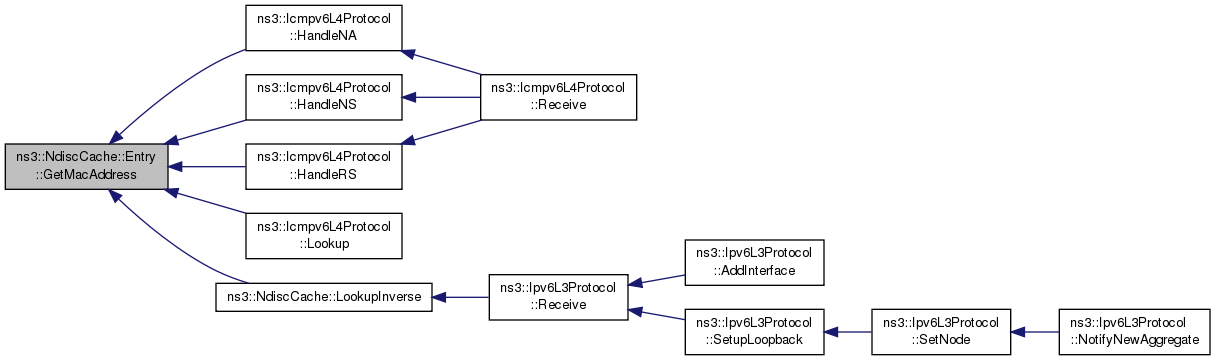

Here is the caller graph for this function:

bool ns3::NdiscCache::Entry::IsDelay ( ) const

Is the entry DELAY.

Returns: true if the entry is in DELAY state, false otherwise

Definition at line 559 of file ndisc-cache.cc.

References DELAY, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

bool ns3::NdiscCache::Entry::IsIncomplete ( ) const

Is the entry INCOMPLETE.

Returns: true if the entry is in INCOMPLETE state, false otherwise

Definition at line 565 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

bool ns3::NdiscCache::Entry::IsPermanent ( void ) const

Is the entry PERMANENT.

Returns: true if the entry is in PERMANENT state, false otherwise

Definition at line 577 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), and ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

bool ns3::NdiscCache::Entry::IsProbe ( ) const

Is the entry PROBE.

Returns: true if the entry is in PROBE state, false otherwise

Definition at line 571 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

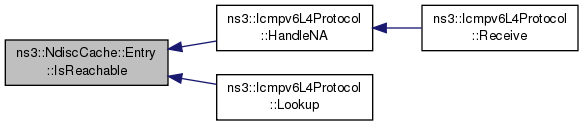

bool ns3::NdiscCache::Entry::IsReachable ( ) const

Is the entry REACHABLE.

Returns: true if the entry is in REACHABLE state, false otherwise

Definition at line 553 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), and ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

bool ns3::NdiscCache::Entry::IsRouter ( ) const

If the entry is a host or a router.

Returns: true if the node is a router, 0 if it is a host

Definition at line 241 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

bool ns3::NdiscCache::Entry::IsStale ( ) const

Is the entry STALE.

Returns: true if the entry is in STALE state, false otherwise

Definition at line 547 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkDelay ( )

Change the state to this entry to DELAY.

Definition at line 534 of file ndisc-cache.cc.

References DELAY, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkIncomplete ( Ipv6PayloadHeaderPair p )

Changes the state to this entry to INCOMPLETE.

Parameters

p	packet that wait to be sent

Definition at line 489 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkPermanent ( void )

Change the state to this entry to PERMANENT.

Definition at line 540 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

void ns3::NdiscCache::Entry::MarkProbe ( )

Changes the state to this entry to PROBE.

Definition at line 508 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

std::list< NdiscCache::Ipv6PayloadHeaderPair > ns3::NdiscCache::Entry::MarkReachable ( Address mac )

Changes the state to this entry to REACHABLE.

Parameters

mac	MAC address

Returns: the list of packet waiting

Definition at line 500 of file ndisc-cache.cc.

References third::mac, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkReachable ( )

Changes the state to this entry to REACHABLE.

Definition at line 520 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

std::list< NdiscCache::Ipv6PayloadHeaderPair > ns3::NdiscCache::Entry::MarkStale ( Address mac )

Changes the state to this entry to STALE.

Parameters

mac	L2 address

Returns: the list of packet waiting

Definition at line 526 of file ndisc-cache.cc.

References third::mac, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), and ns3::Icmpv6L4Protocol::HandleRS().

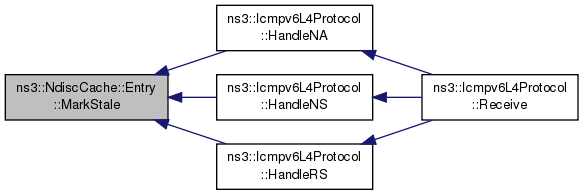

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkStale ( )

Changes the state to this entry to STALE.

Definition at line 514 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

void ns3::NdiscCache::Entry::SetIpv6Address ( Ipv6Address ipv6Address )

Set the IPv6 address.

Parameters

ipv6Address IPv6 address

Definition at line 402 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

void ns3::NdiscCache::Entry::SetMacAddress ( Address mac )

Set the MAC address of this entry.

Parameters

mac	the MAC address to set

Definition at line 589 of file ndisc-cache.cc.

References third::mac, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::SetRouter ( bool router )

Set the node type.

Parameters

router true is a router, false means a host

Definition at line 235 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::HandleRedirection(), ns3::Icmpv6L4Protocol::HandleRS(), ns3::Icmpv6L4Protocol::Lookup(), and ns3::Icmpv6L4Protocol::ReceiveLLA().

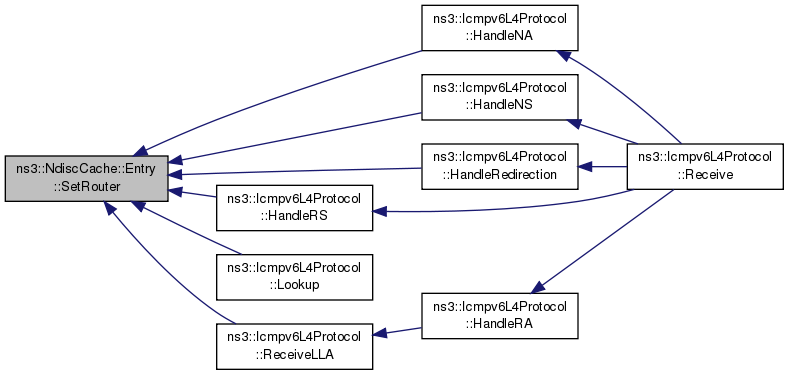

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::StartDelayTimer ( )

Start delay timer.

Definition at line 456 of file ndisc-cache.cc.

References FunctionDelayTimeout(), ns3::NdiscCache::m_ndCache, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

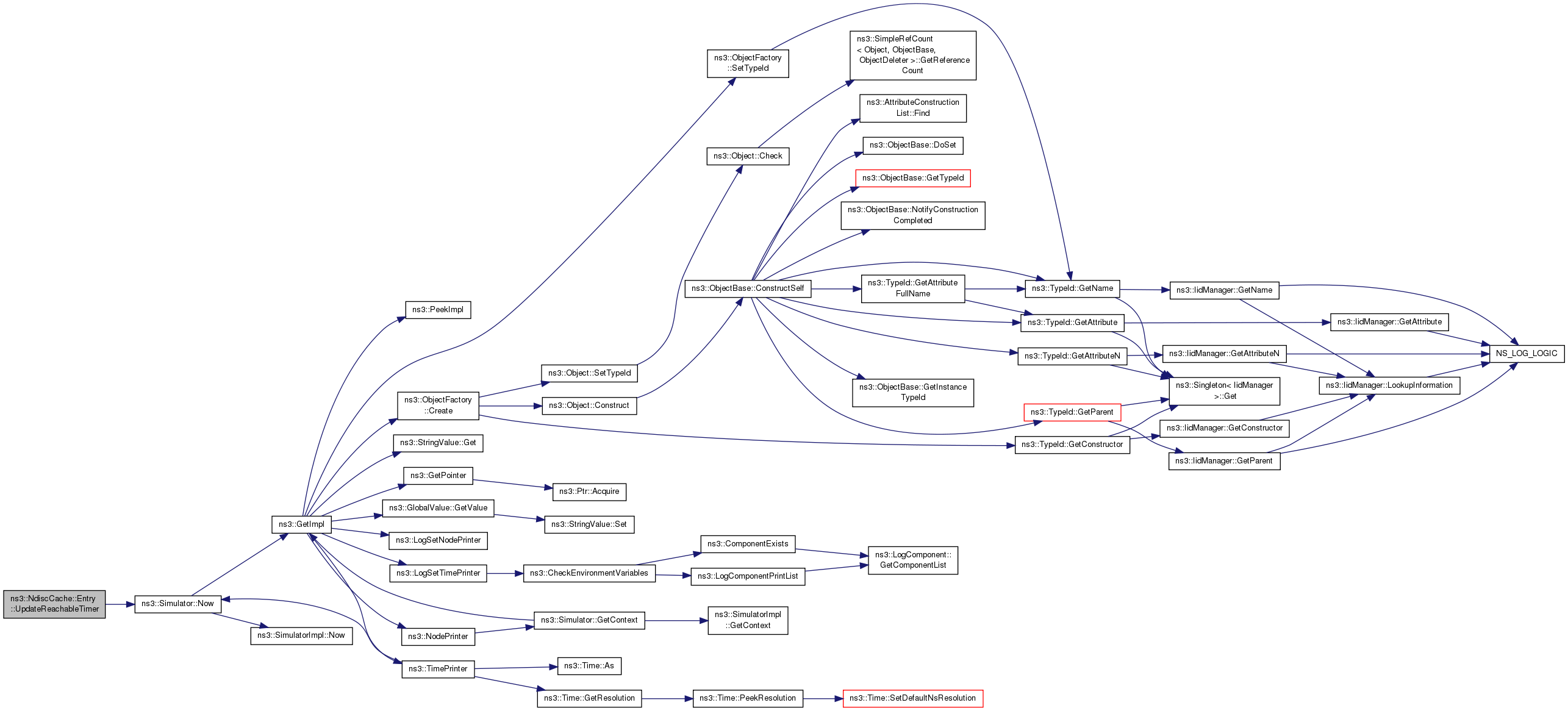

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::StartProbeTimer ( )

Start probe timer.

Definition at line 443 of file ndisc-cache.cc.

References FunctionProbeTimeout(), ns3::NdiscCache::m_ndCache, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::NdiscCache::Entry::StartReachableTimer ( )

Start the reachable timer.

Definition at line 414 of file ndisc-cache.cc.

References FunctionReachableTimeout(), ns3::NdiscCache::m_ndCache, ns3::Simulator::Now(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

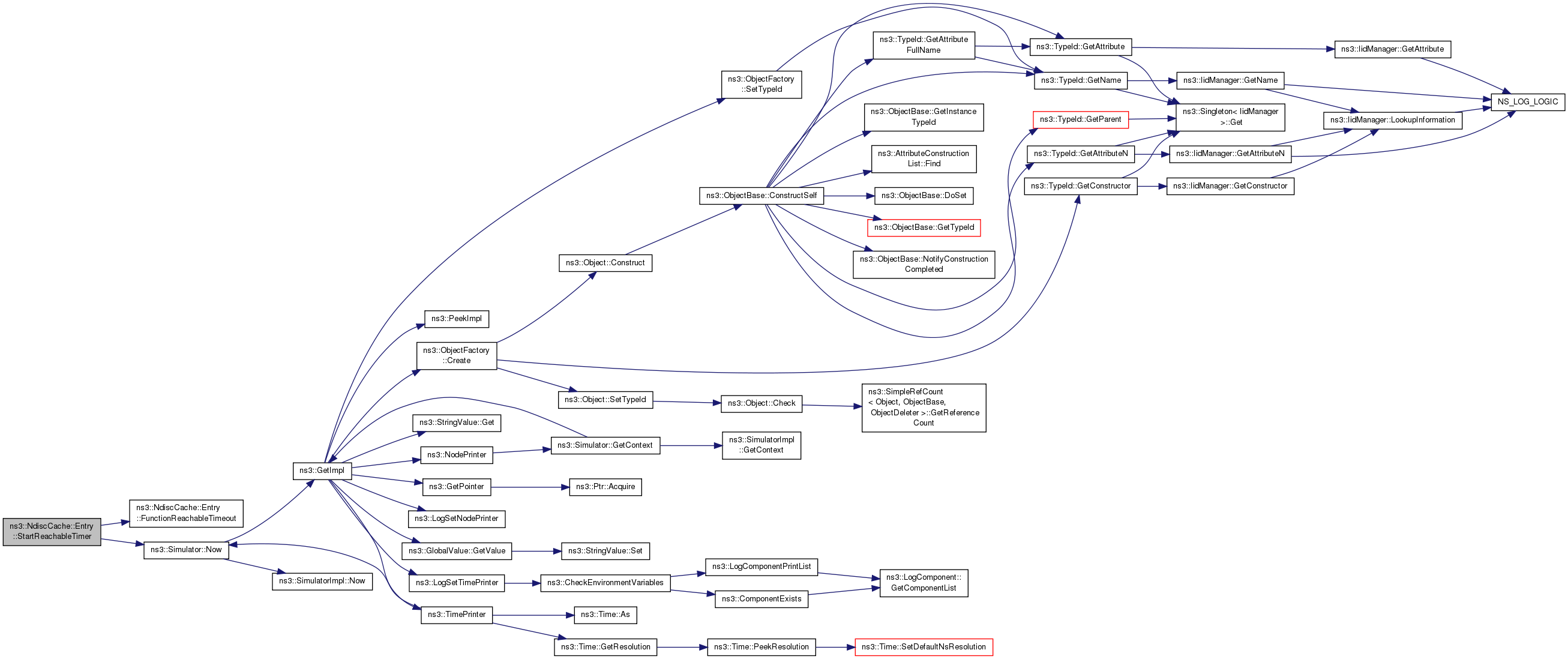

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::StartRetransmitTimer ( )

Start retransmit timer.

Definition at line 469 of file ndisc-cache.cc.

References FunctionRetransmitTimeout(), ns3::NdiscCache::m_ndCache, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

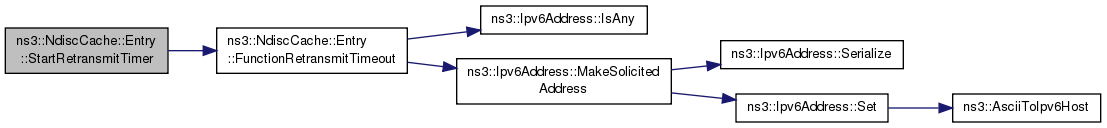

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::StopNudTimer ( )

Stop NUD timer and reset the NUD retransmission counter.

Definition at line 482 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::UpdateReachableTimer ( )

Update the reachable timer.

Definition at line 428 of file ndisc-cache.cc.

References ns3::Simulator::Now(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::Receive().

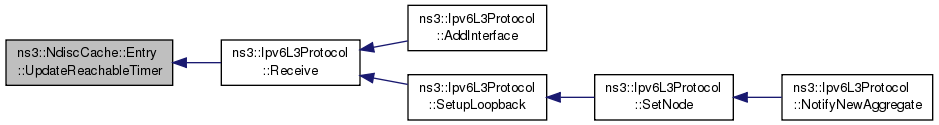

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Ipv6Address ns3::NdiscCache::Entry::m_ipv6Address

private

The IPv6 address.

Definition at line 349 of file ndisc-cache.h.

Time ns3::NdiscCache::Entry::m_lastReachabilityConfirmation

private

Last time we see a reachability confirmation.

Definition at line 397 of file ndisc-cache.h.

Address ns3::NdiscCache::Entry::m_macAddress

private

The MAC address.

Definition at line 377 of file ndisc-cache.h.

NdiscCache* ns3::NdiscCache::Entry::m_ndCache

private

the NdiscCache associated.

Definition at line 372 of file ndisc-cache.h.

uint8_t ns3::NdiscCache::Entry::m_nsRetransmit

private

Number of NS retransmission.

Definition at line 402 of file ndisc-cache.h.

Timer ns3::NdiscCache::Entry::m_nudTimer

private

Timer (used for NUD).

Definition at line 392 of file ndisc-cache.h.

bool ns3::NdiscCache::Entry::m_router

private

Type of node (router or host).

Definition at line 387 of file ndisc-cache.h.

NdiscCacheEntryState_e ns3::NdiscCache::Entry::m_state

private

The state of the entry.

Definition at line 367 of file ndisc-cache.h.

std::list<Ipv6PayloadHeaderPair> ns3::NdiscCache::Entry::m_waiting

private

The list of packet waiting.

Definition at line 382 of file ndisc-cache.h.

The documentation for this class was generated from the following files:

src/internet/model/ndisc-cache.h
src/internet/model/ndisc-cache.cc

Public Member Functions

Private Types

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
