A class to keep track of the packet originator status. More...

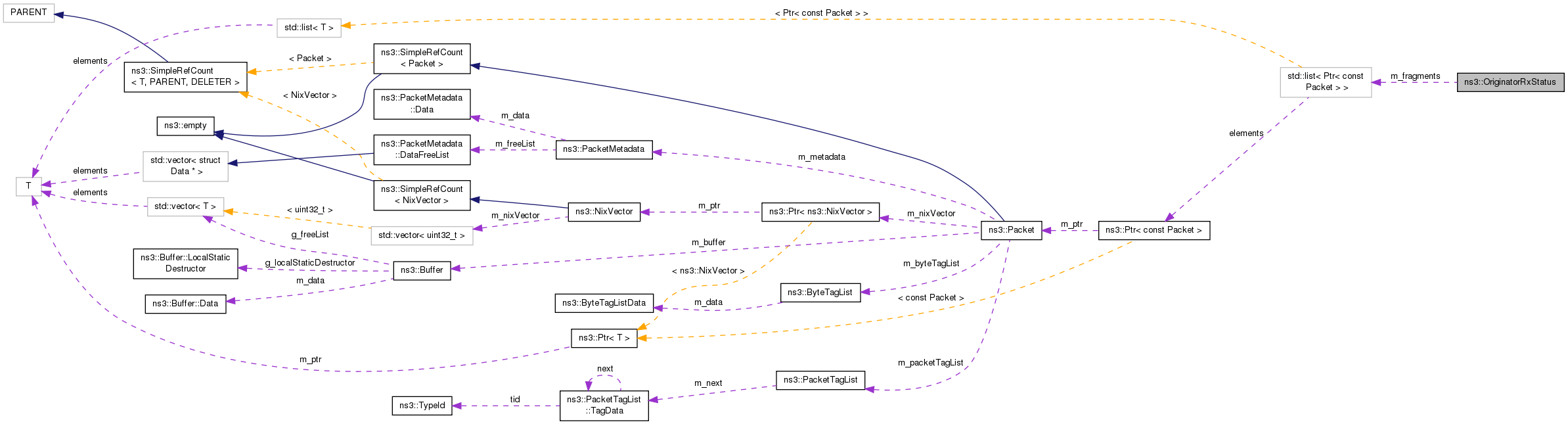

Collaboration diagram for ns3::OriginatorRxStatus:

Public Member Functions
	OriginatorRxStatus ()

	~OriginatorRxStatus ()

void	AccumulateFirstFragment (Ptr< const Packet > packet)
	We have received a first fragmented packet. More...

void	AccumulateFragment (Ptr< const Packet > packet)
	We received a fragmented packet (not first and not last). More...

Ptr< Packet >	AccumulateLastFragment (Ptr< const Packet > packet)
	We have received a last fragment of the fragmented packets (indicated by the no more fragment field). More...

uint16_t	GetLastSequenceControl (void) const
	Return the last sequence control we received. More...

bool	IsDeFragmenting (void) const
	Check if we are de-fragmenting packets. More...

bool	IsNextFragment (uint16_t sequenceControl) const
	Check if the sequence control (i.e. More...

void	SetSequenceControl (uint16_t sequenceControl)
	Set the last sequence control we received. More...

Private Types
typedef std::list< Ptr< const Packet > >	Fragments
	typedef for a list of fragments (i.e. More...

typedef std::list< Ptr< const Packet > >::const_iterator	FragmentsCI
	typedef for a const iterator for Fragments More...

Private Attributes
bool	m_defragmenting
	flag to indicate whether we are defragmenting More...

Fragments	m_fragments
	fragments More...

uint16_t	m_lastSequenceControl
	last sequence control More...

Detailed Description

A class to keep track of the packet originator status.

It recomposes the packet from multiple fragments.

Definition at line 34 of file mac-rx-middle.cc.

Member Typedef Documentation

typedef std::list<Ptr<const Packet> > ns3::OriginatorRxStatus::Fragments

private

typedef for a list of fragments (i.e.

incomplete Packet).

Definition at line 40 of file mac-rx-middle.cc.

typedef std::list<Ptr<const Packet> >::const_iterator ns3::OriginatorRxStatus::FragmentsCI

private

typedef for a const iterator for Fragments

Definition at line 44 of file mac-rx-middle.cc.

Constructor & Destructor Documentation

ns3::OriginatorRxStatus::OriginatorRxStatus ( )

inline

Definition at line 52 of file mac-rx-middle.cc.

ns3::OriginatorRxStatus::~OriginatorRxStatus ( )

inline

Definition at line 58 of file mac-rx-middle.cc.

Member Function Documentation

void ns3::OriginatorRxStatus::AccumulateFirstFragment ( Ptr< const Packet > packet )

inline

We have received a first fragmented packet.

We start the deframentation by saving the first fragment.

Parameters

packet the first fragmented packet

Definition at line 78 of file mac-rx-middle.cc.

References NS_ASSERT.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

void ns3::OriginatorRxStatus::AccumulateFragment ( Ptr< const Packet > packet )

inline

We received a fragmented packet (not first and not last).

We simply save it into our internal list.

Parameters

packet the received fragment

Definition at line 113 of file mac-rx-middle.cc.

References NS_ASSERT.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

Ptr<Packet> ns3::OriginatorRxStatus::AccumulateLastFragment ( Ptr< const Packet > packet )

inline

We have received a last fragment of the fragmented packets (indicated by the no more fragment field).

We re-construct the packet from the fragments we saved and return the full packet.

Parameters

packet the last fragment

Returns: the fully reconstructed packet

Definition at line 94 of file mac-rx-middle.cc.

References ns3::Packet::AddAtEnd(), and NS_ASSERT.

Referenced by ns3::MacRxMiddle::HandleFragments().

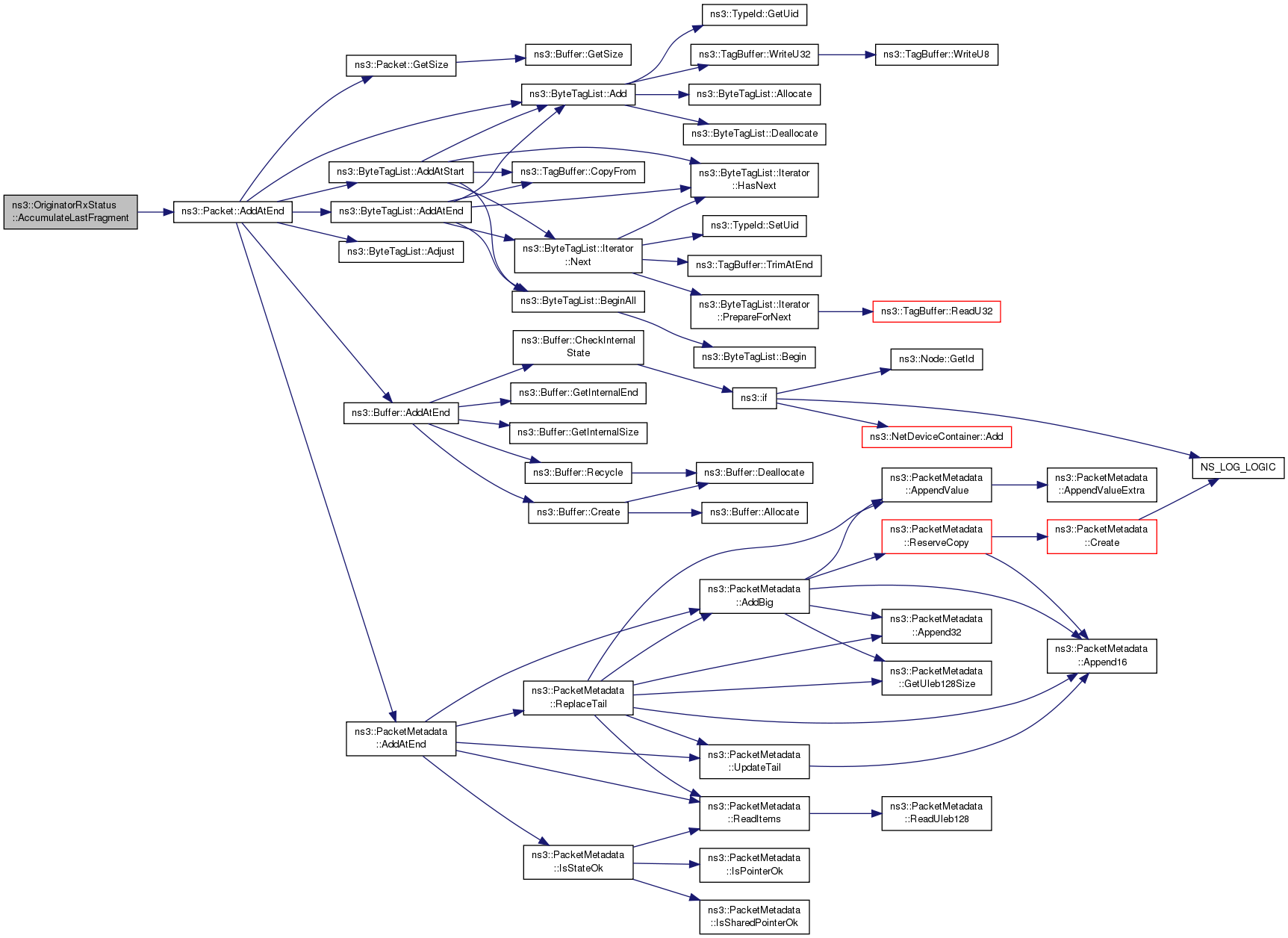

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::OriginatorRxStatus::GetLastSequenceControl ( void ) const

inline

Return the last sequence control we received.

Returns: the last sequence control

Definition at line 144 of file mac-rx-middle.cc.

References m_lastSequenceControl.

Referenced by ns3::MacRxMiddle::IsDuplicate().

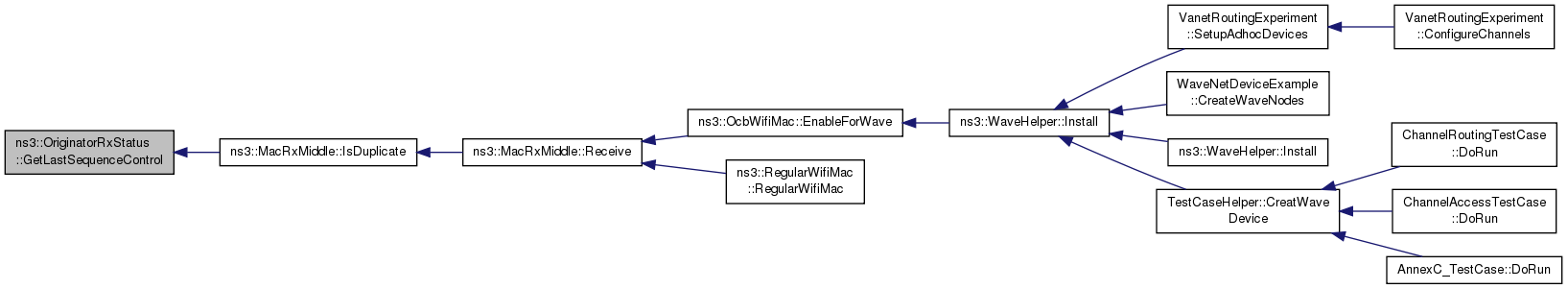

Here is the caller graph for this function:

bool ns3::OriginatorRxStatus::IsDeFragmenting ( void ) const

inline

Check if we are de-fragmenting packets.

Returns: true if we are de-fragmenting packets, false otherwise

Definition at line 68 of file mac-rx-middle.cc.

References m_defragmenting.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

bool ns3::OriginatorRxStatus::IsNextFragment ( uint16_t sequenceControl ) const

inline

Check if the sequence control (i.e.

fragment number) is in order.

Parameters

sequenceControl the raw sequence control

Returns: true if the sequence control is in order, false otherwise

Definition at line 127 of file mac-rx-middle.cc.

Referenced by ns3::MacRxMiddle::HandleFragments().

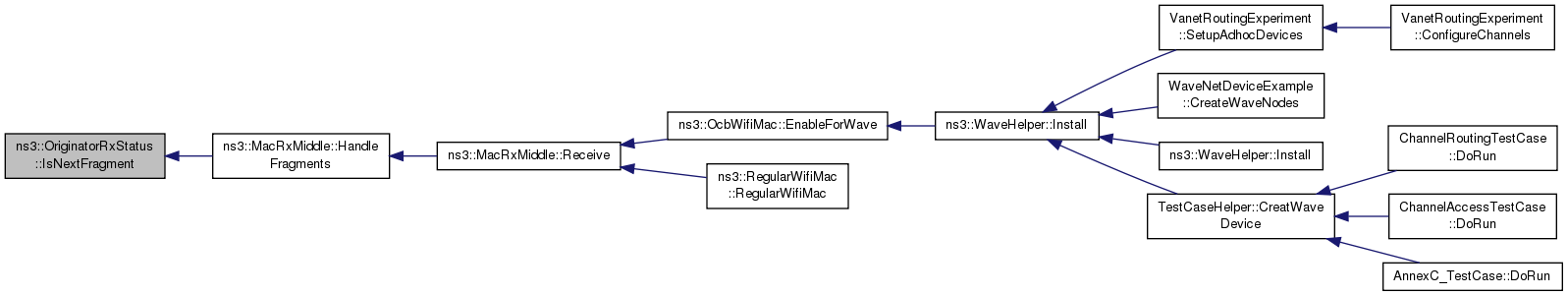

Here is the caller graph for this function:

void ns3::OriginatorRxStatus::SetSequenceControl ( uint16_t sequenceControl )

inline

Set the last sequence control we received.

Parameters

sequenceControl the last sequence control we received

Definition at line 153 of file mac-rx-middle.cc.

Referenced by ns3::MacRxMiddle::HandleFragments().

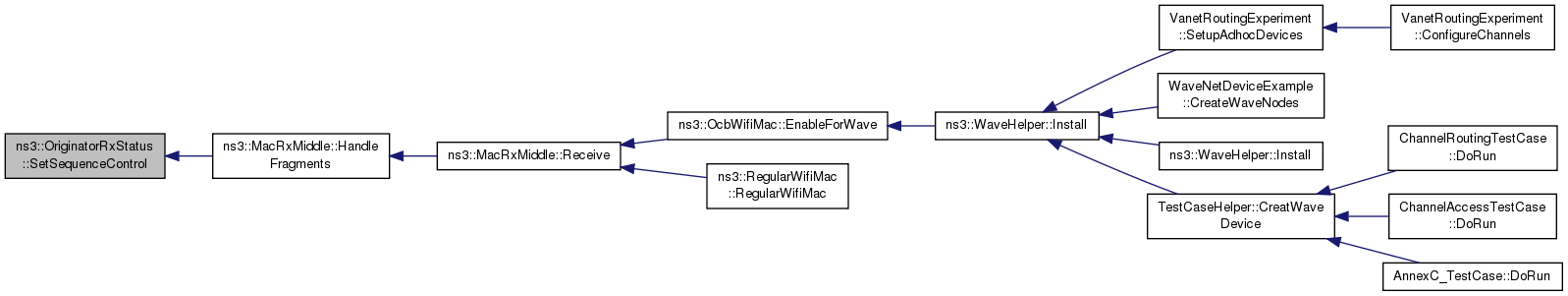

Here is the caller graph for this function:

Member Data Documentation

bool ns3::OriginatorRxStatus::m_defragmenting

private

flag to indicate whether we are defragmenting

Definition at line 46 of file mac-rx-middle.cc.

Referenced by IsDeFragmenting().

Fragments ns3::OriginatorRxStatus::m_fragments

private

fragments

Definition at line 48 of file mac-rx-middle.cc.

uint16_t ns3::OriginatorRxStatus::m_lastSequenceControl

private

last sequence control

Definition at line 47 of file mac-rx-middle.cc.

Referenced by GetLastSequenceControl().

The documentation for this class was generated from the following file:

src/wifi/model/mac-rx-middle.cc
