Abstract base class for packet Queues. More...

#include "queue.h"

Inheritance diagram for ns3::QueueBase:

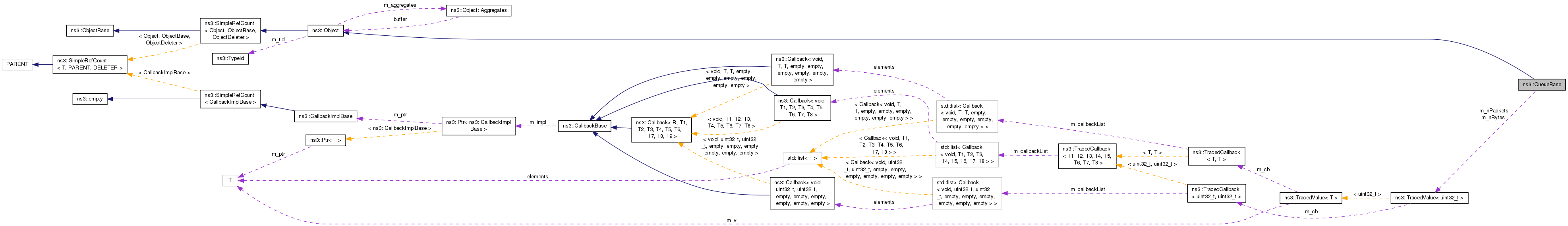

Collaboration diagram for ns3::QueueBase:

Public Types
enum	QueueMode { QUEUE_MODE_PACKETS, QUEUE_MODE_BYTES }
	Enumeration of the modes supported in the class. More...

Public Member Functions
	QueueBase ()

virtual	~QueueBase ()

uint32_t	GetMaxBytes (void) const

uint32_t	GetMaxPackets (void) const

QueueBase::QueueMode	GetMode (void) const
	Get the operating mode of this device. More...

uint32_t	GetNBytes (void) const

uint32_t	GetNPackets (void) const

uint32_t	GetTotalDroppedBytes (void) const

uint32_t	GetTotalDroppedBytesAfterDequeue (void) const

uint32_t	GetTotalDroppedBytesBeforeEnqueue (void) const

uint32_t	GetTotalDroppedPackets (void) const

uint32_t	GetTotalDroppedPacketsAfterDequeue (void) const

uint32_t	GetTotalDroppedPacketsBeforeEnqueue (void) const

uint32_t	GetTotalReceivedBytes (void) const

uint32_t	GetTotalReceivedPackets (void) const

bool	IsEmpty (void) const

void	ResetStatistics (void)
	Resets the counts for dropped packets, dropped bytes, received packets, and received bytes. More...

void	SetMaxBytes (uint32_t maxBytes)
	Set the maximum amount of bytes that can be stored in this queue. More...

void	SetMaxPackets (uint32_t maxPackets)
	Set the maximum amount of packets that can be stored in this queue. More...

void	SetMode (QueueBase::QueueMode mode)
	Set the operating mode of this device. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static void	AppendItemTypeIfNotPresent (std::string &typeId, const std::string &itemType)
	Append the item type to the provided type ID if the latter does not end with '>'. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_maxBytes
	max bytes in the queue More...

uint32_t	m_maxPackets
	max packets in the queue More...

QueueMode	m_mode
	queue mode (packets or bytes) More...

TracedValue< uint32_t >	m_nBytes
	Number of bytes in the queue. More...

TracedValue< uint32_t >	m_nPackets
	Number of packets in the queue. More...

uint32_t	m_nTotalDroppedBytes
	Total dropped bytes. More...

uint32_t	m_nTotalDroppedBytesAfterDequeue
	Total dropped bytes after dequeue. More...

uint32_t	m_nTotalDroppedBytesBeforeEnqueue
	Total dropped bytes before enqueue. More...

uint32_t	m_nTotalDroppedPackets
	Total dropped packets. More...

uint32_t	m_nTotalDroppedPacketsAfterDequeue
	Total dropped packets after dequeue. More...

uint32_t	m_nTotalDroppedPacketsBeforeEnqueue
	Total dropped packets before enqueue. More...

uint32_t	m_nTotalReceivedBytes
	Total received bytes. More...

uint32_t	m_nTotalReceivedPackets
	Total received packets. More...

Friends
template<typename Item >
class	Queue
	Friend class. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Abstract base class for packet Queues.

Introspection did not find any typical Config paths.

This class defines the subset of the base APIs for packet queues in the ns-3 system that is independent of the type of enqueued objects

Attributes

Mode: Whether to use bytes (see MaxBytes) or packets (see MaxPackets) as the maximum queue size metric.
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: QUEUE_MODE_PACKETS
- Flags: construct write read
MaxPackets: The maximum number of packets accepted by this queue.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read
MaxBytes: The maximum number of bytes accepted by this queue.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 6553500
- Flags: construct write read

TraceSources

PacketsInQueue: Number of packets currently stored in the queue
Callback signature: ns3::TracedValueCallback::Uint32
BytesInQueue: Number of bytes currently stored in the queue
Callback signature: ns3::TracedValueCallback::Uint32

Size of this type is 128 bytes (on a 64-bit architecture).

Definition at line 50 of file queue.h.

Constructor & Destructor Documentation

ns3::QueueBase::QueueBase ( )

Definition at line 69 of file queue.cc.

References NS_LOG_FUNCTION.

ns3::QueueBase::~QueueBase ( )

virtual

Definition at line 85 of file queue.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::QueueBase::AppendItemTypeIfNotPresent	(	std::string &	typeId,
		const std::string &	itemType
	)

static

Append the item type to the provided type ID if the latter does not end with '>'.

Parameters

typeId	the type ID
itemType	the item type

This method is meant to be invoked by helpers to save users from specifying the type of items stored in a queue. For instance, PointToPointHelper::SetQueue calls

QueueBase::AppendItemTypeIfNotPresent (type, "Packet");

where type specifies the queue type (e.g., "ns3::DropTailQueue"). This allows users to call SetQueue ("ns3::DropTailQueue") instead of SetQueue ("ns3::DropTailQueue<Packet>")

Definition at line 91 of file queue.cc.

Referenced by ns3::TrafficControlHelper::AddInternalQueues(), ns3::SimpleNetDeviceHelper::SetQueue(), ns3::CsmaHelper::SetQueue(), and ns3::PointToPointHelper::SetQueue().

Here is the caller graph for this function:

uint32_t ns3::QueueBase::GetMaxBytes ( void ) const

Returns: the maximum amount of bytes that can be stored in this queue

Definition at line 263 of file queue.cc.

References m_maxBytes, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::QueueBase::GetMaxPackets ( void ) const

Returns: the maximum amount of packets that can be stored in this queue

Definition at line 242 of file queue.cc.

References m_maxPackets, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

QueueBase::QueueMode ns3::QueueBase::GetMode ( void ) const

Get the operating mode of this device.

Returns: The operating mode of this device.

Definition at line 221 of file queue.cc.

References m_mode, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::QueueBase::GetNBytes ( void ) const

Returns: The number of bytes currently occupied by the packets in the Queue

Definition at line 116 of file queue.cc.

References m_nBytes, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Referenced by ns3::WifiMacQueue::GetNBytes().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::QueueBase::GetNPackets ( void ) const

Returns: The number of packets currently stored in the Queue

Definition at line 108 of file queue.cc.

References m_nPackets, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Referenced by ns3::WifiMacQueue::Enqueue(), ns3::WifiMacQueue::GetNPackets(), and ns3::WifiMacQueue::PushFront().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::QueueBase::GetTotalDroppedBytes ( void ) const

Returns: The total number of bytes dropped by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently

Definition at line 140 of file queue.cc.

References m_nTotalDroppedBytes, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

uint32_t ns3::QueueBase::GetTotalDroppedBytesAfterDequeue ( void ) const

Returns: The total number of bytes dropped after dequeue by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently

Definition at line 156 of file queue.cc.

References m_nTotalDroppedBytesAfterDequeue, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

uint32_t ns3::QueueBase::GetTotalDroppedBytesBeforeEnqueue ( void ) const

Returns: The total number of bytes dropped before enqueue by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently

Definition at line 148 of file queue.cc.

References m_nTotalDroppedBytesBeforeEnqueue, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

uint32_t ns3::QueueBase::GetTotalDroppedPackets ( void ) const

Returns: The total number of packets dropped by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently

Definition at line 164 of file queue.cc.

References m_nTotalDroppedPackets, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

uint32_t ns3::QueueBase::GetTotalDroppedPacketsAfterDequeue ( void ) const

Returns: The total number of packets dropped after dequeue by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently

Definition at line 180 of file queue.cc.

References m_nTotalDroppedPacketsAfterDequeue, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

uint32_t ns3::QueueBase::GetTotalDroppedPacketsBeforeEnqueue ( void ) const

Returns: The total number of packets dropped before enqueue by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently

Definition at line 172 of file queue.cc.

References m_nTotalDroppedPacketsBeforeEnqueue, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

uint32_t ns3::QueueBase::GetTotalReceivedBytes ( void ) const

Returns: The total number of bytes received by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently

Definition at line 124 of file queue.cc.

References m_nTotalReceivedBytes, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

uint32_t ns3::QueueBase::GetTotalReceivedPackets ( void ) const

Returns: The total number of packets received by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently

Definition at line 132 of file queue.cc.

References m_nTotalReceivedPackets, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

TypeId ns3::QueueBase::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 33 of file queue.cc.

References GetMaxBytes(), GetMaxPackets(), GetMode(), m_nBytes, m_nPackets, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), QUEUE_MODE_BYTES, QUEUE_MODE_PACKETS, SetMaxBytes(), SetMaxPackets(), SetMode(), and ns3::TypeId::SetParent().

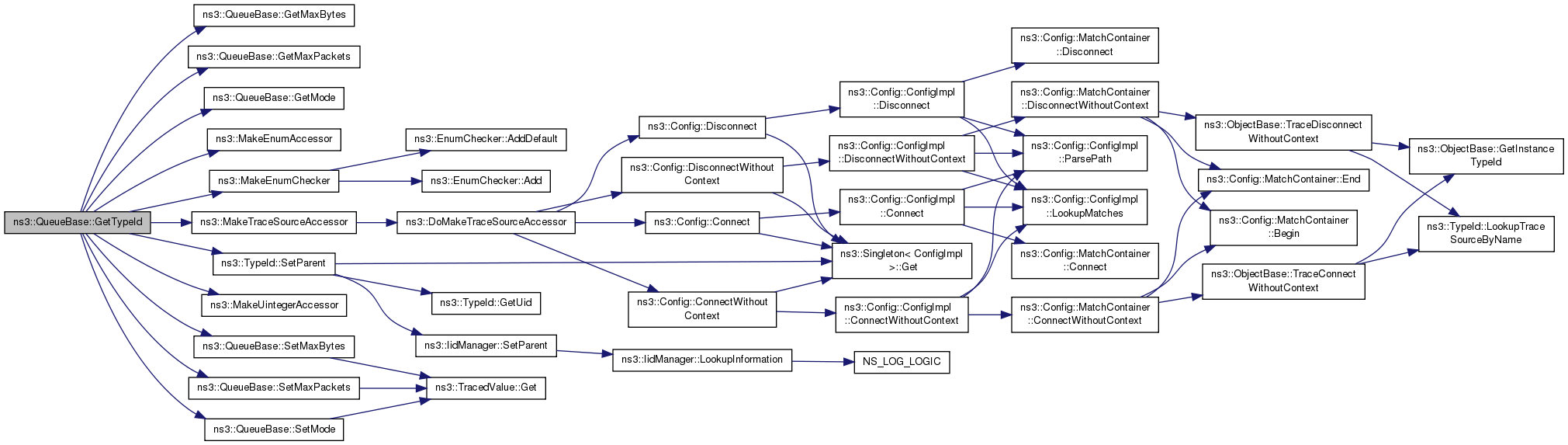

Here is the call graph for this function:

bool ns3::QueueBase::IsEmpty ( void ) const

Returns: true if the queue is empty; false otherwise

Definition at line 100 of file queue.cc.

References ns3::TracedValue< T >::Get(), m_nPackets, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

void ns3::QueueBase::ResetStatistics ( void )

Resets the counts for dropped packets, dropped bytes, received packets, and received bytes.

Definition at line 188 of file queue.cc.

References m_nTotalDroppedBytes, m_nTotalDroppedBytesAfterDequeue, m_nTotalDroppedBytesBeforeEnqueue, m_nTotalDroppedPackets, m_nTotalDroppedPacketsAfterDequeue, m_nTotalDroppedPacketsBeforeEnqueue, m_nTotalReceivedBytes, m_nTotalReceivedPackets, and NS_LOG_FUNCTION.

void ns3::QueueBase::SetMaxBytes ( uint32_t maxBytes )

Set the maximum amount of bytes that can be stored in this queue.

Parameters

maxBytes amount of bytes

Definition at line 249 of file queue.cc.

References ns3::TracedValue< T >::Get(), m_maxBytes, m_mode, m_nBytes, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, and QUEUE_MODE_BYTES.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QueueBase::SetMaxPackets ( uint32_t maxPackets )

Set the maximum amount of packets that can be stored in this queue.

Parameters

maxPackets amount of packets

Definition at line 228 of file queue.cc.

References ns3::TracedValue< T >::Get(), m_maxPackets, m_mode, m_nPackets, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, and QUEUE_MODE_PACKETS.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QueueBase::SetMode ( QueueBase::QueueMode mode )

Set the operating mode of this device.

Parameters

mode	The operating mode of this device.

Definition at line 202 of file queue.cc.

References ns3::TracedValue< T >::Get(), m_mode, m_nBytes, m_nPackets, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, QUEUE_MODE_BYTES, and QUEUE_MODE_PACKETS.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

template<typename Item >

friend class Queue

friend

Friend class.

Definition at line 250 of file queue.h.

Member Data Documentation

uint32_t ns3::QueueBase::m_maxBytes

private

max bytes in the queue

Definition at line 245 of file queue.h.

Referenced by GetMaxBytes(), and SetMaxBytes().

uint32_t ns3::QueueBase::m_maxPackets

private

max packets in the queue

Definition at line 244 of file queue.h.

Referenced by GetMaxPackets(), and SetMaxPackets().

QueueMode ns3::QueueBase::m_mode

private

queue mode (packets or bytes)

Definition at line 246 of file queue.h.

Referenced by GetMode(), SetMaxBytes(), SetMaxPackets(), and SetMode().

TracedValue<uint32_t> ns3::QueueBase::m_nBytes

private

Number of bytes in the queue.

Definition at line 233 of file queue.h.

Referenced by GetNBytes(), GetTypeId(), SetMaxBytes(), and SetMode().

TracedValue<uint32_t> ns3::QueueBase::m_nPackets

private

Number of packets in the queue.

Definition at line 235 of file queue.h.

Referenced by GetNPackets(), GetTypeId(), IsEmpty(), SetMaxPackets(), and SetMode().

uint32_t ns3::QueueBase::m_nTotalDroppedBytes

private

Total dropped bytes.

Definition at line 237 of file queue.h.

Referenced by GetTotalDroppedBytes(), and ResetStatistics().

uint32_t ns3::QueueBase::m_nTotalDroppedBytesAfterDequeue

private

Total dropped bytes after dequeue.

Definition at line 239 of file queue.h.

Referenced by GetTotalDroppedBytesAfterDequeue(), and ResetStatistics().

uint32_t ns3::QueueBase::m_nTotalDroppedBytesBeforeEnqueue

private

Total dropped bytes before enqueue.

Definition at line 238 of file queue.h.

Referenced by GetTotalDroppedBytesBeforeEnqueue(), and ResetStatistics().

uint32_t ns3::QueueBase::m_nTotalDroppedPackets

private

Total dropped packets.

Definition at line 240 of file queue.h.

Referenced by GetTotalDroppedPackets(), and ResetStatistics().

uint32_t ns3::QueueBase::m_nTotalDroppedPacketsAfterDequeue

private

Total dropped packets after dequeue.

Definition at line 242 of file queue.h.

Referenced by GetTotalDroppedPacketsAfterDequeue(), and ResetStatistics().

uint32_t ns3::QueueBase::m_nTotalDroppedPacketsBeforeEnqueue

private

Total dropped packets before enqueue.

Definition at line 241 of file queue.h.

Referenced by GetTotalDroppedPacketsBeforeEnqueue(), and ResetStatistics().

uint32_t ns3::QueueBase::m_nTotalReceivedBytes

private

Total received bytes.

Definition at line 234 of file queue.h.

Referenced by GetTotalReceivedBytes(), and ResetStatistics().

uint32_t ns3::QueueBase::m_nTotalReceivedPackets

private

Total received packets.

Definition at line 236 of file queue.h.

Referenced by GetTotalReceivedPackets(), and ResetStatistics().

The documentation for this class was generated from the following files:

src/network/utils/queue.h
src/network/utils/queue.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
